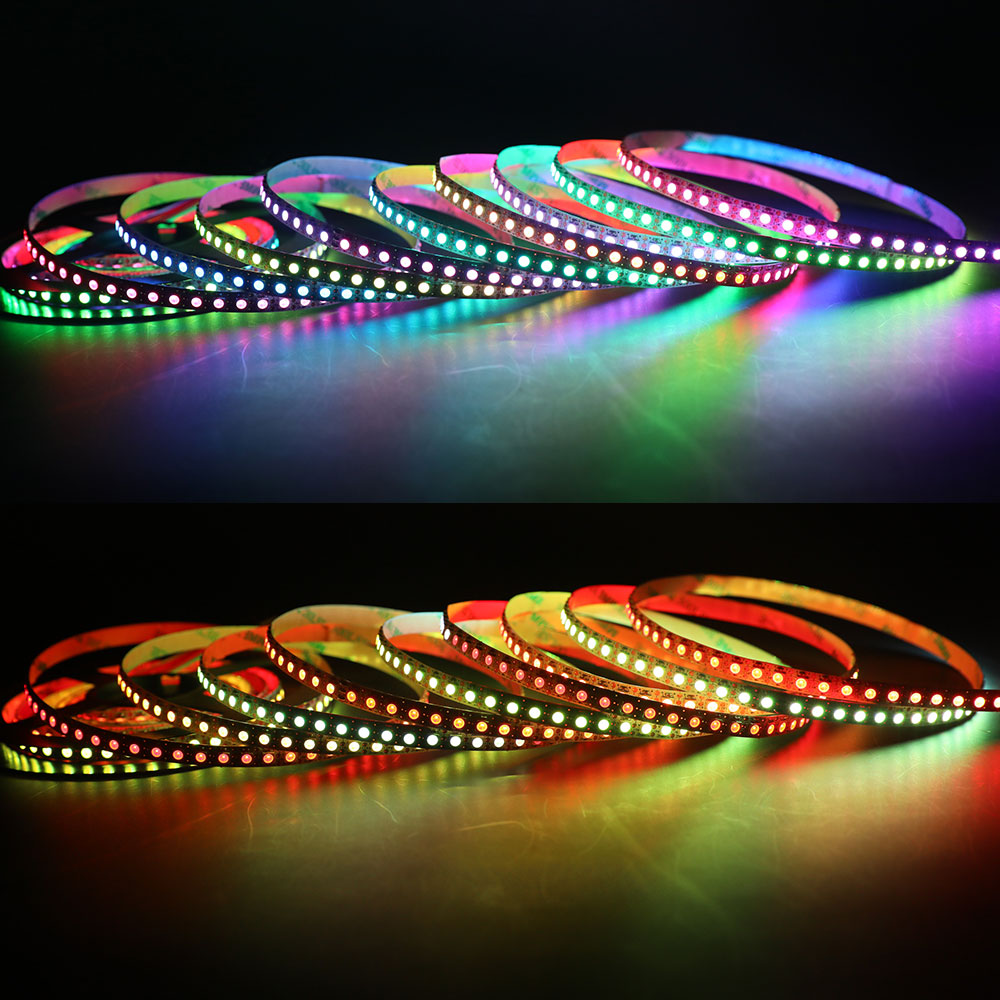

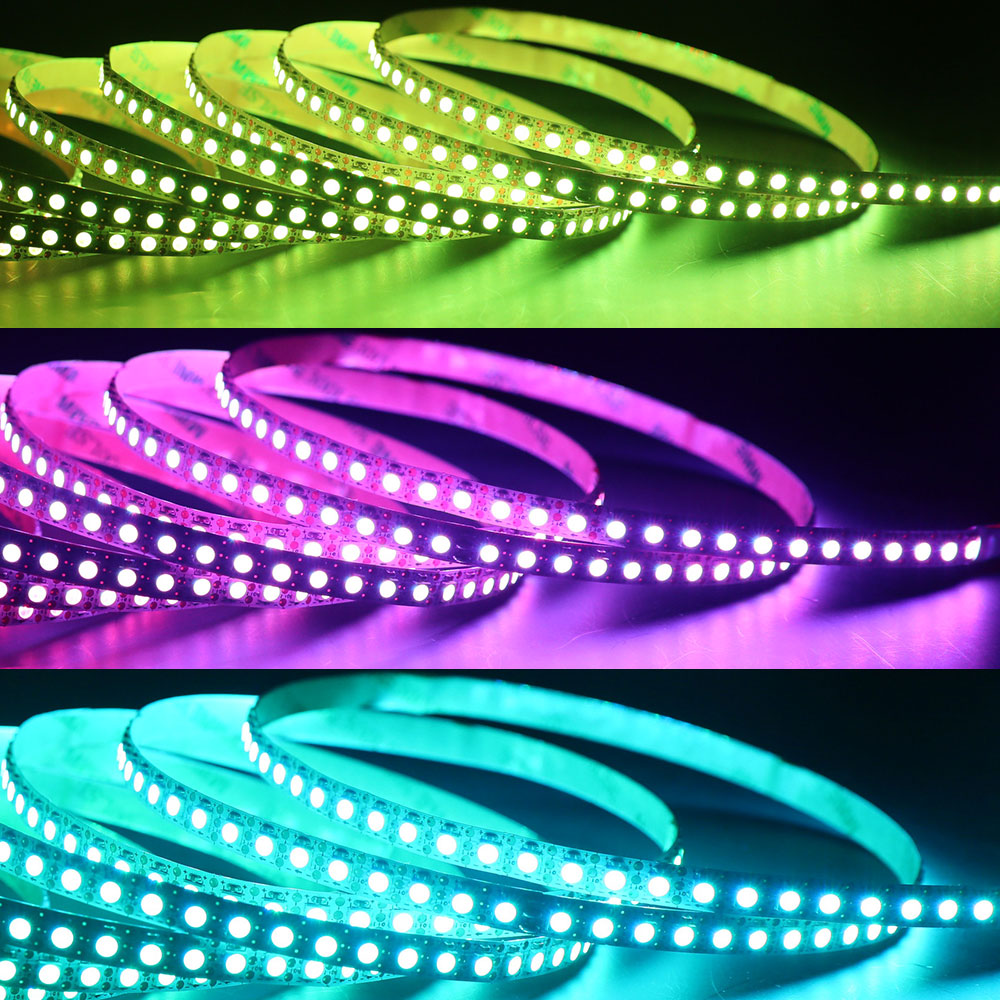

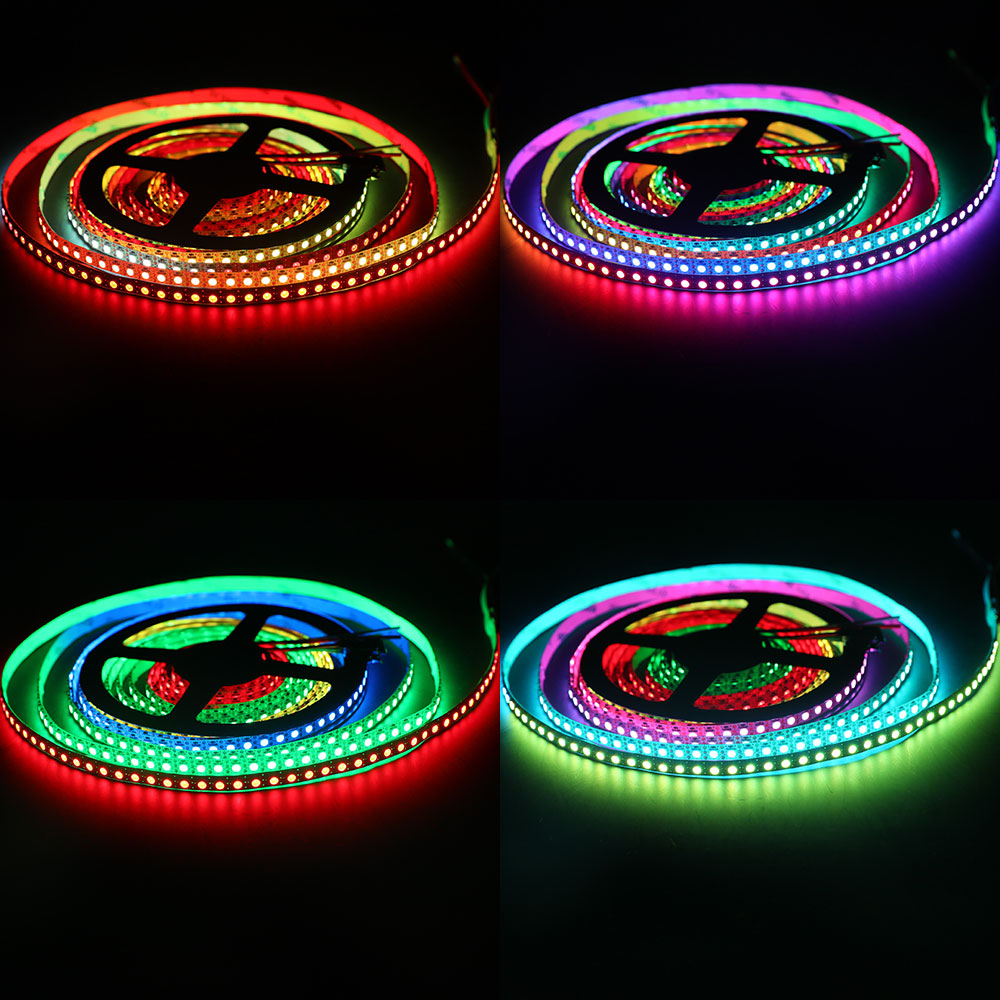

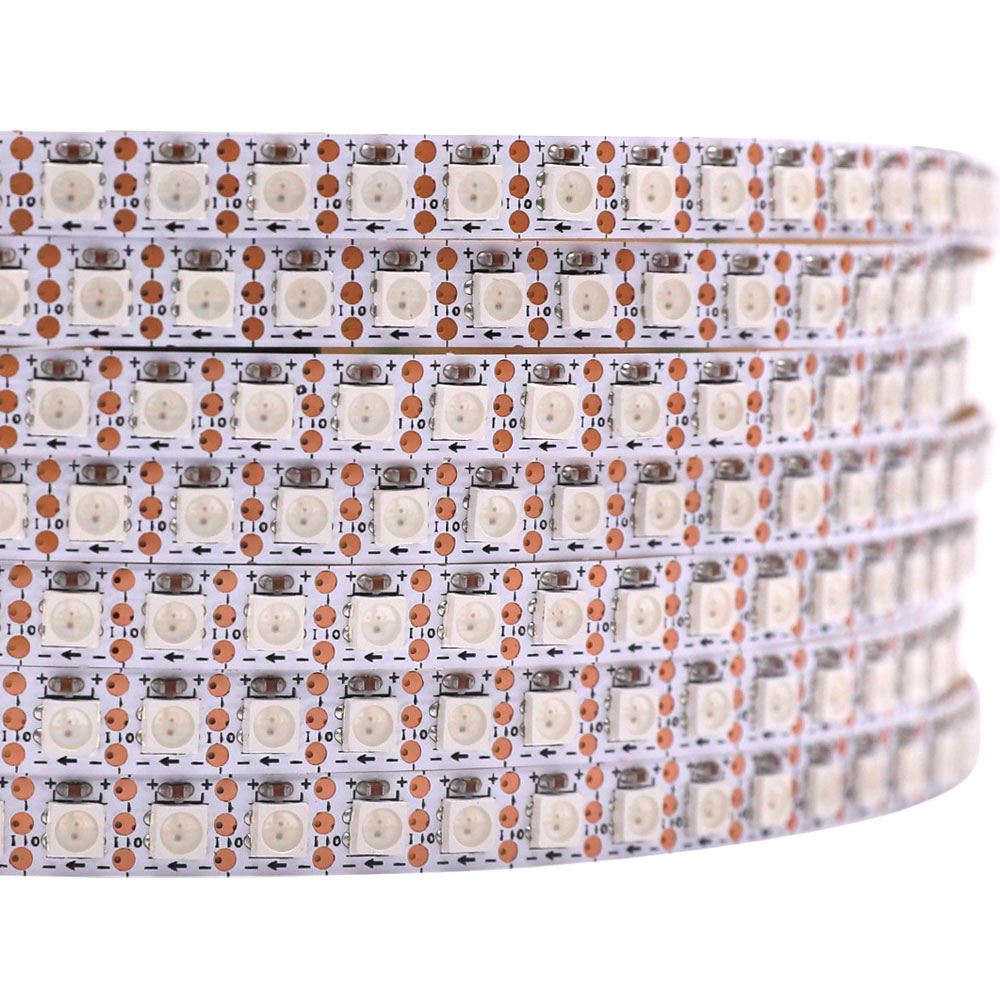

SK6812 RGB 3535SMD 144LEDS/M DC5V 8MM-Wide Digital Intelligent Addressable LED Strip Lights - 1m/3.28ft per roll
Check this highest density SK6812mini LED strip for your DIY projects.

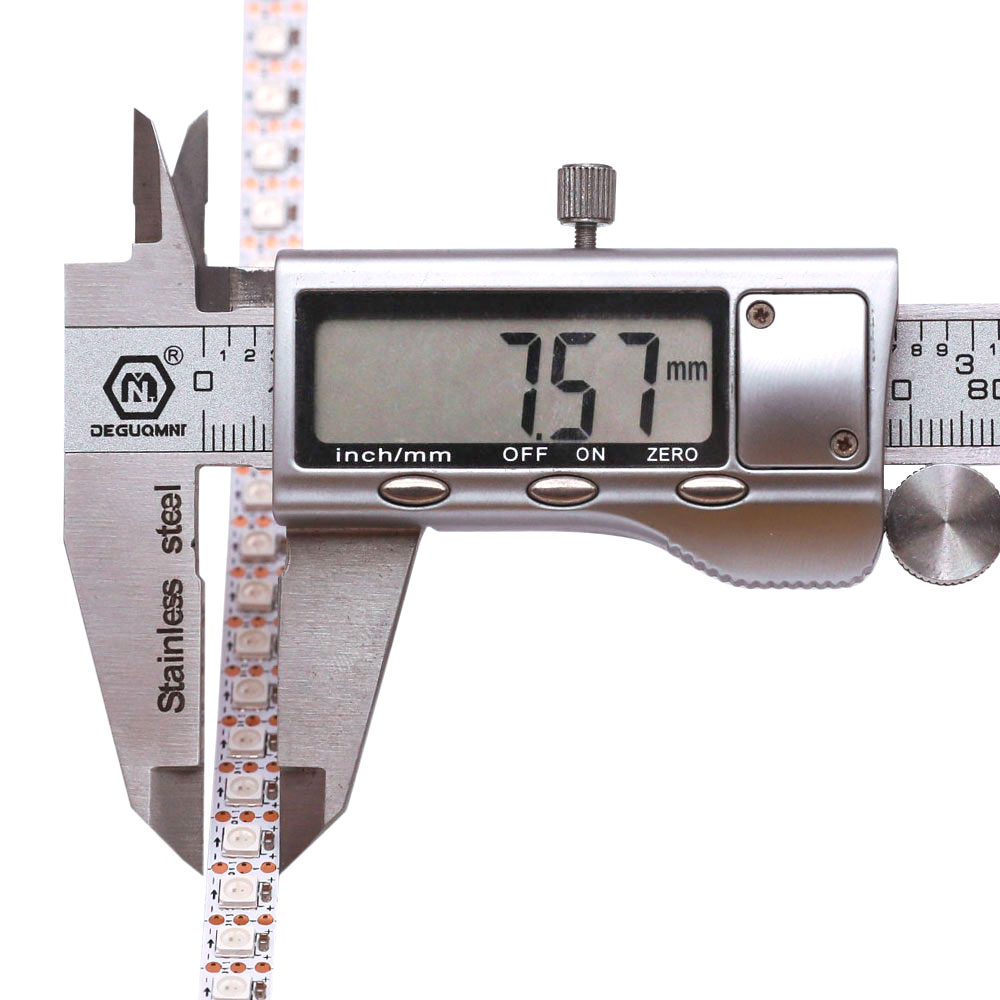

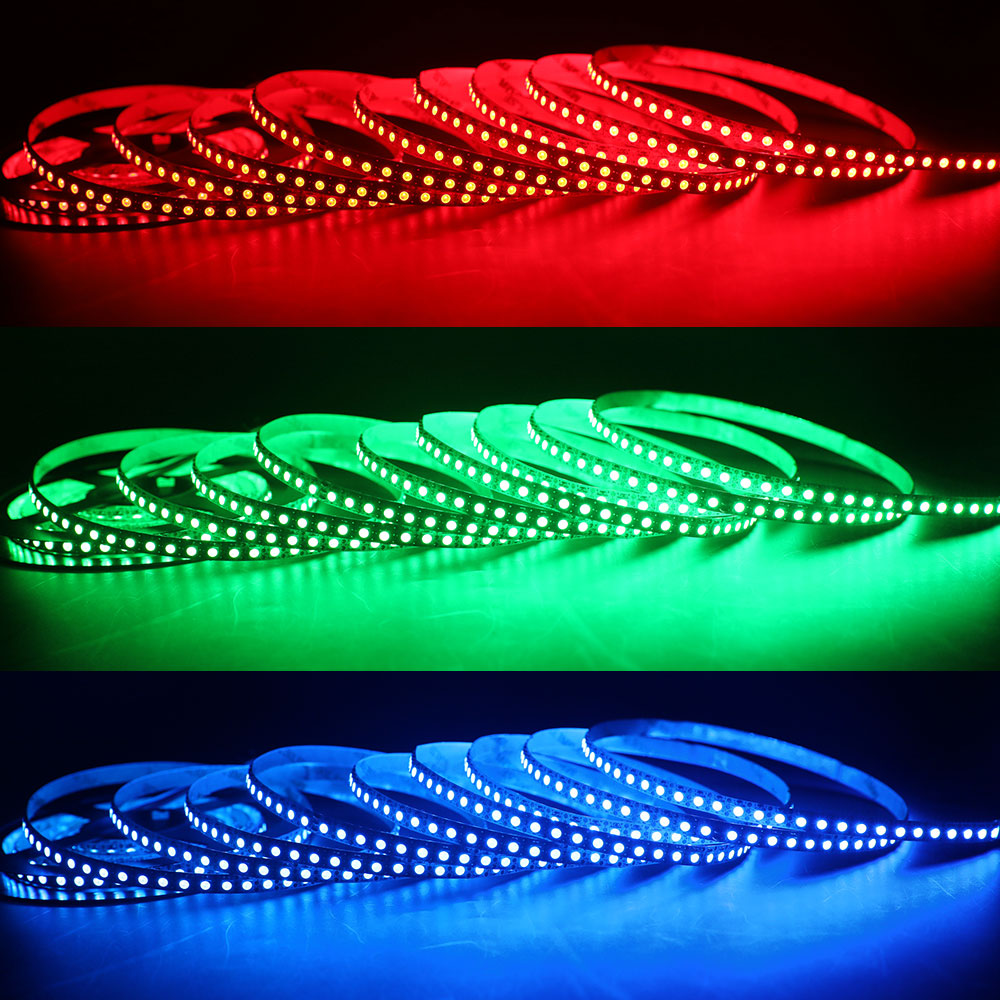

1. There are 144 Addressable RGB LEDs per meter, and 8mm wide for 144LEDs/meter, DC5V input, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
2. The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
3. Only 1 digital output pin is required to send data down.
4. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
5. The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.

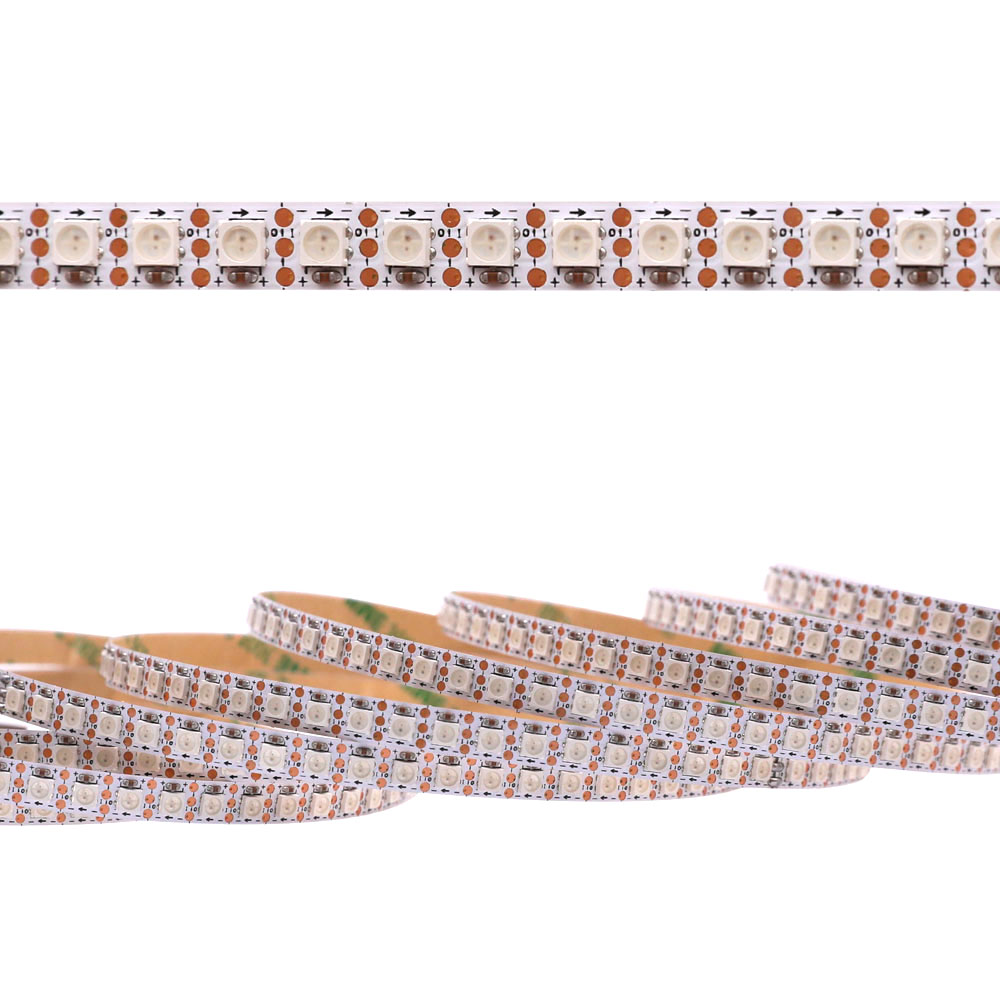

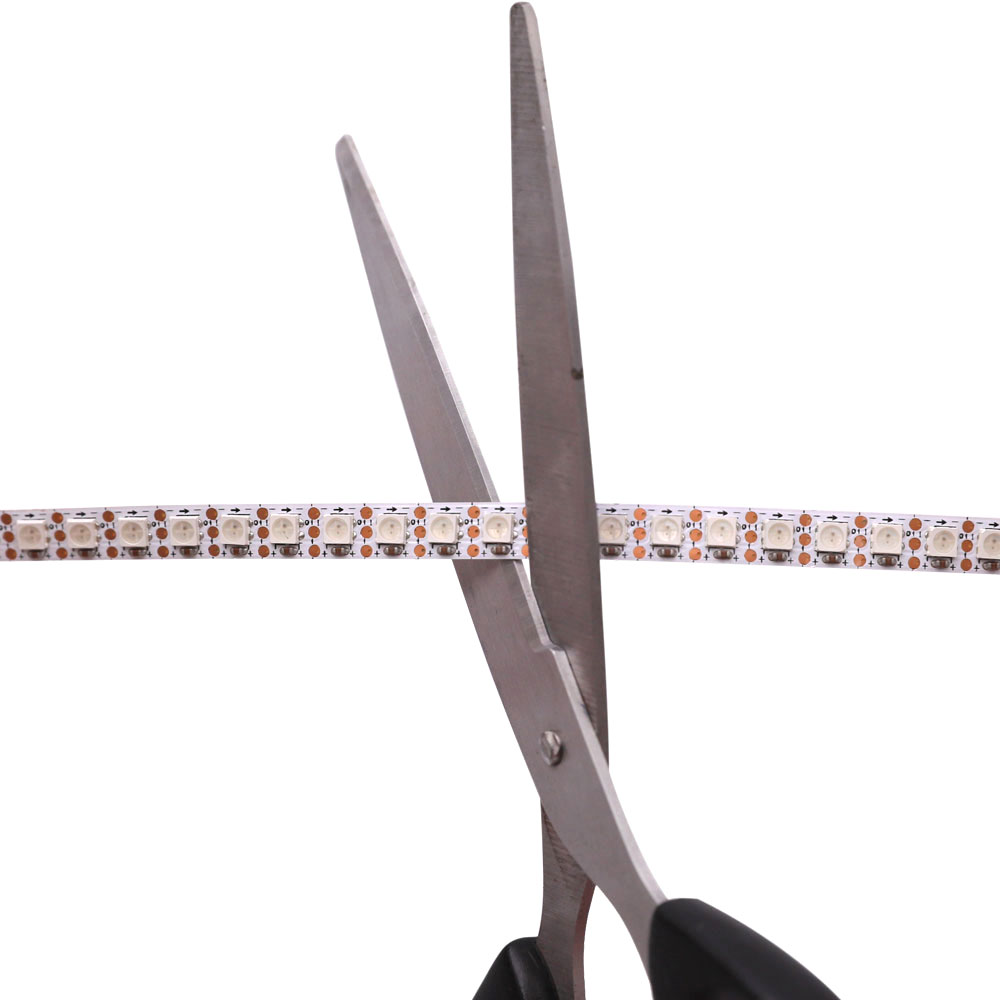

6. This SK6812 RGB high density led strip light comes with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. You can connect multiple the SK6812 led strips together to make it longer. You need a 5V power supply to power this 5m led strip at both ends. Inject power at one end of the 16.4ft strip light, it will have a obvious led voltage drop (color difference).
Light strips advantages

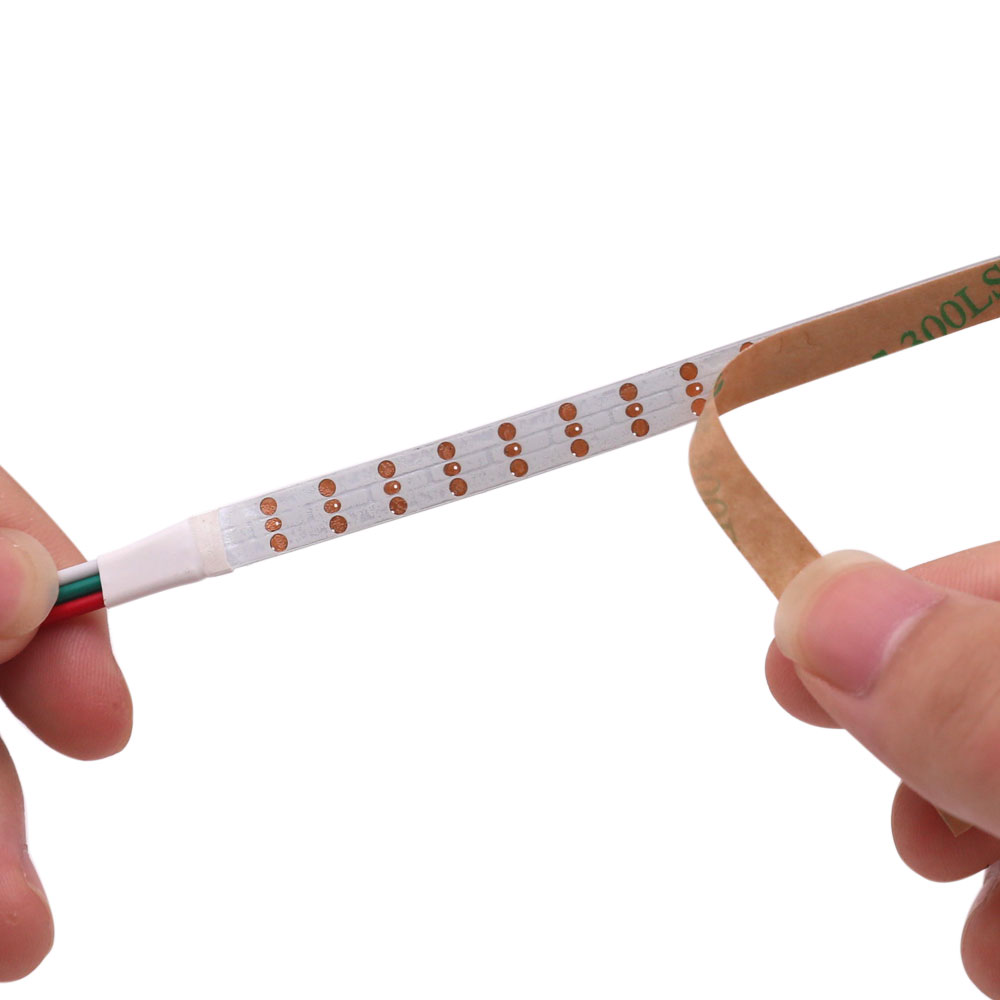

With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
3-pin single signal SK6812 RGB light strip wiring diagram:
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
