Product Information
Key Features
4-Zone Independent Management
Group and control up to four distinct lighting zones separately or synchronize them for uniform effects, all from one remote.
2.4GHz RF Wireless Control
Experience reliable, long-range (30m/98ft) communication that passes through walls and obstacles, eliminating the need for line-of-sight.
Broad Voltage Compatibility
Flexibly operates with both DC12V and DC24V RGB LED Strip Lights, accommodating most standard installations.
Robust Power Handling
With a total maximum output of 10A (up to 6A per channel), this controller can power substantial lengths of LED strips.
Simple Pairing & Syncing
Easily link the controller to any compatible MiBoxer 4-zone remote. Multiple controllers in the same zone will auto-synchronize modes.
Stable and Synchronized Control
- Employs a robust 2.4GHz frequency for reliable wireless communication that is less prone to interference than older IR systems.
- Features an intelligent auto-synchronization function. When multiple controllers are paired to the same remote zone, they will perfectly sync their dynamic color-changing modes.
- The controller's auto-transmitting technology allows it to relay signals to other controllers within 30m, effectively extending the remote control range for large-scale installations.
Product Specifications
| Parameter | Details |
|---|---|
| Model | FUT037 |
| Input Voltage | DC12V-24V |
| Output Current | Max. 6A / Channel |
| Total Output | Max. 10A |
| RF Technology | 2.4GHz |
| Control Distance | 30m (approx. 98ft) |
| Connection Type | Common Anode |
| Applicable Lights | RGB LED Strip Lights (4-pin) |
| Dimensions (L*W*H) | 85 x 45 x 22.5 mm |
| Working Temperature | -20~60°C |
Application Scenarios
How to Control & Use This Controller
- Power Connection: Switch off the main power. Connect your DC12V-24V power supply to the controller's INPUT terminals (V+ and V-), ensuring correct polarity.
- Strip Wiring: Connect your 4-pin RGB LED Strip Lights to the OUTPUT terminals. The common anode (V+) wire connects to 'V+', and the Red, Green, and Blue wires connect to the corresponding 'R', 'G', and 'B' terminals.
- Remote Pairing: Within 3 seconds of powering on the controller, press the 'I' (ON) button of your desired zone (1-4) on a compatible 4-zone remote. The light strip will flash three times to confirm successful linking.
- Unlinking: To unlink, power on the controller. Within 3 seconds, press the 'I' (ON) button of the linked zone five times quickly. The light strip will flash ten times to confirm unlinking.
- Zone Control: Once paired, select a zone on the remote to control the color, brightness, and dynamic modes of all strips linked to that zone.
- Always use a power supply with a voltage that matches your LED strip (DC12V or DC24V).
- Do not exceed the controller's maximum load of 6A per channel and 10A total output. For longer runs, a signal amplifier may be needed.
- Verify all wiring connections are secure and polarities are correct before applying power.
- This controller is for indoor use only and should be installed in a dry, well-ventilated area.

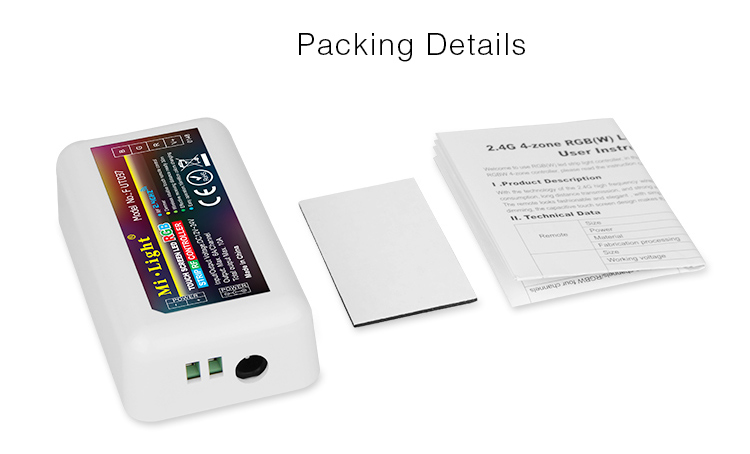

What's in the Box
- ✓1 x FUT037 RGB LED Strip Controller
- ✓1 x User Manual
⇩ Downloads & Documents
PDFFUT037
Frequently Asked Questions

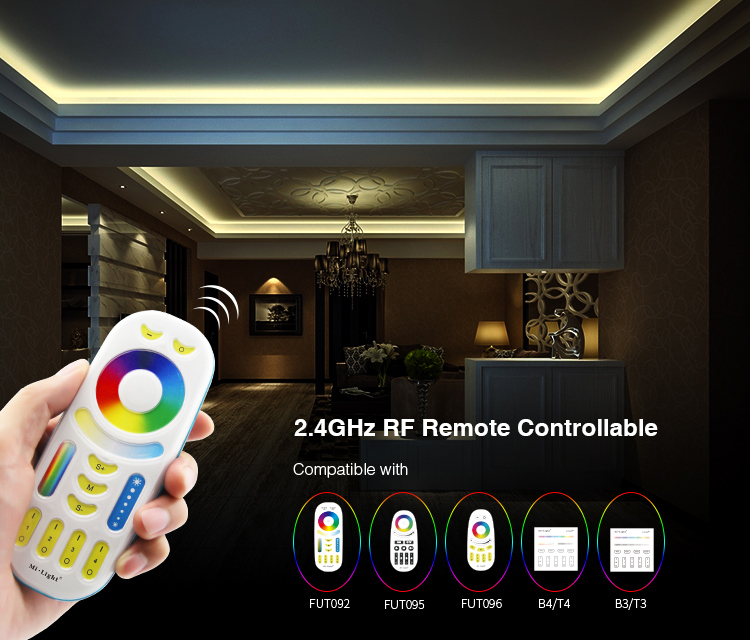

Q: What kind of remote works with the FUT037 controller?
A:This controller is compatible with MiBoxer and Mi-Light 2.4GHz 4-zone remotes, such as the FUT092 or FUT096 models. It is not compatible with IR, Bluetooth, or WiFi-only remotes without a gateway.
Q: Can I control more than four LED strips with one remote?
A:Yes. You can pair an unlimited number of FUT037 controllers to a single zone on the remote. All controllers in that zone will then respond to commands simultaneously.
Q: Is this controller waterproof?
A:No, the FUT037 is designed for indoor use only and has no IP rating. For outdoor or wet applications, you would need a dedicated waterproof controller.
Q: Can this controller work with RGBW or RGBCCT LED strips?
A:No, the FUT037 is specifically designed for 3-channel, 4-pin RGB LED strips. It does not have the necessary output channels to control the white or CCT channels of RGBW or RGBCCT strips.
Q: Do I need a WiFi hub to use this controller?
A:No, you do not need a hub for direct remote control. The FUT037 communicates via 2.4GHz RF directly with a compatible handheld or wall panel remote. To add app or voice control, you would need to purchase a separate MiBoxer WiFi Gateway (like the WL-Box1).
