Product Information
Take command of your multi-zone lighting with the MiBoxer FUT096, a sleek and intuitive 4-zone touch RF remote designed specifically for RGBW LED systems. This powerful rf wireless remote replaces clutter with a single, elegant controller, allowing you to manage up to four independent areas of lighting from one device. Its highly sensitive touch panel and color wheel provide seamless control over color, brightness, and dynamic modes. Utilizing a stable 2.4GHz frequency, the FUT096 delivers reliable performance over a 30-meter range, operating through walls and obstacles without needing direct line-of-sight. It's the ideal remote control light switch upgrade for sophisticated home, retail, and hospitality environments seeking precise and flexible control over their RGBW LED strips and fixtures.
Key Features
4-Zone Independent Control
Individually manage lighting settings for four separate groups of RGBW lights to create unique ambiances in different areas.
Intuitive Touch Interface
Features a high-precision touch color wheel for fluid color selection and a responsive slider for smooth brightness adjustments.
Reliable 2.4GHz RF Technology
Ensures a stable, non-directional connection with a control distance of up to 30 meters (98 feet), even through walls.
Dedicated RGBW Control
Perfectly optimized for 4-channel RGBW lighting, allowing you to mix vibrant colors or select a pure white light.
Dynamic Lighting Modes
Cycle through multiple pre-programmed dynamic effects like fade and strobe, with adjustable speed for custom light shows.
Ultra-Low Power Consumption
Engineered for energy efficiency with a standby power consumption of just 20uA, maximizing battery life.
Technical Highlights
- Adopts GFSK (Gaussian Frequency-Shift Keying) modulation for strong anti-interference capabilities and stable data transmission.
- 6dBm transmitting power provides a robust signal for reliable long-range communication with paired controllers.
- One-to-many and many-to-one control allows for flexible system configurations, such as multiple remotes controlling one zone.
Product Specifications
| Parameter | Details |
|---|---|
| Model | FUT096 |
| Input Voltage | 3V (2xAAA Batteries) |
| Transmission Technology | 2.4GHz RF Wireless |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 20uA |
| Control Distance | 30m (approx. 98 ft) |
| Control Type | 4-Zone Group Control |

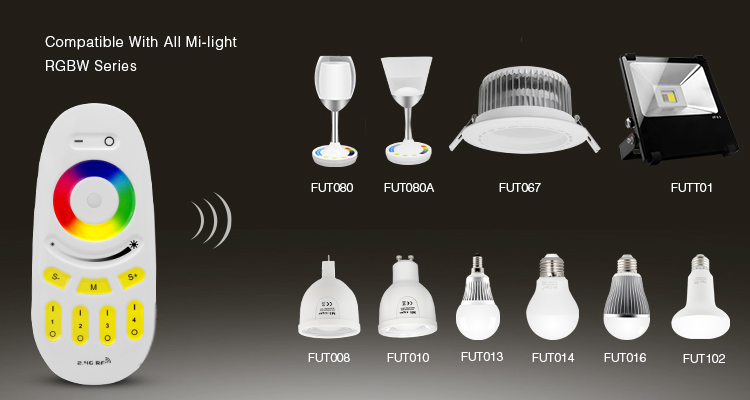

| Compatibility | MiBoxer / Mi-Light Series RGBW Controllers |
| Dimensions (L*W*H) | 120 x 52.5 x 21 mm |
Application Scenarios
How to Control & Use This Controller

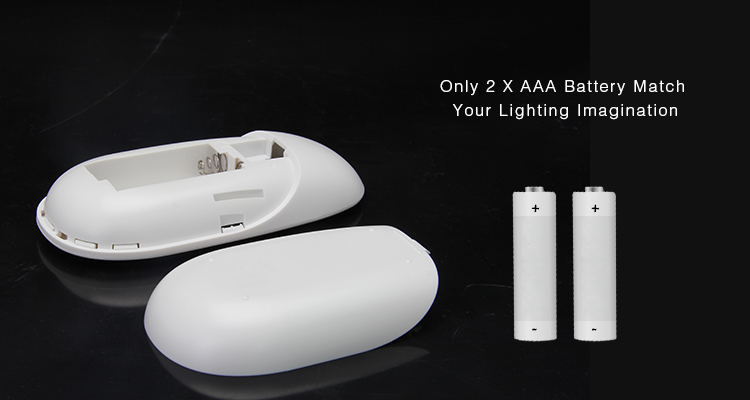

- Install Batteries: Open the back cover and insert two AAA batteries (not included), ensuring correct polarity.
- Link to Controller: Within 3 seconds of powering on your MiBoxer RGBW light or controller, press the 'I' (ON) button for your desired zone (1-4) once on the FUT096 remote. The light will flash 3 times to confirm a successful link.

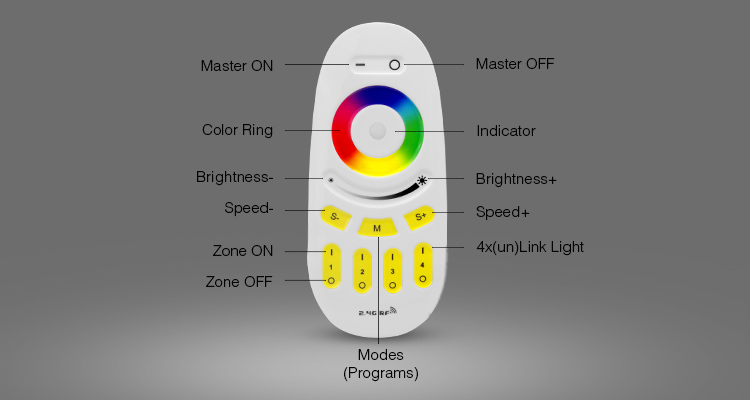

- Select a Zone: Press the 'I' (ON) button for the zone you wish to control. The indicator light on the remote will confirm your selection.
- Adjust Lighting: Use the touch color wheel to select a color. Use the brightness slider to dim or brighten the lights. Press the 'M' button to cycle through dynamic modes.
- Unlink from Controller: Within 3 seconds of powering on the light/controller, press the 'I' (ON) button for the linked zone 5 times quickly. The light will flash 10 times to confirm it has been unlinked.
- This remote only controls compatible MiBoxer/Mi-Light series RGBW controllers and lights; it does not connect directly to an LED strip.
- Batteries are not included with the remote.
- Ensure the receiver or controller you are pairing is specifically an RGBW model for full functionality.
- For detailed pairing instructions, please refer to the user manual for your specific MiBoxer LED controller, available in the Downloads section.
What's in the Box
- ✓1 x FUT096 4-Zone Touch RF RGBW Remote
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What types of lights can this RF remote control?
A:The FUT096 is designed specifically for 4-channel RGBW LED strips and fixtures when they are connected to a compatible MiBoxer/Mi-Light receiver.
Q: What is the difference between the FUT096 and the FUT095 remote?
A:The primary difference is the interface. The FUT096 features a modern, full-touch panel for control, while the FUT095 uses physical buttons. Their core 4-zone RGBW functionality is similar.
Q: Can I control more than four lights with this remote?
A:Yes. You can link an unlimited number of compatible RGBW controllers to a single zone. All lights linked to that zone will respond in perfect synchronization.
Q: Does this remote require a direct line of sight to the lights?
A:No. It uses 2.4GHz RF (Radio Frequency) technology, which can travel through walls and other obstacles within its 30-meter range.
Q: Is this remote compatible with RGB+CCT or single color LED strips?
A:This remote is optimized for RGBW (4-channel) strips. While it might partially function with other strip types, you will not have access to their full features, such as color temperature control on an RGB+CCT strip. We recommend using the correct remote for your strip type.
