Product Information

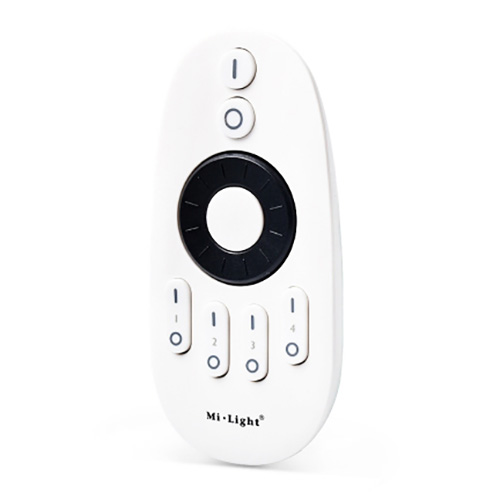

Gain effortless and precise control over your single-color LED lighting with the MiBoxer FUT006 4-Zone RF Remote. This handheld remote stands out with its highly intuitive rotating wheel, allowing you to achieve smooth, step-less dimming from 100% down to 1%. It's the perfect solution for creating the ideal ambiance in any room. Built on a stable 2.4GHz RF wireless remote platform, the FUT006 provides reliable control over a 30-meter range, allowing you to manage up to four independent lighting zones from a single, comfortable device. Whether you're adjusting under-cabinet lights, cove lighting, or accent pieces, this remote control light switch simplifies complex lighting schemes into a simple, tactile experience. It's an essential component for any multi-zone MiBoxer LED Light system.
Key Features

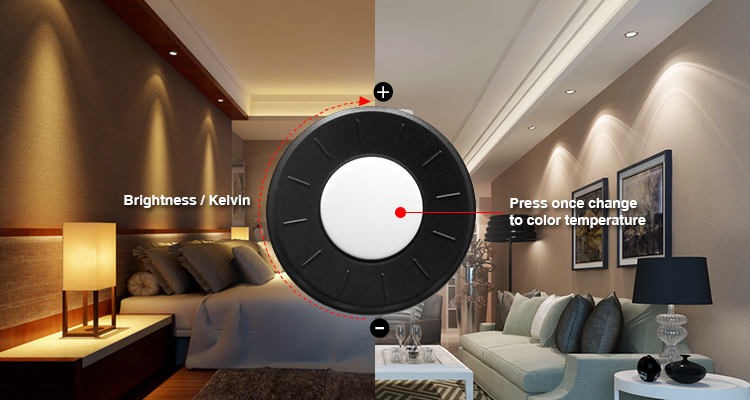

Intuitive Rotating Wheel
Experience ultra-smooth, precise brightness adjustments with the tactile central rotating wheel for seamless dimming.
4-Zone Independent Control
Manage lighting in up to four separate areas or groups of lights independently from a single remote.
Long-Range 2.4GHz RF
Utilizes advanced GFSK modulation for a stable, responsive connection with a control distance of up to 30 meters (98 feet).
Simple Pairing Process
Quickly and easily link the remote to any compatible MiBoxer 2.4G series single-color controllers.
Energy-Efficient Design
Extremely low standby power consumption of just 20uA ensures a long and reliable battery life.
Advanced RF Technology
- 2.4GHz Global Frequency: Operates on the universal 2.4GHz ISM band, ensuring wide compatibility and minimal interference.
- GFSK Modulation: Gaussian Frequency-Shift Keying provides robust anti-interference capabilities for a stable and reliable control signal.
- Low Power Consumption: Engineered for efficiency, with a transmitting power of 6dBm and ultra-low standby usage to maximize battery life.
Product Specifications
| Parameter | Details |
|---|---|
| Model No. | FUT006 |
| Voltage | 3V (2 x AAA Batteries) |
| Transmission Frequency | 2.4GHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 20uA |
| Control Distance | 30m |
| Control Type | Single Color Brightness Dimming |
| Number of Zones | 4 |
| Size | 110.5mm x 53mm x 22mm |

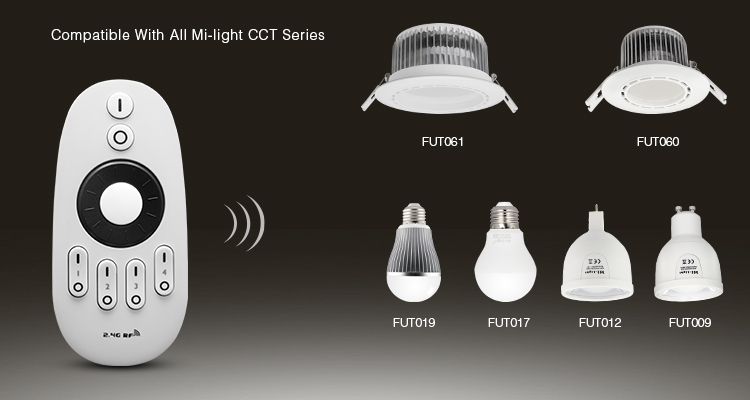

| Compatibility | MiBoxer / Mi-Light 2.4G Series Single Color Controllers |
Ideal Lighting Control For Any Space
How to Control & Use This Controller

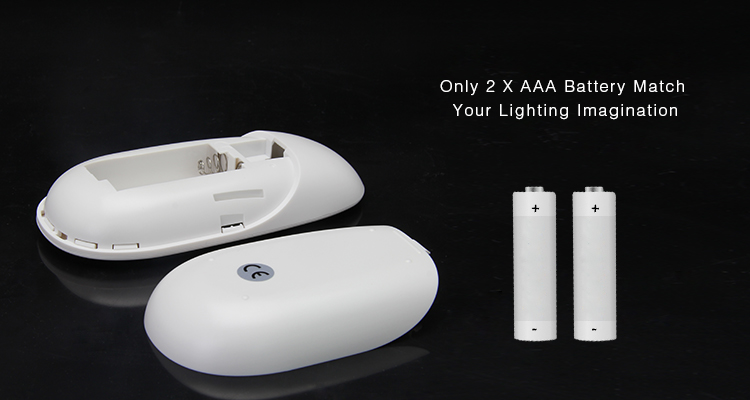

- 1. Install Batteries: Open the rear cover and insert two AAA batteries (not included), ensuring correct polarity.
- 2. Pair with Controller: Power on your MiBoxer single-color LED controller. Within 3 seconds, press the 'I' (ON) button for your desired zone (1-4) on the remote. The connected lights will flash 3 times to confirm a successful link.
- 3. Assign Multiple Zones: Repeat the pairing process for each additional controller you want to assign to a different zone. You can link an unlimited number of controllers to each of the four zones.

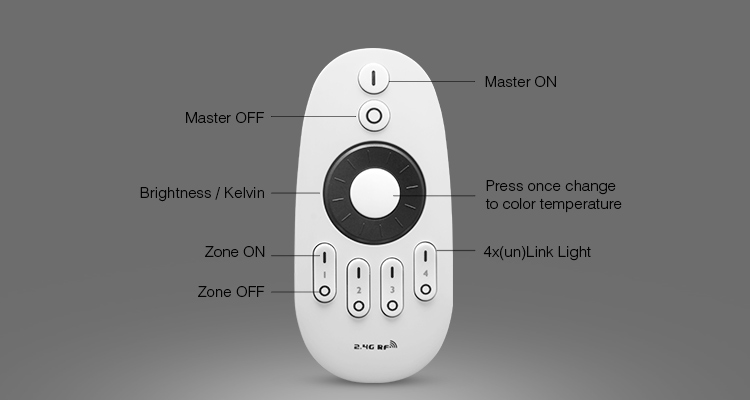

- 4. Control Your Lights: Select a zone by pressing its 'I' button. Use the central rotating wheel for smooth dimming. Use the zone-specific 'O' button to turn it off. The master 'I' and 'O' buttons at the top control all linked zones simultaneously.
- 5. Unlink a Controller: Power on the controller you wish to unlink. Within 3 seconds, press the corresponding zone 'I' button five times quickly. The lights will flash 10 times to confirm it has been unlinked.
- This remote requires a compatible 2.4GHz MiBoxer single-color LED controller to operate; it does not connect directly to LED strips.
- Ensure the batteries are installed correctly. Remove batteries if the remote will not be used for an extended period.
- The 30m control distance is measured in an open area. Physical barriers like walls may reduce the effective range.

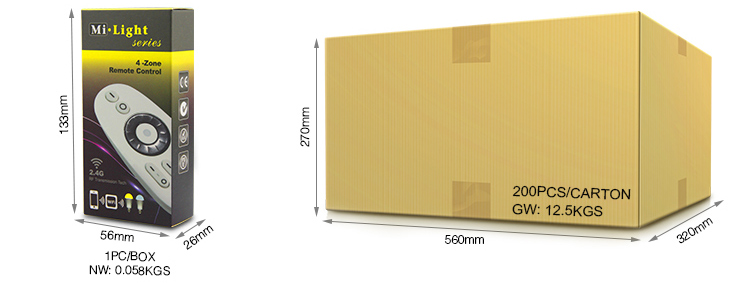

What's in the Box
- ✓1 x FUT006 4-Zone RF Rotating Wheel Remote Control
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What kind of LED lights is the FUT006 remote for?
A:This remote is specifically designed to control the brightness (dimming) of single-color LED strip lights. It is not compatible with CCT, RGB, or RGBW strips.
Q: Do I need anything else to use this remote?
A:Yes. This remote is a transmitter and must be paired with a compatible MiBoxer 2.4GHz single-color LED controller (receiver). The controller is then wired between your power supply and your LED strips.
Q: What does '4-Zone' control mean?
A:It allows you to group your lights into four separate, independently controlled zones. For example, Zone 1 can be your kitchen lights and Zone 2 can be your living room lights, all controlled by this one remote.
Q: What is the maximum control distance?
A:The FUT006 has a reliable control range of up to 30 meters (approximately 98 feet) in an open environment without major obstructions.
Q: What type of batteries does the FUT006 use?
A:It is powered by two standard AAA batteries, which are not included with the remote.
Q: Can I dim all my lights at the same time?
A:You can turn all zones on or off together using the master buttons. To dim, you must first select a specific zone with its 'ON' button, then use the wheel.
