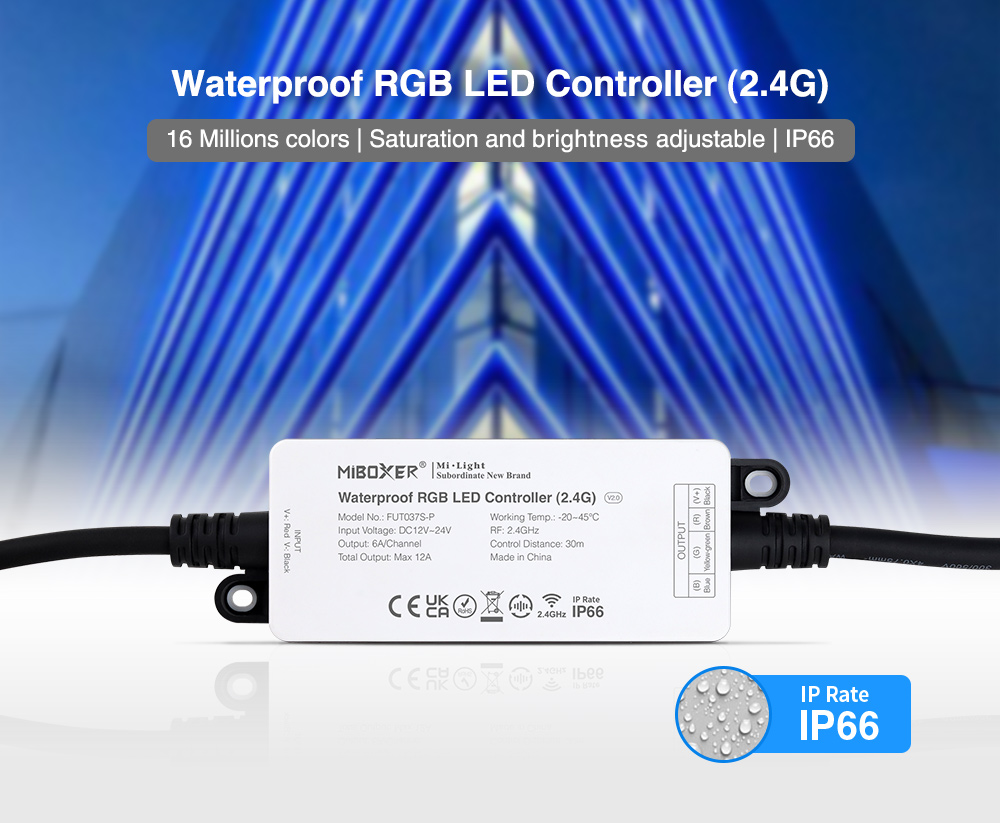

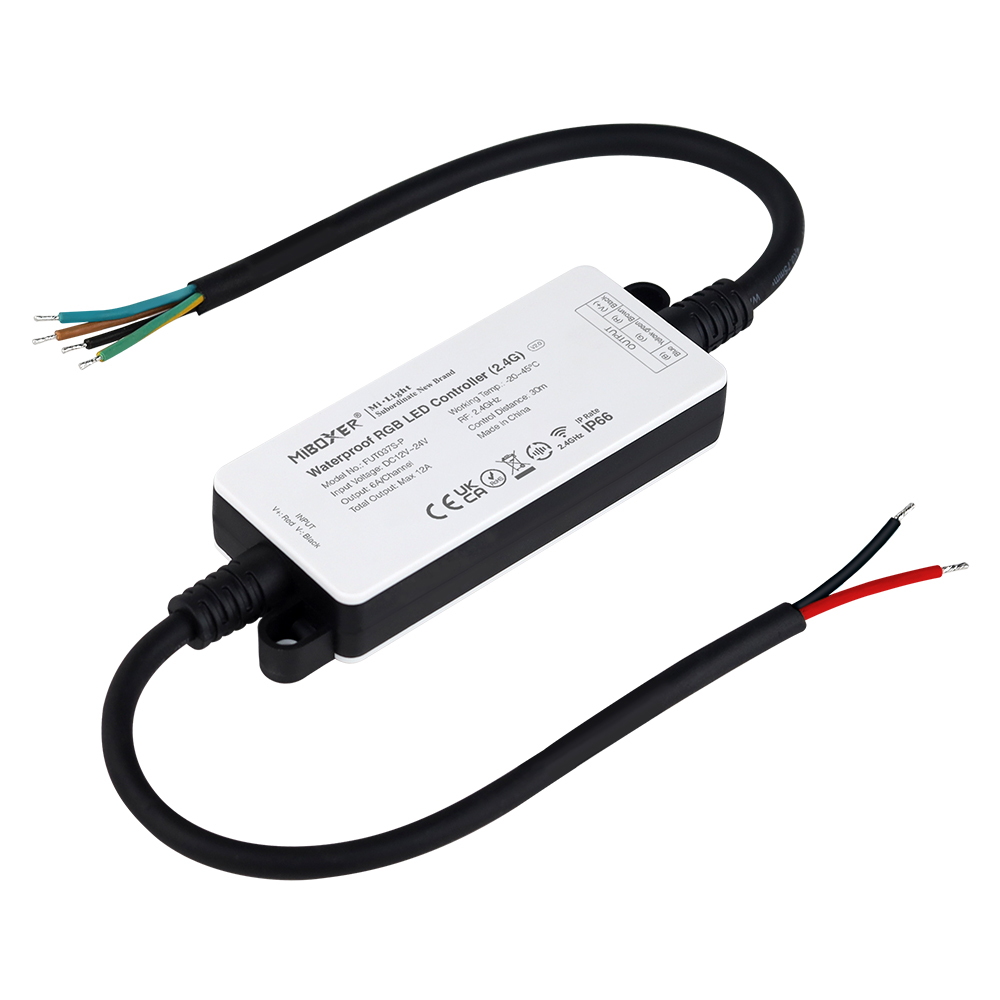

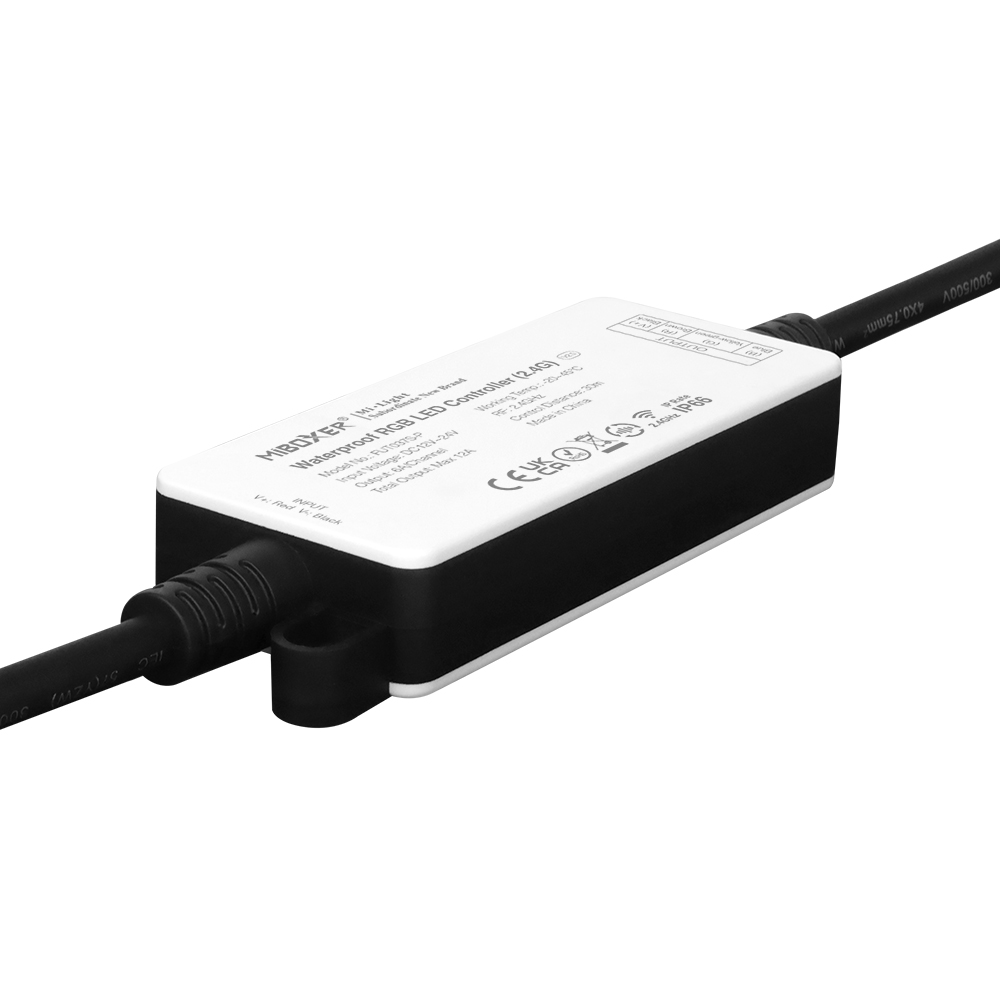

Waterproof RGB LED Controller (2.4G) FUT037S-P

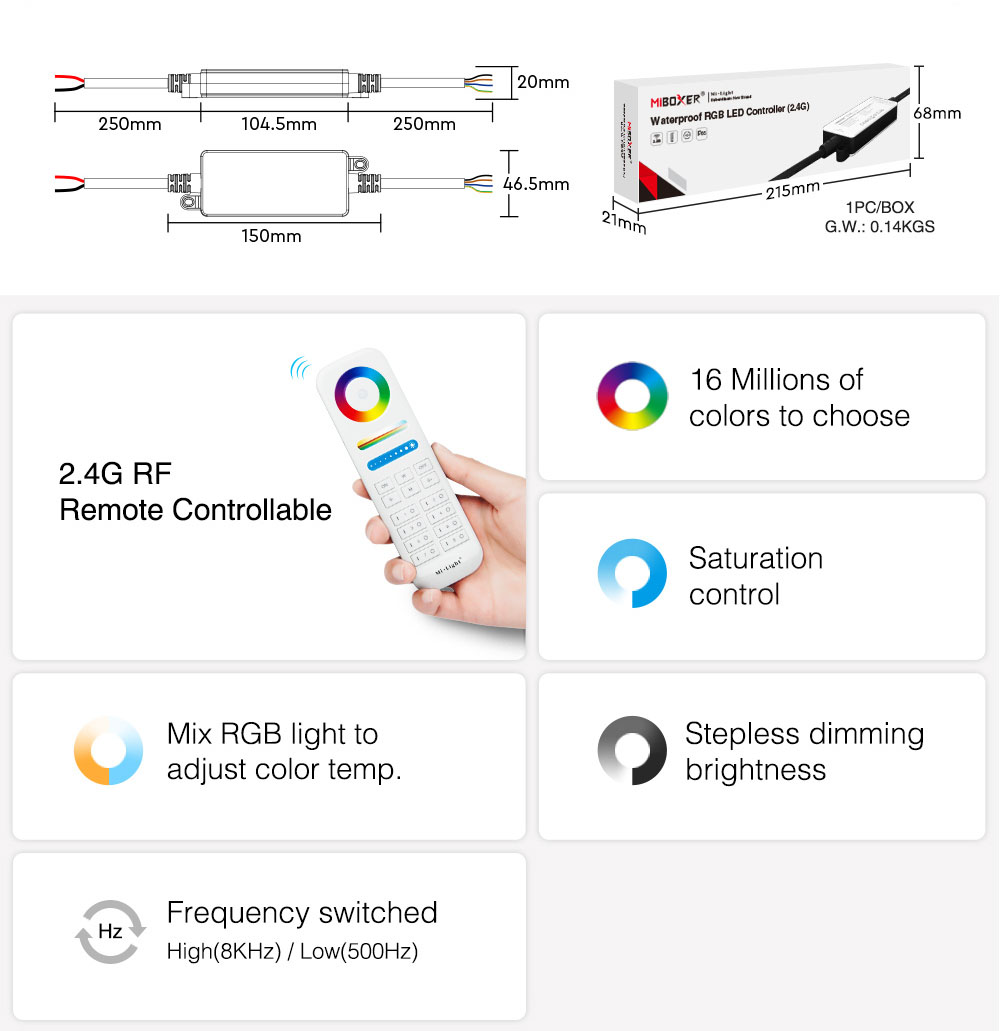

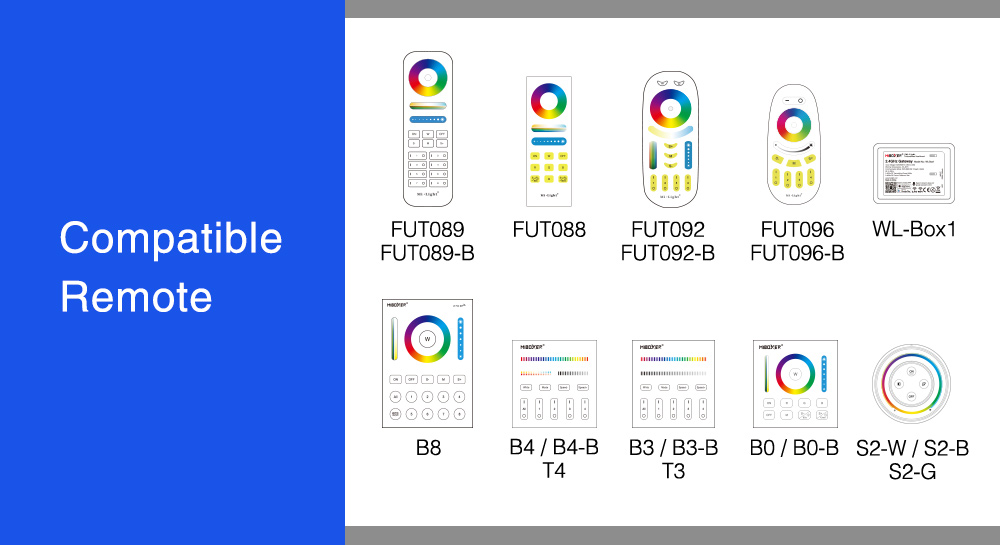

• 2.4G RF Remote controllable
• 16 Millions of colors to choose
• Mix RGB light to adjust color temperature
• Brightness and saturation controllable

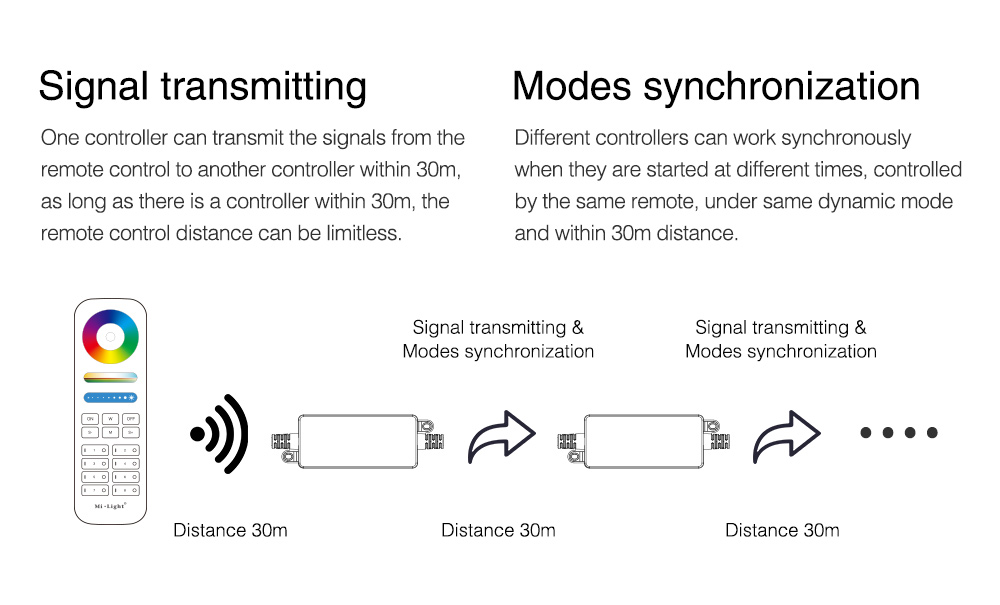

• Signal transmitting function make control distance limitless
• Support PWM high frequency (8KHz) / Low frequency (500Hz) switched
• IP66 waterproof

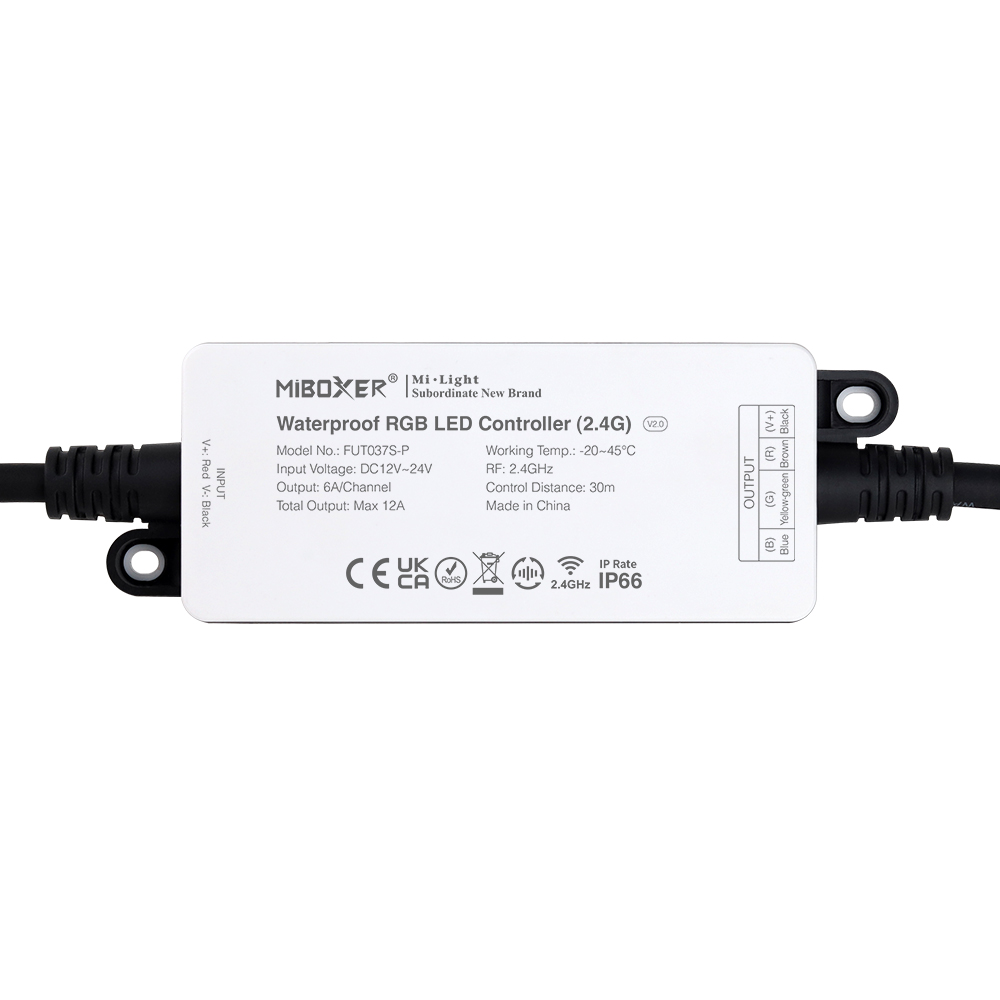

Product Name: Waterproof RGB LED Controller (2.4G)
Model No.: FUT037S-P
Input Voltage: DC12~24V
Output Current: 6A/Channel
Total Output: Max 12A
Working Temperature: -20~45℃
IP Rate: IP66
Output Connection: Common anode
