Product Information
Experience reliable, intuitive control over your multi-zone lighting with the MiBoxer FUT095 4-Zone RF RGBW Remote. Designed for users who prefer the positive feedback of physical buttons, this remote controller eliminates accidental adjustments common with touch-sensitive models. Its powerful 2.4GHz RF technology provides a stable, responsive connection up to 30 meters away, allowing you to manage up to four independent zones of RGBW LED strip lights from a single, comfortable handheld device. Whether you're setting the mood in different rooms or creating dynamic color scenes for a commercial space, the FUT095 offers a straightforward and precise remote control light switch for your entire RGBW lighting system.
Key Features

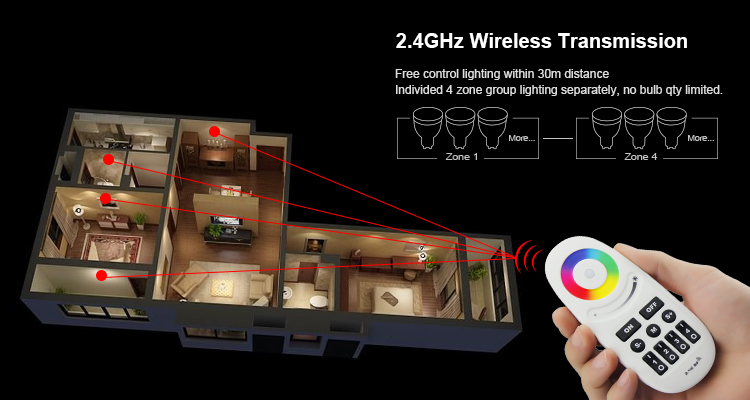

4-Zone Independent Control
Manage lighting in up to four separate areas or rooms independently, all from one remote.
Tactile Button Interface
Enjoy the classic, responsive feel of physical buttons for precise and reliable control without accidental touches.
Full RGBW Spectrum
Access millions of colors plus a dedicated pure white channel for versatile lighting effects and functional illumination.
Long-Range 2.4GHz RF
A stable, interference-resistant wireless connection works through walls and objects up to 30 meters (98 feet) away.
Energy-Efficient Design

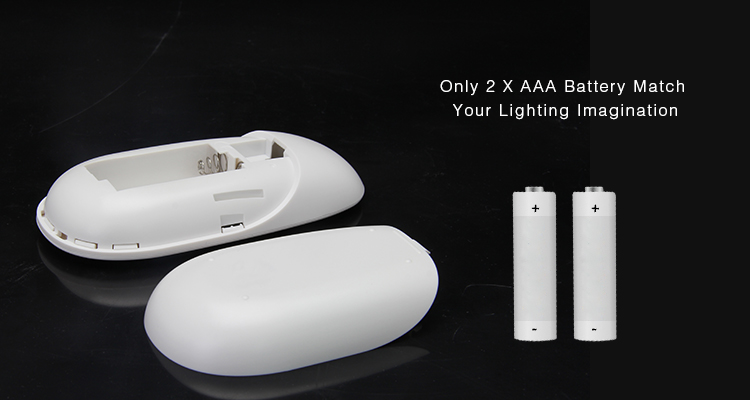

Operates on two AAA batteries with ultra-low standby power consumption (20uA) to maximize battery life.
Technical Highlights
- Utilizes GFSK modulation for robust and secure signal transmission, minimizing interference.
- Low transmitting power of 6dBm ensures efficient operation and long battery performance.
- Compact and ergonomic design (120 x 52.5 x 21mm) for comfortable handheld use.
Product Specifications
| Parameter | Details |
|---|---|
| Model No. | FUT095 |
| Input Voltage | 3V (2*AAA Battery) |
| Transmission Frequency | 2.4GHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 20uA |
| Control Distance | 30m |
| Size | 120 x 52.5 x 21mm |
Application Scenarios
How to Control & Use This RF Remote
- Insert two AAA batteries (not included) into the back of the remote.
- To link the remote to a new light, first switch off the power to the corresponding Miboxer RGBW controller.
- Switch the power back on. Within 3 seconds, press the 'I' (ON) button for your desired zone (1-4) three times.
- The light will blink slowly 3 times to indicate a successful link.

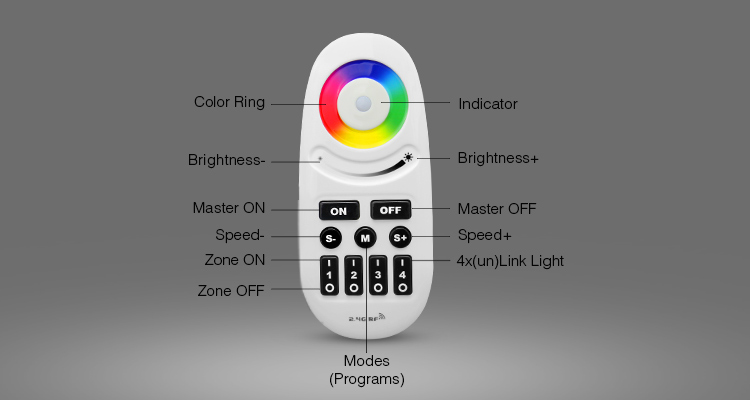

- Use the central color ring to select colors, the sun icons to adjust brightness, the 'M' button to cycle through dynamic modes, and the 'S' buttons to adjust mode speed.
- To unlink a light, repeat the linking process but press the 'I' (ON) button five times. The light will blink quickly 10 times to confirm.
- This remote requires a compatible Miboxer/Mi-Light 2.4G RGBW controller to function; it does not connect directly to LED strips.
- Ensure the controller and lights are correctly installed before attempting to pair. You can learn more about how to wire RGBW LED strips in our blog.
- The 30m control distance is measured in an open environment; obstacles like walls may reduce the effective range.

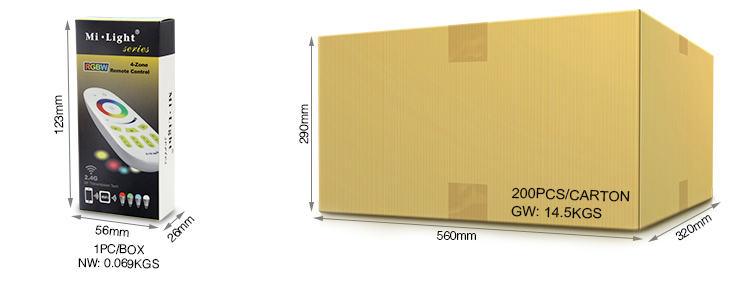

What's in the Box
- ✓1 x FUT095 2.4GHz 4 Zone RF RGBW Remote
- ✓1 x User Manual
⇩ Downloads & Documents
PDFFUT095.pdf
Frequently Asked Questions
Q: What controllers is this remote compatible with?

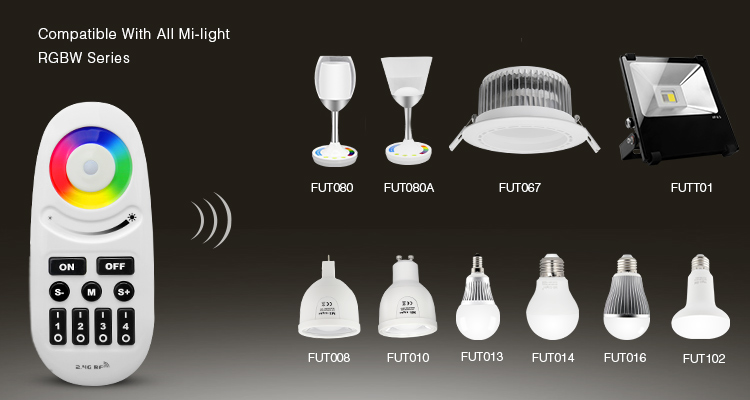

A:This remote is compatible with all Miboxer and Mi-Light series 2.4G-enabled RGBW controllers. It will not work with RGB, CCT, or RGBCCT controllers.
Q: How do I control multiple lights with one button?
A:You can link an unlimited number of compatible RGBW controllers to a single zone. All lights linked to that zone will then respond simultaneously to your commands for that zone.
Q: Can I control all four zones at the same time?
A:To control all lights at once, you must link all of your controllers to the same zone. Otherwise, you select and control one zone at a time.
Q: What type of batteries does the FUT095 remote use?
A:It requires two standard AAA batteries, which are not included with the remote.
Q: Will this remote work through walls?
A:Yes, the 2.4GHz RF signal can pass through walls and other obstacles, though the maximum range may be reduced compared to an open-air environment.
