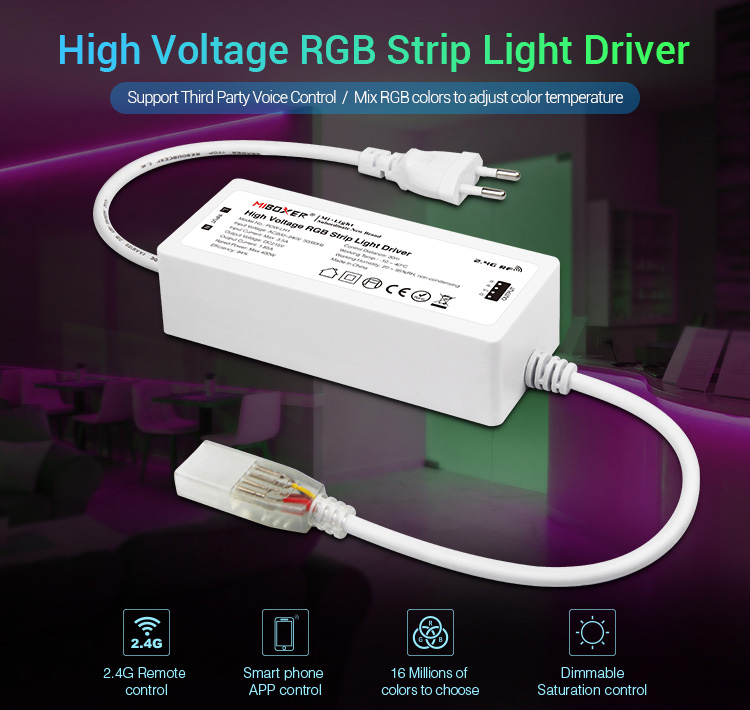

POW-LH1 AC200~240V WiFi Alexa Group High Voltage RGB Strip Light Driver Controller

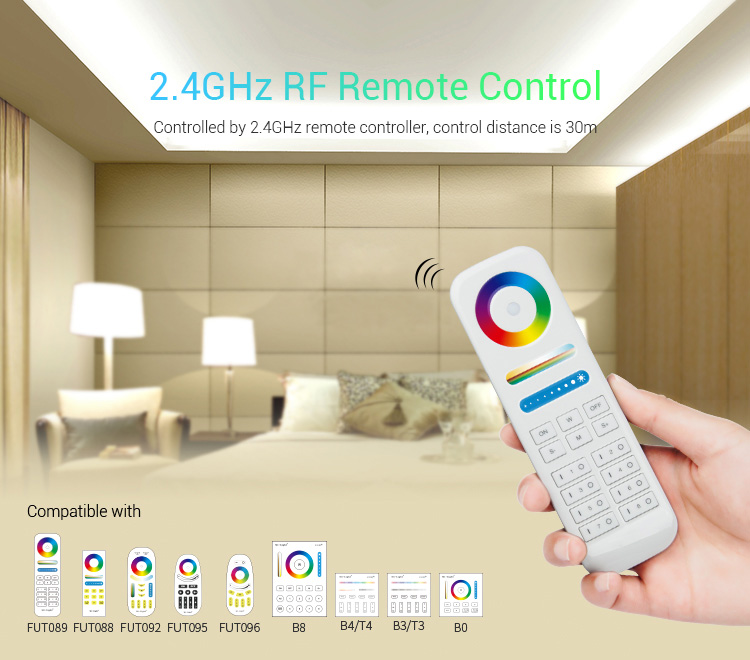

1. 2.4GHz RF remote control: controlled by 2.4GHz remote controller, the control distance is 30m.

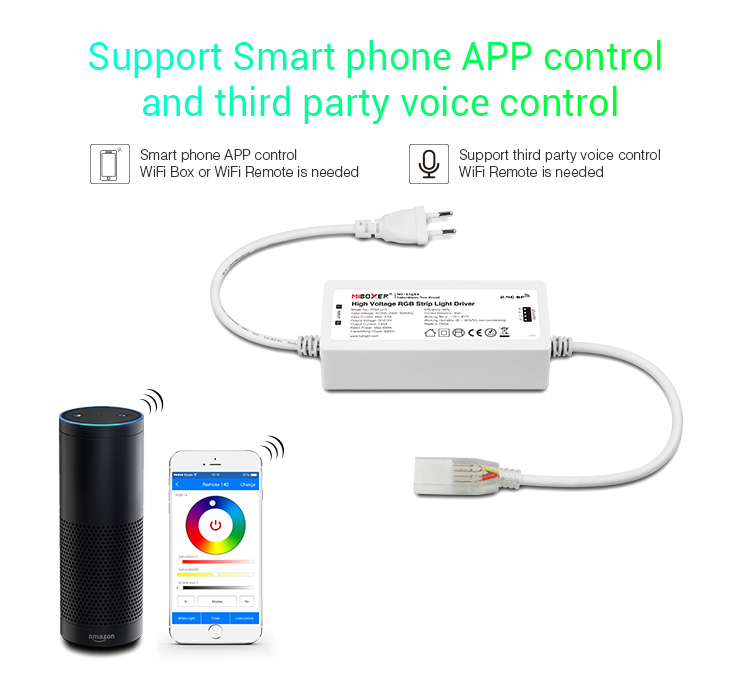

2. Support Smartphone APP control (WiFi box or WiFi remote is needed) and third-party voice control ( WiFi remote is needed).

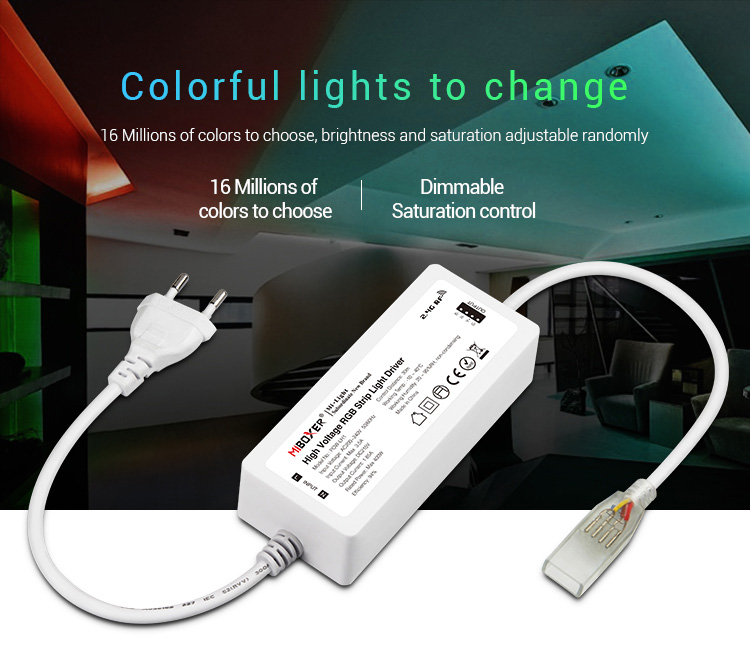

3. Colorful lights to change: 16 millions of colors to choose, dimmable saturation control.
4. Mix RGB to adjust the color temperature: when adjusting color temperature with high voltage RGB LED strip controller, the warm or cool white light is from the mixed lighting from Red, Green and Blue color.

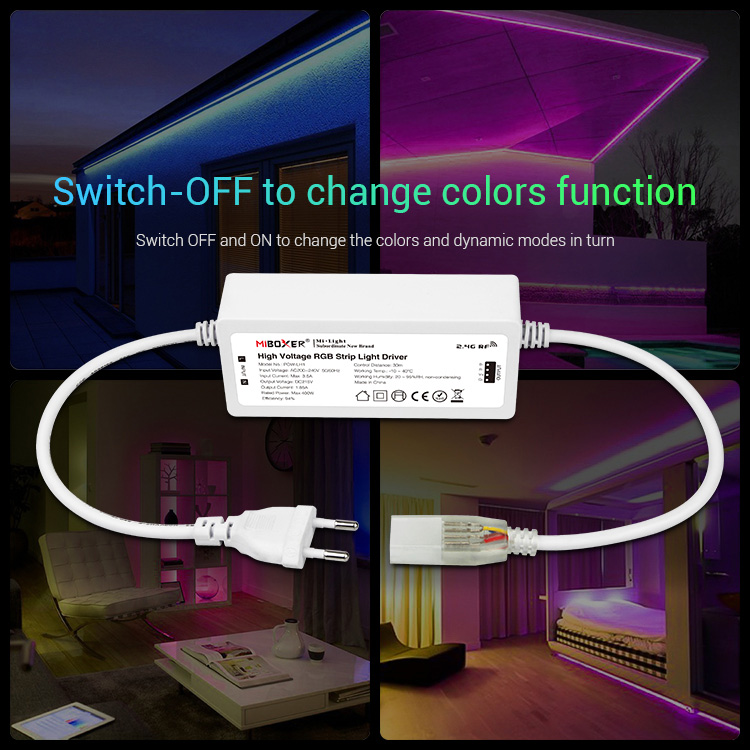

5. Switch-OFF to change colors function: switch OFF and ON to change the colors and dynamic modes in turn.

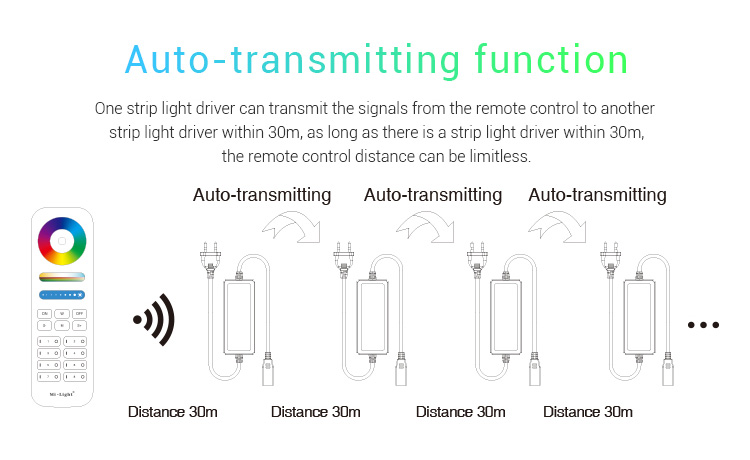

6. Auto-transmitting function: one strip light driver can transmit the signals from the remote control to another strip lights driver within 30m, as long as there is a strip light driver within 30m, the remote control distance can be limitless.

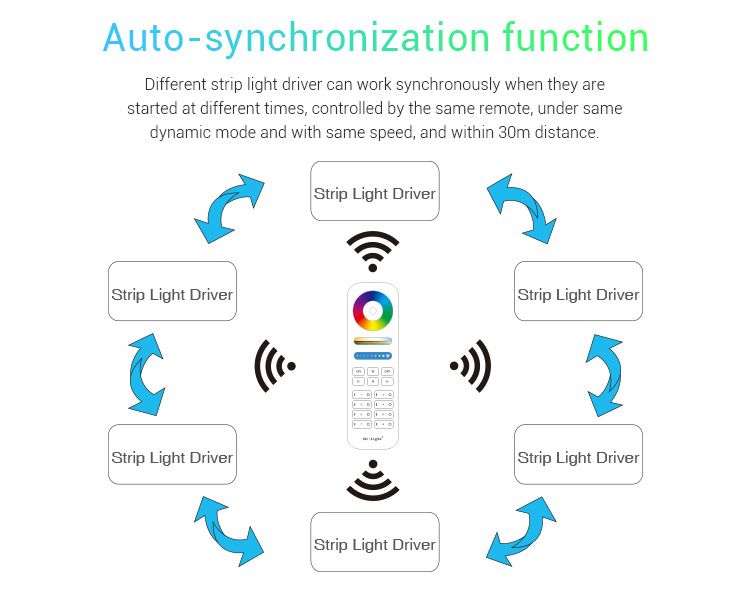

7. Auto-synchronization function: different strip lights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode and at the same speed, and within 30m distance.
Product Name: High Voltage RGB Strip Light Driver
Model No.: POW-LH1

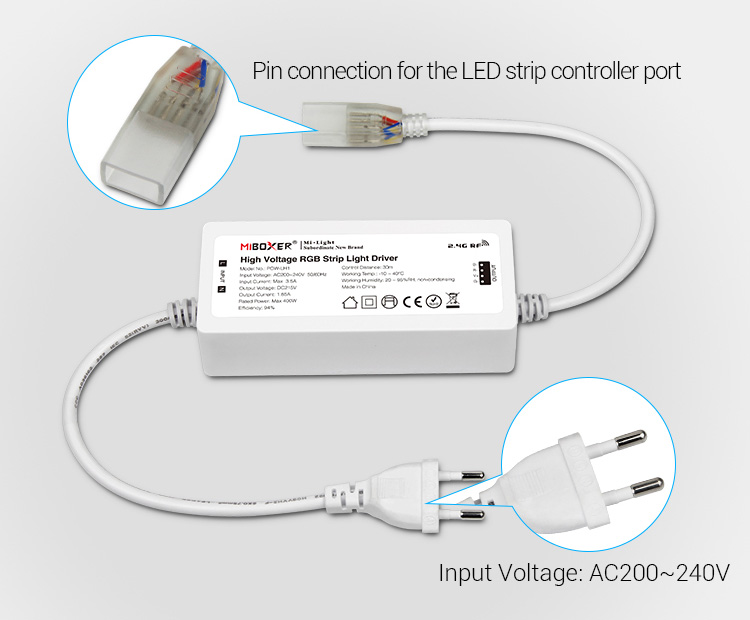

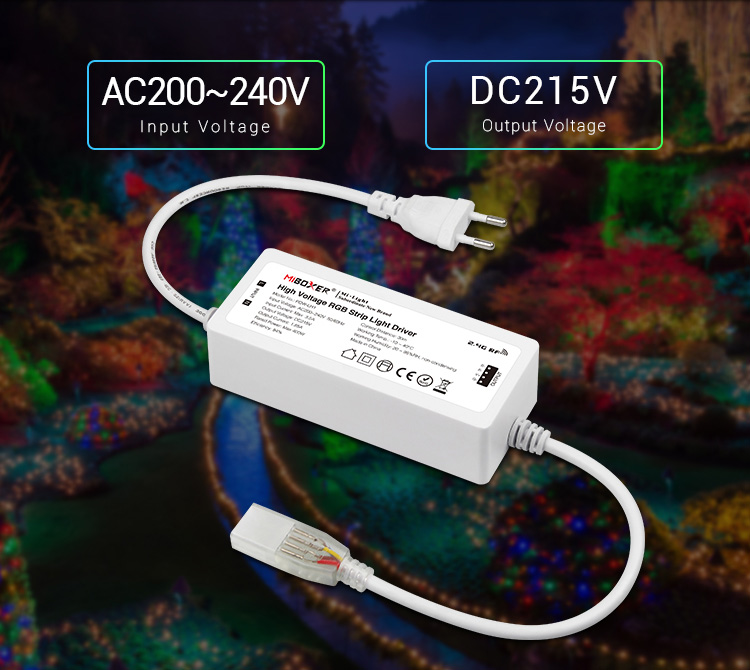

Input Voltage: AC200~240V 50/60Hz
Input Current: Max 3.5A
Output Voltage: DC215V
Output Current: 1.85A
Rated Power: Max 400W
Control Distance: 30m
Output Connecting Method: RGB common anode (4 channel 3 circuits)
Working Temperature: -20~60°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -30 ~ 85°C, 5~95%RH
