Product Information

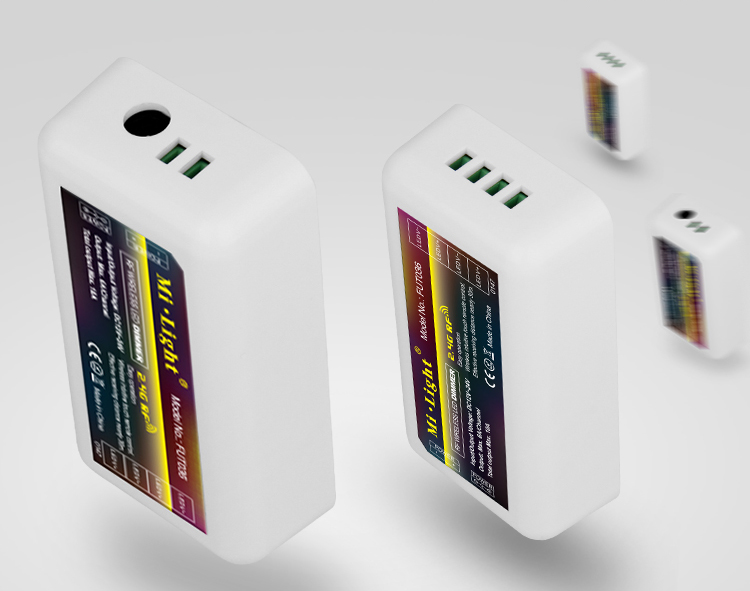

The MiBoxer FUT036 is a constant-voltage 2.4GHz RF receiver engineered to control single color LED tape across DC 12V and DC 24V installations. Rated for an output load of up to 6A per channel with a 10A maximum total capacity, this compact receiver delivers smooth 1% to 100% Pulse Width Modulation (PWM) brightness adjustment without visible ripple. Operating on an interference-free 2.4GHz radio frequency spectrum, the FUT036 provides a solid 30-meter line-of-sight communication distance when paired with compatible MiBoxer handheld transmitters or wall-mounted panels. Built with screw-down terminal blocks and a standard DC 5.5x2.1mm input socket, it integrates into architectural coves, task areas, and display fixtures without requiring soldering. Supplying LED strip lights and accessories since 2015, we ensure reliable factory-tested performance across all hardware configurations.
Key Performance Attributes
Dual 6A Output Lines
Supports up to 6A per channel with a shared 10A maximum combined limit across two parallel negative terminals.
Wide DC12V-24V Operating Range
Functions reliably across standard 12-volt and 24-volt constant-voltage systems to drive various low-voltage LED strip lights.
30-Meter Wireless Coverage
2.4GHz high-frequency signal passes through standard interior drywall and cabinet partitions over a 30m span.
Stepless Brightness Tuning
Delivers 1% to 100% smooth PWM dimming transitions to eliminate abrupt light stepping and visible flicker.
Dual DC Input Options

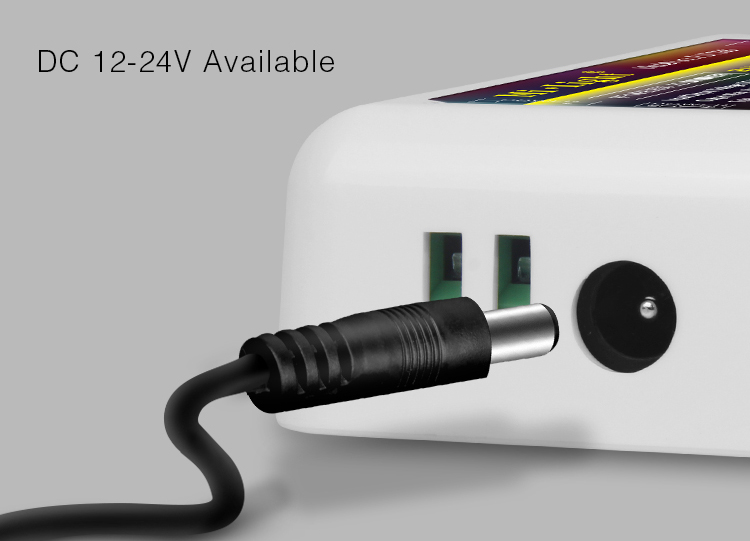

Offers both a barrel jack (5.5x2.1mm) and hardwired terminal screws for connection to an external LED power supply.
Compact Hardware Profile
Measures 85 x 45 x 22.5 mm, allowing direct concealment inside standard extruded channels, valances, or drop ceilings.
Technical Highlights
- Transmits on the global 2.4GHz GFSK wireless standard, reducing RF interference from household electronic devices.
- Equipped with common-anode (+V) output circuitry with dual V- terminals for clean twin-run cable balancing.
- Retains last-used brightness level after line-voltage power interruption via internal non-volatile memory.

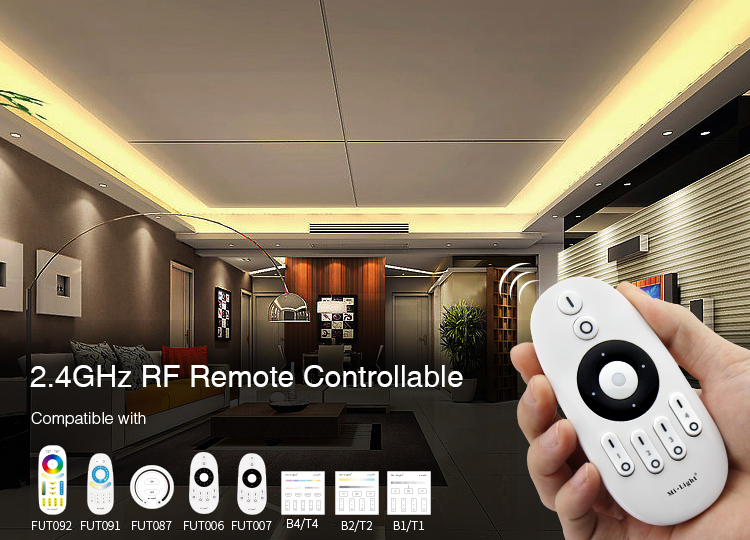

- Compatible with multi-zone handheld remotes (FUT006, FUT007, FUT087) and wall panels (B1, T1) without software setups.
- Operates over an extended ambient temperature range of -20 deg C to +60 deg C for residential and commercial spaces.
Detailed Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | FUT036 |
| Brand | MiBoxer (Mi-Light) |
| Controller Type | Constant Voltage RF Receiver |
| Supported LED Strip Type | Single Color (Static White / Monochrome) |
| Input Voltage | DC 12V - DC 24V |
| Output Current Per Channel | 6A |
| Total Maximum Output Current | 10A |
| Maximum Output Power (12V) | 120W (12V x 10A) |
| Maximum Output Power (24V) | 240W (24V x 10A) |
| RF Operating Frequency | 2.4GHz (2400-2483.5MHz) |
| Modulation Method | GFSK |
| Control Range | 30m (98.4 ft) unobstructed |
| Dimming Method | PWM (Pulse Width Modulation) |
| Dimming Range | 1% - 100% |
| Standby Power Consumption | < 0.5W |
| Wiring Connection Method | Screw Terminals + DC Barrel Port (5.5x2.1mm) |
| Working Temperature | -20 deg C to +60 deg C |

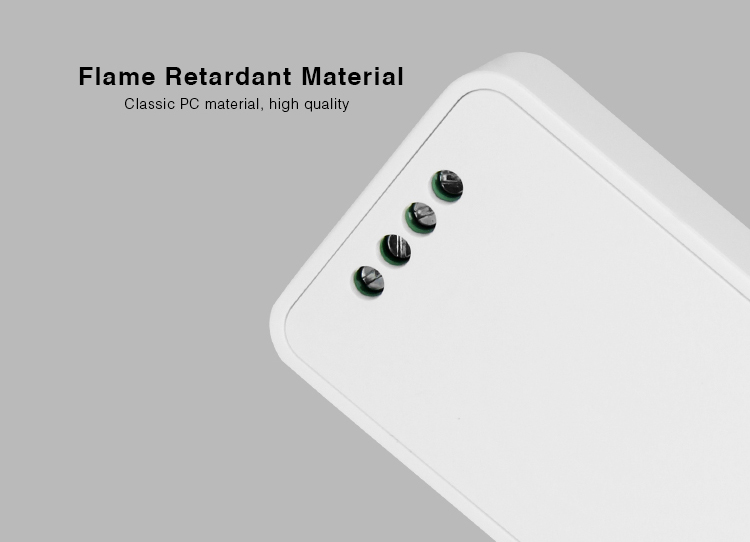

| Housing Material | Polycarbonate (PC) |
| Product Dimensions | 85 mm x 45 mm x 22.5 mm (3.35 x 1.77 x 0.89 in) |
| Net Weight | 45g |
Typical Installation Settings
How to Control & Use This Controller
- Disconnect AC power from your DC 12V or 24V LED power supply before starting any wiring.
- Strip 6-8mm of insulation from your low-voltage supply wires and fasten positive to 'INPUT V+' and negative to 'INPUT V-', or insert a standard 5.5x2.1mm DC plug.

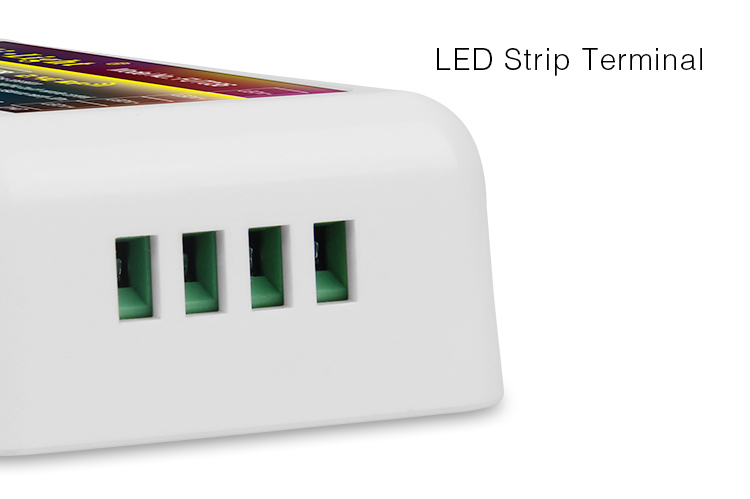

- Connect the single color LED strip lights: secure the strip positive wire to 'OUTPUT V+' and the negative wire to either of the two 'OUTPUT V-' terminals.
- Restore line power to the power supply; verify the connected LED strip lights illuminate.
- Pair your remote within 3 seconds of power-up: switch off line power to the FUT036, restore power, and immediately press the target Zone 'ON' button (or master ON) 3 times. The connected LED strip will blink 3 times to confirm pairing.
- To clear pairing (unlink): cycle power off and back on, then immediately press the assigned Zone 'ON' button 5 times within 3 seconds. The LED strip will flash 10 times to indicate unlinking is complete.
- Ensure the DC input voltage matches your LED strip rating precisely; connecting 24V to a 12V LED strip will destroy the LEDs.
- Do not exceed 10A combined current (120W total at 12V, 240W total at 24V) to prevent thermal overload.
- Install the receiver in a ventilated dry area; avoid enclosing inside solid metal junction boxes that attenuate 2.4GHz RF signals.
- Tighten terminal screws securely to maintain continuous electrical contact and prevent localized terminal overheating.

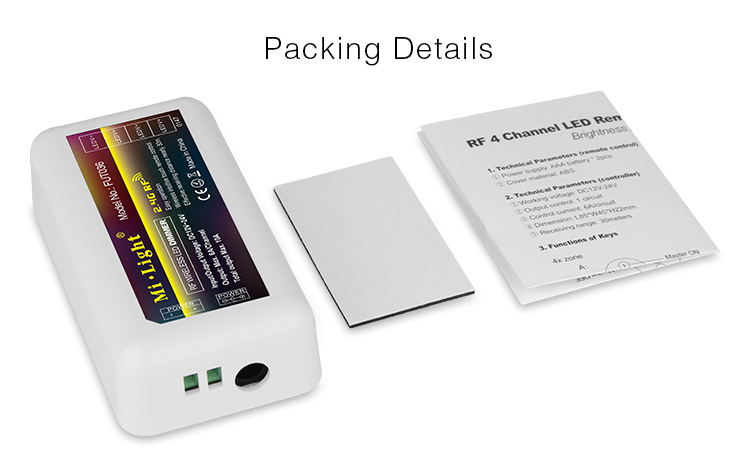

What's in the Box
- ✓1 x MiBoxer FUT036 2.4GHz Single Color LED Strip Controller
- ✓1 x Double-Sided Adhesive Mounting Pad
- ✓1 x User Instruction Manual (English)
⇩ Downloads & Documents
Frequently Asked Questions
Q: What is the best dimmer switch for led lights in a wireless low-voltage setup?
A:For low-voltage constant-voltage single color tape, a dedicated DC PWM receiver like the FUT036 paired with a 2.4GHz RF remote provides steady 1% to 100% dimming without the minimum-load issues common to AC line-voltage wall switches.
Q: Can this unit replace a traditional single pole dimmer switch for led lights?
A:The FUT036 operates on secondary DC 12V-24V power rather than 120V/230V AC mains. To replace a single pole dimmer switch in an existing wall box, pair this receiver with a battery-powered MiBoxer B1 or T1 wireless wall panel mounted over the junction opening.
Q: Can dmx control single color led strip when using the FUT036?
A:Direct DMX512 signal cables cannot be wired into the FUT036. However, you can manage it wirelessly through a MiBoxer DMX transmitter panel (such as the X1 or DMX512 wireless bridge) that outputs 2.4GHz RF commands.
Q: Why are there two V- terminals on the output side?
A:The FUT036 includes two negative output screws wired in parallel to the internal MOSFETs, making it easy to run two parallel runs of single color LED tape without wire splicing.
Q: Will the controller prevent led flicker dimmer switch issues at low levels?
A:Yes, the FUT036 generates high-frequency digital PWM dimming down to 1%, eliminating the low-end buzzing, dropout, and visible strobing frequently encountered with phase-cut wall dimmers.
Q: Can I pair multiple FUT036 receivers to a single remote control?
A:Yes, an unlimited number of FUT036 receivers can be synced to the same zone on a 2.4GHz remote, allowing unified synchronization across multiple cabinets or room sections.
