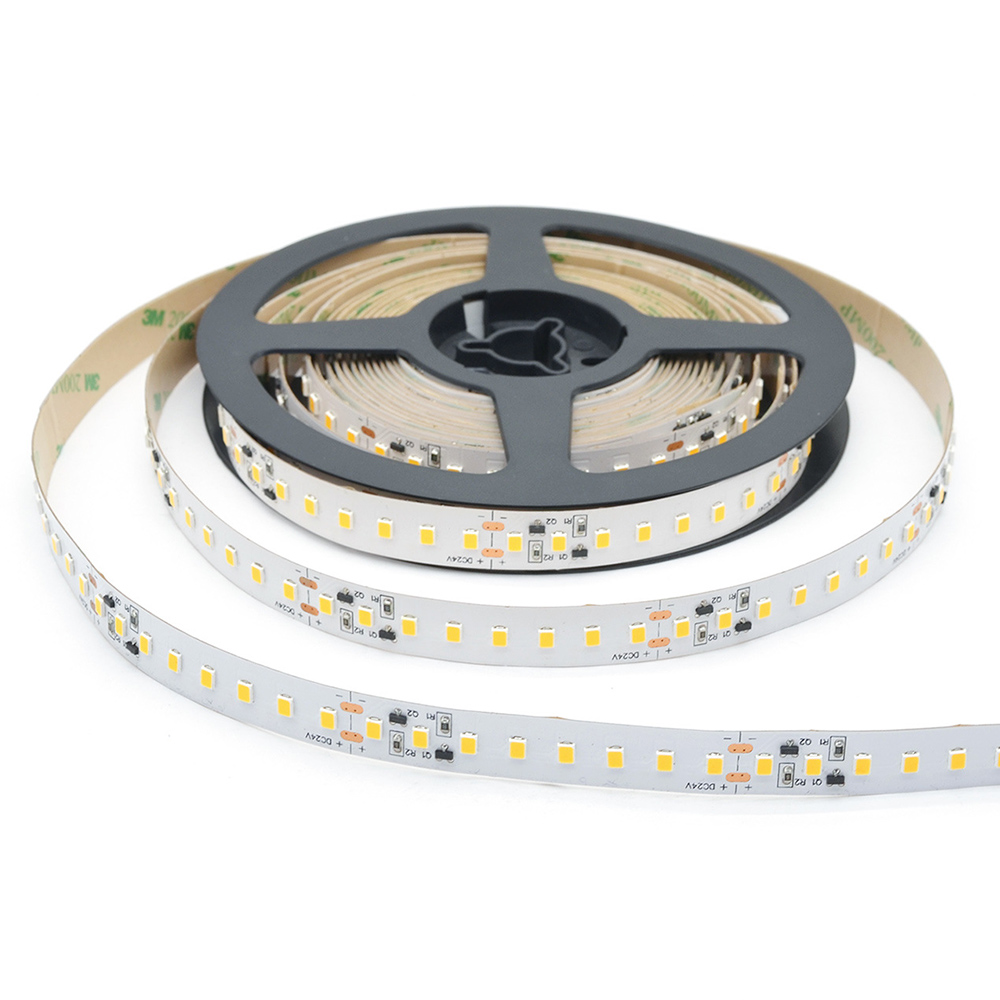

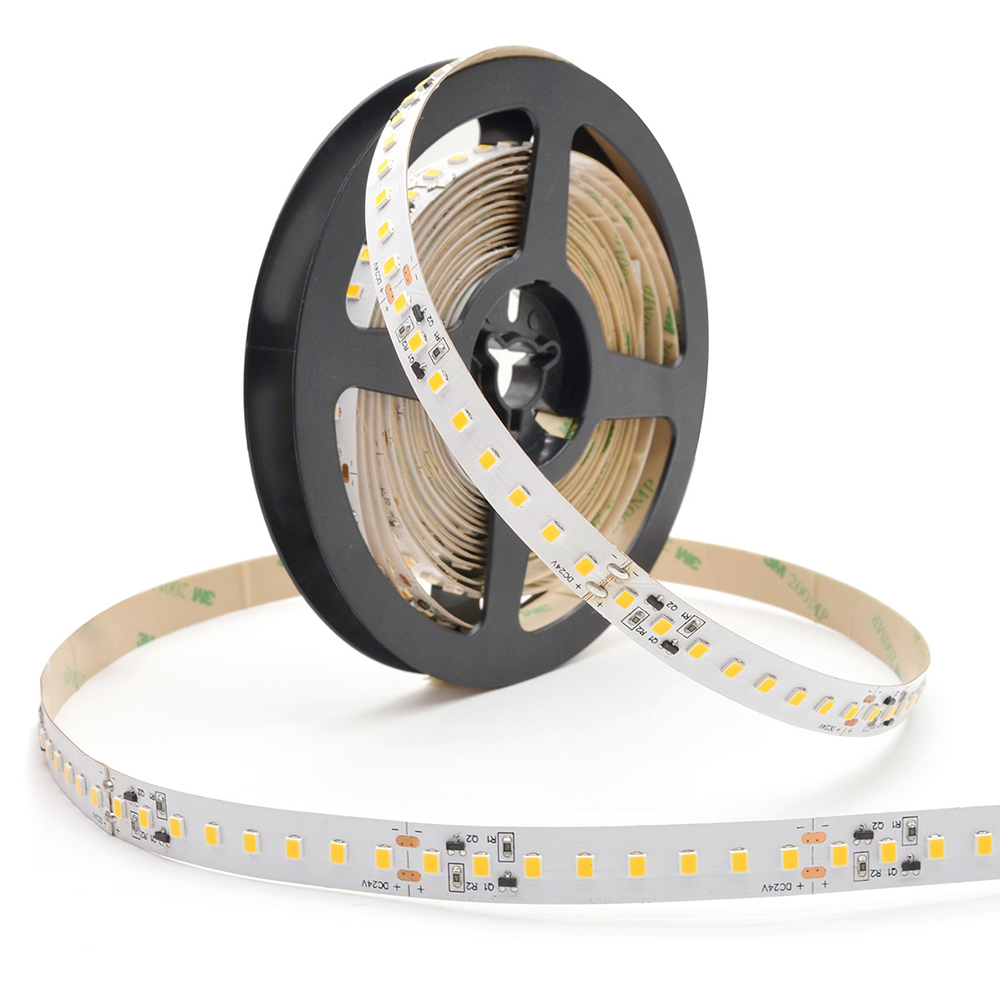

High-Efficiency Constant Current White LED Strip - DC24V 2835SMD 128LEDs/M LED Rope Light
1. Our DC24V 5 meters(16.4Ft) High efficiency constant current led strip lights are specially designed and produced for where need high brightness and high quality and high CRI 90. Each LED has its own microcircuit regulating both voltage and current.
2. High efficiency constant current circuit design, achieve 160lm/w and 190lm/w LED lamp belt to achieve real green, energy saving, environmental protection. Adopt 160lm/W and 190lm/w high light efficiency constant current circuit design to achieve energy conservation and environmental protection.
3. For this lighting, we have IP20/ IP65/IP67/IP68 waterproof standards to meet your indoor or outdoor use.
4. It has cutting points every just 62.5mm making it ideal for installations where accurately cut lengths are required.
5. Using copper base and gold wire, good heat dissipation, long life, low emission attenuation. This ensures maximum operating brightness and a lifetime in excess of 50,000 hours.
6. As it is good quality constant current led tape lights, our products have been verified onsite by world-leading inspection company SGS, and have owned the CE, RoHS, ETL, and TUV quality certificates now. The LED strip application scope is very wide, including LED animation lightbox, the advertising industry, media & films industry, promotion, and public service, etc.
We have two high light efficiency to choose: 160LM/Watt, 190LM/Watt.
Standards and Certifications

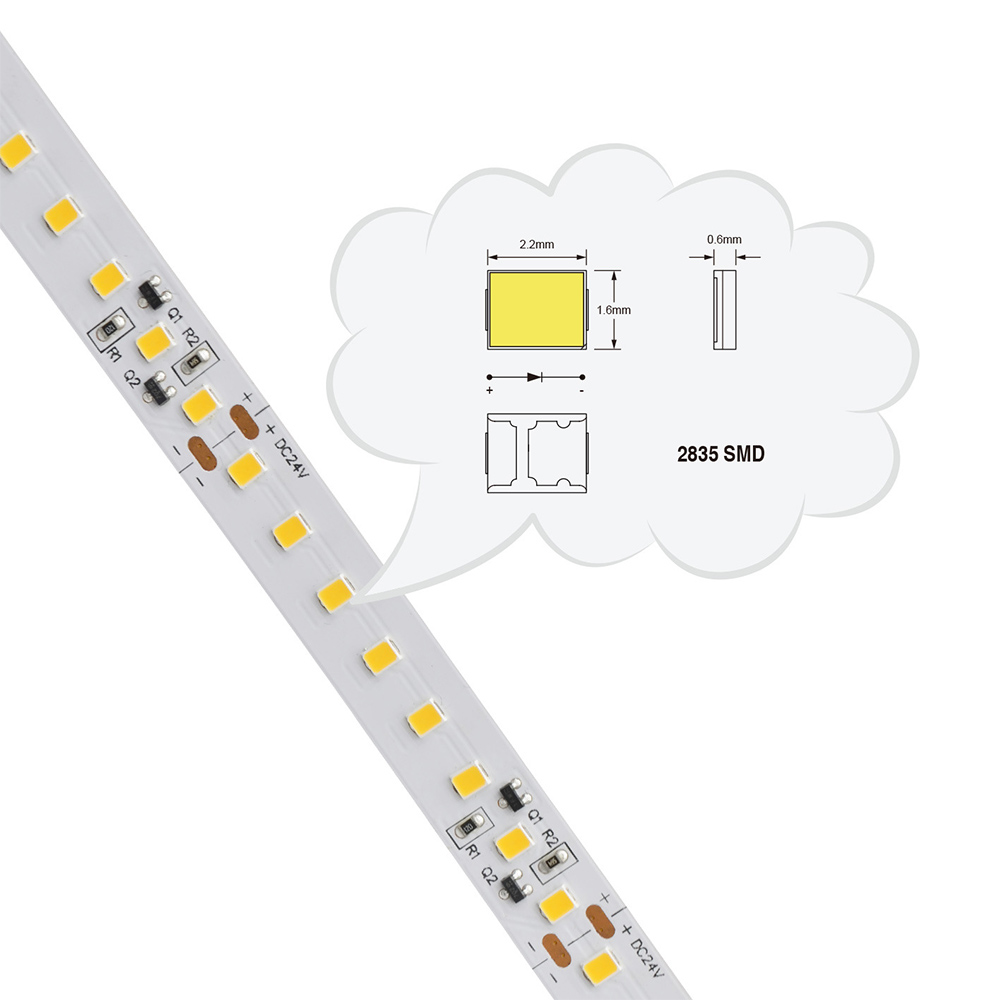

LED Strip Type: 5 meters(16.4Ft ) 2835 SMD high efficiency constant current LED strip light
LED Chip: Epistar Chip
CRI (Ra>): 90
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Cut Length: every 8 LEDs can be cut (62.5mm/0.21ft)
Color Temperature CCT(White): Warm White(2800-3200K), Natural White(4000-4500K), Daylight White(6000-6500K)
LED Quantity: 128 LEDs per 1meter (3.28 ft), 640 leds /roll
Warranty: 3 years
Input Voltage(V): 24VDC
Working Power: 3.75A 90W /roll (16.4 ft） Max
Lamp Luminous Flux(lm): 160 LM/W 14400LM/Roll, 190 LM/W 17100LM/Roll
Highest Brightness: Up to 878 Lumen/Ft, 1043 Lumen/Ft
Efficiency up to: 160 lm/Watt, 190 lm/Watt

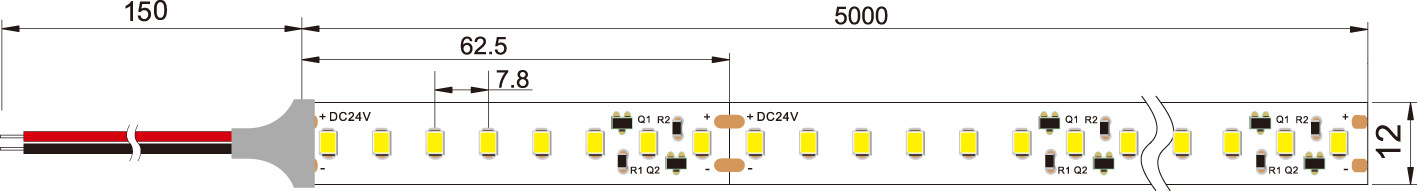

Product size: L5000mm(197in)*W12mm(0.47in)*H2mm(0.08in) 16.4 Ft /Roll
Beam Pattern: 120 degree
WaterProof Rating: IP20 / IP65 / IP67 / IP68
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with the two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
The basics are all the similar. You will need a led strip light, a constant voltage power supply(Please use a DC24V 150Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: firstname.lastname@example.org
Trademark lighting Logo lighting
How to choose led strip lights
Step 1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
In our company, we have a single color, color changing RGB RGBW led strips, high voltage led strips, programmable full color led strip lighting, please choose the lighting you like
