Special Price: $132.98
Addressable RGBW led strip allows more color combinations to form new light colors.

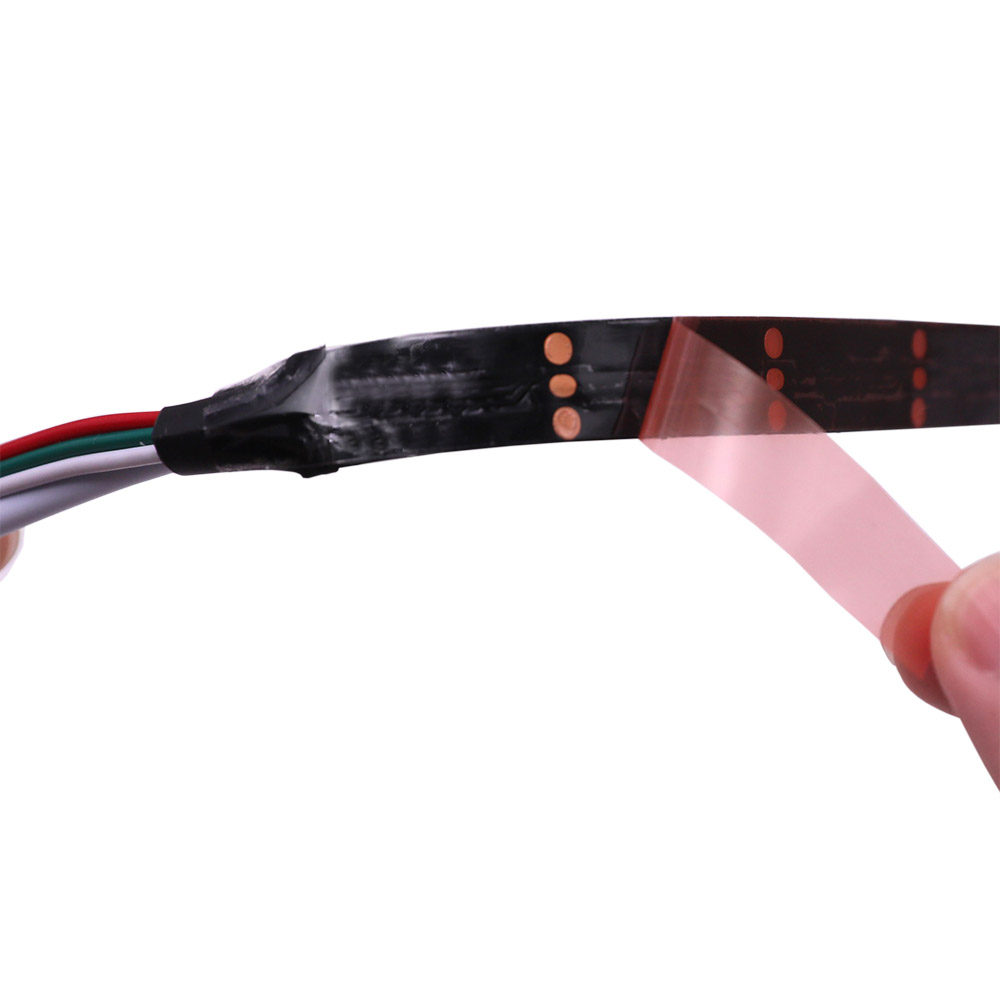

• High brightness 5050SMD, 25lm/LED (3000lm per foot) • Built-in SK6812 IC, one SK6812 IC pixel controls 3 LED lights • Single signal transmission, 3 pin connector, V+(12V), V-(GND), DAT. (Once the data transmission is terminated, the pixel LED lights behind the broken position will not light up.) • High density, 120LEDs/3.28ft, 40ICs/3.28ft (600LEDs/16.4ft, 200ICs/16.4ft) • RGBW dream color, 256 grayscale+3000K warm white/6000K pure white(daylight white), can be controlled by SPI controller to diaplay any color like white, red, yellow, green, blue, full color changing, etc. • IP20, IP65, IP67, IP68 waterproof rating level optional, suitable for indoor and outdoor, residential lighting, commercial lighting, ambient lighting, etc. • Necessary accessories: LED SPI controller supporting DC12V, 12V power supply(12V battery, 12V adapter, 12V transformer) • Available accessories: LED aluminum channel, flex LED neon tube (to get soft uniform LED linear light) • Using the 3M adhesive backing, can be free to bend the shape — fixed in the uneven surface, easy to install |
Don't sure to choose which white light, 3000K warm white or 6000K daylight, read this to answer your doubts: The Color Difference Between Warm White 2700K, 3000K, 4000K, 6000K Pure White and 7000K Cool White
SK6812 VS WS2812B
The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so pixel LED strips based on the SK6812 and WS2812B can be chained together).
The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the pixel LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.
Standards and Certifications
Specifications
How to wire addressable LED lights?
The following is this LED light strip wiring diagram. 12V transformwer powers the SPI controller and this SK6812 addressable pixel LED light. The LED strip changes different LED lighting effects through the control signal of the SPI controller.
More addressable LED knowledge is in: How to wire addressable led strips?
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs
Hotel, KTV, bars
Wedding party lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
