Triple Row Series DC24V 2835SMD High CRI 95 910LEDs Waterproof Indoor Lighting Flexible LED Strip Lights, 5m/16.4ft Per Reel By Sale
Our flexible LED light strip operates on 24VDC. It emits 707lumens of red, green, blue, yellow, cool, natural, or warm white illumination per foot. And with a high CRI (color rendering index) of 95, light from the LEDs will show the true colors of any object or surrounding. The 16.4' high-density LED tape light can be easily cut into separate 18-LED segments and installed with its peel-and-stick 3M™ adhesive backing. This strip is covered by a 50000hrs+ warranty. It's great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or any indoor application where presentation, appearance, and depth of color are critical. See the standard-density version. See compatible LED dimmers.
Standards and Certifications
LED Strip Type: 2835SMD 910PCS/16.4Ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White, Cool White, Red, Green, Blue, Amber (optional)
Dimension: 16.4ft/roll, every 18 PCS LED can be cut
LED Quantity: 182LEDs per 1meter (3.28 ft)
Warranty: 3 years

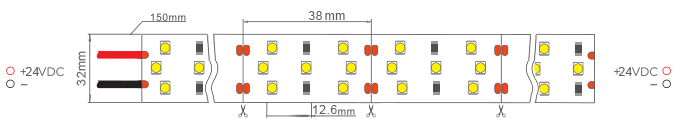

Dimensions: L5000mm(196.8 in ) x W32mm(1.25 in ) x H2mm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 24V 5.2A 125W/16.4ft Max
Lamp Luminous Flux(lm): 12.7lm/LEDs 707lm/Ft 2320lm/m
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4000-4500k), Cool White(6000-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
CRI (Ra>): 95
Water Proof: IP20 / IP65 / IP67 / IP68
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

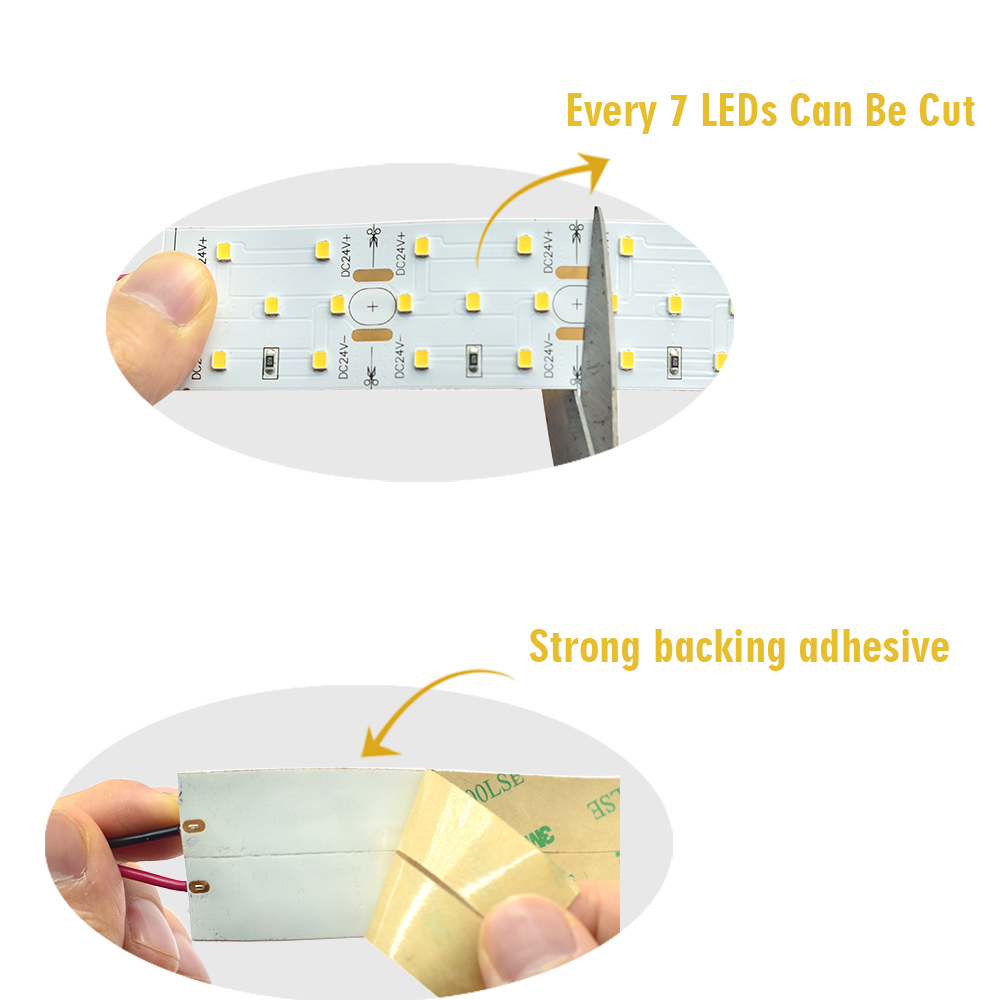

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will need
We sell led strips in spools of 16.4 Ft (5 meters). If you want to use with more than 16.4 Ft length, we recommend the following instruction:
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with the two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
The basics are all the similar. You will need a led strip light, a constant voltage power supply(Please use a DC24V 200Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com
LED Task Lighting Art Gallery Lighting
Off-Grid Lighting Indoor Photography Lighting
Exhibition Lighting Studio Office Lighting
Retail Shop Lighting Energy Efficient New Construction Cove Lighting
Museum Lighting Bias Lighting
Trade Show Lighting
How to choose led strip lights?
Step 1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
What will you be lighting?
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
This lightings that you going to buy can be daily use or decoration use.
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
In our company, we have a single color, color changing RGB RGBW led strips, high voltage led strips, programmable full color led strip lighting, please choose the lighting you like.
