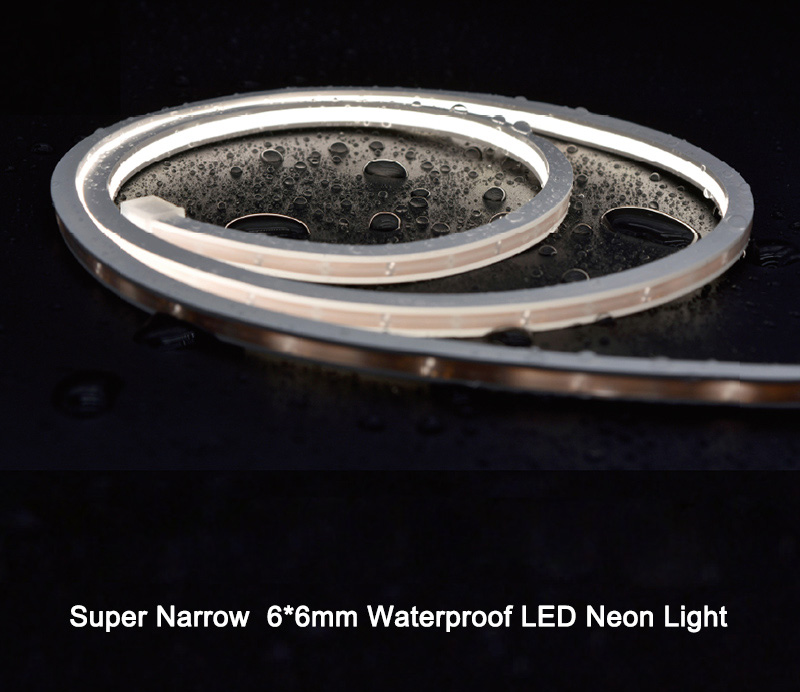

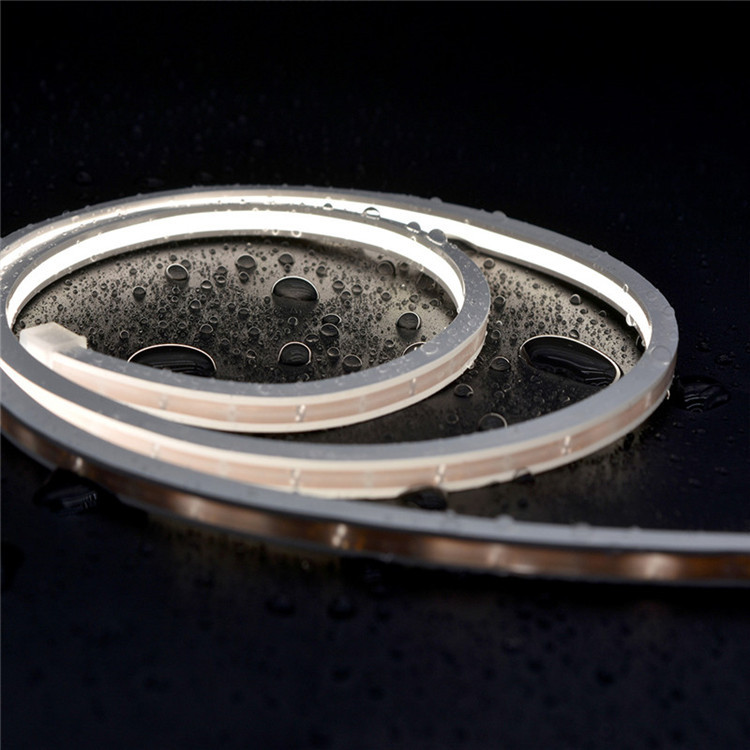

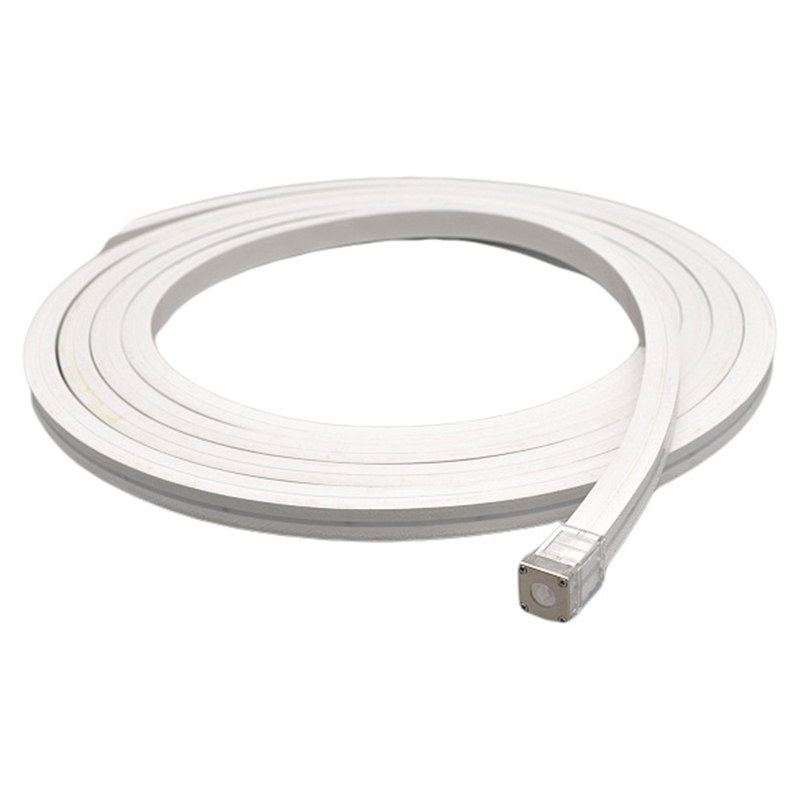

Super Narrow Series 6*6mm Top Lighting Waterproof LED Neon Light - DC24V 2216SMD 16.4Ft 1200LEDs White LED Neon Signs

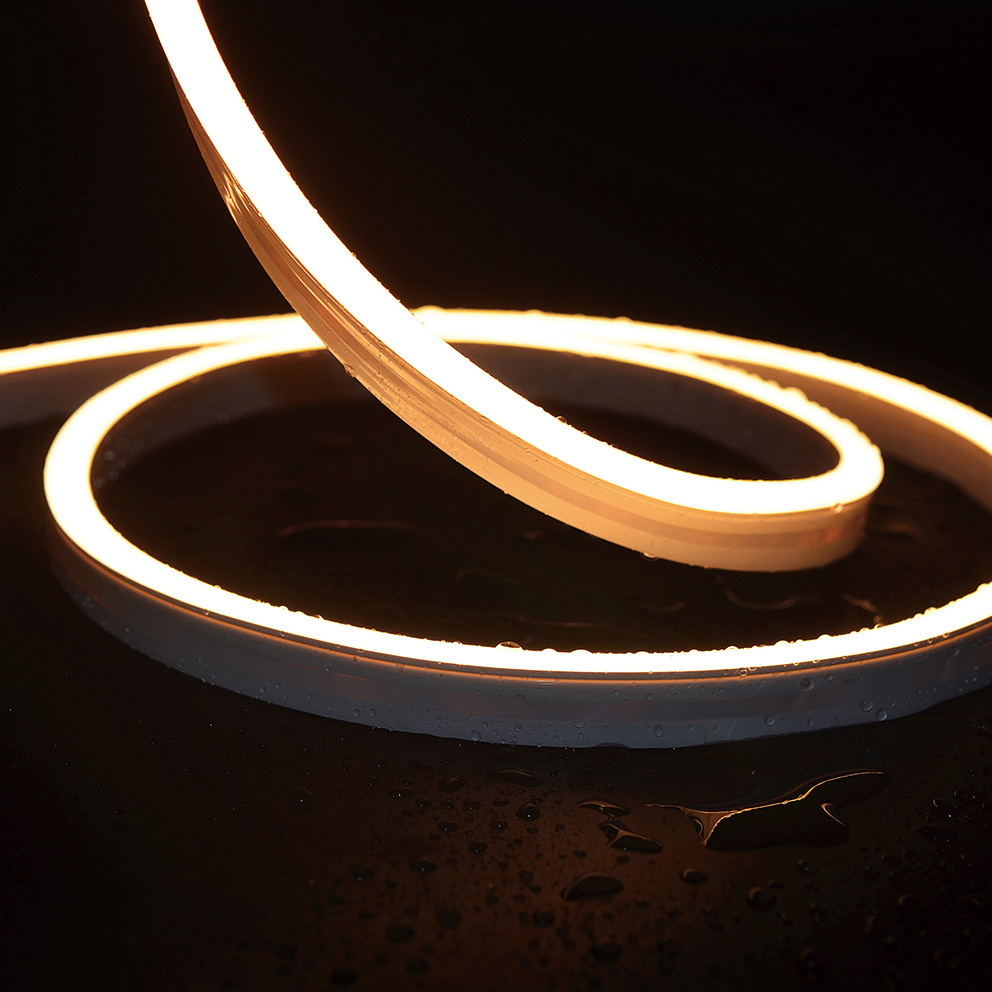

Here is the 6*6mm narrow neon white aesthetic silicone tube lights, warpped 2216 white LED strip lights in the flexible silicone diffuser channel, avaiable in 2300K warm yellow light, 2700K warm white, soft white 3000K light, natural white 4000K light, and 6000K pure white light. Click here to know the white light color difference.

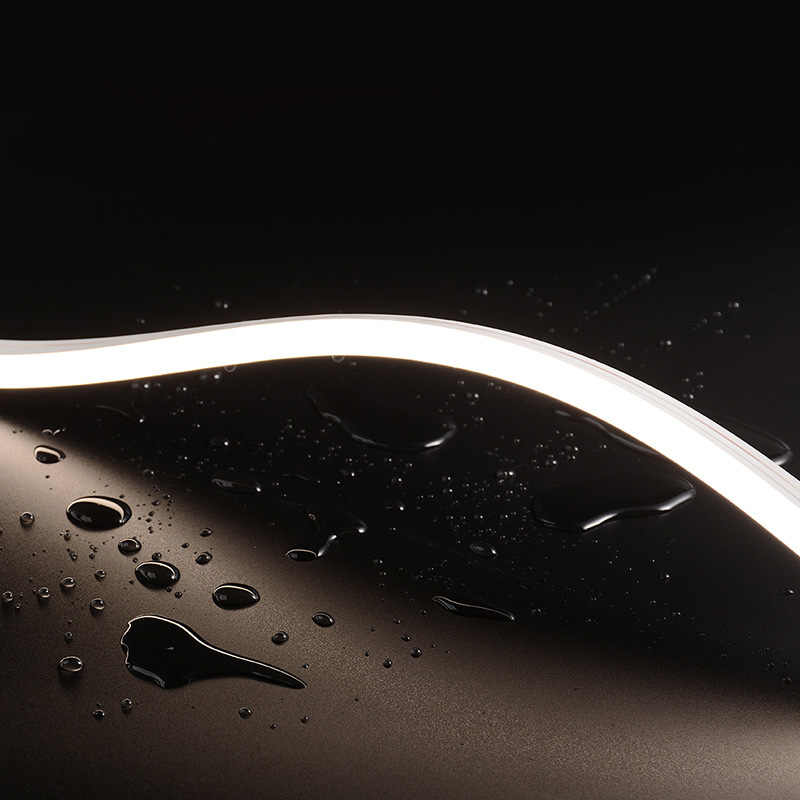

Flex LED neon lights have soft linear light, no light spot. Using food grade silicone material, this white neon signs are soft and waterproof, has good flexibility. Adapt 06*06mm mini size, suitable for advertising lighting, making neon signs (you can use this soft neon tube light to diy neon name signs, neon sign font, etc.), and apply for indoor and outdoor lighting.
LED White Neon Light Kit:
If you want to install easily, you can purchase the LED mounting brackets, every 2PCS per meter.
Standards and Certifications
|LED Product Type:||White Neon Signs 06*06mm Mini Size|
|LED Chip:||2216 SMD LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2300K warm white, 2700K warm white, 3000K soft white, 4000K natural white, 6000K pure white|
|Lumen Per LED:||20-24 Lumen|
|LED Quantity:||240 LEDs per 1meter (3.28 ft)|

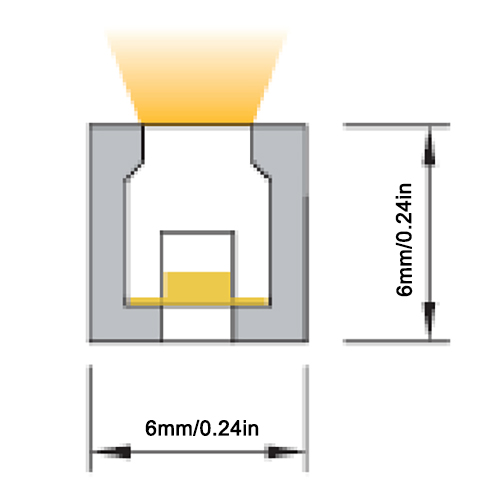

|Size:||W0.6cm(0.24 in ) x H0.6cm(0.24 in ) x L500cm(196.7 in)|
|Input Voltage(V):||24 VDC|
|Working Power:||6W/m, 30W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|

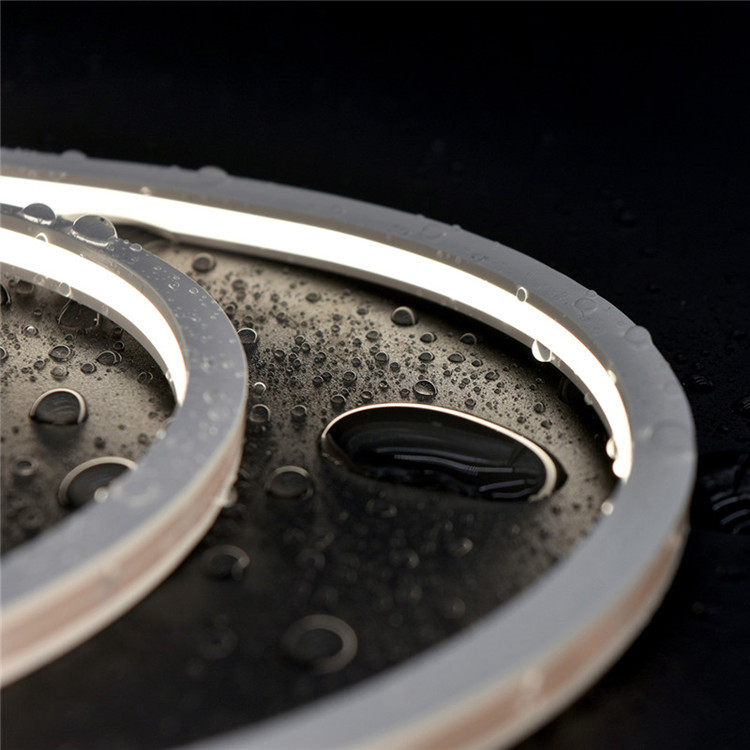

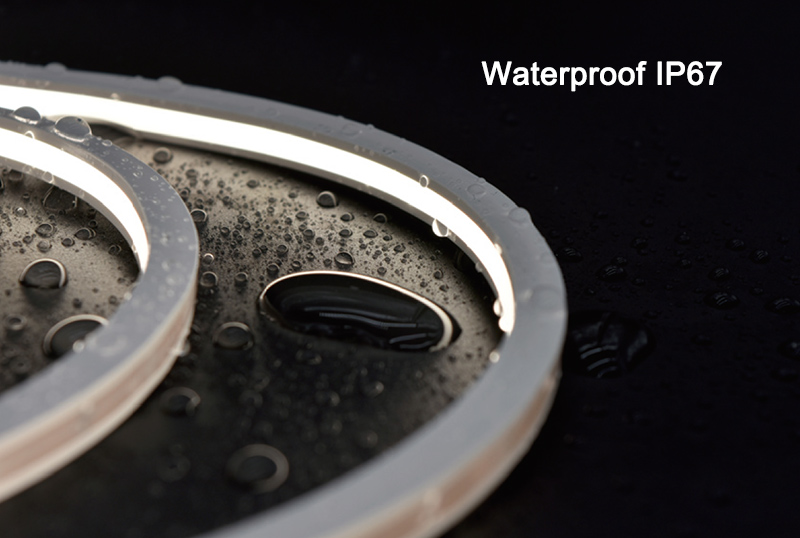

|Waterproof Rating:||Waterproof IP67|
|Beam Pattern:||120 degree|
How To Install White LED Neon Lights?
1. cut and install led neon sign light:

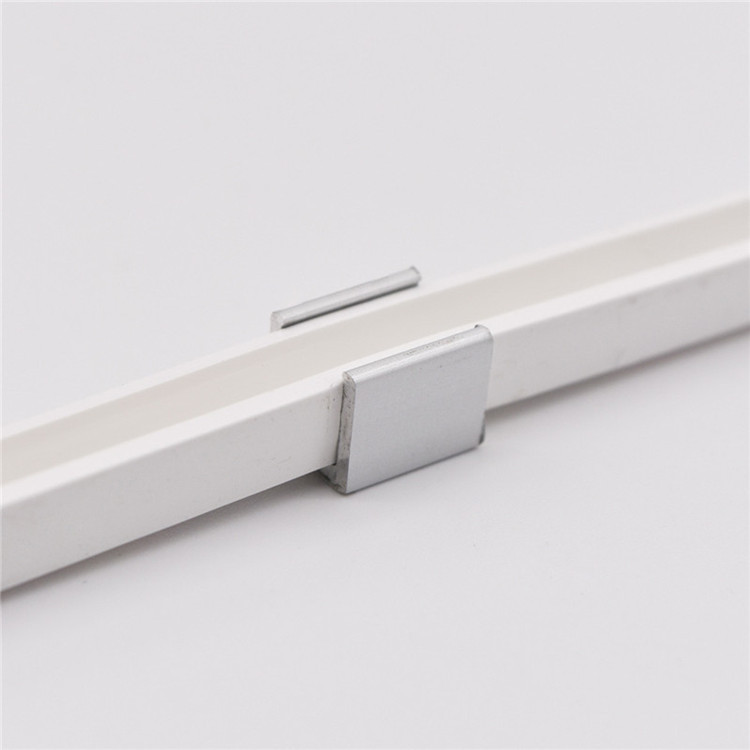

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
4. How to Make White Neon Signs? LED white neon light signs wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
