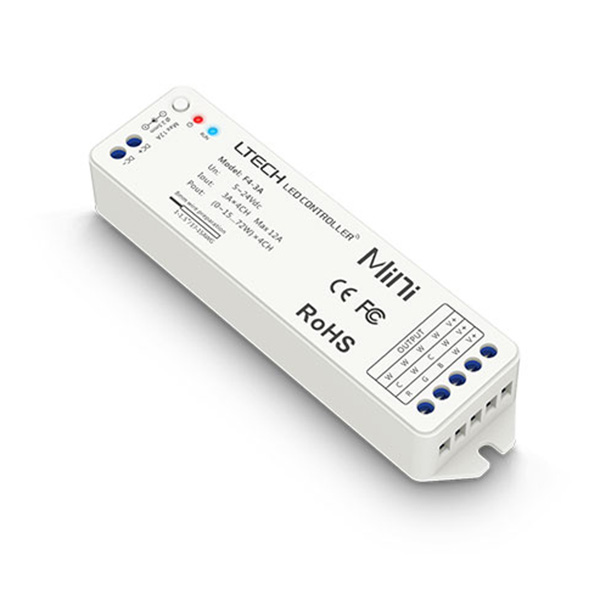

DC5-24V Wireless receiver F4-3A
F4-3A Receiving controller

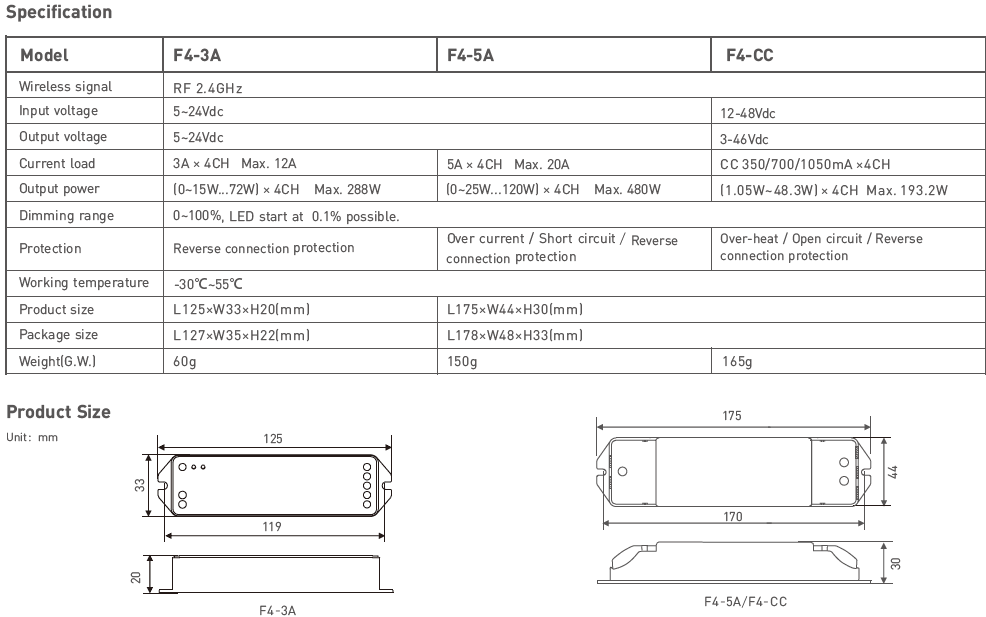

Working Frequency 2.4GHz
Input voltage: DC5V~DC24V
Max current load :3A x4CH Max 12A
Max output power: 60W/144W/288W(5V/12V/24V)
Remote Distance: 50m (line of sight)
Working temperature: -30℃～55℃
Package size: L127×W35×H24mm
Weight (G.W.): 60g
LED Dimmer F4-3A
