RGB Multi Color LED Lights Strips - DC24V 8mm 360LEDs 16.4ft

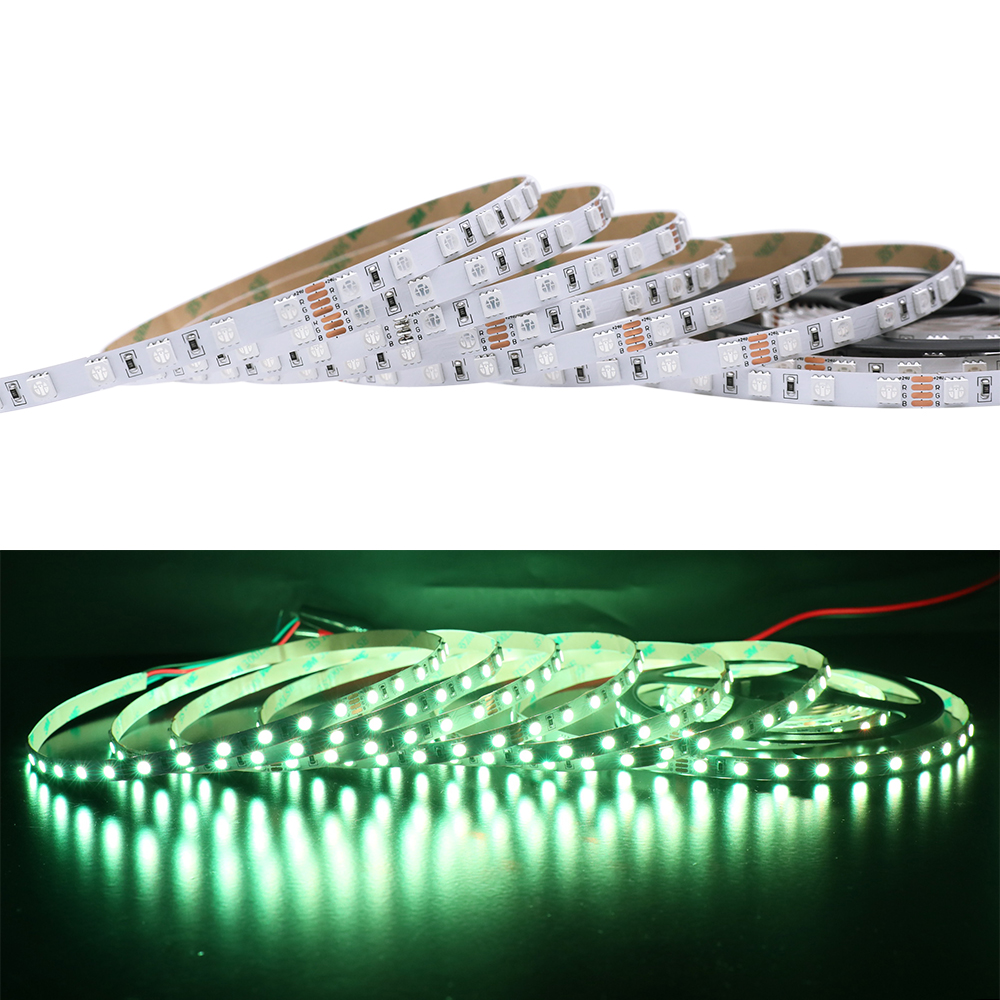

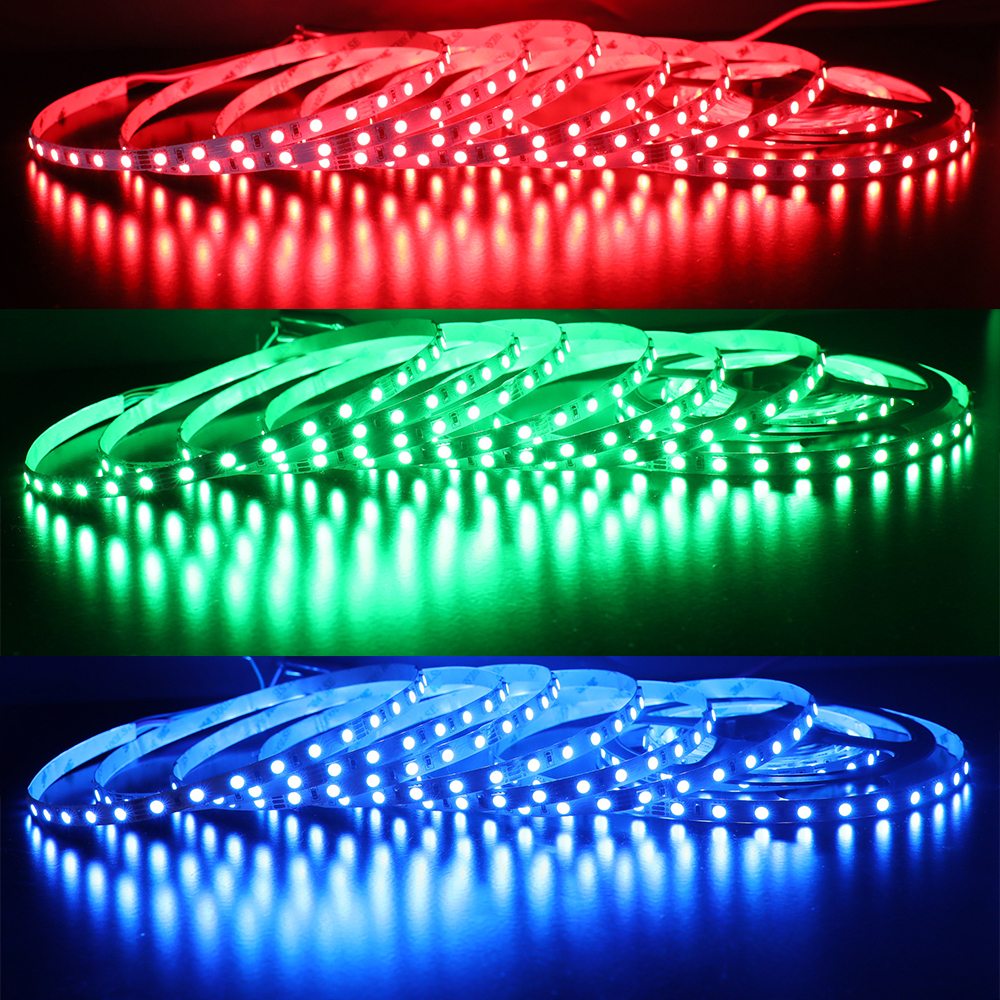

Adopt high quality 5050SMD RGB LED, high color consistency, can match Color Changing RGB LED controller to achieve accurate single color(R/G/B) control, can also match the remote control to adjust the brightness, mode and luminous color of RGB LED strip.
The density of this RGB LED strip is 360LEDs/16.4Ft, with high brightness; LEDs are arranged uniformly, and the gap is moderate, so the heat dissipation is better; the width of the color changing LED strip light is 8mm, which can be applied to narrow spaces and used for decoration of entertainment places such as bars and KTV.

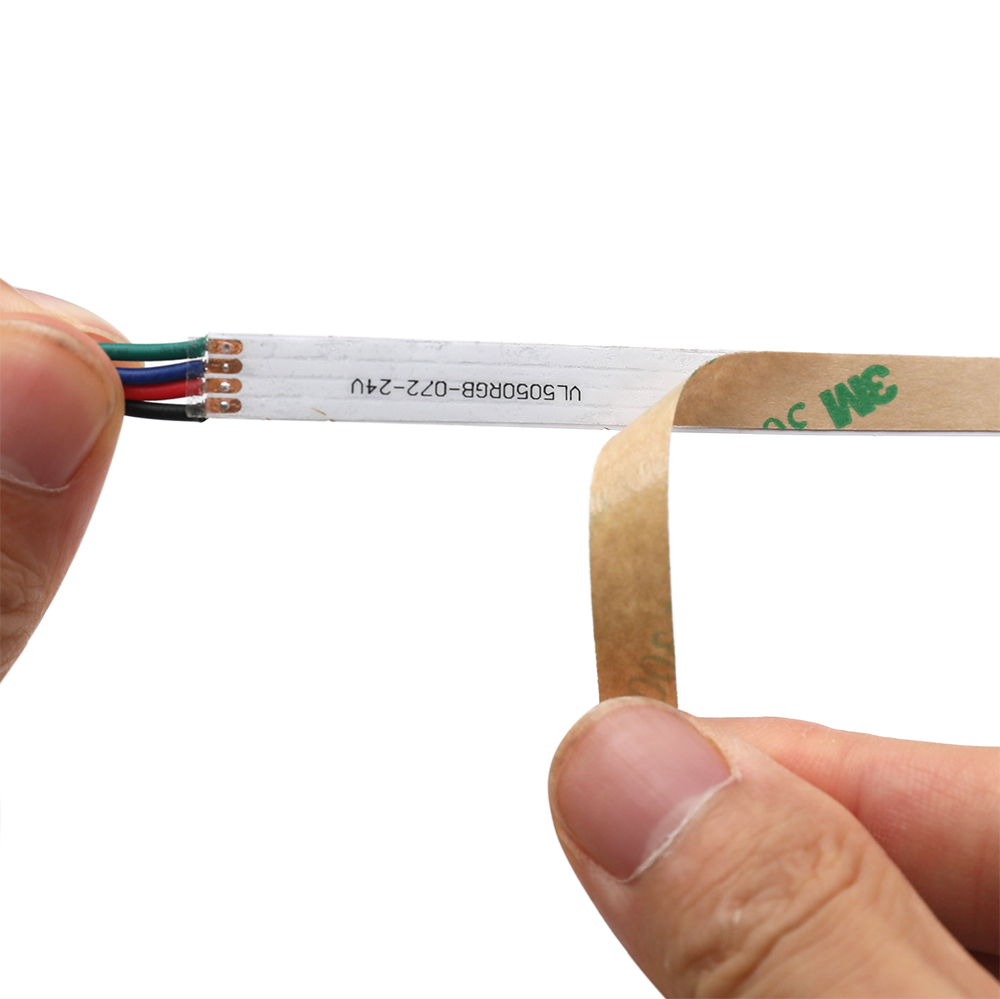

The back of the RGB multi color LED lights strip adopts professional 3M adhesive backing, which is easy to install; please keep the wall clean and tidy before use, 3M adhesive backing is strong, if you pursue a more stable installation device, you can add the LED mounting bracket to fix the RGB light strip.
You can also customize the waterproof rating of the RGB LED strip lights (IP65/67/68), IP65 waterproof LED strip lights are suitable for indoor humid environments; IP67 waterproof LED light strips are suitable for outdoor rainy environments.

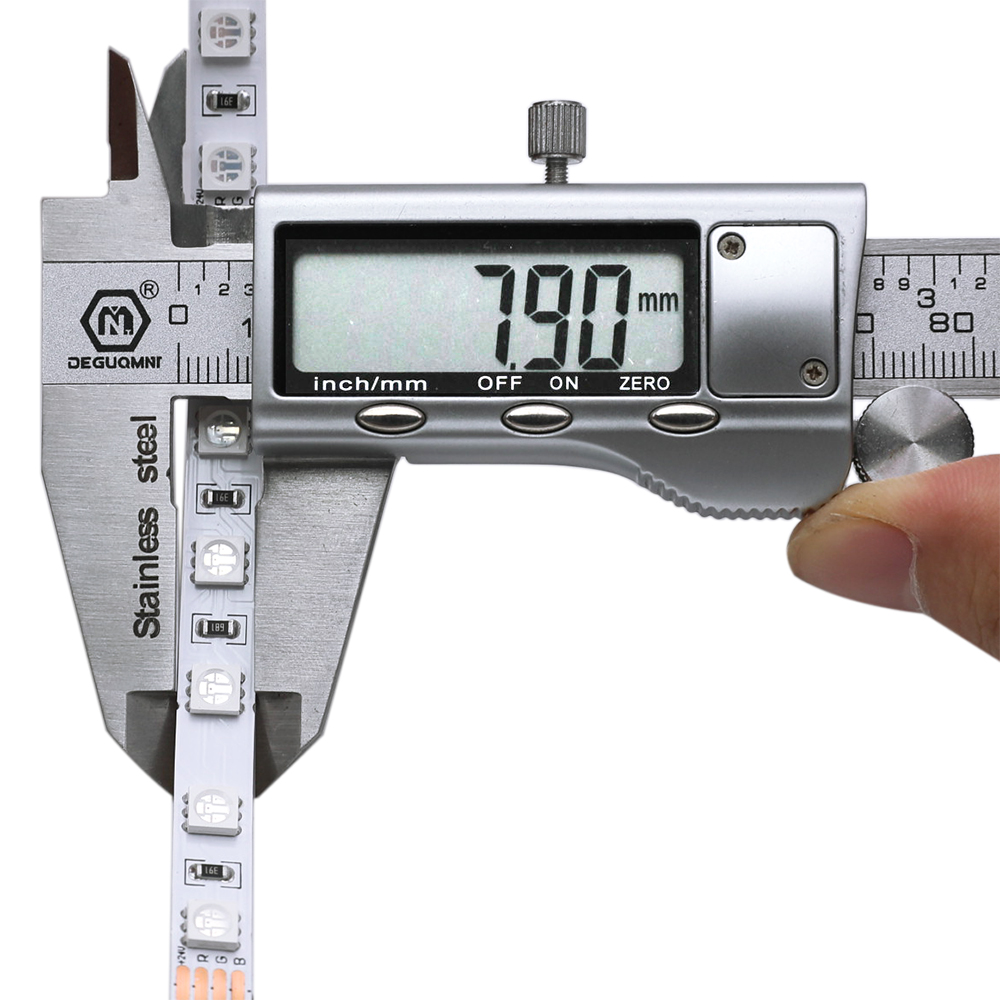

8MM/0.31 wide ultra narrow
22LEDs/Ft high brightness

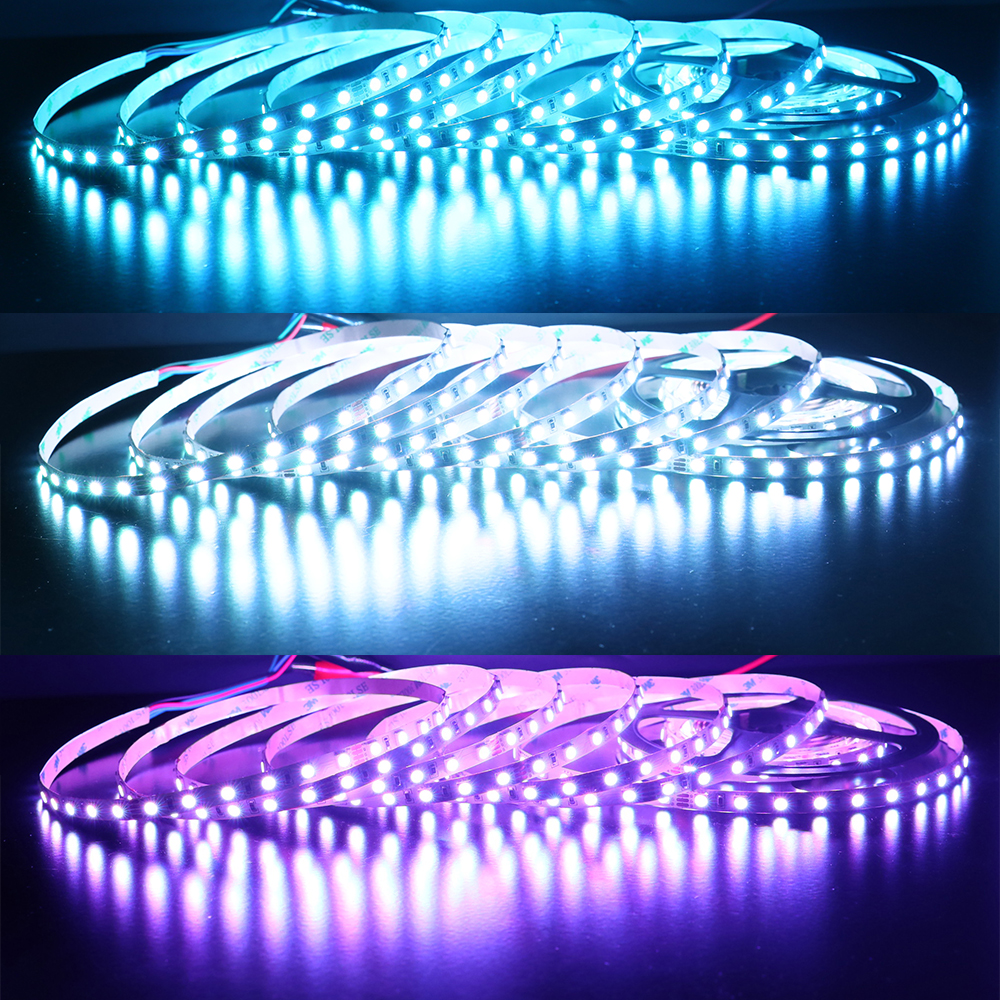

Color changing RGB LED strip
DC24V low voltage input

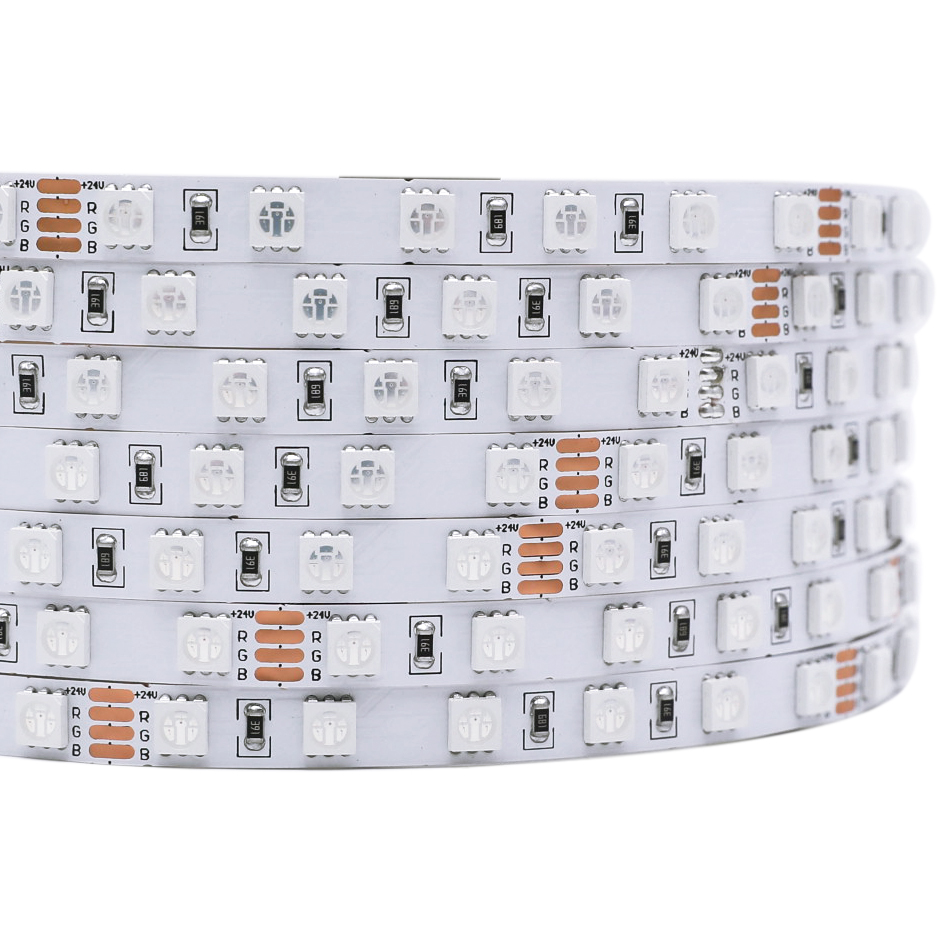

SMD5050 high quality LED
3M tape, easy to install
For decoration lighting
Customize length and waterproof rating
Standards and Certifications
|LED Strip Type:||SMD 5050|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

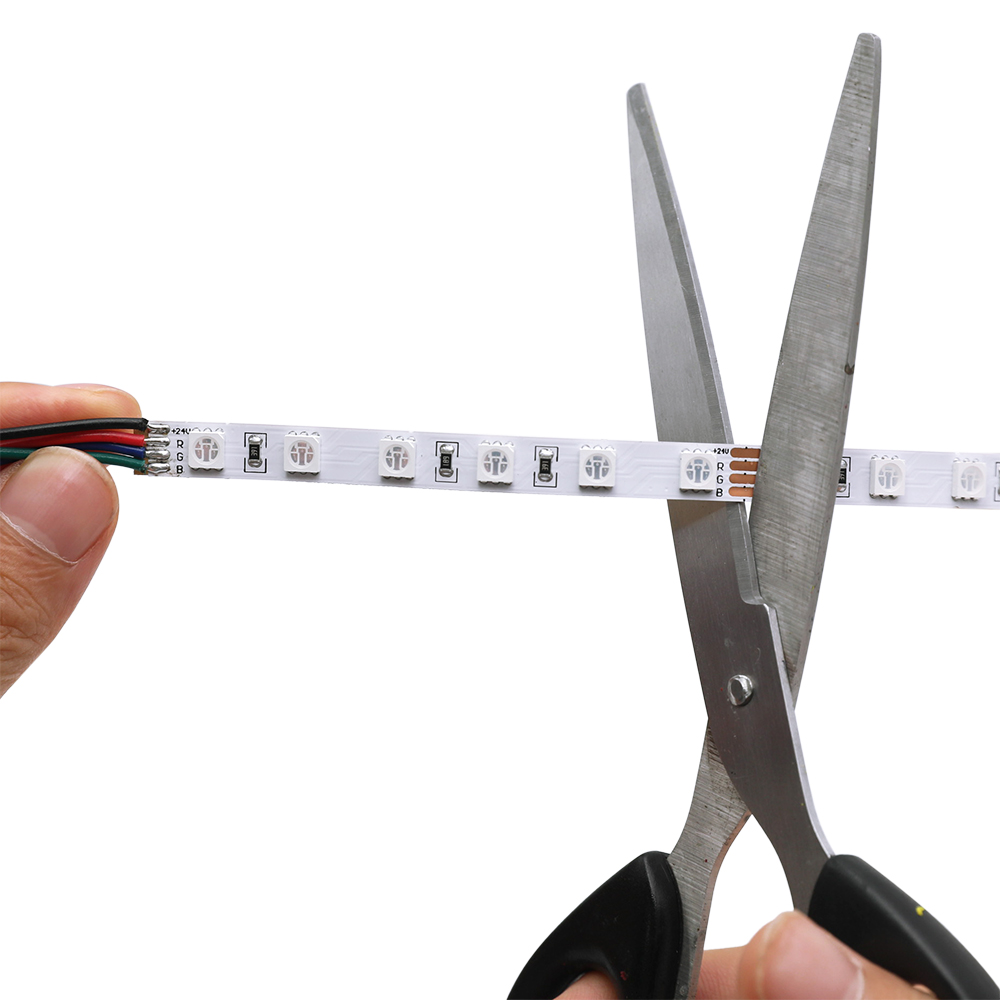

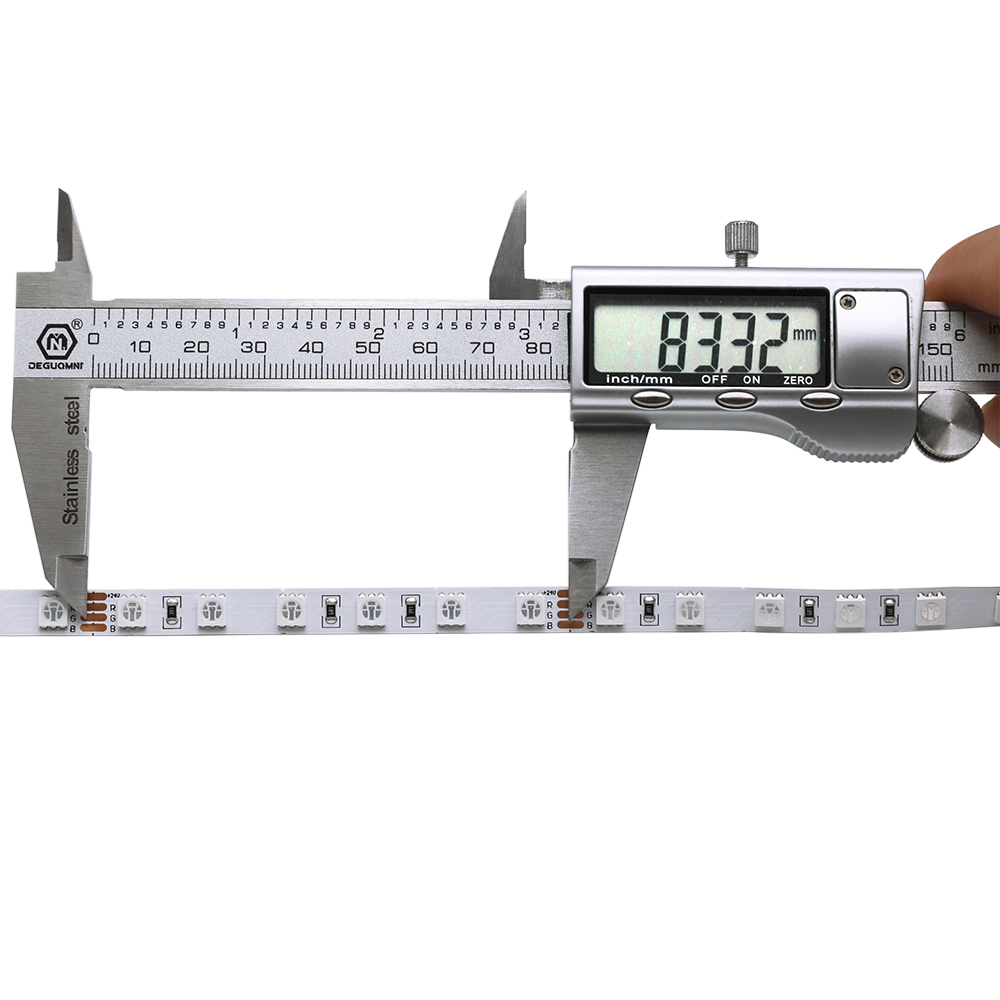

|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||72 LEDs per 1meter (3.28 ft), 22 LEDs/ft|
|Dimensions:||L500cm(196.8 in ) x W8cm(0.31 in ) x H0.20cm(0.08 in )|
|Input Voltage(V):||24 VDC|
|Working Power:||72W /16.4ft Max|
|Lamp Luminous Flux(lm):||5-6lm/LEDs 1800lm/16.4ft|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP65/IP67|
RGB LED Lighting Kit:

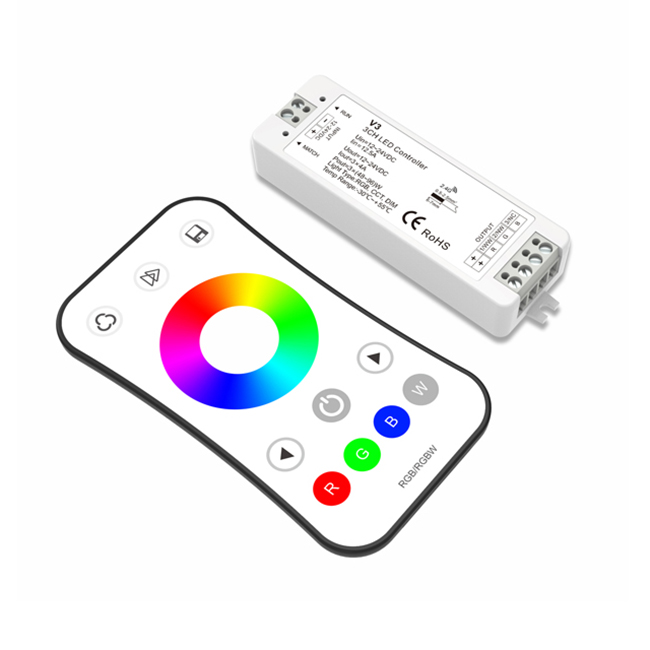

If you choose the LED controller in the kit, we will send you an RGB light strip + V3+R8-1 Wireless RGB Controller With RF Remote.
For this RGB led strip light, you need to choose the power of LED power supply more than 86.4W. We also recommend that 100W Mean-Well UL-Listed LED power supply. If you want to use the LED strip light in outdoor environment, you can choose PSWP-24V-100W waterproof LED power supply.
