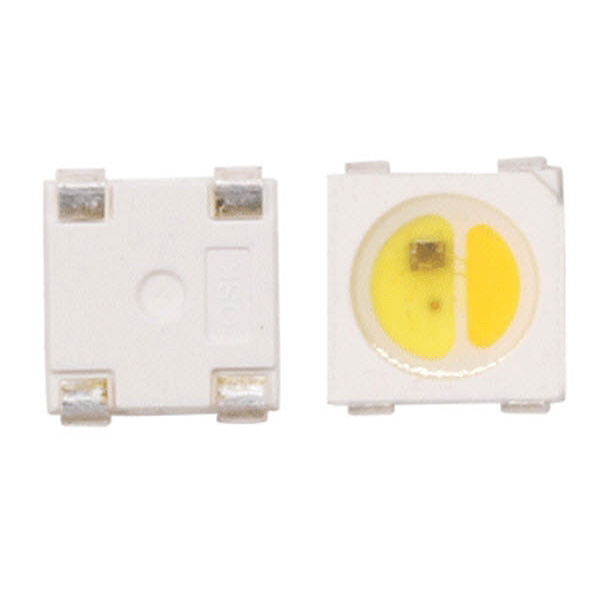

SK6812 5050SMD WWA Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By Sale
SK6812 WWA(White+Warm white+Amber) is a smart LED control circuit and light-emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is the unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to the DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated into the LED above
SK6812 Chips Specifications Download
Product Feature
Top SMD internal integrated high quality external control line serial cascade constant current lc; control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color-mixing uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
The built-in power-on reset and reset circuit, the power does not work; grey level adjusting circuit (256 level grayscale adjustable);
Red drive special treatment, color balance;
Line data transmission;
Plastic forward strengthening technology, the transmission distance between two points over 10M; Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec.
Standards and Certifications

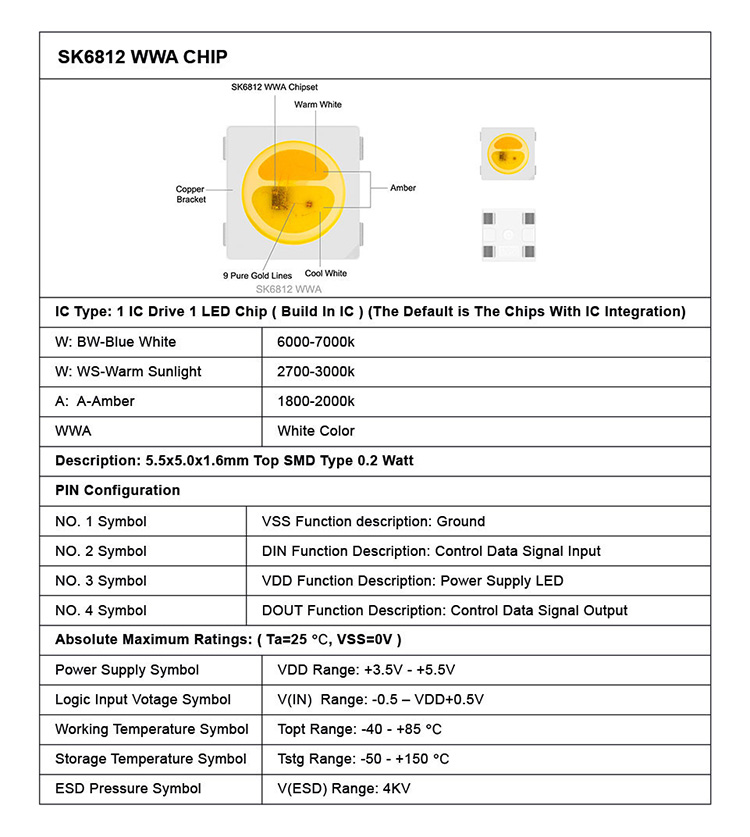

Product Specifications
LED Type: SMD LED 5050
LED Chip Type: SK6812-5050
Emitting Color: Addressable Full Color WWA
Working Current: Cool White: 6000-7000K, Warm White: 2700-3000K, Amber: 1800-2000K.
Working Voltage: DC 5V
Power: 0.2W/pcs
Packing: 1000pcs
Material: Copper
Beam Angle: 120degrees
Waterproof Rating: non-waterproof
Product List
1* 1000pcs SK6812 5050 WWA LED chip
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
