Special Price: $74.98 $37.9849% off

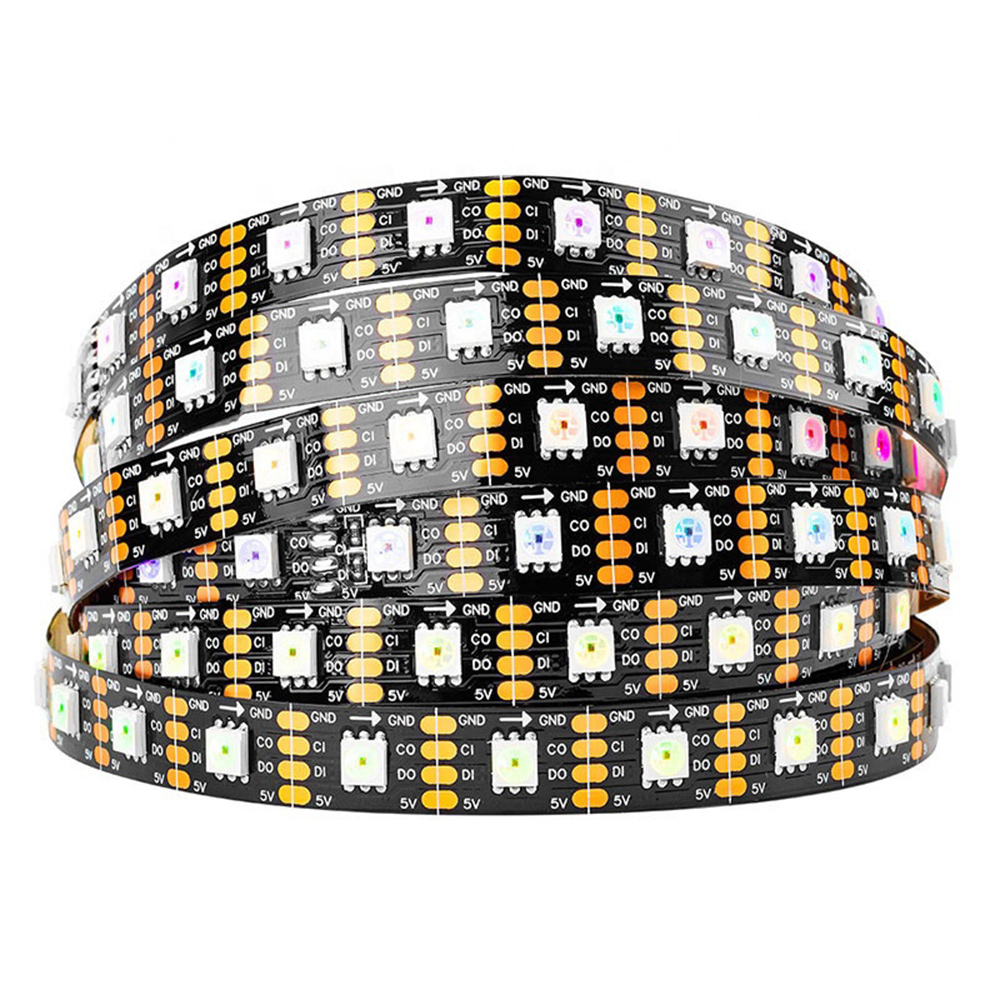

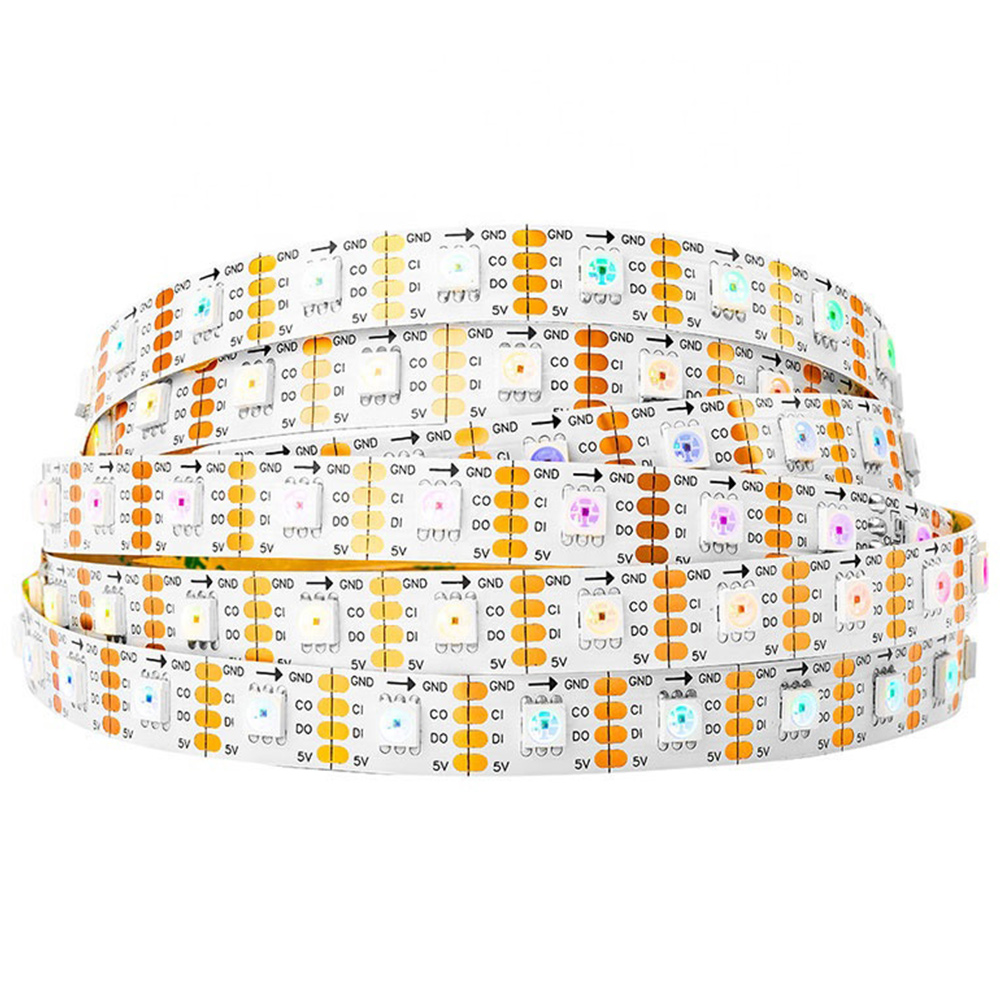

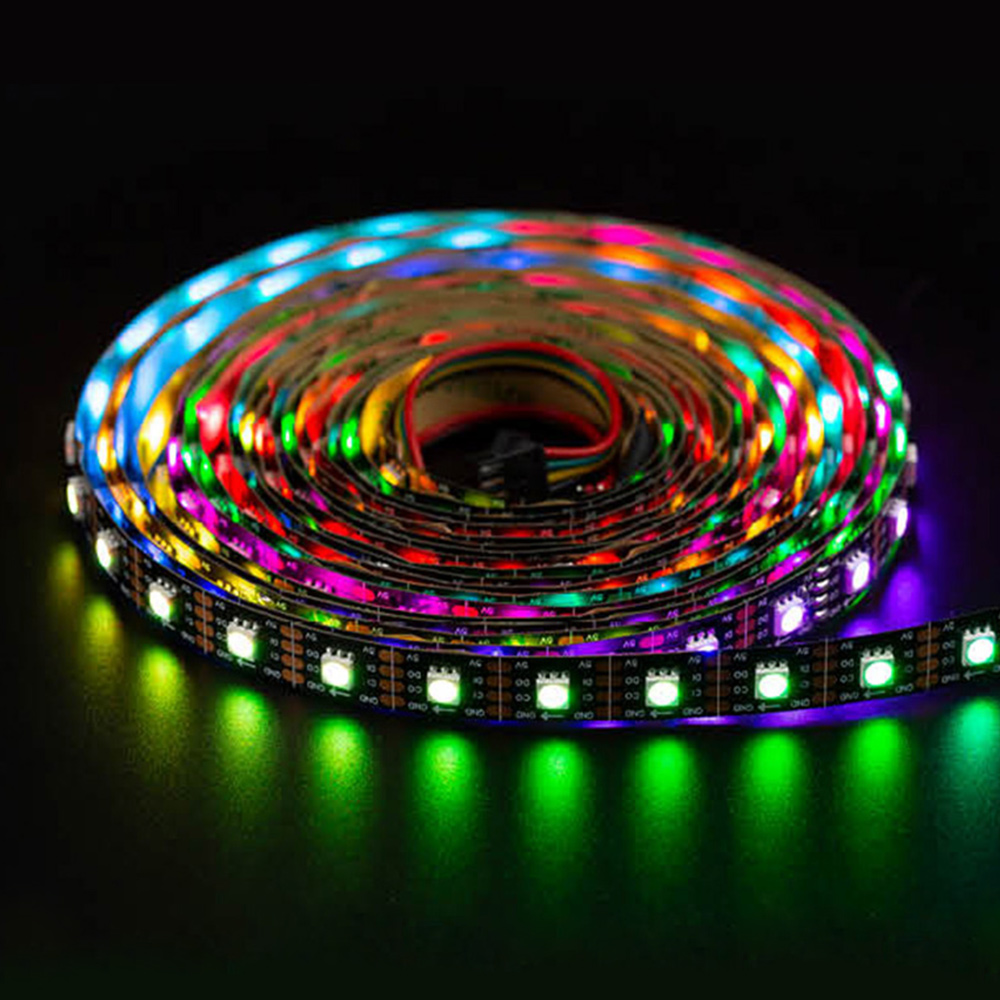

1. There are 60 Addressable RGB LEDs per meter, and 12mm wide for 60LEDs/meter, DC5V input, and you can control each LED individually! This is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
2. The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
3. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
4. The SK9822 is almost a direct replacement to the APA102 and is superior in some respects, most importantly its built-in constant-current control, If you have ever tried to power a long string of LED strips and only connect one end to the power supply, you may have noticed that the far end of the LED strip has a low voltage on its power rail due to the resistance in the long power connection. For LED strips based on APA102C and WS2812B, use dimmer voltage and red color. With SK9822, as long as the voltage remains above 3.5v, this voltage drop is unlikely to have a noticeable effect.
5. The protocol for the SK9822 is very similar to the protocol for the APA102C, but it updates the colors displayed at different times. If you replace the APA102C LED with the SK9822 LED in a low-framerate application, you may need to update the code that our APA102 Arduino library USES with the SK9822, so you can use it directly or write your own code as a reference. The color generated by SK9822 is different from the color generated by APA102C, so we do not recommend mixing APA102C and SK9822 in a single project.
SK9822 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (70% more energy saving than the neon), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Specifications
SPECIFICATION
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with the plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with the plastic fastener, the top level of waterproof, For Outdoor);
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
Note

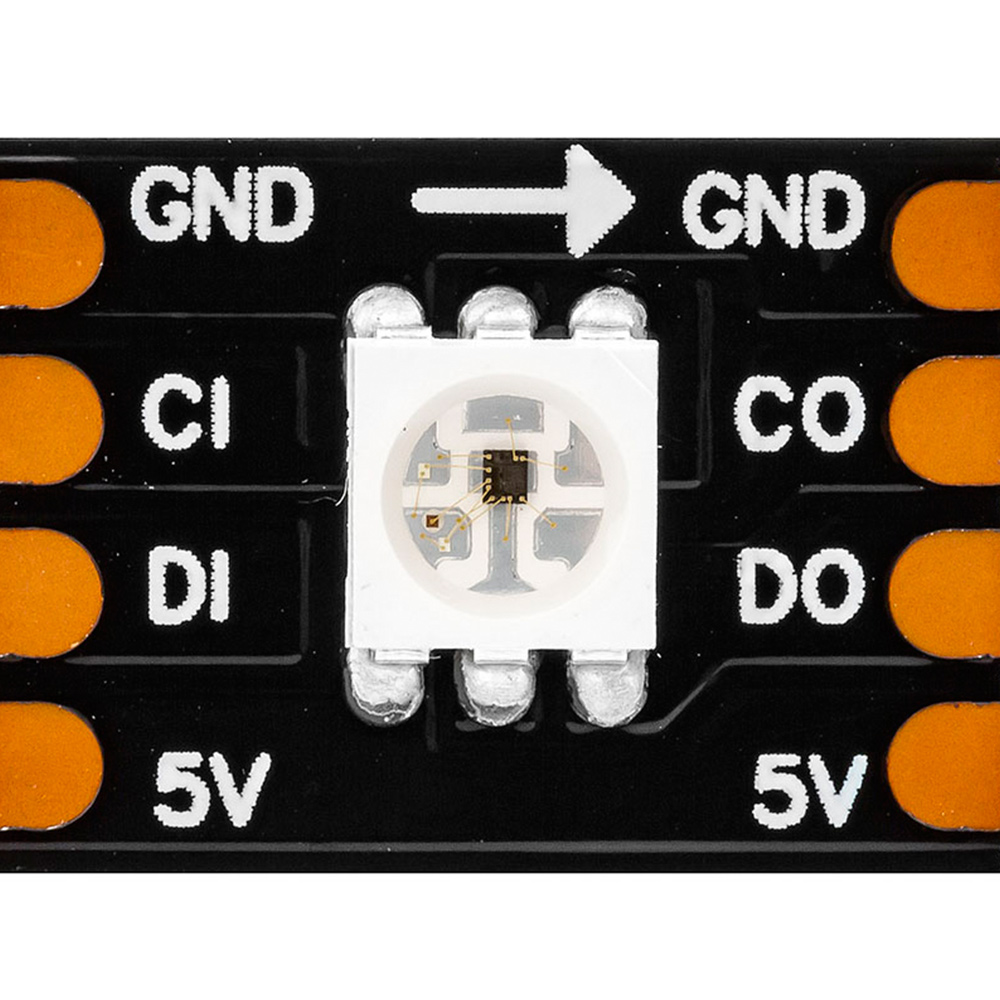

The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.
LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
