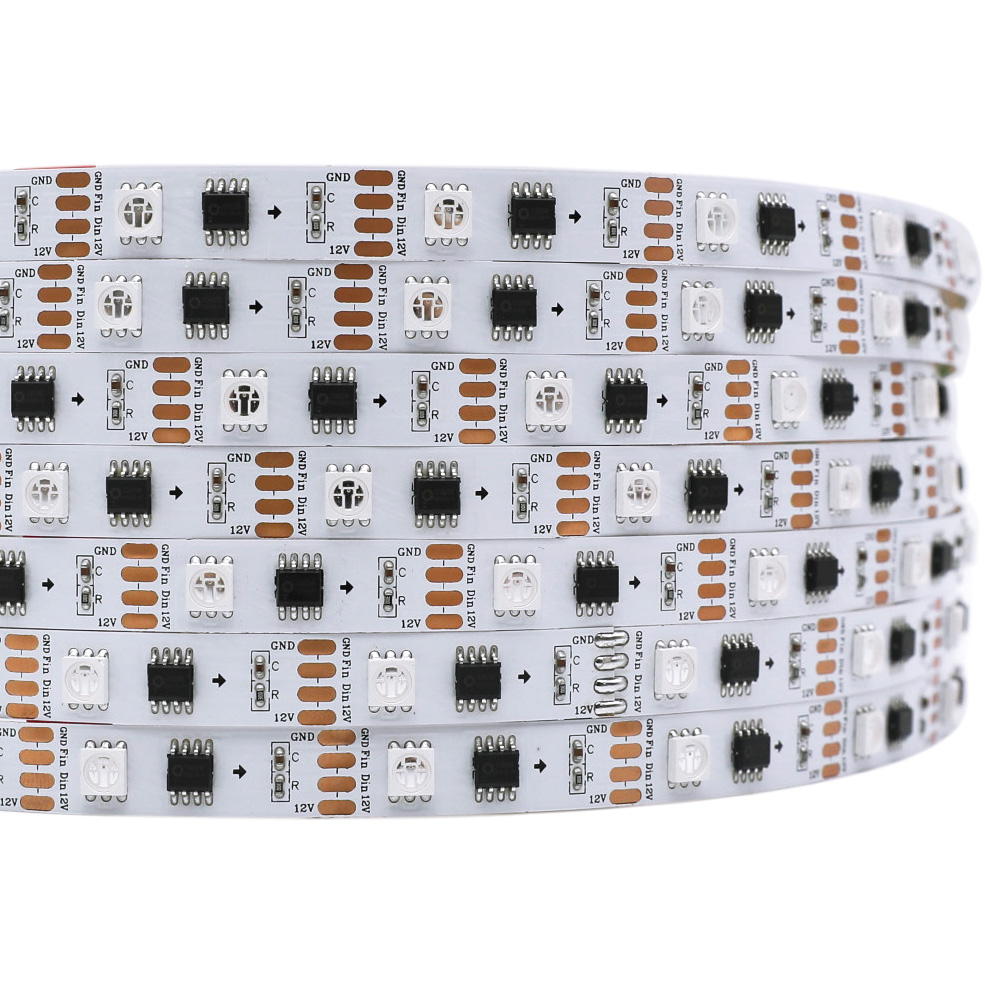

GS8208 RGB Color Chasing LED Light Strips, Individually Addressable
1. The voltage of GS8208 is 12V, external IC, and it is individually addressable, breakpoint- continue.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. It is equipped with a 4-pins JST-SM connector with two separate power/ground terminals.
3. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
4. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
Standards and Certifications

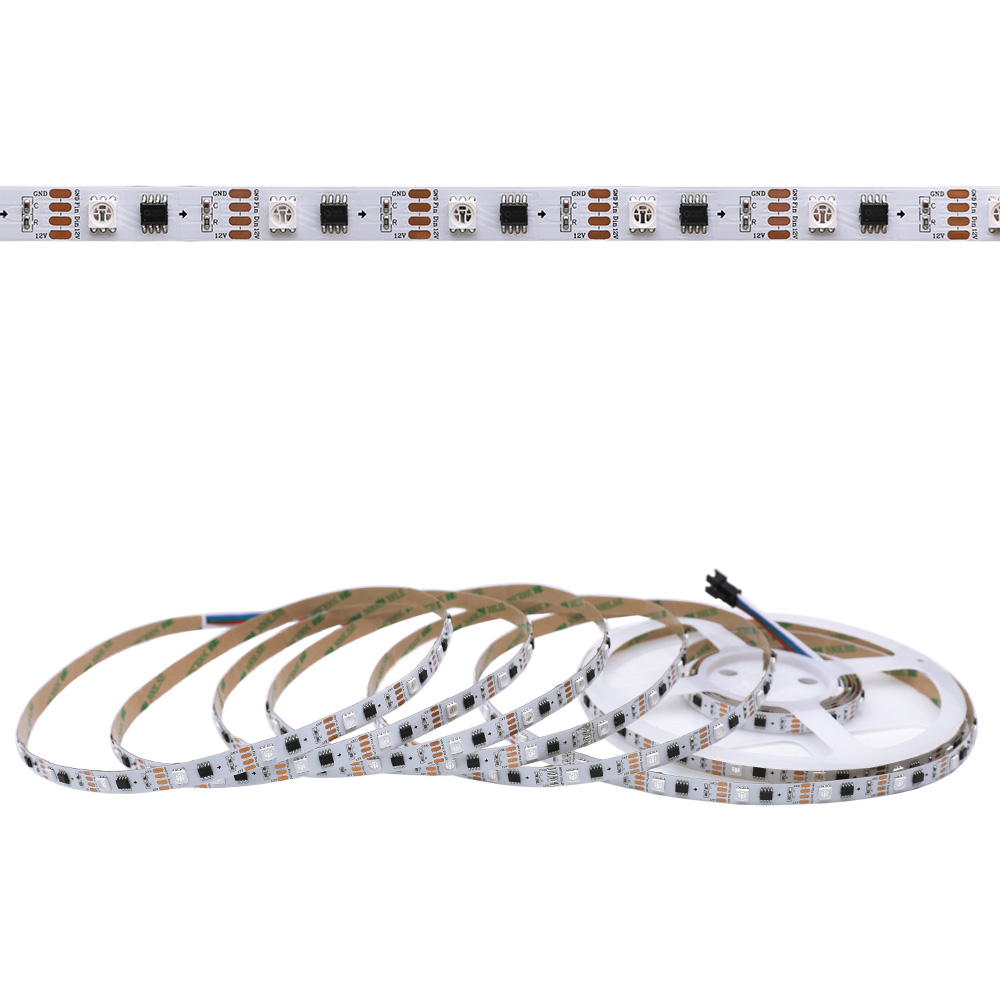

LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: GS8208 IC super brights Chip

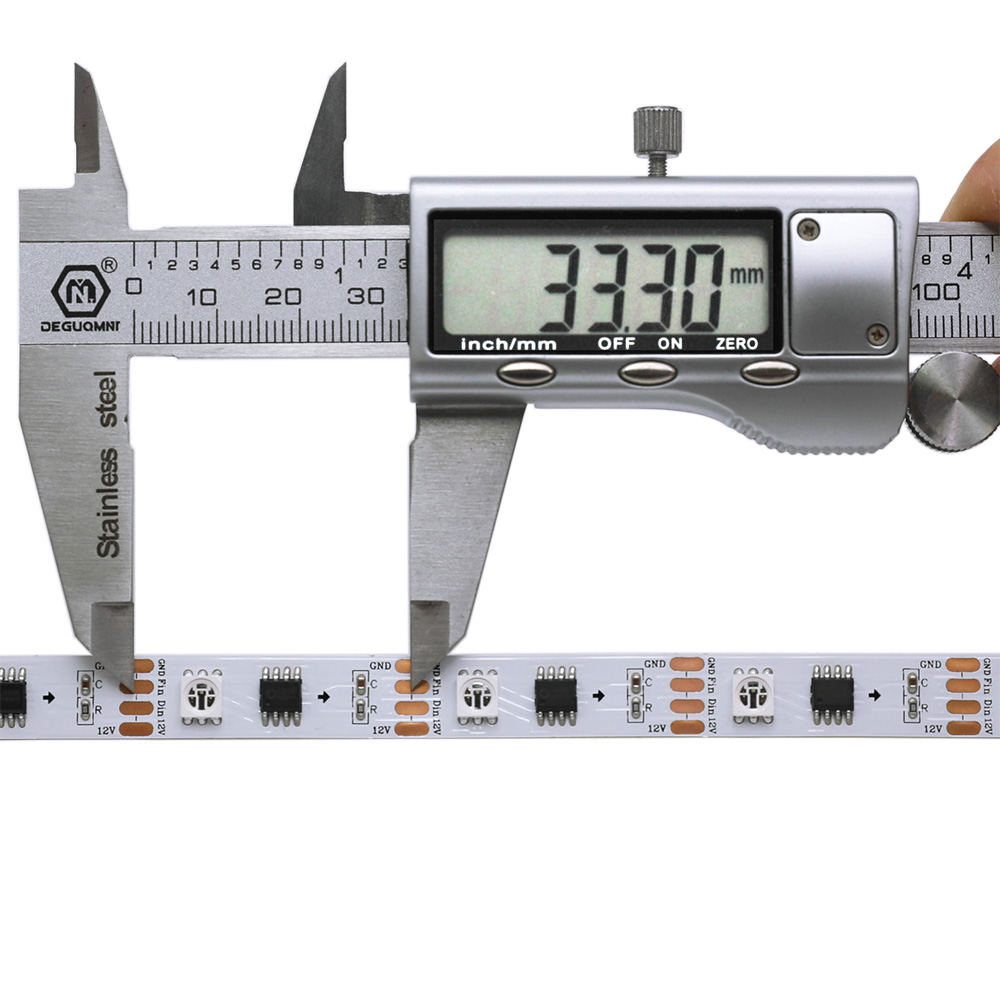

Dimension: 16.4ft/roll, every 1 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 30 IC per 1meter (3.28 ft)

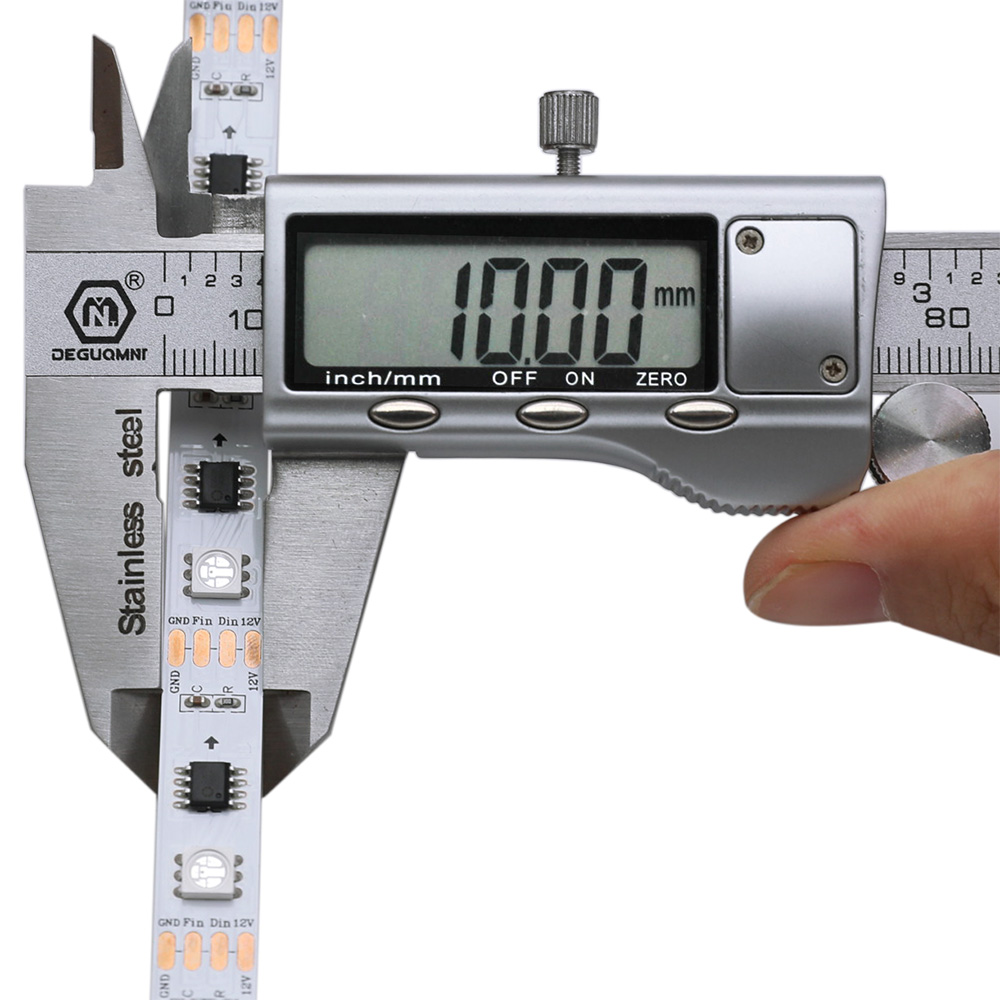

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 36W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: Non-waterproof IP20, Waterproof IP65, IP67
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

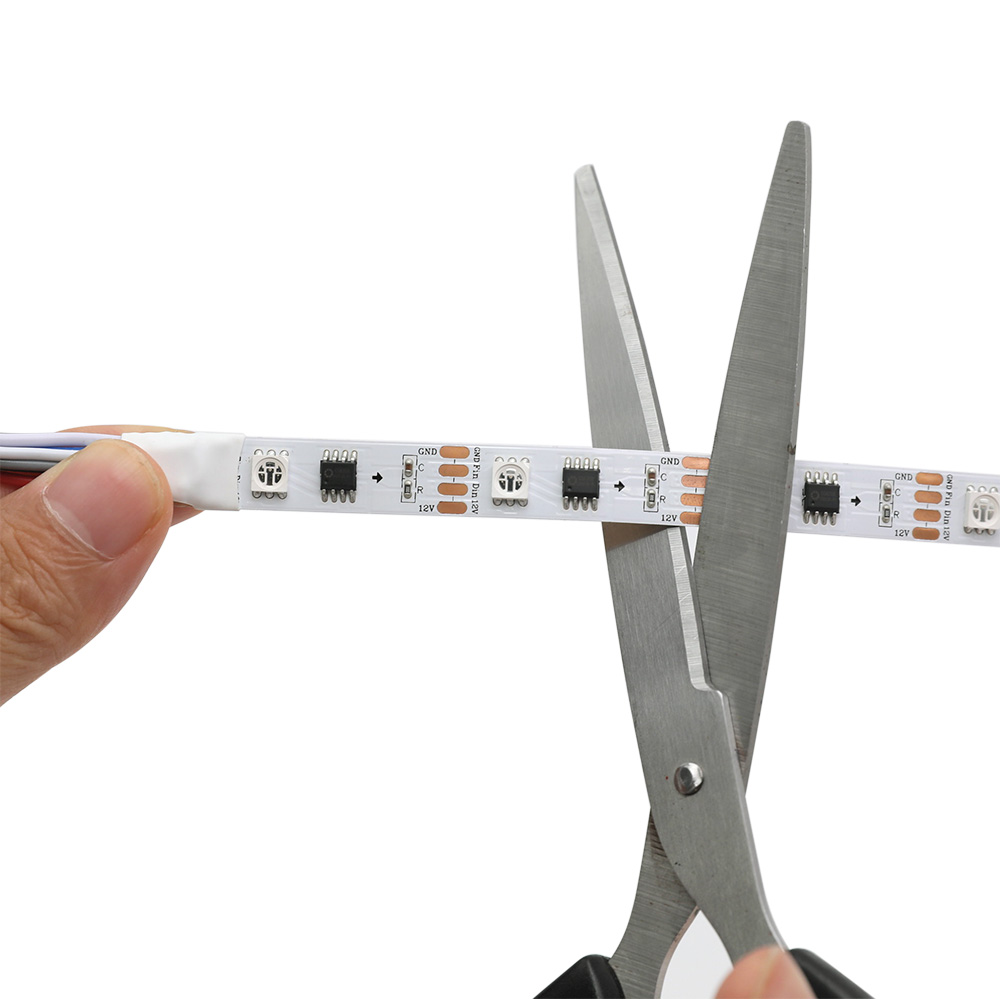

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67 type which will come with

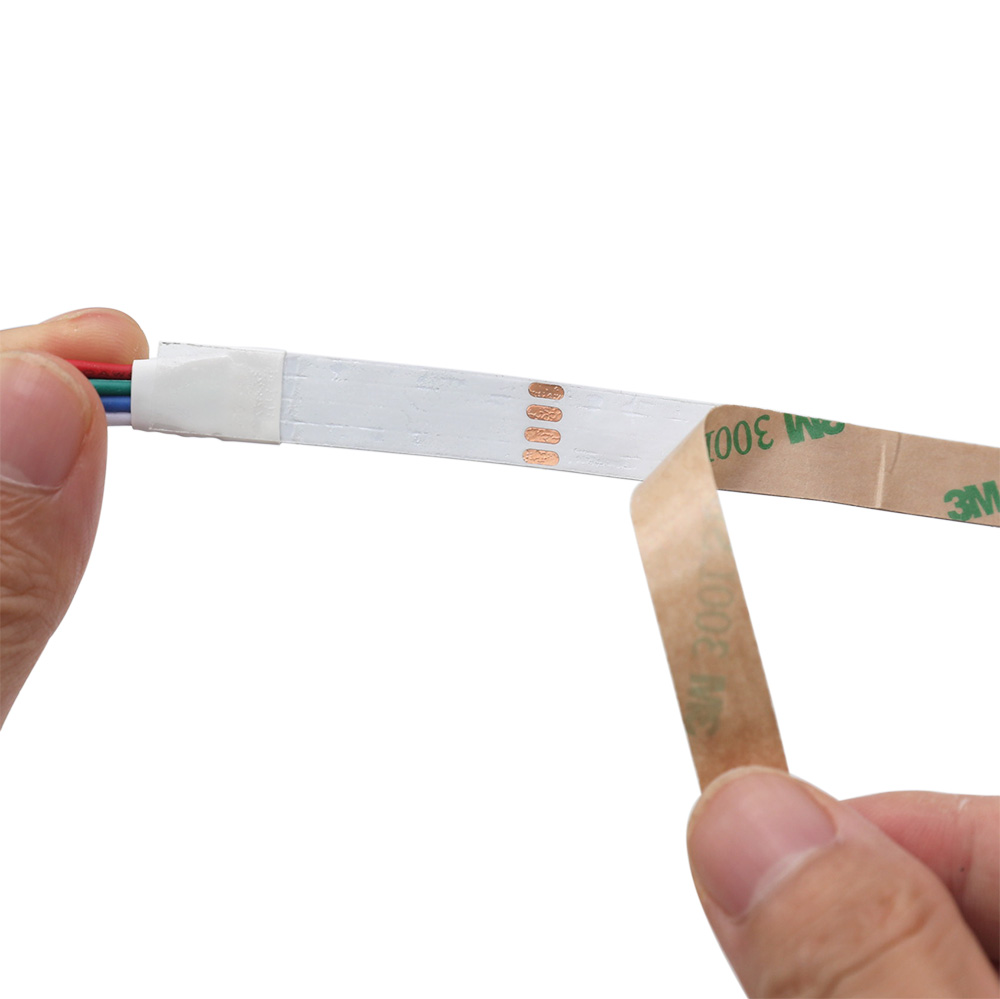

allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
