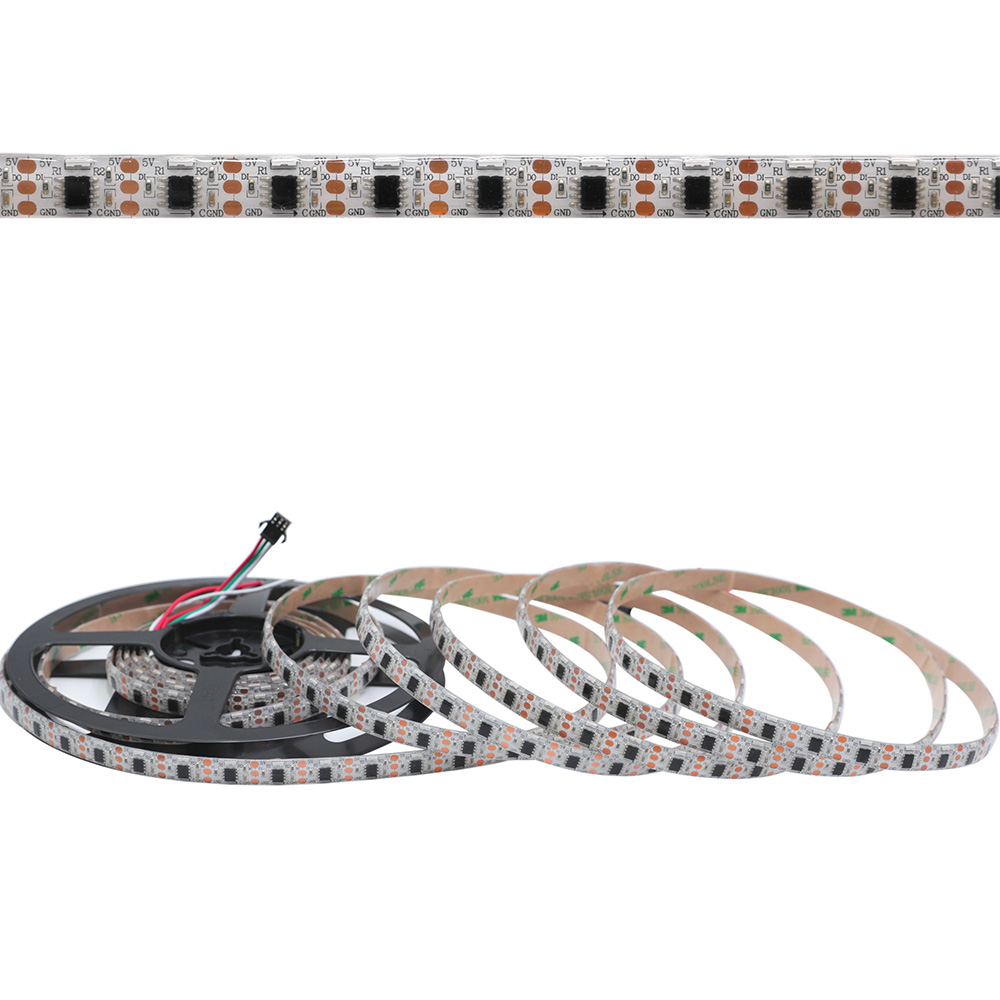

This UCS1903 RGB DC5V 60LEDs/m Side Emitting Addressable LED Strip Lights with pure color, 020 RGB FPC board on the back of 3M glue, easy to install low energy consumption, high brightness , The performance is stable and can do waterproof processing unique line technology and high standards of anti-static, to ensure the life of the light bar and the use of quality with plastic deck, easy to install seismic, maintenance-free normal life of 50,000 hours or more Applications: Decor, pool, disco, bar, karaoke and other atmosphere lighting, fashion lighting
Light strips advantages

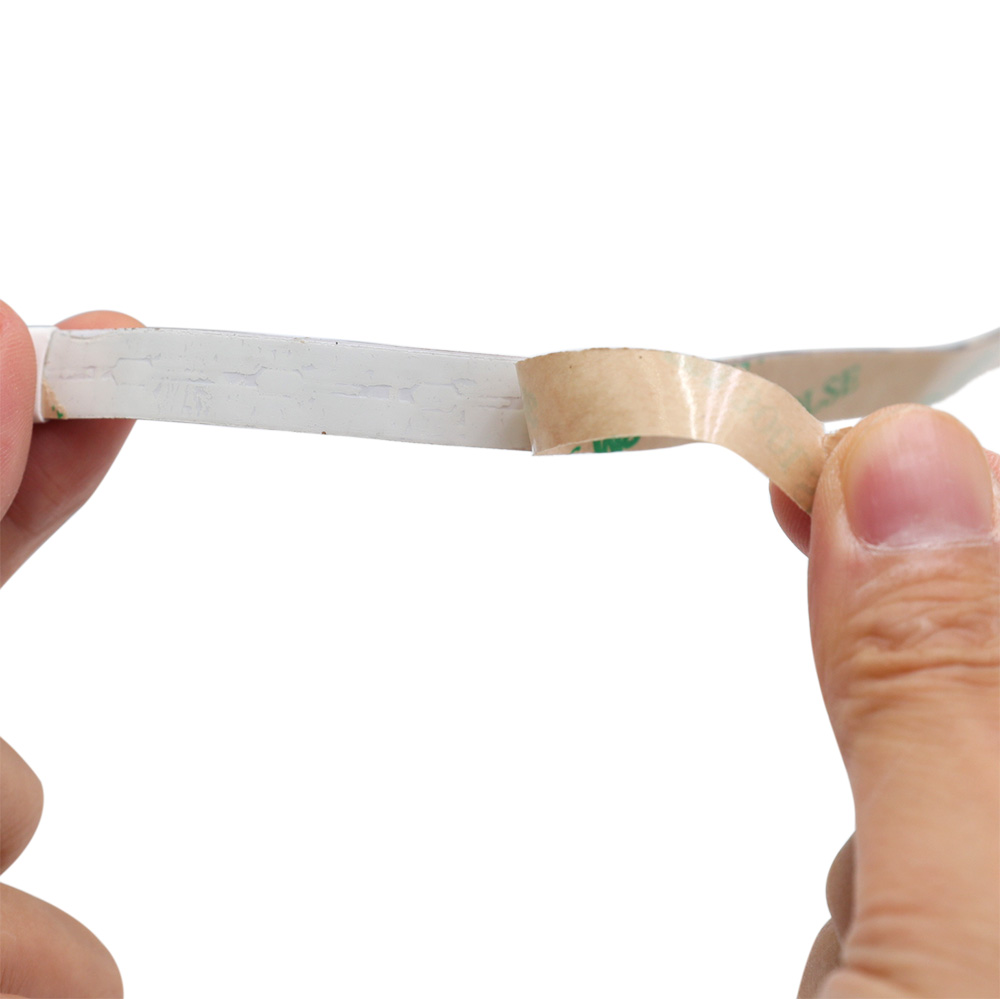

With a plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 lights can be cut to use) energy saving and environmental protection and other advantages is the ideal replacement of neon products (than the neon energy saving 70%), , It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
LED Strip Type: SMD 5050 SIDE DreamColor 300LEDs/16.4ft
LED Chip: UCS1903 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
IC Type: UCS1903 IC (1 IC drives 1 led chip)
Q'ty of LED: 60leds/Meter Available
Q'ty of IC: 60 pixel /Meter
Input Voltage(V): 5VDC
Working Power: 30W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm Lm/16.4Ft MAX 402Lm/Ft 91.7Lm/Watt
Water Proof: Non-Waterproof IP20 or IP67 waterproof (sealed in silicone tube)
PCB color: WHITE

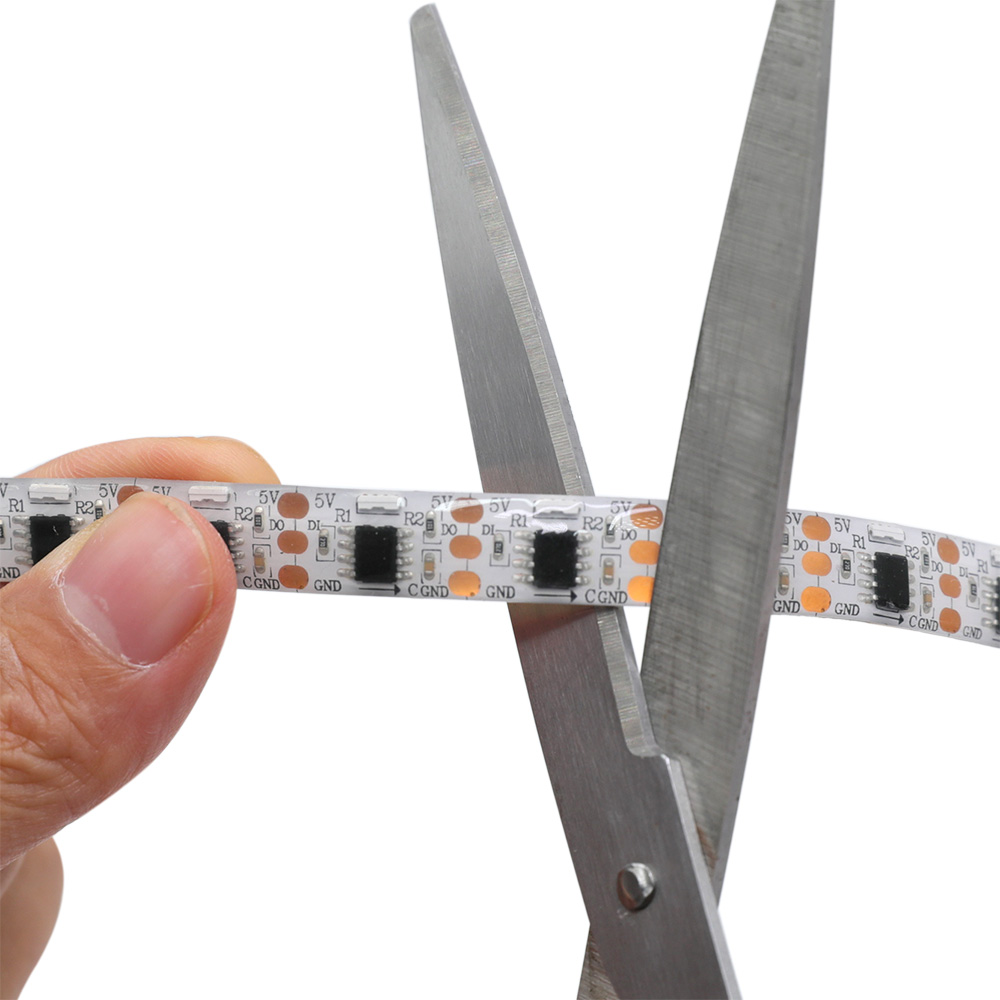

Dimension: 16.4ft/roll, every PCS LED can be cut

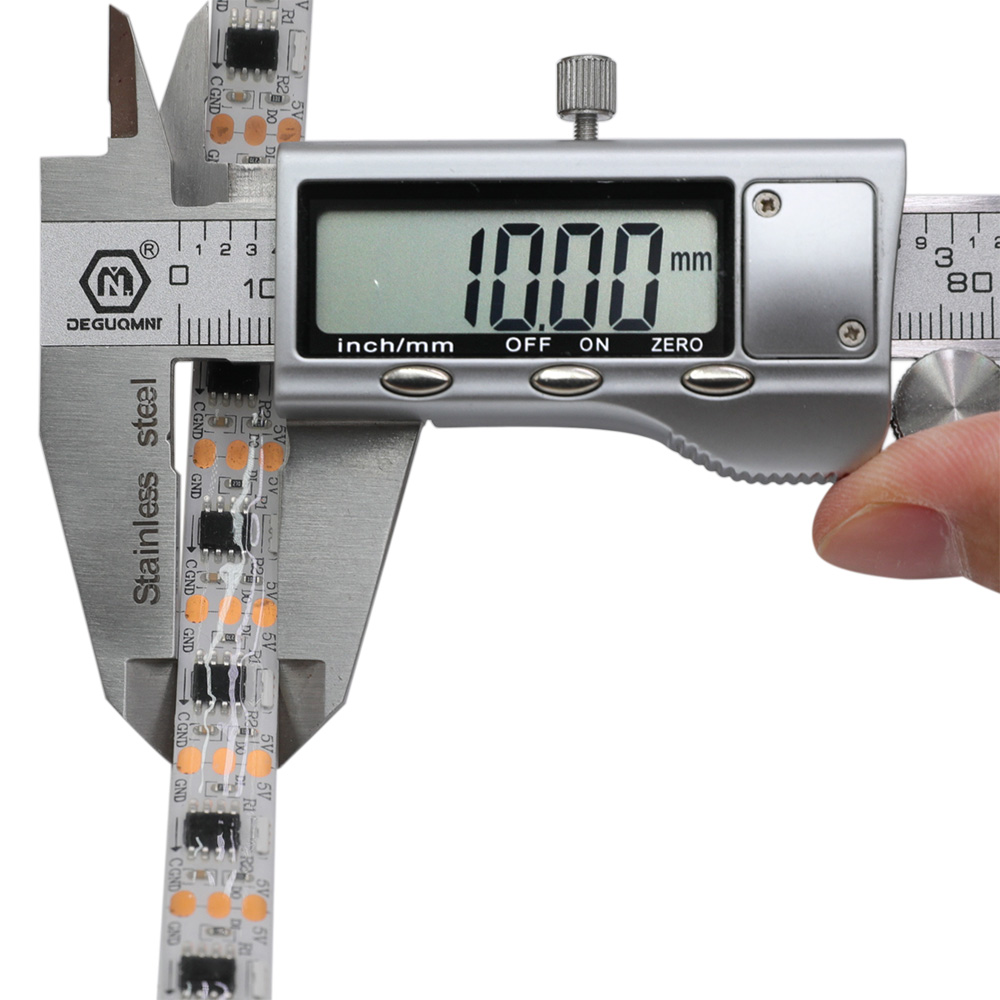

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Warantty: 3 years
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
