SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights

Model: SK6812-SIDE-72W5
SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights
  • SK6812 SMD4020 360LEDs 16.4Ft Side Emitting Individually Addressable LED Strip Lights

Select Specifications:

Starting at: $64.98 $40.9837% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$40.98
5-9
$40.16
10-14
$38.93
15+
$37.29
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    SK6812 side-emitting LED light strip input voltage is DC5V, adopts high-quality SMD4020 chip (length: 4mm width: 2mm), low energy consumption, high brightness, stable performance, maintenance-free normal life of more than 50,000 hours.

    72LEDs/m high density addressable led strip light. The more LEDs there is the higher quality, brightness, power. Therefore, when choosing the LED power supply, to avoid overload. LED light strip is designed with 3M adhesive backing and customize the size to avoid the limitation of the indoor environment lighting and easy installation and operation.

    Addressable LED strips, single LED programmable, can achieve a high-quality color chasing effect by changing the red, green, and blue of each LED, and the perfect combination of colors. Multiples dynamic chasing Dream Color effects, it is recommended that you use it with an LED controller, or use other microcontrollers and processors to control, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore.

    SK6812 addressable light strip is a 3-channel (V+, DATA, GND), this LED strip light is single data line programmable light strip, fast data transmission speed, single LED controllable, suitable for indoor corridors, stairs, and small bays.

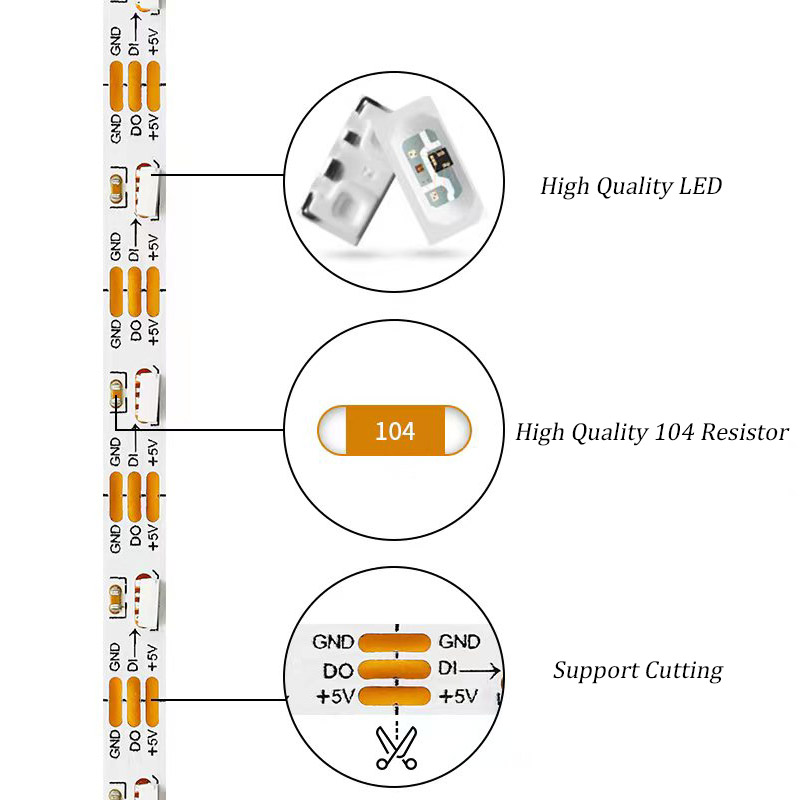

    1. SK6812 Side-emitting lightin

    2. High quality SMD4020 LED chip

    3. 72LEDs/m high density

    4. One LED cuttable, individual addressable

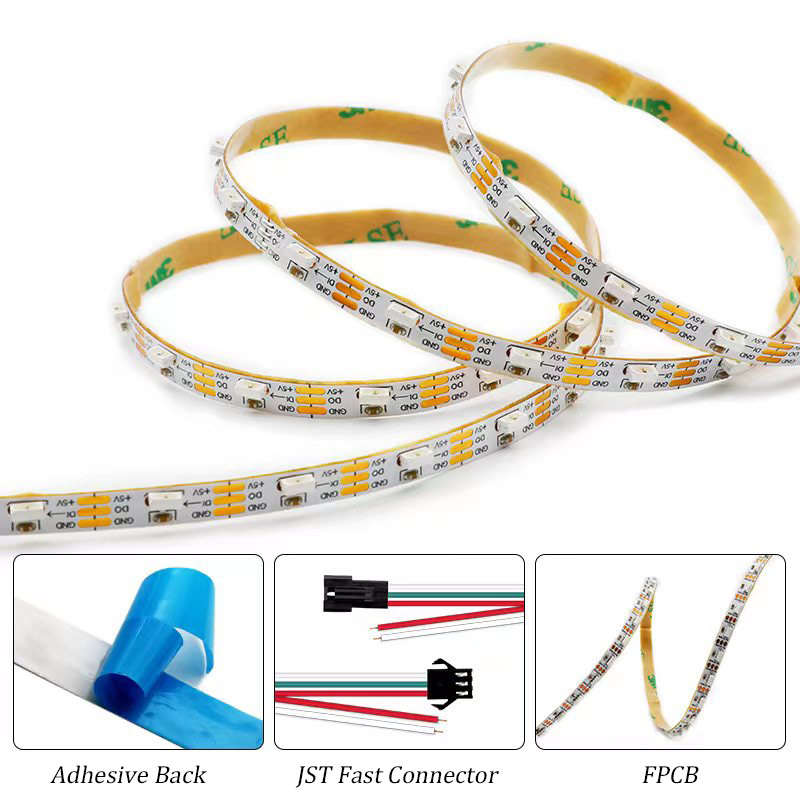

    5. 3M tape, easy installation

    6. 3-channel fast data transmission

    7. Dream color dynamic color chasing



    SK6812 Chips Specifications Download   PDF



    The following is the description of the kit optional:

    If you choose LED Strips, we will send you 1* SK6812-SIDE-72W5

    If you choose LED Strips + Controller,  we will send you 1* SK6812-SIDE-72W5 + 1* CONFULL-SP107E

    If you choose LED Strips + Controller + Power Adapter, we will send you 1* SK6812-SIDE-72W5 + 1* CONFULL-SP107E + 1* LRS-100-5

    If you have some requirements of other LED power adapter, you can visit our DC5V waterproof led power supply.



    How to connect and control

    Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip.

    The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B. Click here to know more about SK6812 VS WS2812B.

    This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.





    Standards and Certifications

    DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

    LED Strip Type:  SMD 4020
    LED Chip:  SK6812-SIDE-4020 LED(4020 side-emitting SMD RGB LED with built-in SK6812IC, similar with WS2812B IC)
    Input Voltage(V):  5VDC

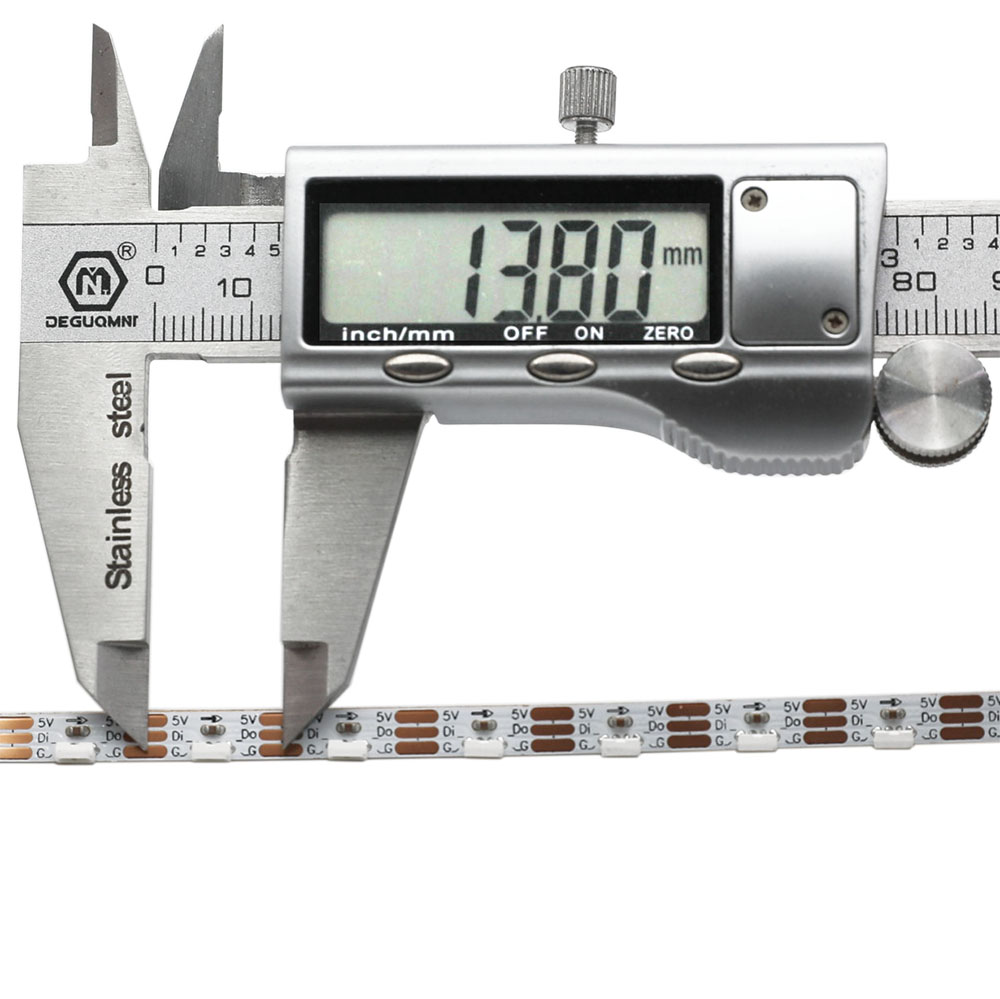

    Length:  5m/roll, each LED can be cut (13.8mm)
    LED Quantity: 72leds/meter, 360leds/roll, individually addressable, 72IC/meter (1 IC drives 1 led chip)
    LED Color: Full color RGB, dream color changing
    FPC Color:  White PCB

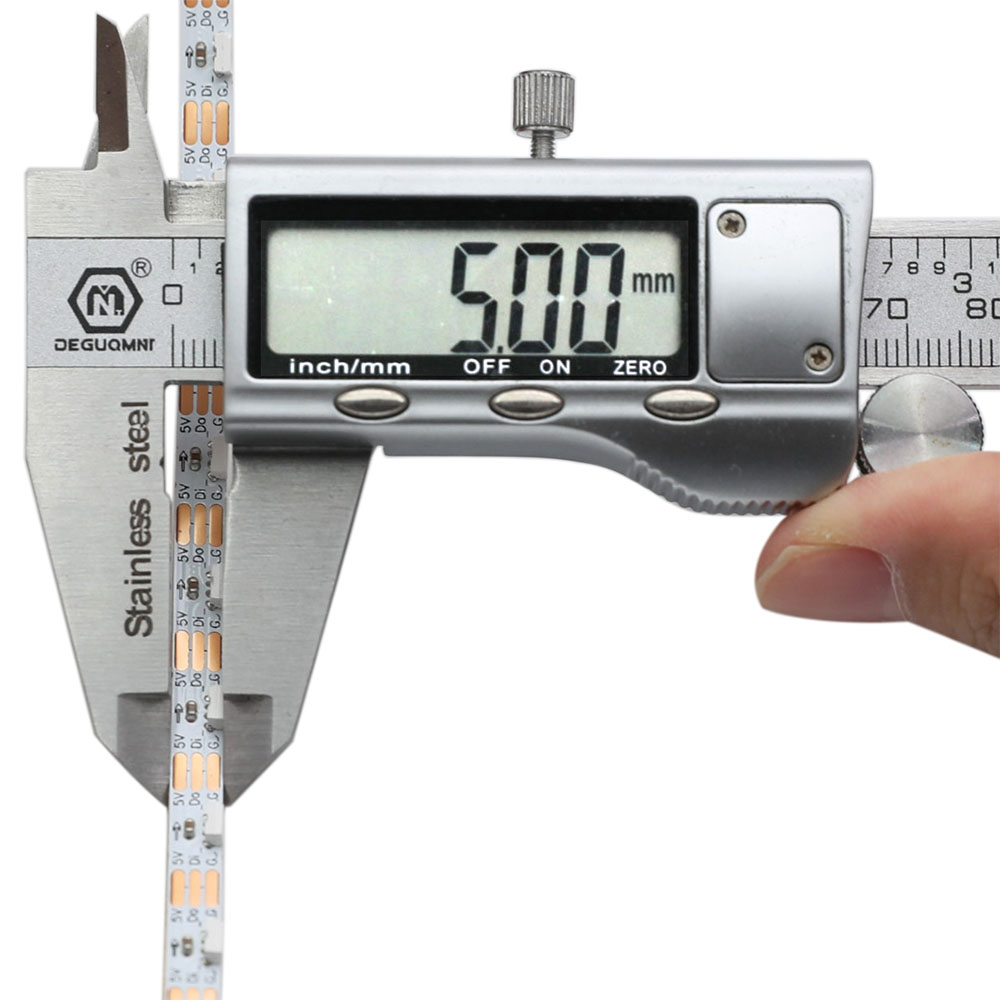

    FPCB Wdith:  5mm/0.19in
    Working Power: 0.24W/LED, 86.4W/roll
    Grey Scale:  256, 8-bits/color; total 24bit for RGB color
    Beam Pattern: 120 degrees
    Waterproof Rating: Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor)
    Lifespan: 50,000+hours
    Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
    Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

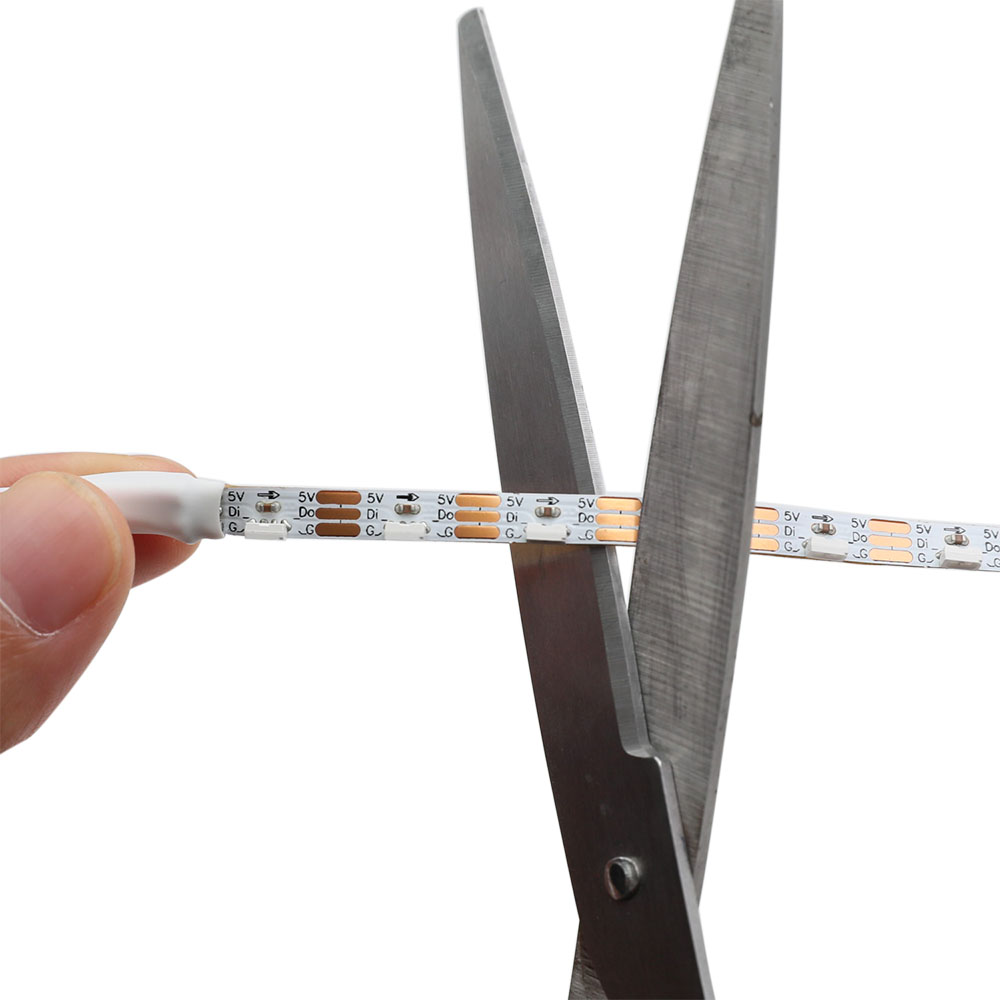

    Cutting Note

    SK6812 72LEDs/m side-emitting light strip can be cut separately, one LED chip has four pins, covering the entire LED.

    The pad is small. It is recommended to choose 22AWG wire for reconnection.

    If one LED is broken, it is difficult to change, cutting off the LED on the PCB is a better choice



    Installation Note

    1. Dry and clean the surface

    2. Unfold the light strip and cut the light strip if necessary

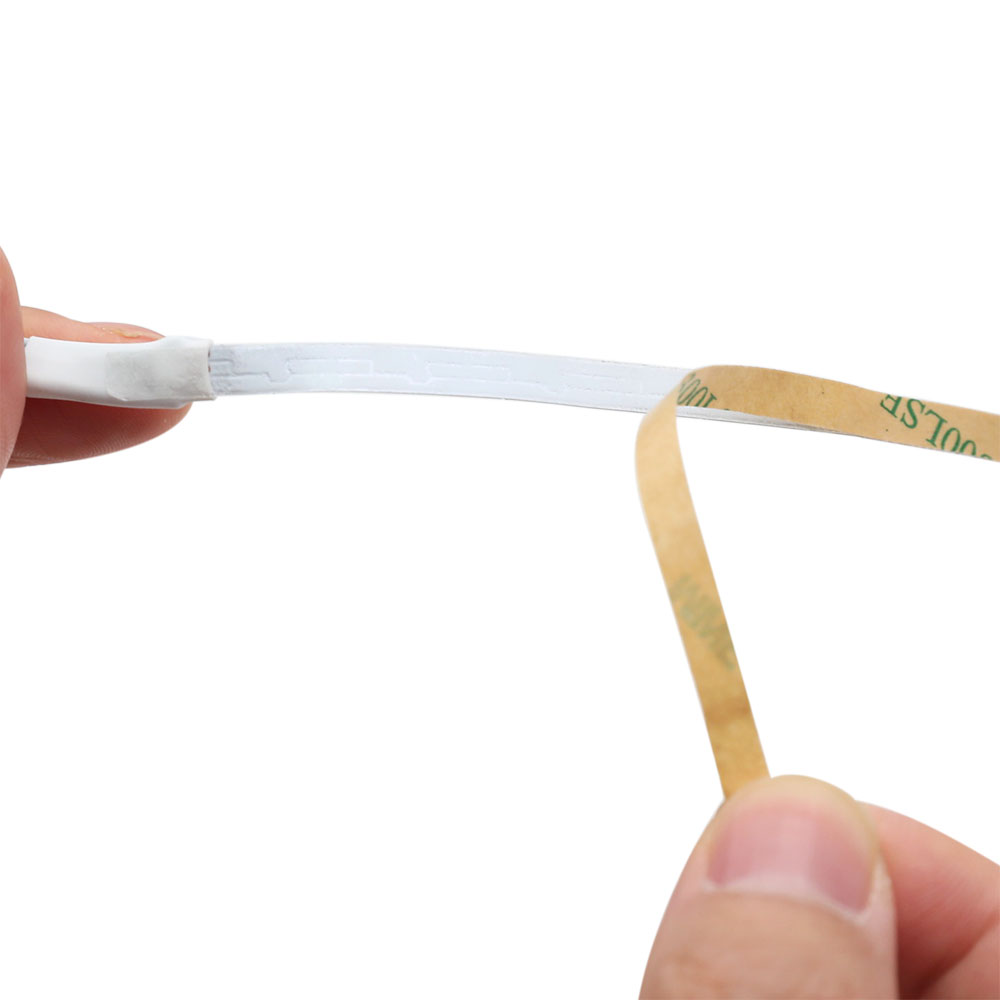

    3. Paste the light strip onto the surface

    4. Put the LED light strip in the correct use waterproof environment, waterproof can be only used in an outdoor rainy environment, so don't put the LED strip light in the swimming pool, etc



    Applications - How To Wire Addressable LED Strip Lights?

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration
