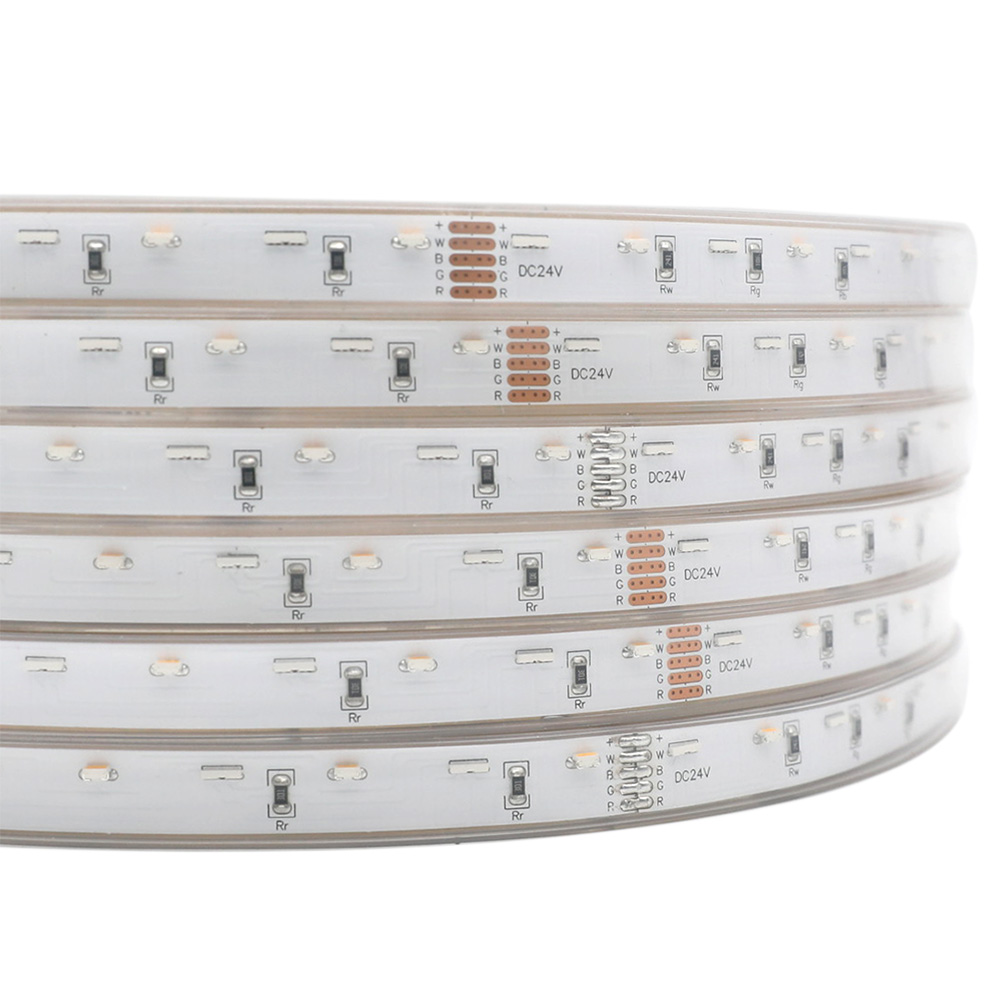

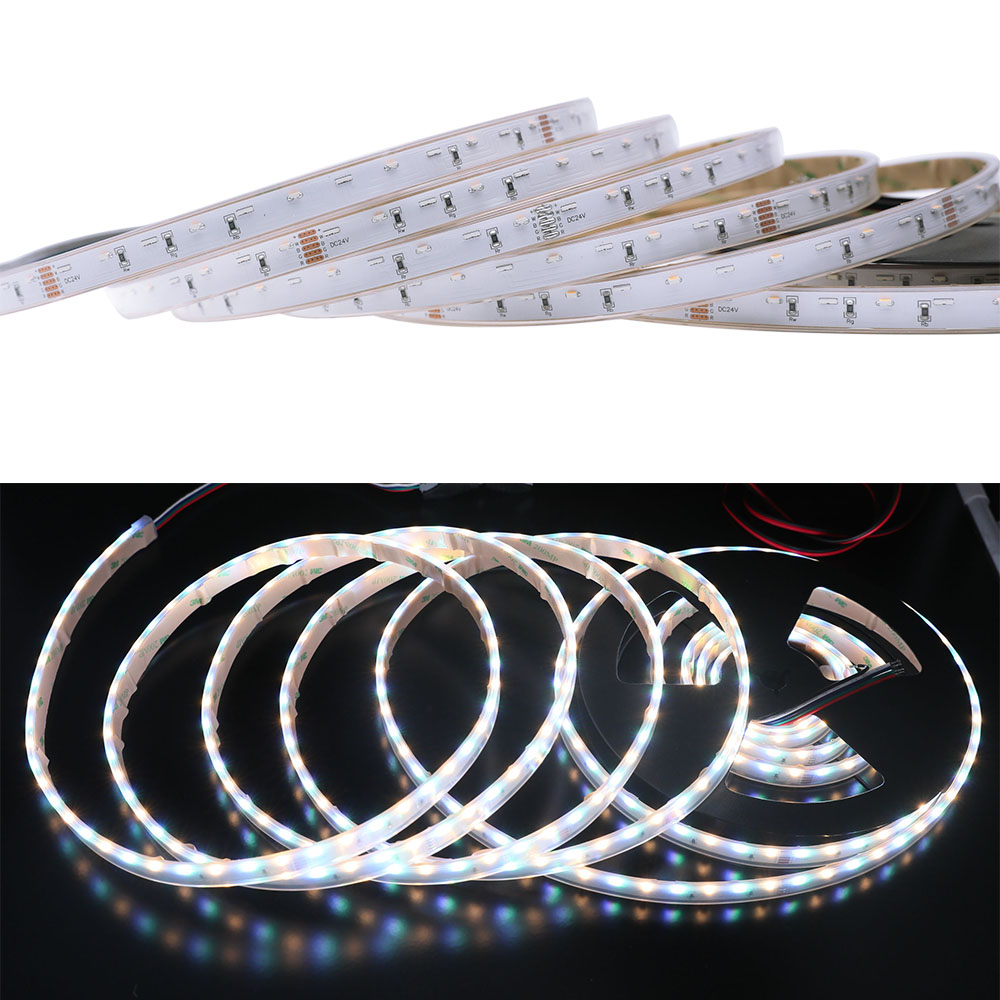

RGBW Waterproof LED Lights - 72LEDs/m 24V Side Emitting LED Strip - 3000K/4000K/6000K White Light
Side emitting RGBW color changing LED lights strips emit light from the side, the light is parallel to the PCB board, making a side projection of the displayed products, suitable for narrow installation positions of light boxes, counters, gaps, borders, contours, etc.

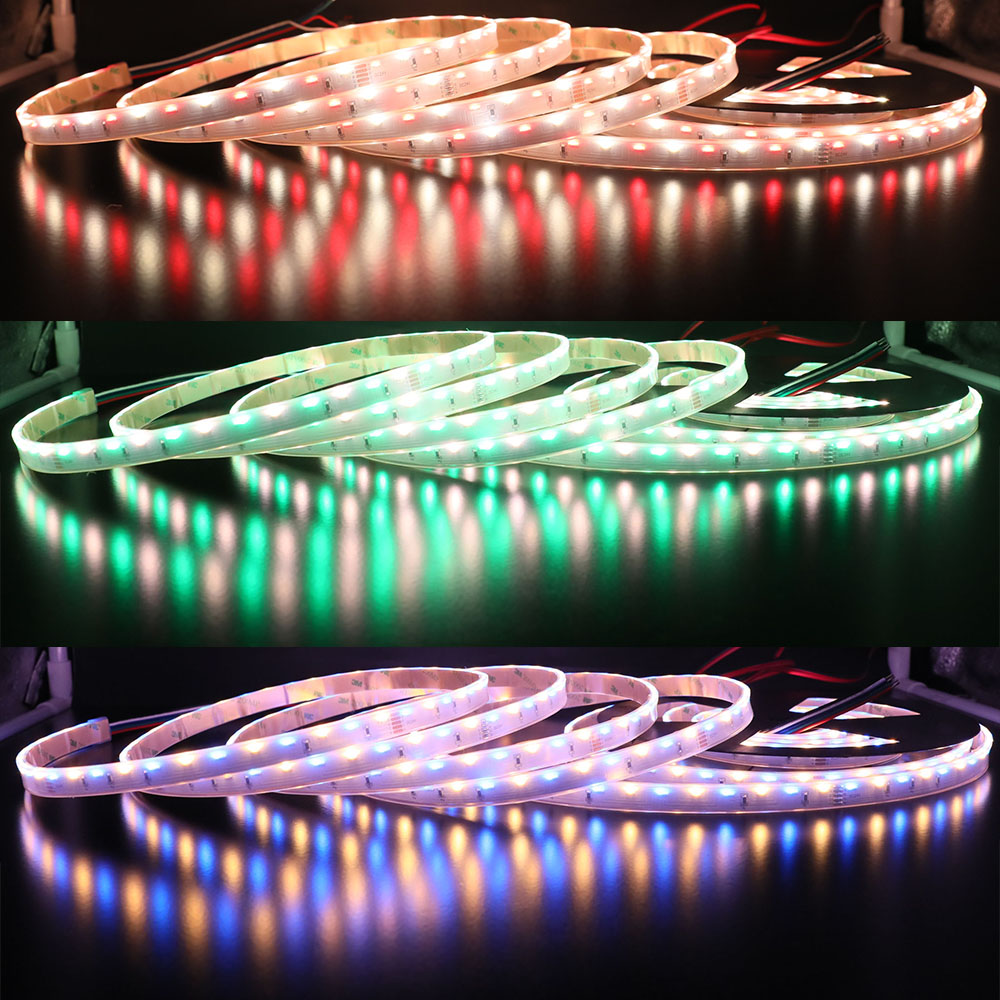

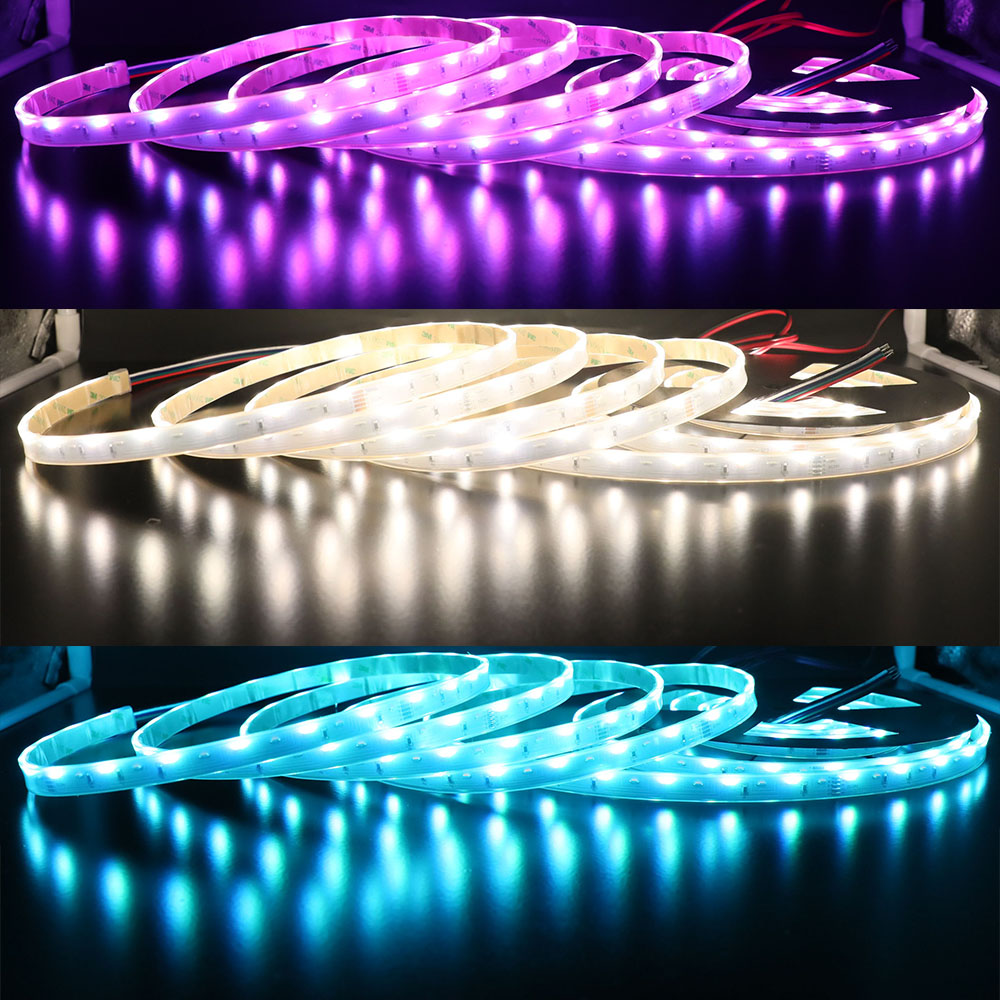

Universal Side emitting RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode.

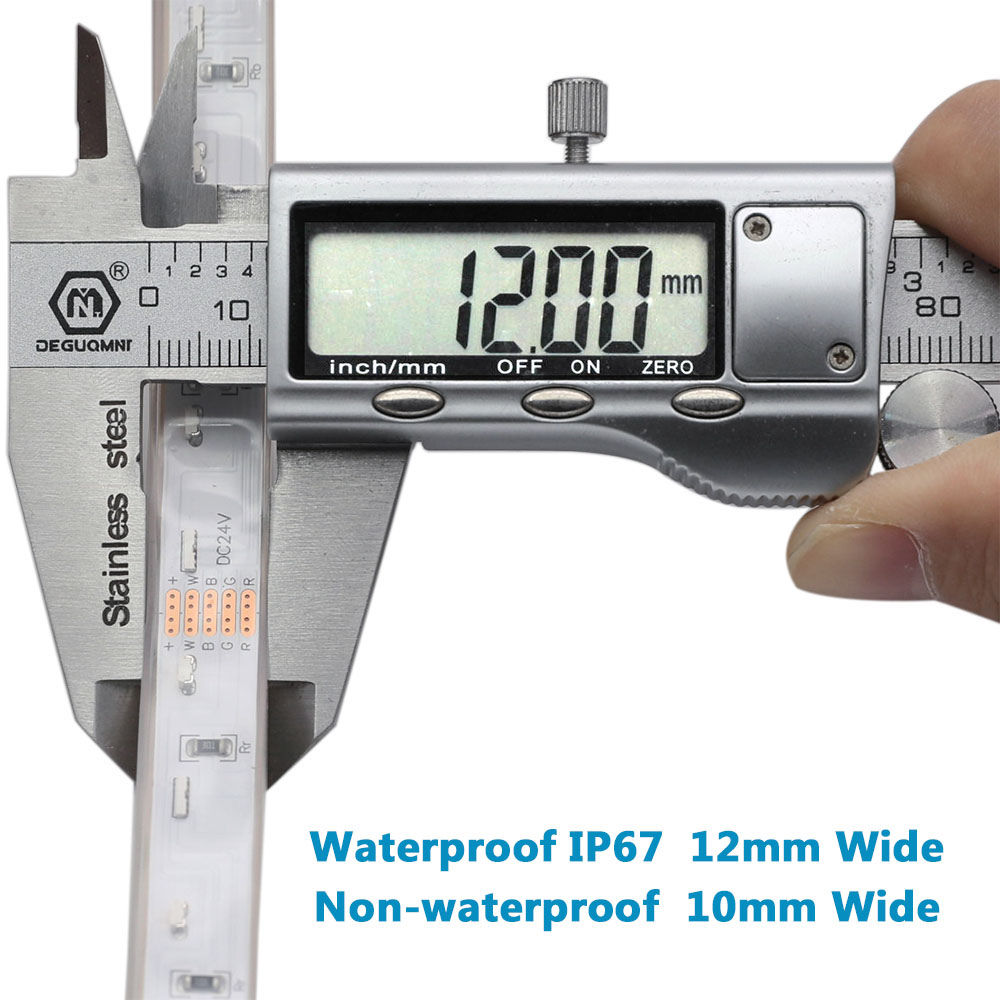

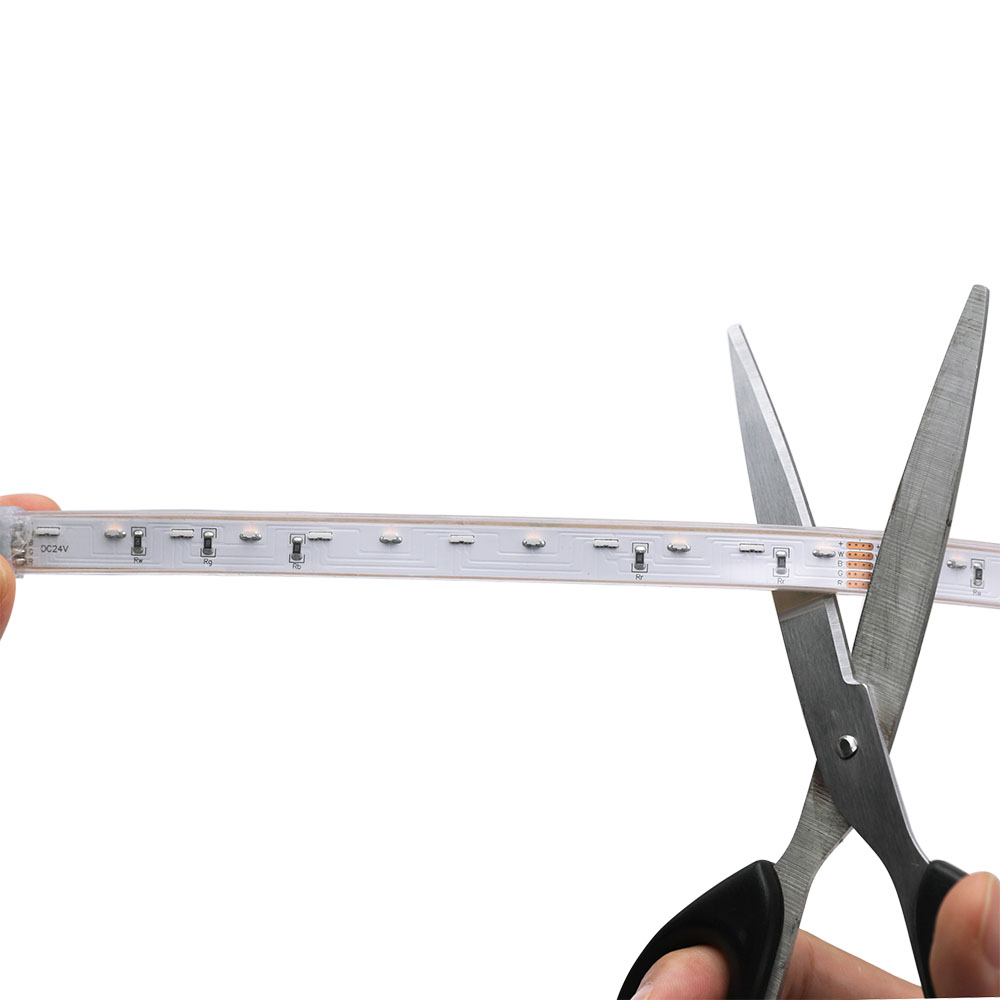

DC24V low voltage input, 12 LEDs cuttable, 10mm/0.39in
Side emitting LED
SMD020 RGB LEDs + CRI 90 3014 White LEDs
RGB+3000K / 4000K / 6000K white light
IP20/67 waterproof rating available
|Non-waterproof RGBW Lighting Kit:||RGBW LED Strip + LRS-100-24 + YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control)|
|Waterproof RGBW Lighting Kit:||RGBW LED Strip + PSWP-24V-100W + WL5-WP(the waterproof version of YL5/WL5 LED controller)|
Standards and Certifications
|LED Strip Type:||SMD 020+3014 RGBW|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|

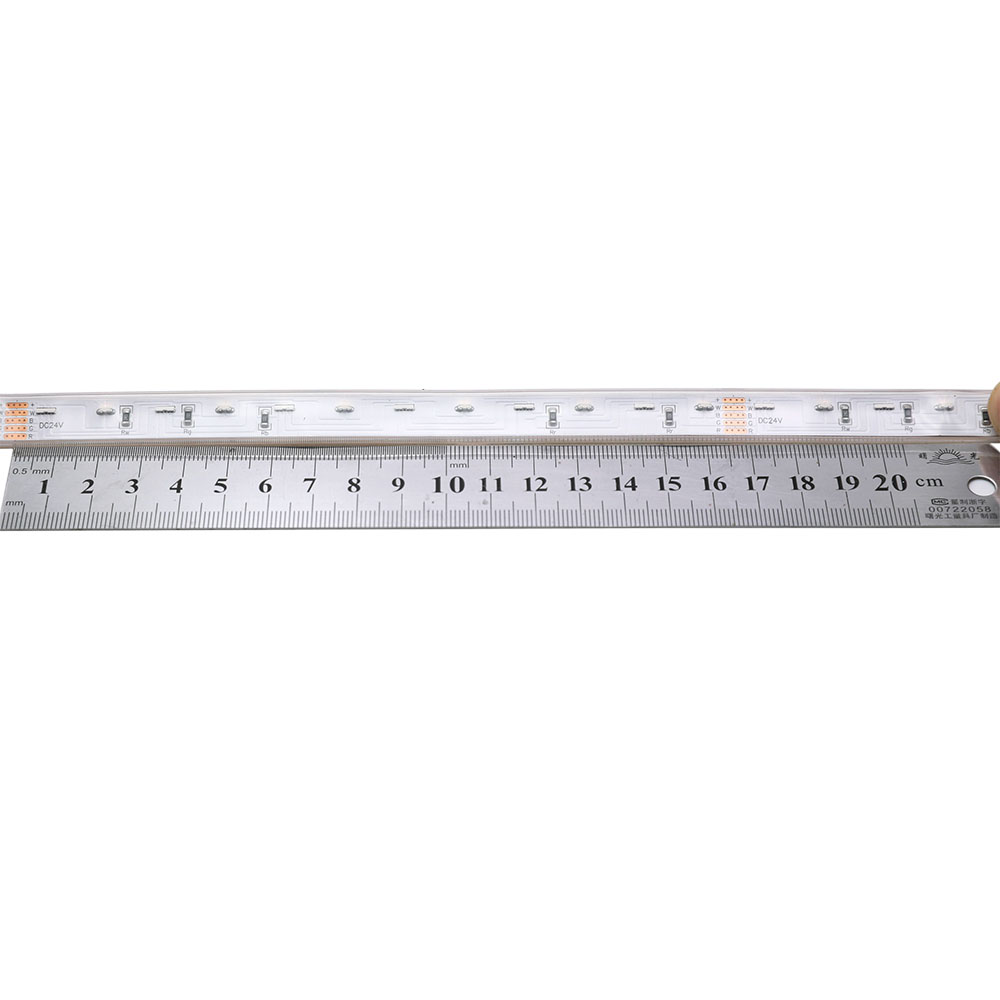

|Dimension:||16.4ft/roll, every 12 PCS LED / 16.67cm can be cut|
|LED Quantity:||72 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||24 VDC|
|Working Power:||48W /16.4ft Max|
|Lamp Luminous Flux(lm):||14-16Lumen 5,000Lm Max /16.4ft 307lm/feet 104lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|

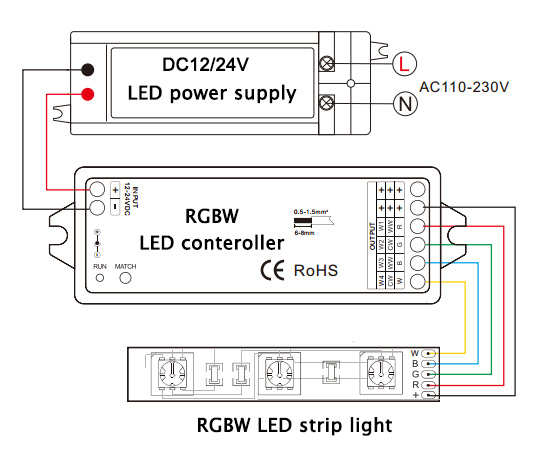

1. RGBW LED strip wiring diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
