• UCS1903 LED Strip 12V 8mm Addressable RGB 72 LED/m Light Tape

UCS1903 LED Strip 12V 8mm Addressable RGB 72 LED/m Light Tape

Model: UCS1903-RGB-12V72W8 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $35.98
Qty Discounts Off Price
1-19
$35.98		 20-49
$35.26		 50-99
$34.54		 100+
$33.82
* Discounts may vary based on options below
Select Specifications:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

72 led/meter 8mm UCS1903 programming led strip lighting tape designed for narrow mounting space 12 volt RGBIC lights applications.

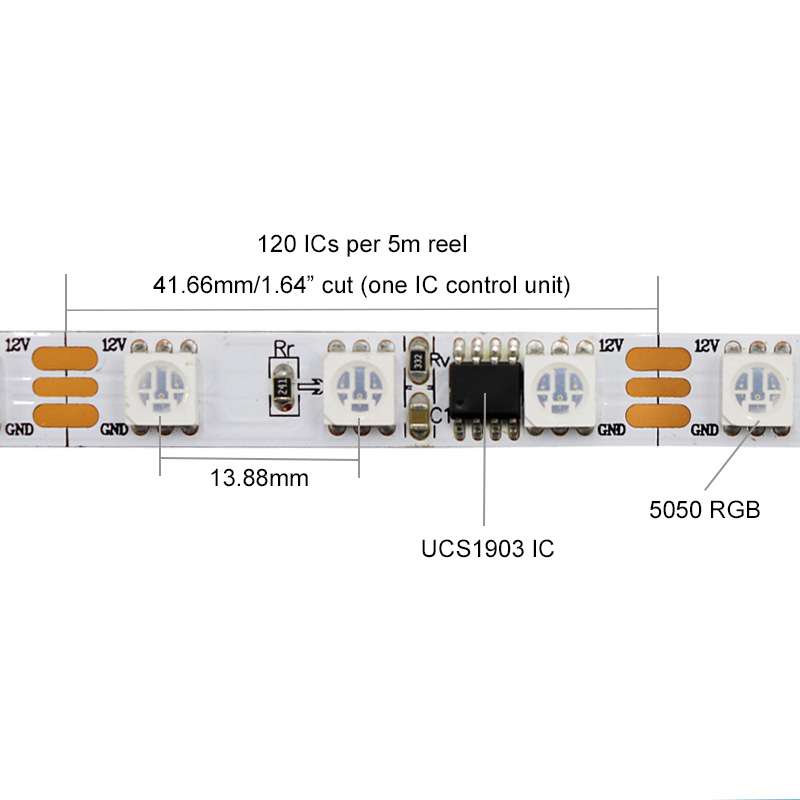

This RGBIC led strip uses high performance UCS1903 as the driver chip, each UCS1903 IC controls every 3 LEDs in the area, which is able to present 120 segments of lights with different colors at a distance of 5 meters. To use this UCS1903 as an RGBIC neon rope light, you need an outdoor waterproof silicone case for the 8mm PCB.

• Only one cable for signal transmission

• Distance between every two 5050 RGB lights is 13.8mm

• Power consumption is 75 watts over a 5 meter length, energy efficient for long time use

• WiFi Tuya APP control X7 RGBIC controller and LRS-100-12 power in the kit



Product Specifications

Item Type:  UCS1903 Pixel LED RGB Strip
LED Chip:  SMD5050
Input Voltage:  DC12V
Power:  15W/m, 75W/Roll
LED Quantity:   72 LEDs/m, 360 LEDs/Roll
Width:  8mm/0.3in for IP20/65, 10mm for IP67/68
IC Quantity:  24/m, 120/roll
Length:  5m/16.4ft
Cut Unit:  3-LED, 41.66mm/1.64in
Waterproof Rating:  Non-waterproof IP20 / Waterproof IP65 IP67 IP68
Outlet Cable:  3-pin JST SM male and female connectors
Beam Angle:  120°
Working Temperature:  -20℃ ~ +45℃



UCS1903 LED Strip Wiring

addressable led strip wiring diagram



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for UCS1903-RGB-12V72W8
PDFUCS1903-RGB-12V72W8 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

UCS1903 LED Strip 12V 8mm Addressable RGB 72 LED/m Light TapeUCS1903 LED Strip 12V 8mm Addressable RGB 72 LED/m Light Tape

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
