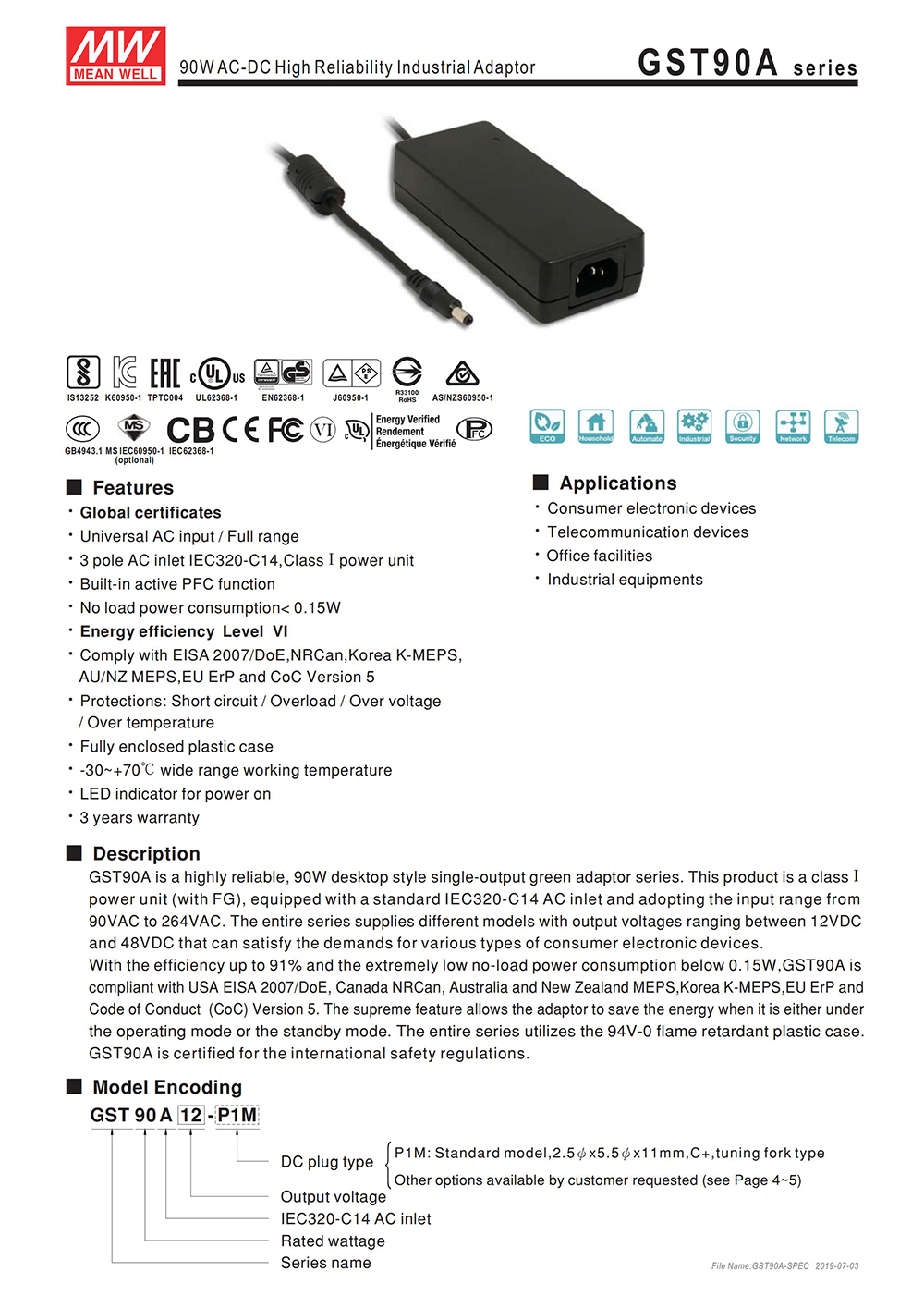

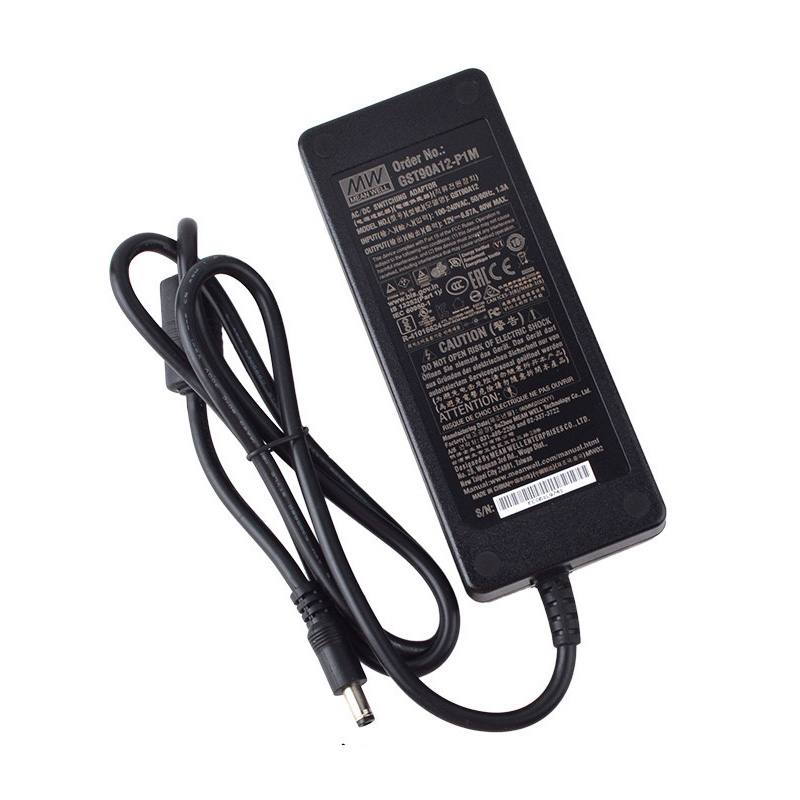

MeanWell DC12V 6.67A 80W GST90A12 AC To DC Reliable Green Industrial LED Power Adaptor
GST90A12 input voltage 90-264VAC, universal; output voltage is DC12V, output current is 6.67A, total power is 80W, suitable for DC12V low-power LED light.
This item is power adapter (transformer) of AC -DC Low Voltage for 12V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
Universal AC input / Full range

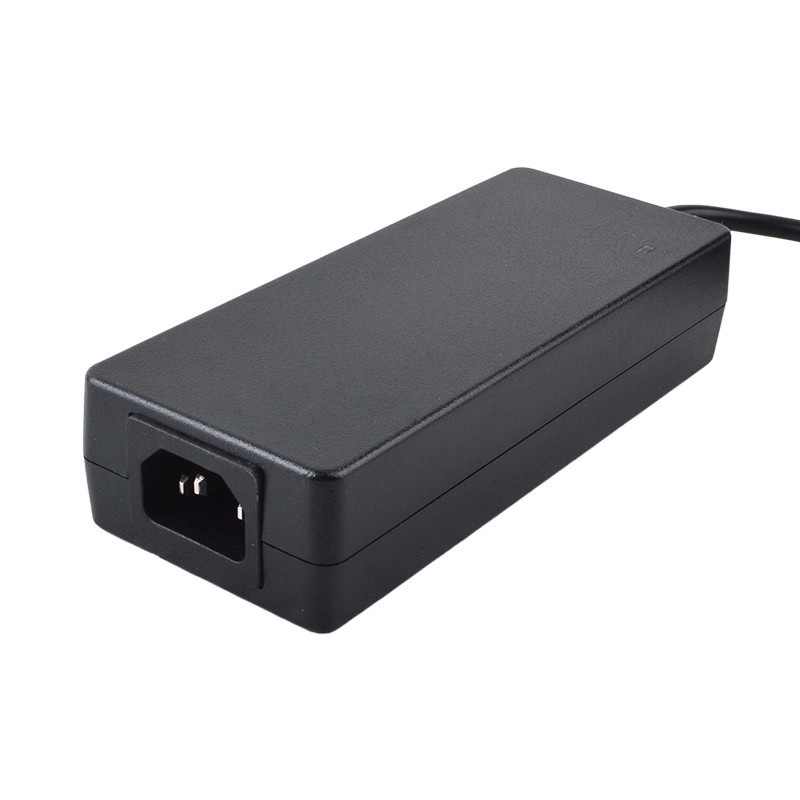

3 pole AC inlet IEC320-C14,Class I power unit
No load power consumption< 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage/Over temperature
Fully enclosed plastic case
-30~+70°C wide range working temperature
LED indicator for power on
Built-in active PFC function
3 years warranty

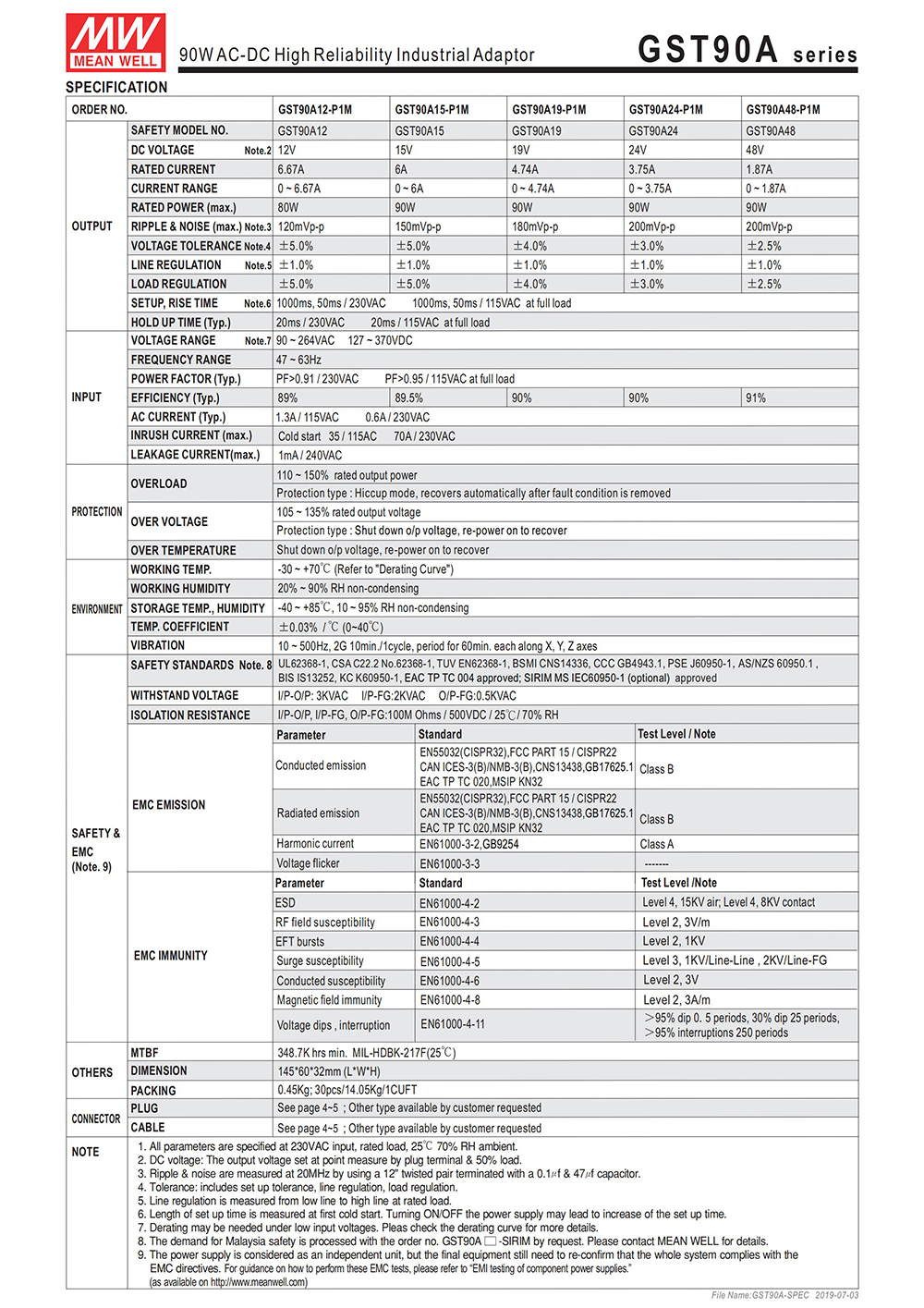

Primary Output Voltage: 12VDC
Output Current: 6.67A
Maximum Output Power: 80W
AC Power Cord: included
Input Voltage: 90 to 264VAC
Input Frequency: 47 to 63
Maximum Input Current: 1.3A/115VAC, 0.6A/230VAC

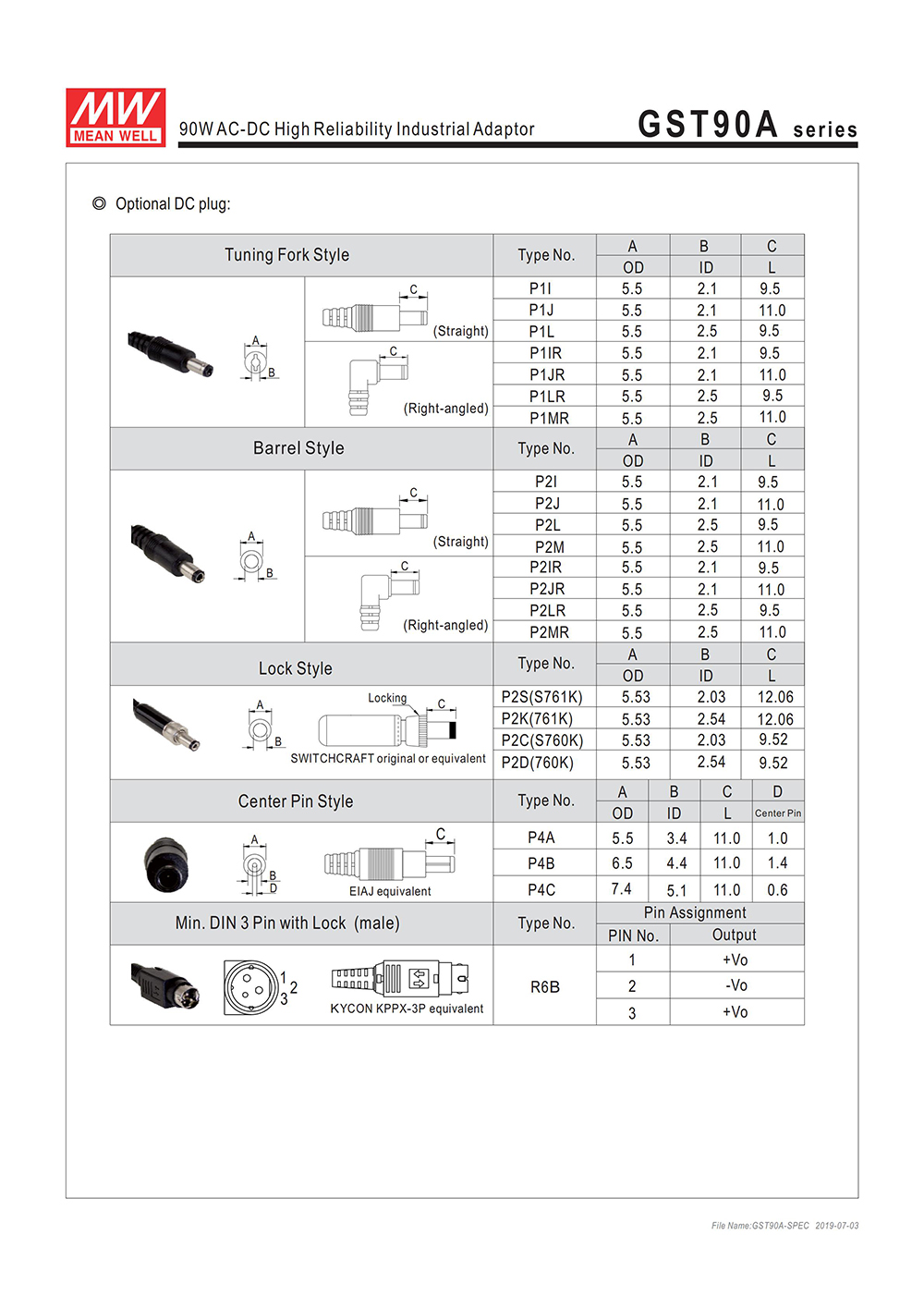

Output Connector Type: Cylindrical Female
Output Connector Diameters: 2.5mm x 5.5mm/0.10in*0.22in
Polarity: Center Positive
Number of Outputs: 1
Product Type: AC to DC Power Supply
Agency Approvals: UL/CUL/TUV/BSMI/CCC/FCC/CE
Operating Temperature-Min (Cel): -30
Operating Temperature-Max (Cel): 70
Product Note: Level VI
Type: Auto Switching
Style: Desktop Adapter
1* GST90A12 LED power adaptor
