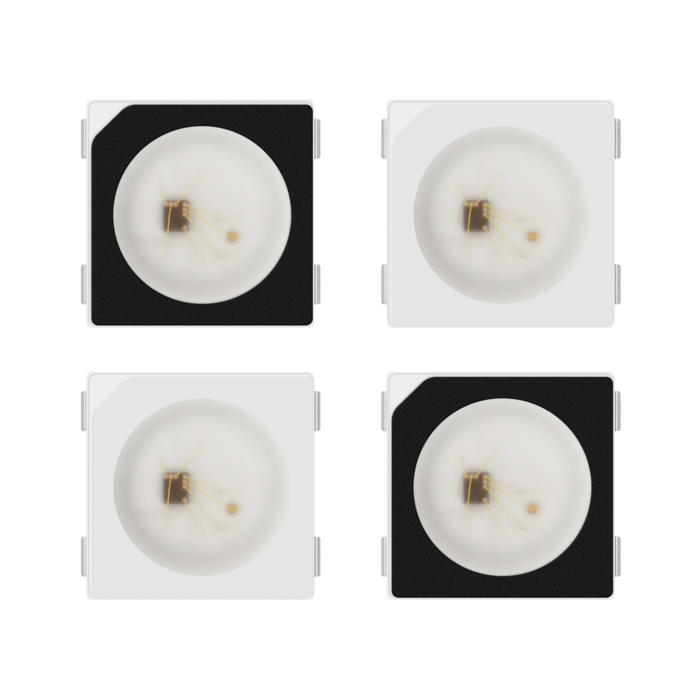

WS2812B RGB 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
Standards and Certifications
LED Chip Model: SMD 5050
LED Resource: WS2812B LED
IC Type: WS2812B IC (1 IC drives 1 led chip)
PCB Color: White/Black Available
Protection Rate: Non-waterproof
Description: Top SMD Type 0.2 Watt/pcs
LED Quantity: 100pcs
G: GREEN Wavelength: 515-530NM Luminous intensity: 1100-1400MCD
Blue: BLUE Wavelength: 465-475NM Luminous intensity: 200-400MCD

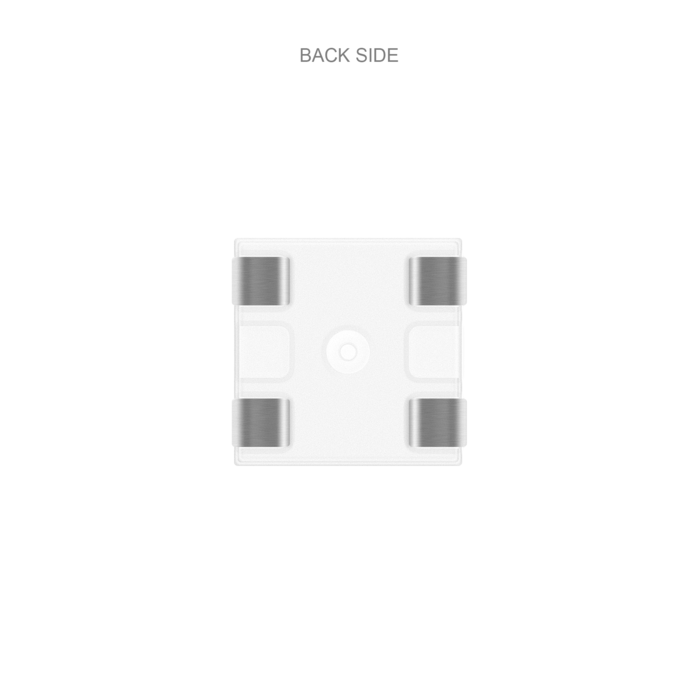

NO 1. Symbol: VSS Function description: Ground.
NO 2. Symbol: DIN Function description: Control data signal input .
NO 3. Symbol: VDD Function description: Power supply LED.
NO 4. Symbol: DOUT Function description: Control data signal output.
Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V )
Power Supply Voltage Symbol: V(DD) Range: +3.5V - +5.3V
Input Voltage Symbol: V(I) Range: -0.5 - VDD+0.5V
Working Temperature Symbol: Topt Range:-25 - +80 ℃
Storage Temperature Symbol: Tstg Range: -40 - +105 ℃
