Product Information

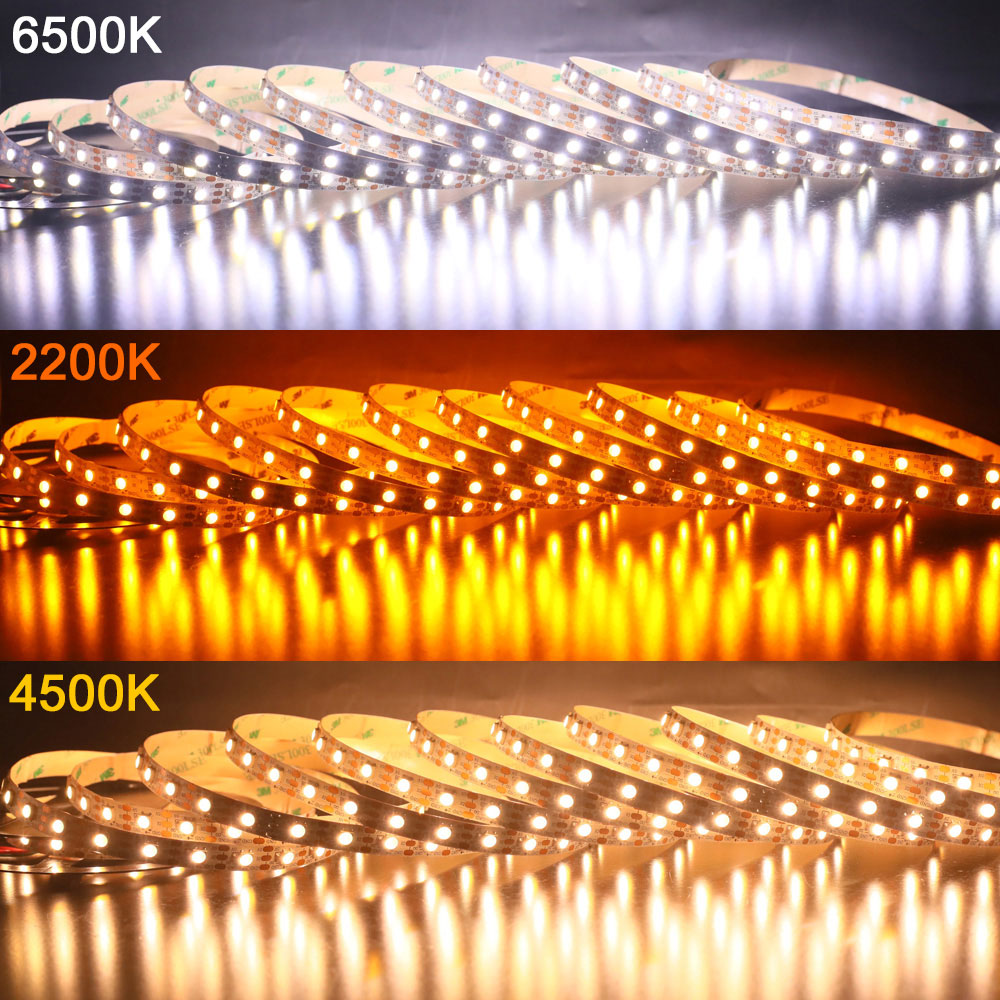

5m/16.4ft Individually addressable SK6812 WWA led strip for sale. DC5V input, 60 lights per meter. With warm white and pure white in one 5050 SMD LED, it can display various color temperatures from 2200K (incandescent color, amber color) to 6500K (the brightest white color).
Each LED is available with on/off state, a color temperature within 2200K-6500K, and 256 brightness. Use this digital white adjustable led strip to create a nice ambient atmosphere in bedrooms, living rooms, kitchens, hallways, etc. Perfect for 5m lighting projects, only need to power the strip at one end.
WWA VS Single White LED Strip:
WWA led strip with 2in1 LED chip, different LED color temperatures can be on one strip (Various static white colors + dynamic modes).
But the single white addressable led strip only represents one color (Static single white + dynamic modes).
SK6812 WWA Datasheet Download
Standards and Certifications
Specifications
| LED Strip Type: | SK6812 Individually Addressable WWA LED Strip Lights |
| LED Chip: | SMD5050 |
| Input Voltage: | DC5V |
| Power: | 18W/m, 90W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | WWA (Warm White+Daylight), 3000K Warm White, 6000K Daylight |

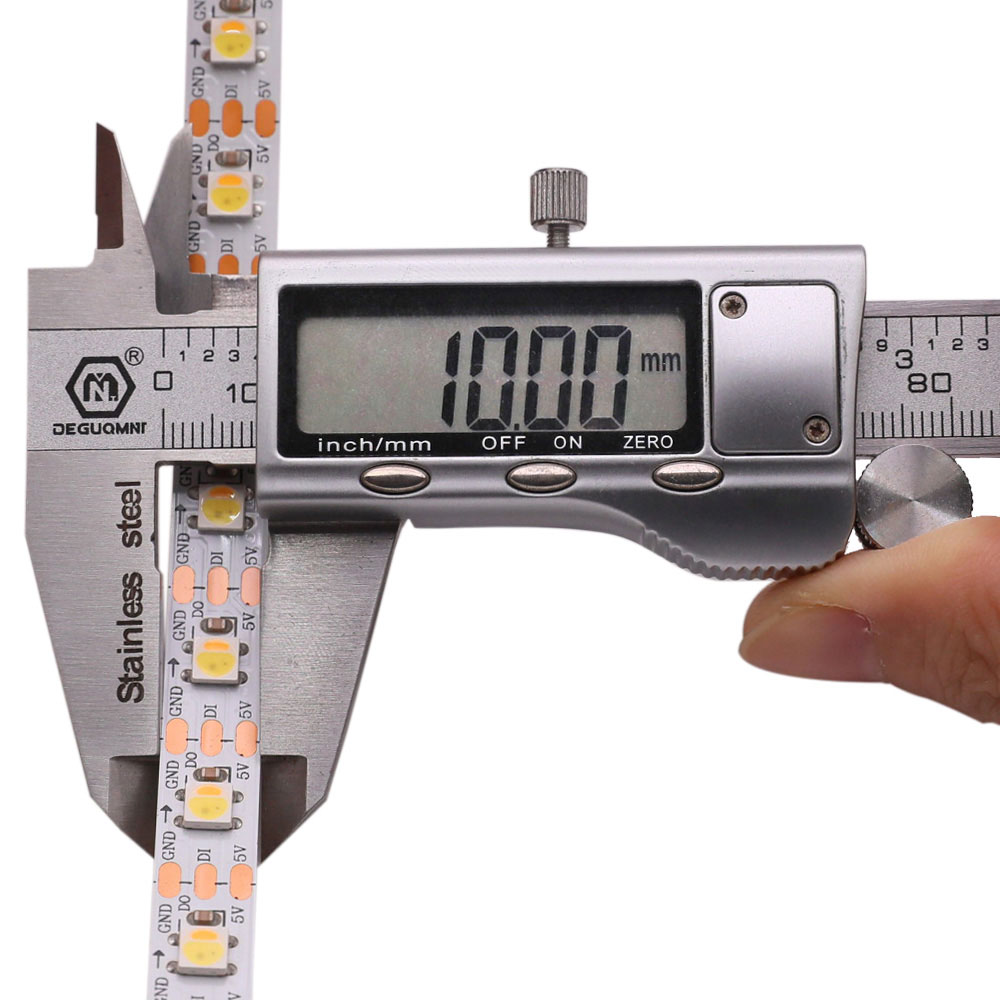

| PCB Width: | 10mm/0.39" |
| LED Quantity: | 60 LEDs/m, 300 LEDs per roll |
| IC Quantity: | 60 ICs/m, 300 ICs per roll (1 IC drivers 1 LED) |

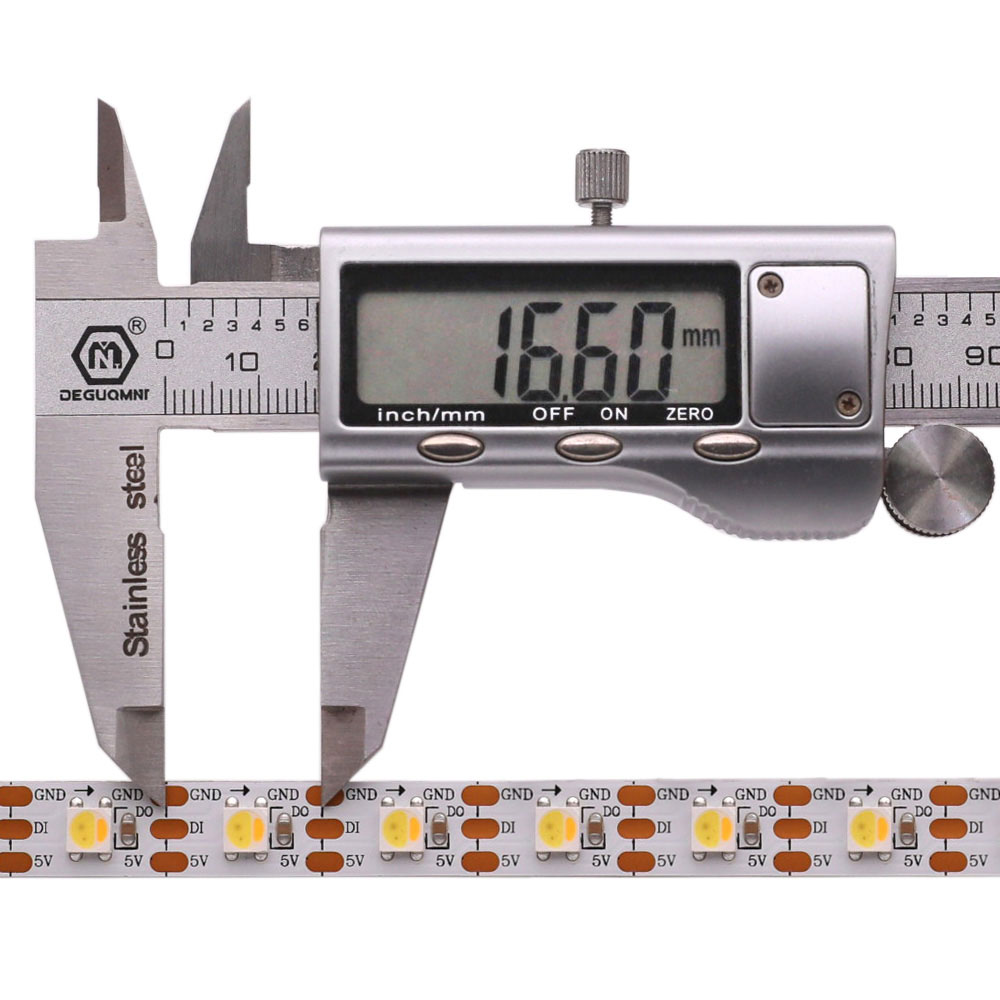

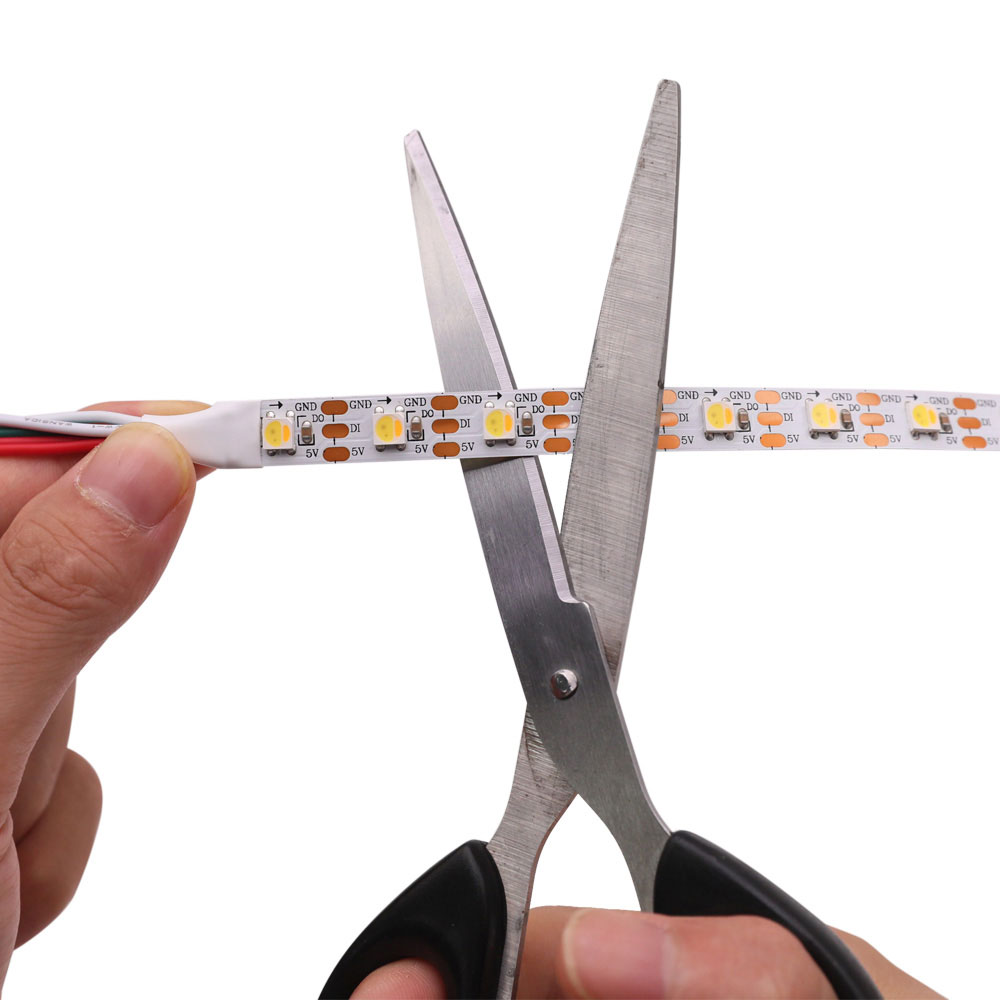

| Cut Unit: | 1-LED, 16.67mm/0.65" |
| Waterproof Rating: | Non-waterproof IP20, Indoor waterproof IP65, Outdoor waterproof IP67 IP68 |
| Dimensions: | L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in ) |
| CRI: | 85+ |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Lumen: | 20-22lm/LED |
| Grey Scale: | 256 |
| PCB Color: | White/Black |
How to connect and control
The BLACK ARROWS on the light strip tells the signal transmitting direction. If connected oppositely, the strip will not work.
SK6812 hookup:
For more wiring details, please read our blog: How To Wire Addressable LED Strip Lights?
