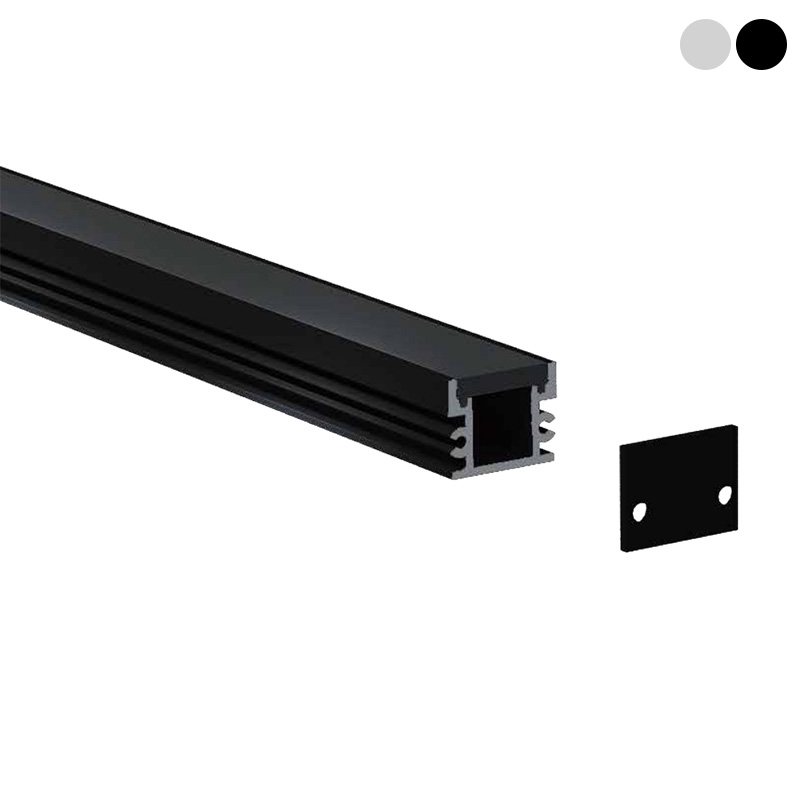

Black LED Aluminum Light Diffuser Floor Channel For 10mm LED Lights Strip

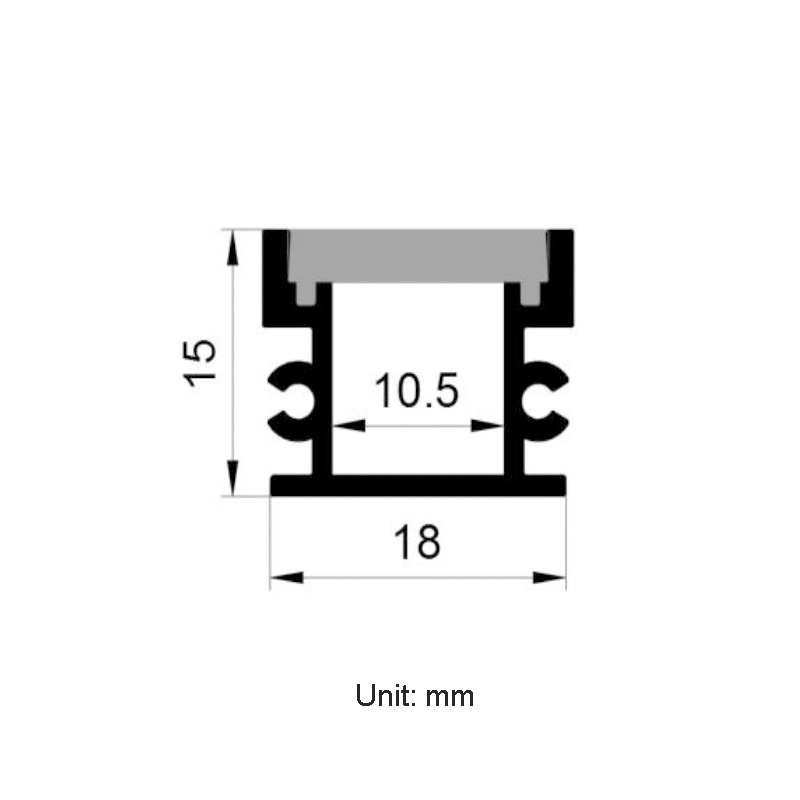

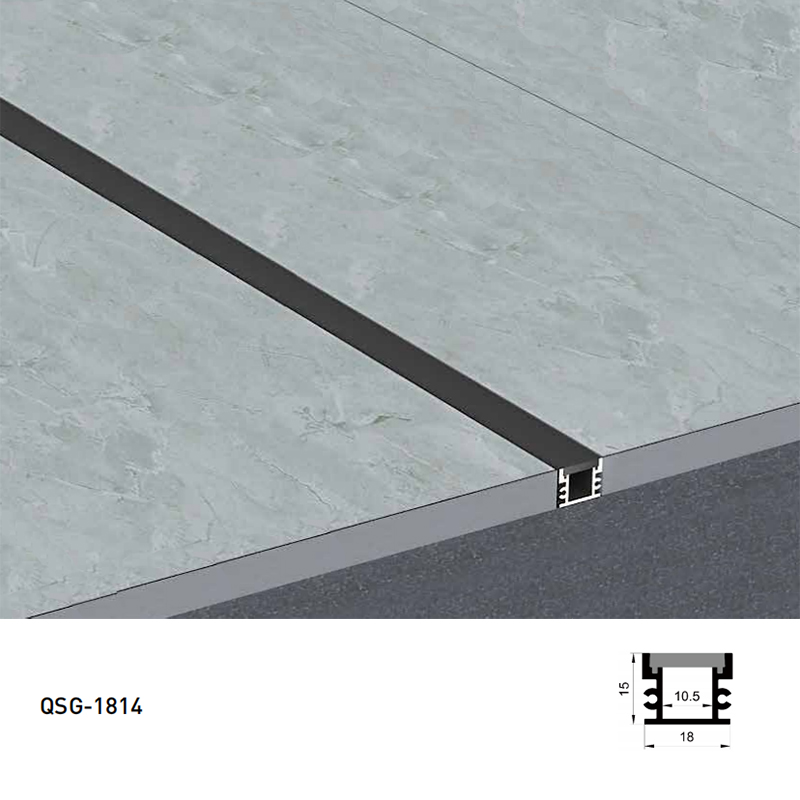

This floor series led aluminum channel with 10.5mm/0.41in inner width is made of high quality aluminum alloy, suitable for 2110/2116/5050 3000K warm white or 6000K daylight white led strip lights. For led heat dissipation and led strip protection, aluminum LED profiles play a positive role. This led profile can be recessed in walls, furniture, and plasters, it is integrated with the decoration object, and the surface does not protrude, perfectly for linear residential lighting and commercial lighting.
LED strip channels with different light diffusers will have different lighting effects, choose the right led diffuser from the 7 kinds of PC/PMMA diffusers. We provide silver, white, and black aluminum channel color to follow your home fashion style. 1m led aluminum profile is the most common length, and you can cut the aluminum led light channel to any length. For precise length to meet your linear lighting project, please feel free to contact us to customize the channel aluminum length.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear diffuser /PC black diffuser|

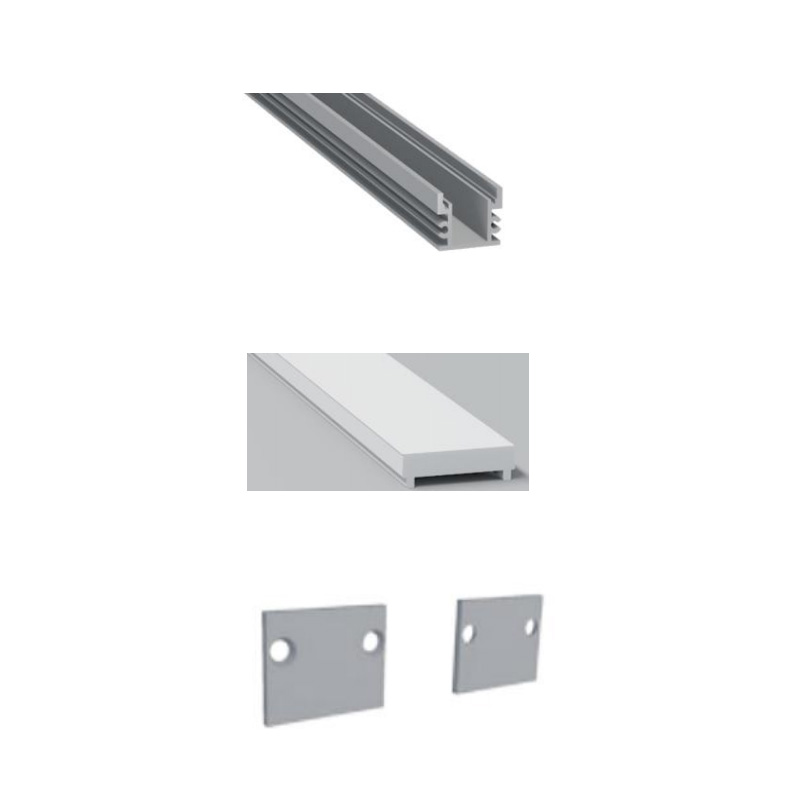

|Accessory||End cap without hole, end cap with wire hole|
|Apply to||8mm/10mm 5050/2216/3014/2835/3528/5630/5730 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
