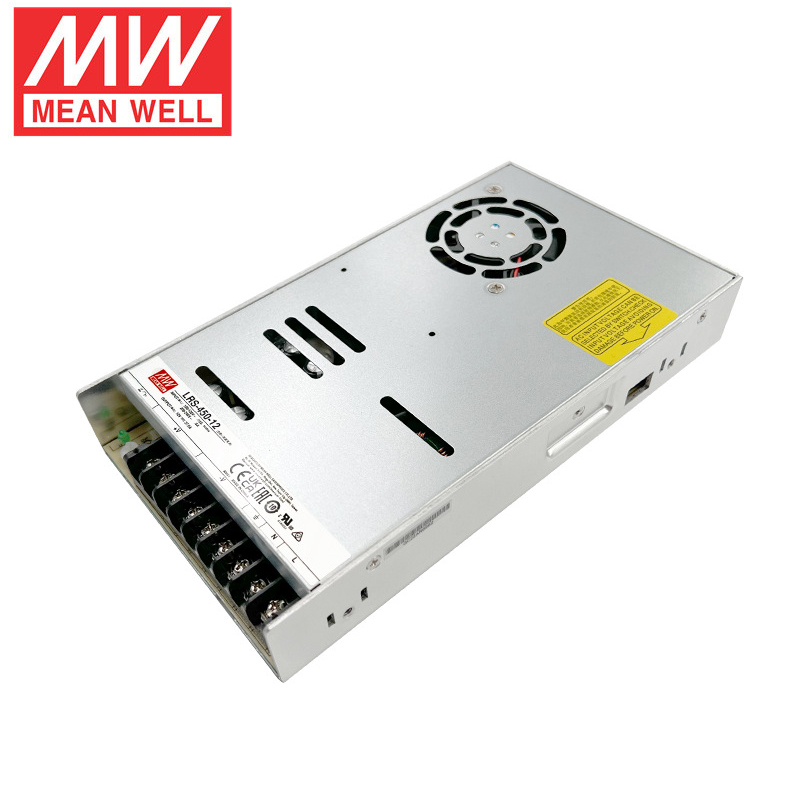

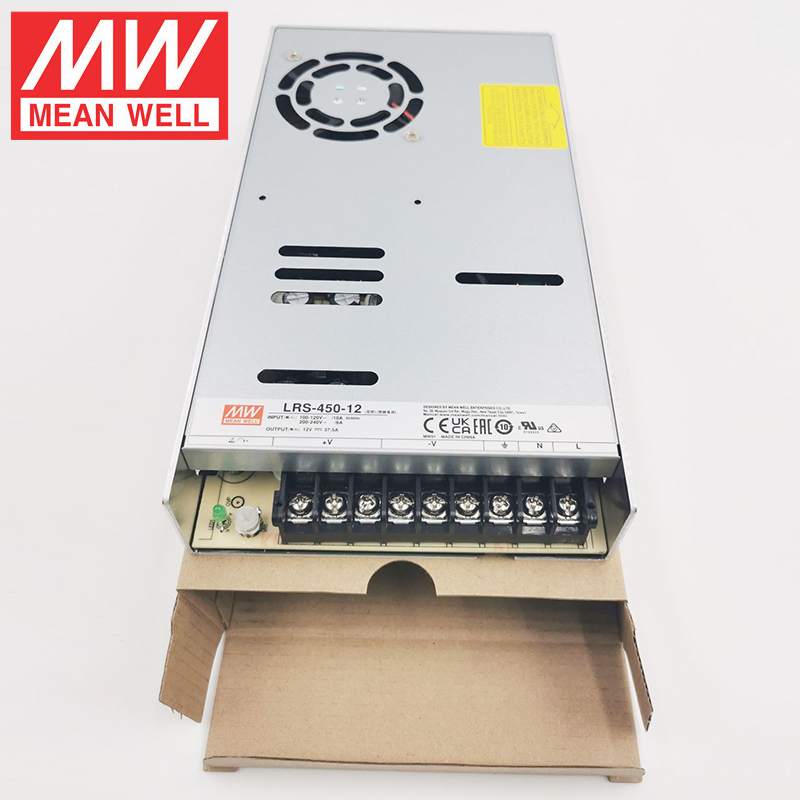

LRS-450-12 12V Meanwell Switching Power Supply With Fan
LRS-450 meanwell power supply series is a 450W single output enclosed type power supply with 35mm low profile design, using 115VAC or 230VAC input (selected by switch), the efficiency is up to 92%, the built-in long-life fan enables the LRS-450 LED power supply to work in the temperature range of -20°C to +70°C at full load. The LRS-450 mean well 12V power supply has complete protection functions and anti-5G vibration capability, providing a cost-effective solution for various industrial applications.
AC input range is switched by switch
Withstands 300vac surge input for 5 seconds
With short circuit/overload/overvoltage/overtemperature protection
Internal DC fan forced air cooling
Has fan on/off control
1U low profile
Withstands 5G Vibration Testing
Operating temperature up to 70°C
Can operate at an altitude of 5000 meters
3 years warranty
NOTE: This item is AC -DC transformer for 12V LED lights. Please be kindly informed that the total wattage of 12V LED strip lights should not exceed the max wattage 85% of this 12V power supply, otherwise it will affect the light brightness and the service life.
Standards and Certifications
More product specification, pls see MeanWell website: https://www.meanwell.com/webapp/product/search.aspx?prod=LRS-450
