DC5-24V SP637E Bluetooth & RF & Music UCS1903 SK6812 WWA LED Strip Controller
Check this Addressable CCT Controller for your UCS1903 SK6812 WWA led strip lights. Support smartphone Bluetooth APP control, RB2/RC2 RF 2.4GHz remote control, and music control.
Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install. The compatible RF remotes support one-to-many control and many-to-one control, one RF remote can control multiple controllers, and each controller can bind up to 5 remotes. Available with unified control and 4-zone control.
● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.
● Support cell phone microphone, player streaming, and on-board microphone for music capture.
● Support dynamic effect collection and collection list loop.
● Support custom effects.
● Support multiple on/off animation effects.
● Support calibration channel sequence and timing switch.
● Support OTA firmware upgrade.
Standards and Certifications
|Product Name:||WWA LED Controller|
|Max Control Pixels:||600pcs|

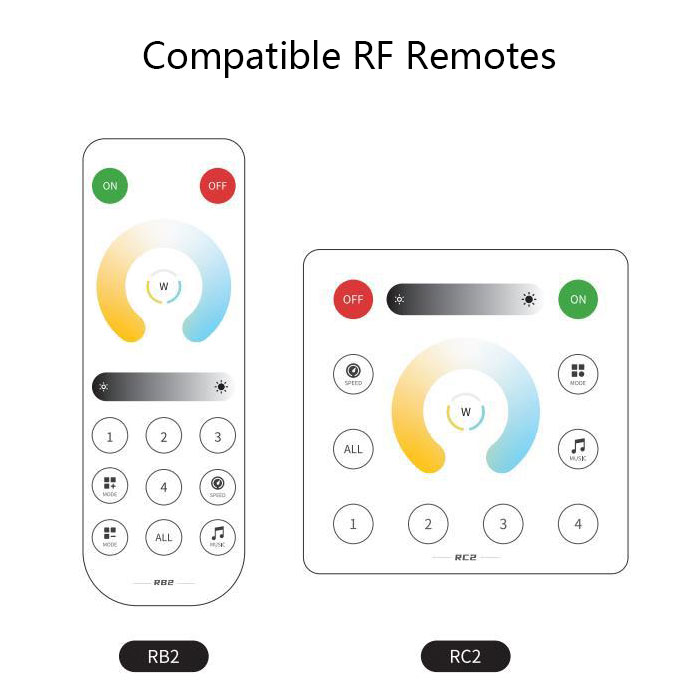

|Control Method:||Mobile APP "BanlanX" + RF Remote (only support RB2 and RC2)|
|Remote Voltage:||3V (CR2032)|
|Remote Standby Power:||26uA|
|Remote Size:||RB2 135*48*10mm, RC2 86*86*12mm|
|Mobile System:||Andriod 4.4/ IOS 10.0 or higher|
|Working Temperature:||-20℃ ~ 60℃|
