DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light

Model: DCFLS-12V-WS2818X144W20
DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light
  • DC12V Triple Row WS2818 Breakpoint Resume High Density 16.4Ft 720LEDs Digital Addressable RGB LED Strip Light

Select Specifications:

Starting at: $49.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$49.98
10-29
$48.98
30-59
$47.48
60+
$45.48
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product Description

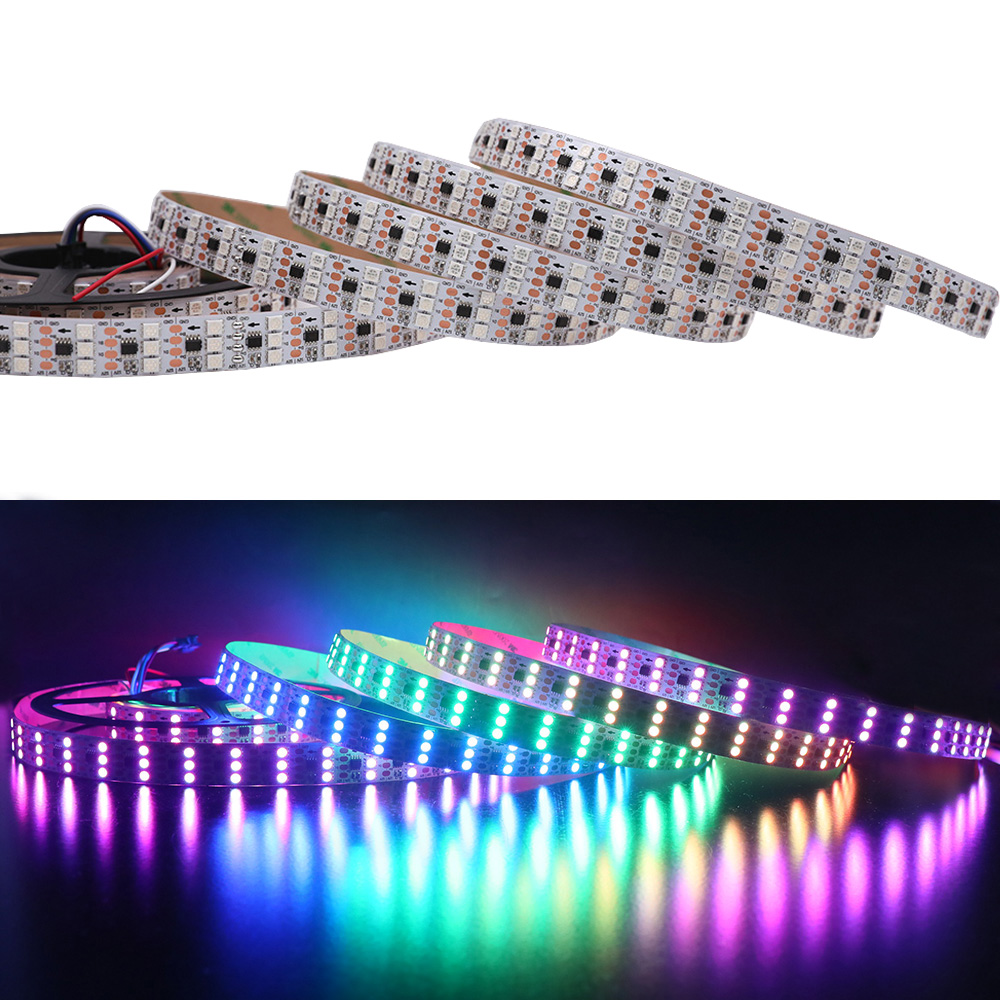

    Triple rows WS2818IC addressable LED strip light is an upgraded version of WS2811. It integrates an external IC on the PCB. One IC controls 3LEDs, 48 segments every meter, high density 144LEDs/m, adopts 5050SMD high brightness LED.

    WS2818IC breakpoint resume led strip light, compared with the single signal addressable LED strip, adds a spare data line. The damage of a single pixel will not affect the normal use of other pixels, and the service life is as long as 50,000+ hours.

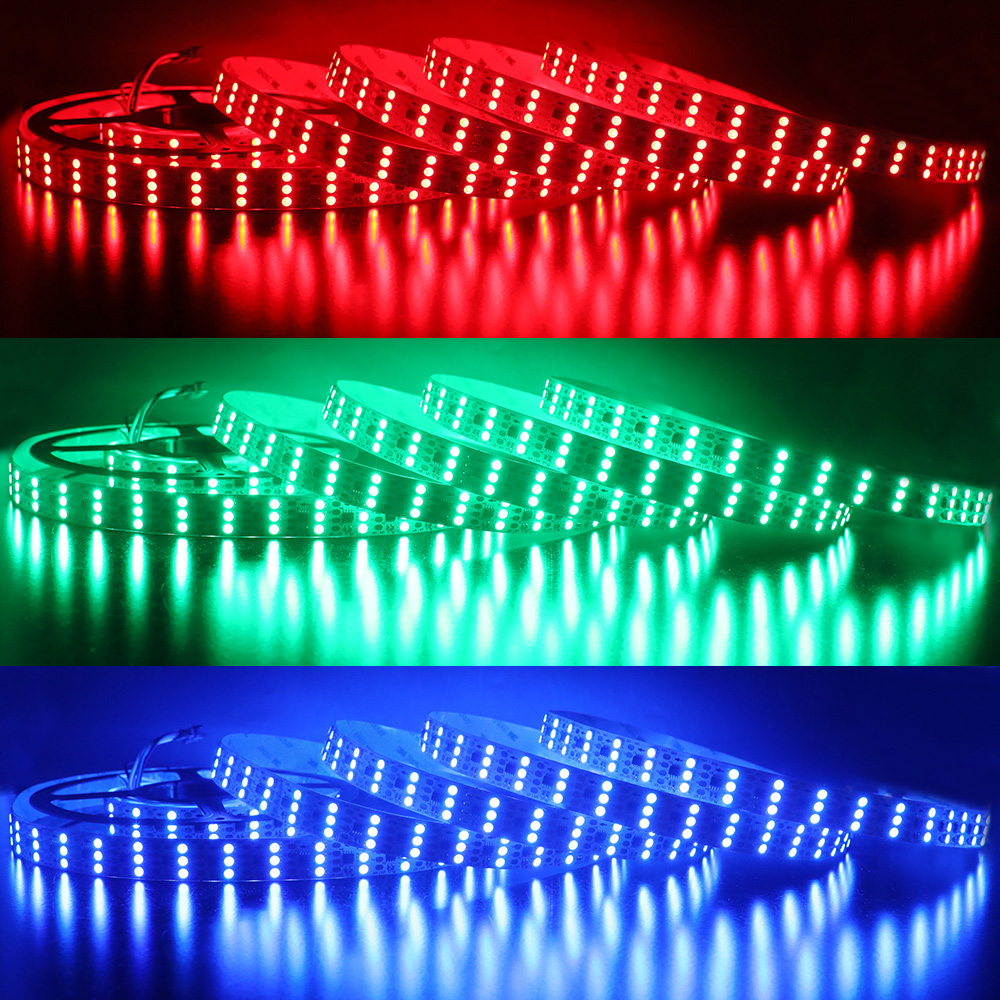

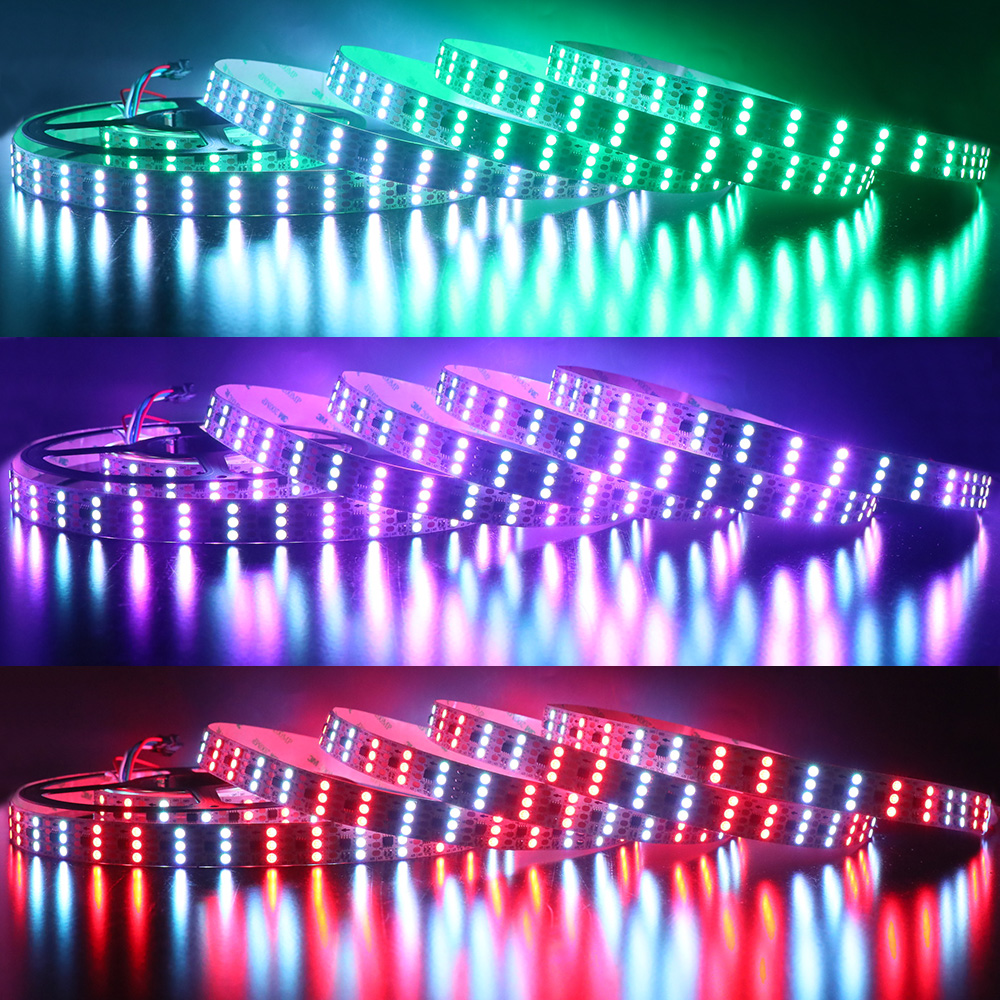

    RGB mixing produces 16 million colors, matching the dream color addressable LED controller can individually control the static lighting effect; works with an LED neon tube, with a good solution to heat dissipation problems, and produces a dynamic effect of running water, suitable for commercial lighting.

    IP67 waterproof optional, suitable for indoor & outdoor lighting enviroment; cut along the cutting line, you can customize the length of the LED strip. At the same time, we provide customized services such as length and waterproof level, the back uses professional 3M tape, which is easy to install.



    Product Feature:

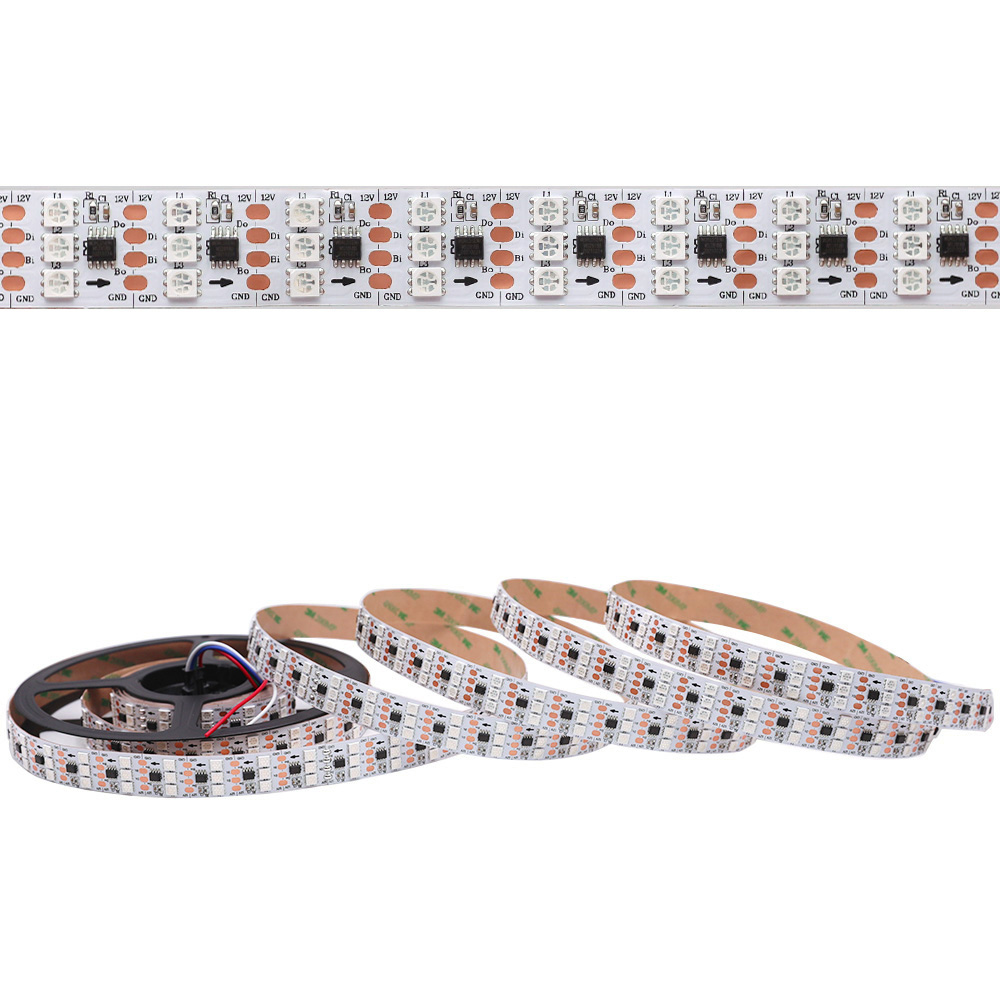

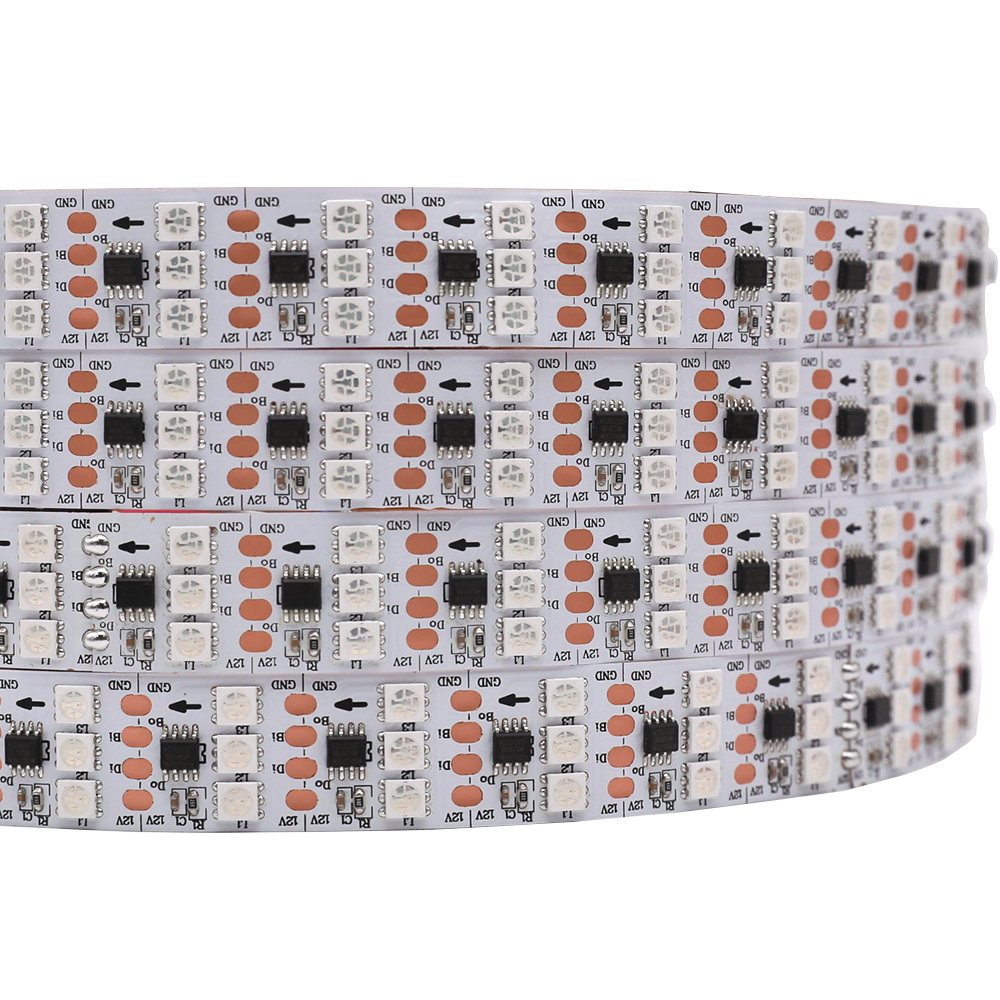

    • Triple row external IC

    • WS2818 breakpoint resume IC

    • DC12V input voltage

    • 3LEDs cuttable

    • 144LEDs/m high density

    • 16 millions colors adjustment

    • High brightness 5050SMD LED

    • IP67 waterproof optional

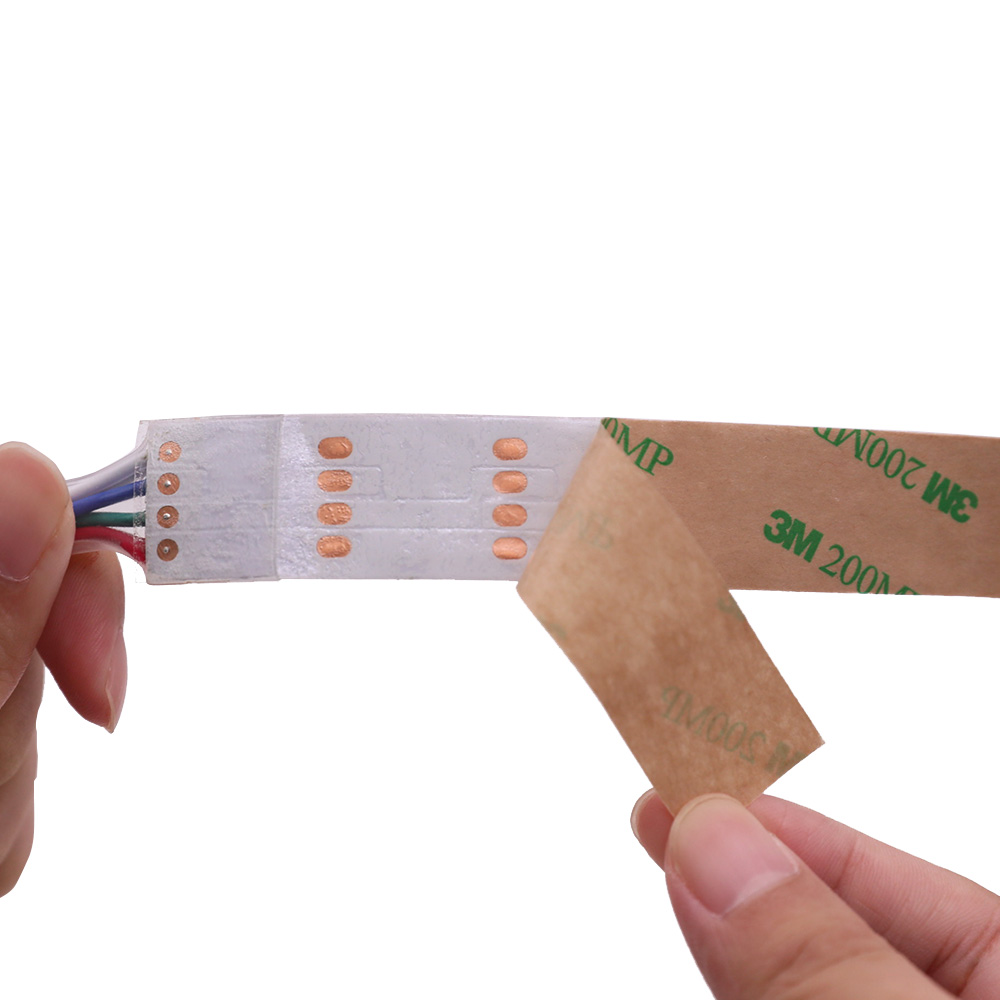

    • 3M tape, easy to install

    WS2818 Chips Specifications Download



    Standards and Certifications





    Specifications:

    LED density:   144LEDs/m

    LED strip type:    5050RGB

    Material:    FPCB

    IC type:   WS2818

    Gray level:   256

    View angle:   120°

    Light color:    RGB

    Input voltage:   DC12V

    Power:   36W/m; 180W/roll

    IP rating:   IP20/67

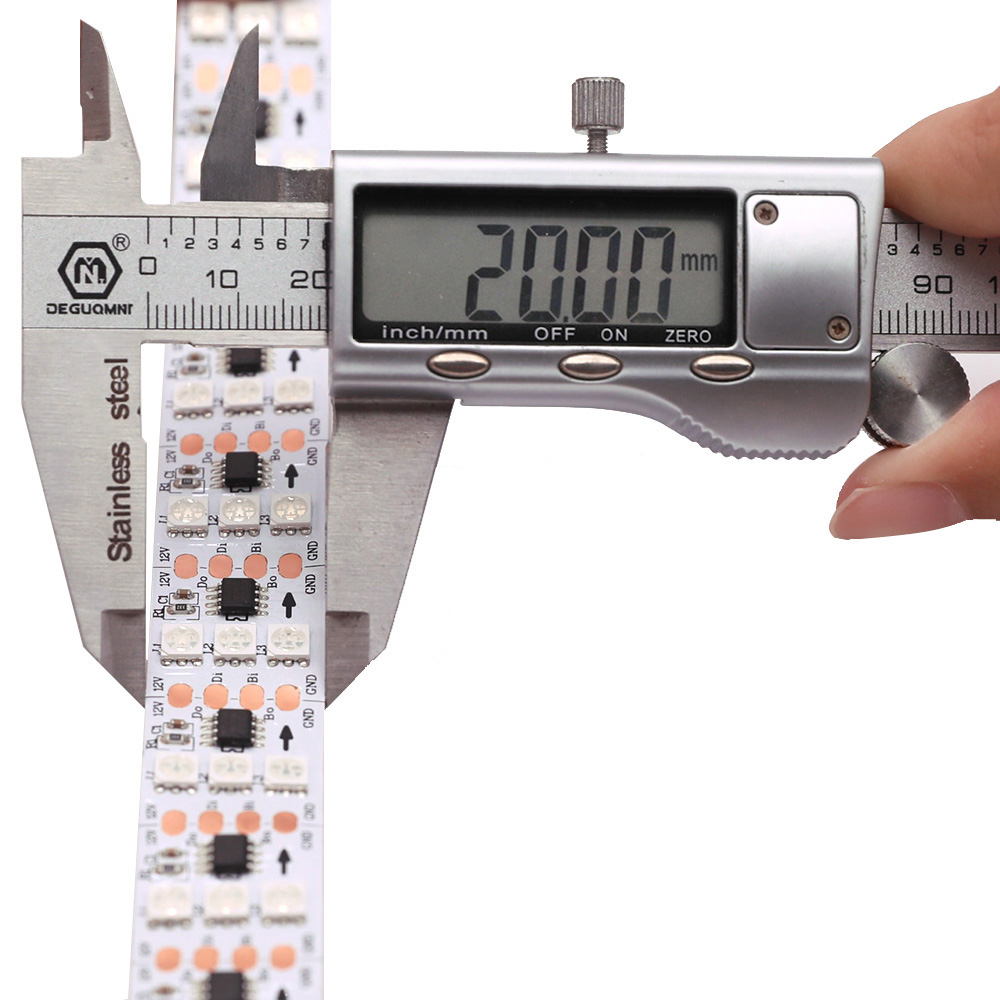

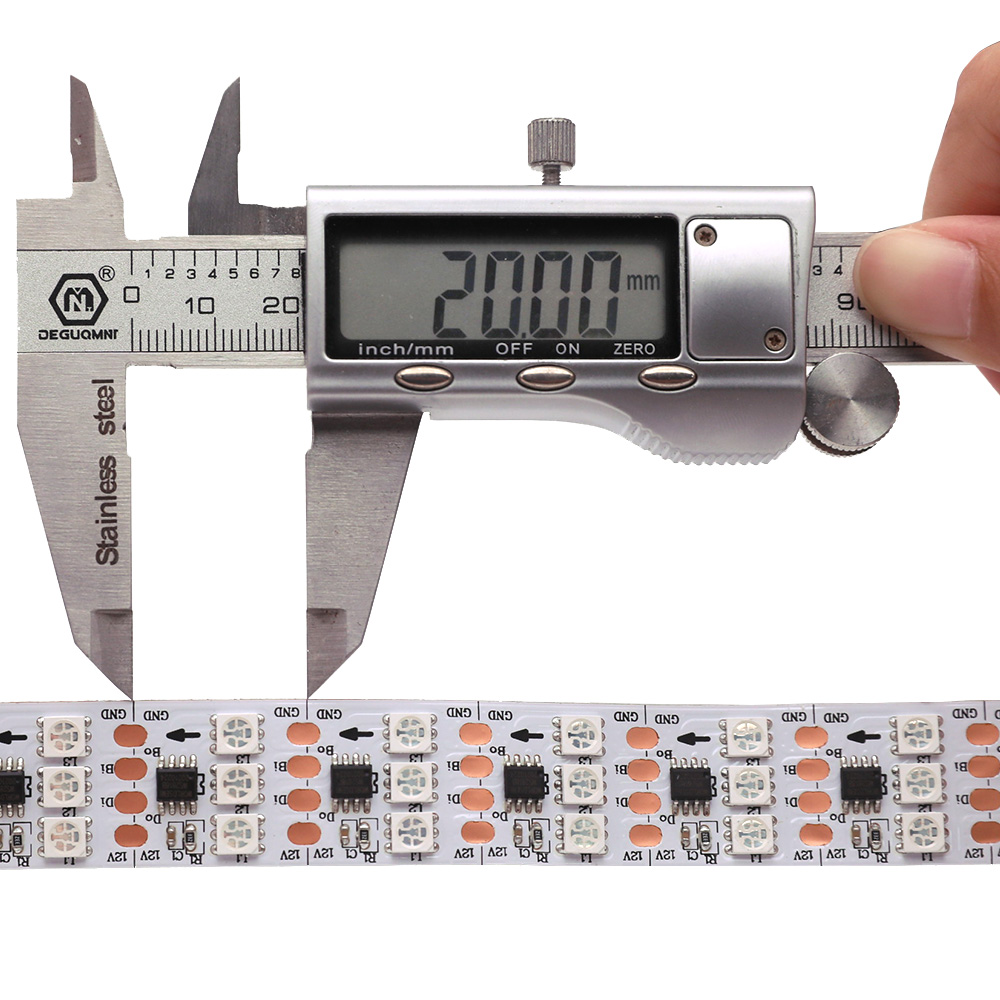

    FPCB width:   20mm/0.79in

    Row quantity:    Triple rows

    Pixel quantity:    48pixels/m

    PCB color:   White

    Bits/color:   8-bits/color; 24bit for RGB

    Average Life (hrs):   50000Hours+

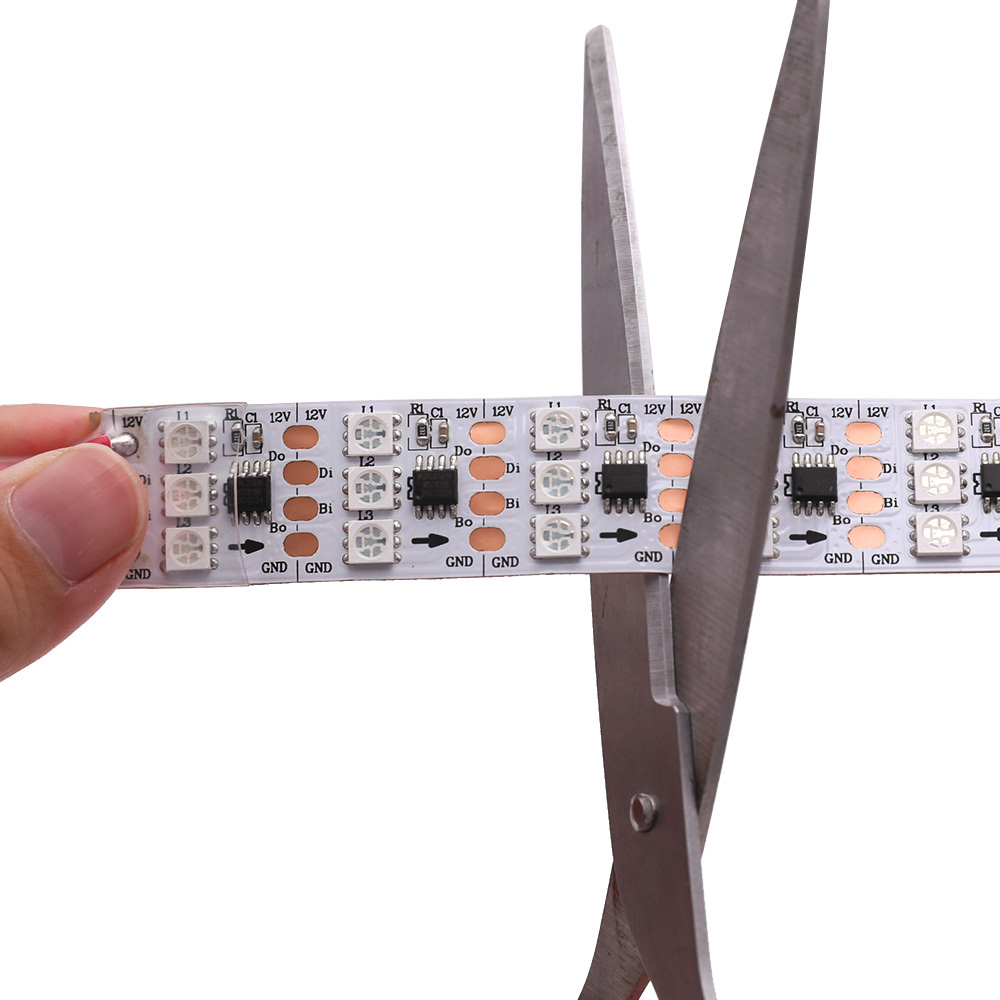

    Cuttable:    3LEDs cuttable



    Product List

    1* 5m/16.4Ft 720LEDs Triple row WS2818 addressable LED strip light

    When you choose LED controller in the kit, we will send you CONFULL-SP108E LED controller (WIFI smartphone APP control)

    When you choose LED power supply in the kit, we will send you LRS-200-12 LED power supply(including an AC plug)

    For outdoor environment, you need to choose our IP67 LED strip lights and don't directly put the LED strip light into the water, you can choose our PSWP-12V-200W waterproof LED power supply.



    Note:

    Please do not exceed 80% of power supply capacity when calculating power supply size to use in your system.

    Otherwise, it will affect the brightness of the LEDs and the service life of the power supply.

    In order to ensure that you use these light strips in the process of the front and behind the light of the same brightness, please supply power at both ends when over 5m/16.4Ft.



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);



    Pin Function

    DO: Control data signal output

    DI: Control data signal input

    BO: Backup control data signal output

    BI: Backup control data signal input

    GND: Data &Power Grounding



    Applications

    These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.

    LED programmable digital screen

    Hotels decoration lighting

    Backlighting decoration

    Concealed lighting, Cove decoration

    led wall, advertising board

    Outdoor advertising signs,

    Hotel, KTV, bars,

    Wedding party lighting,
