24V Bright White High Density 4mm Thin LED Light Strips 120LEDs/m
Related Products
24V Bright White High...
$14.98 $12.9813% off
Single Color LED...
$19.98
96W4A DC24V Plastic Shell...
$22.99
Waterproof IP68 Tuya WiFi...
$25.98
DC12-24V Black LED Dimmer...
$7.99
DC12-24V PIR Motion...
$7.99
Mini LED Channel Aluminum...
$8.99 $5.9933% off- Special Price: $14.98 $12.9813% off

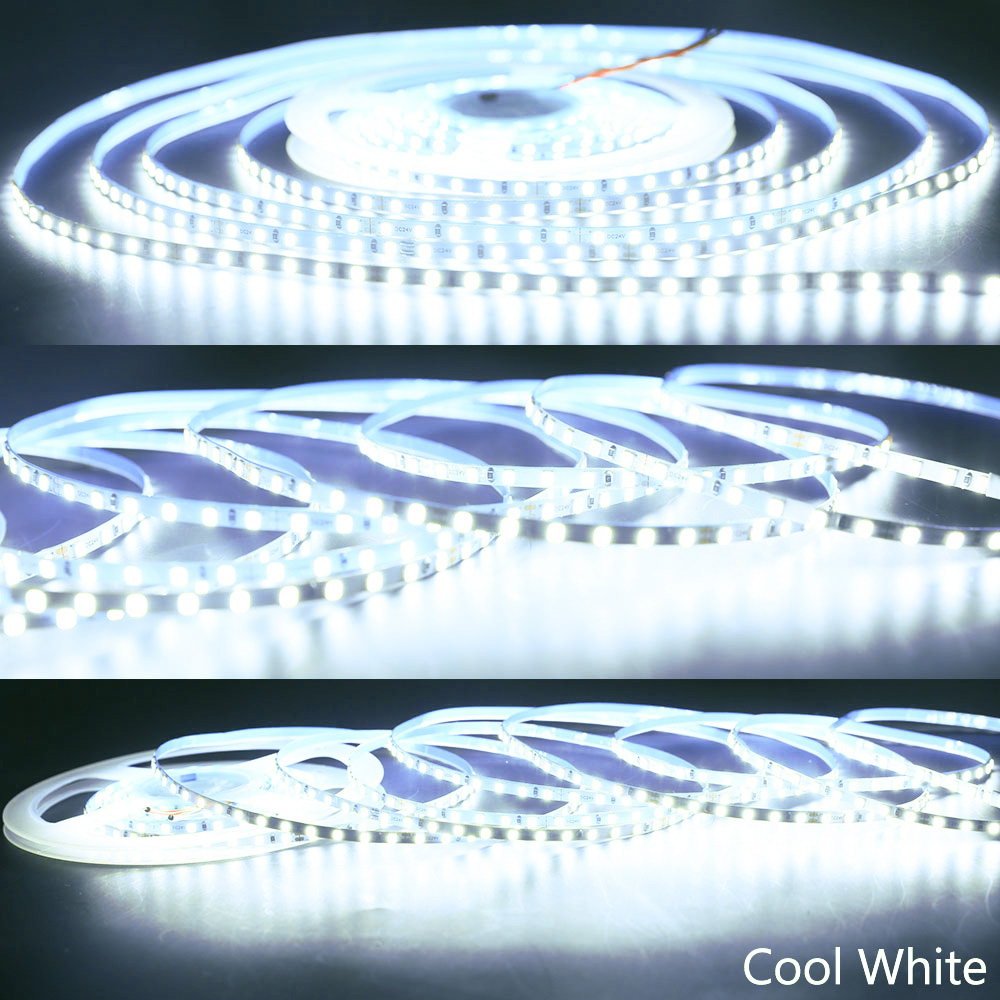

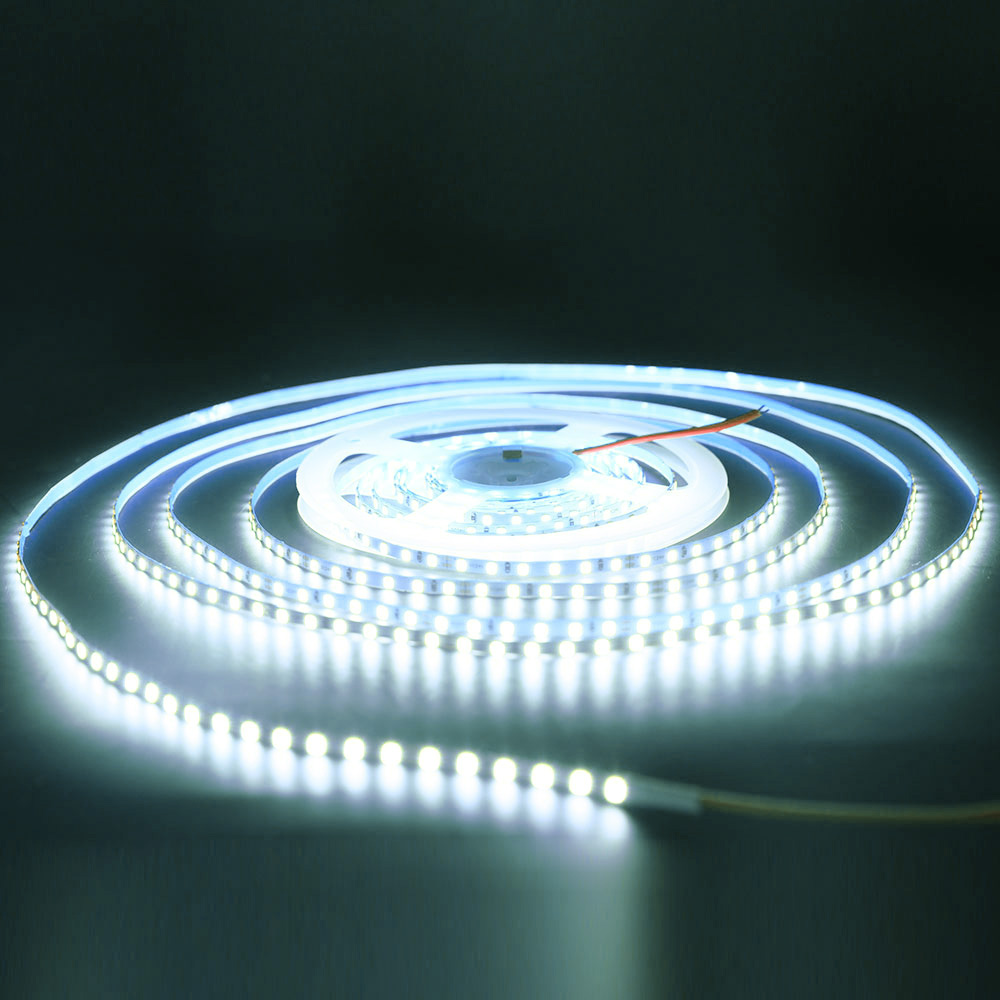

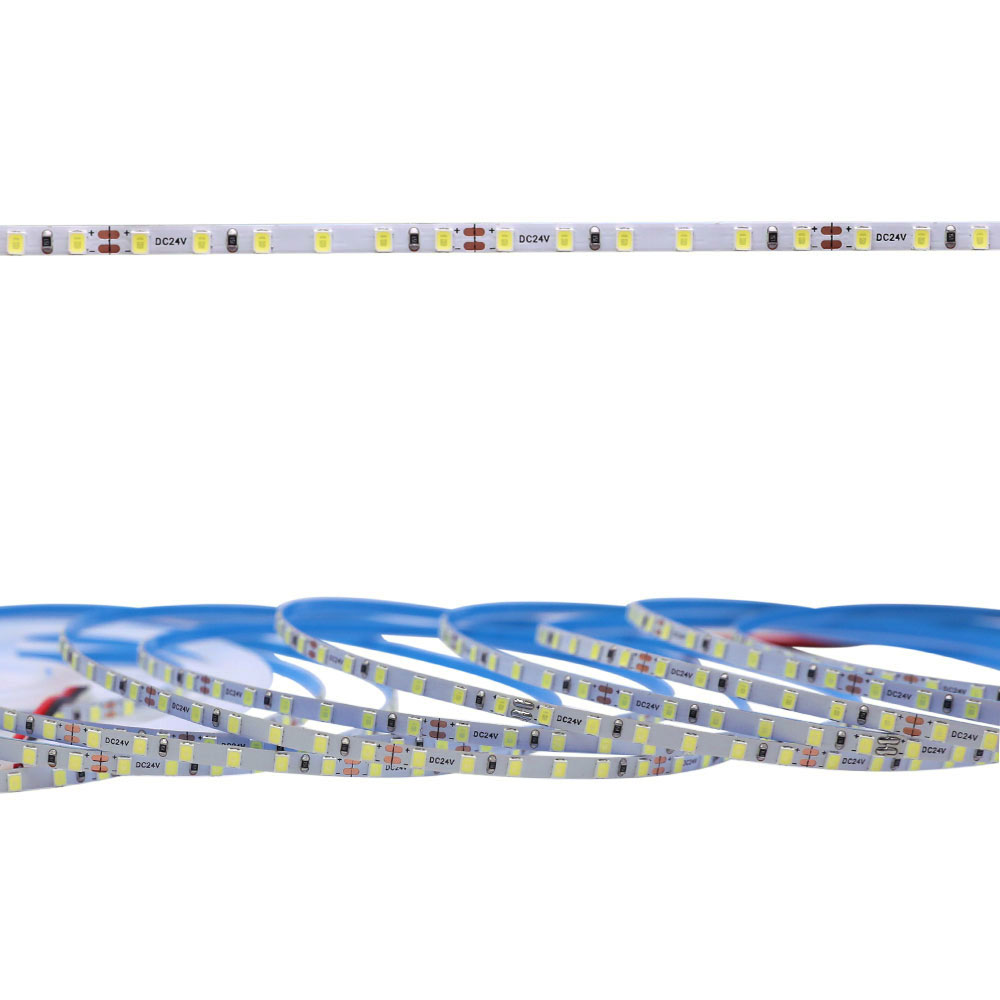

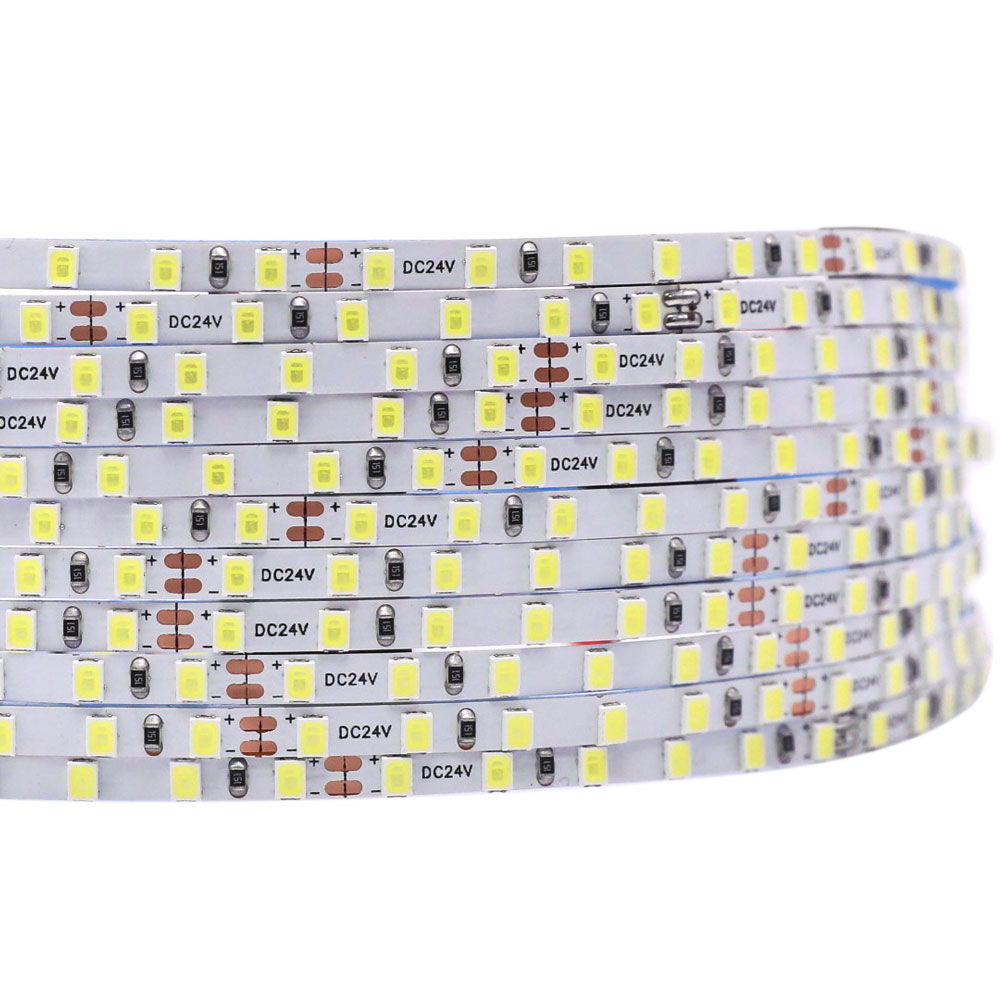

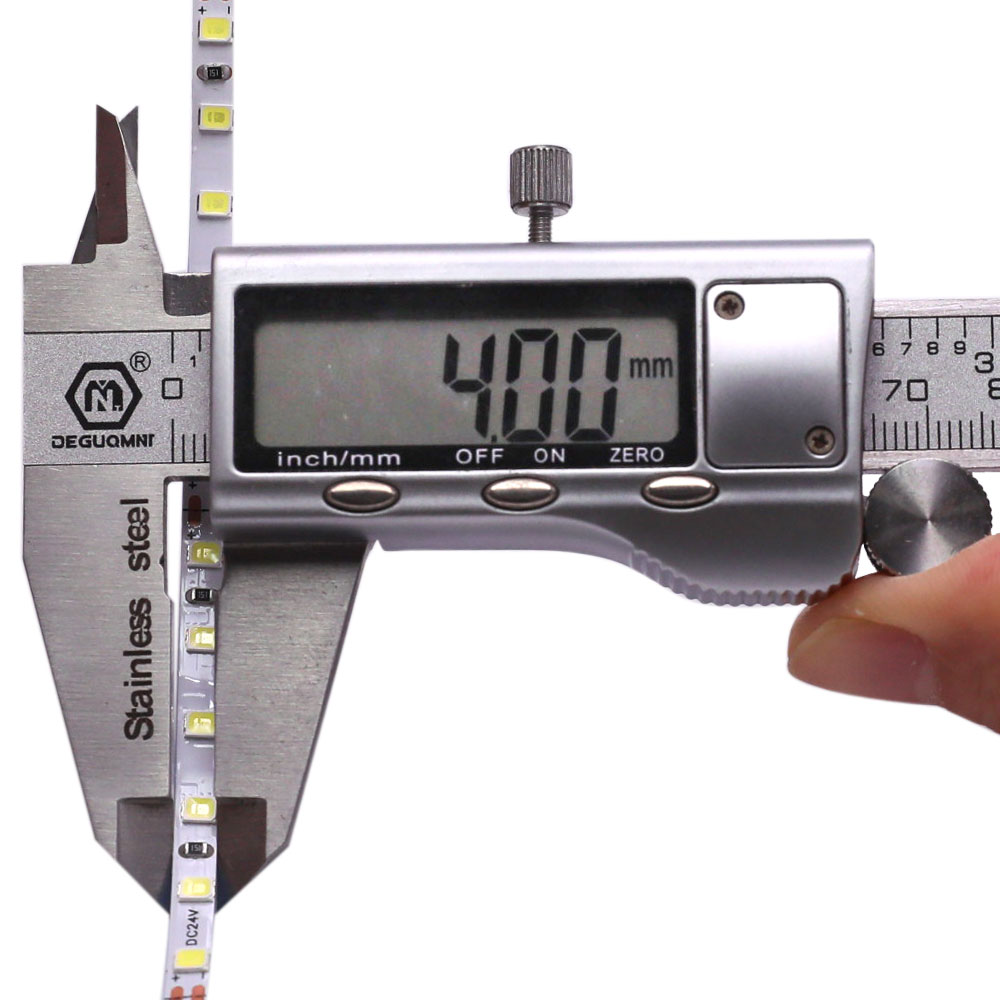

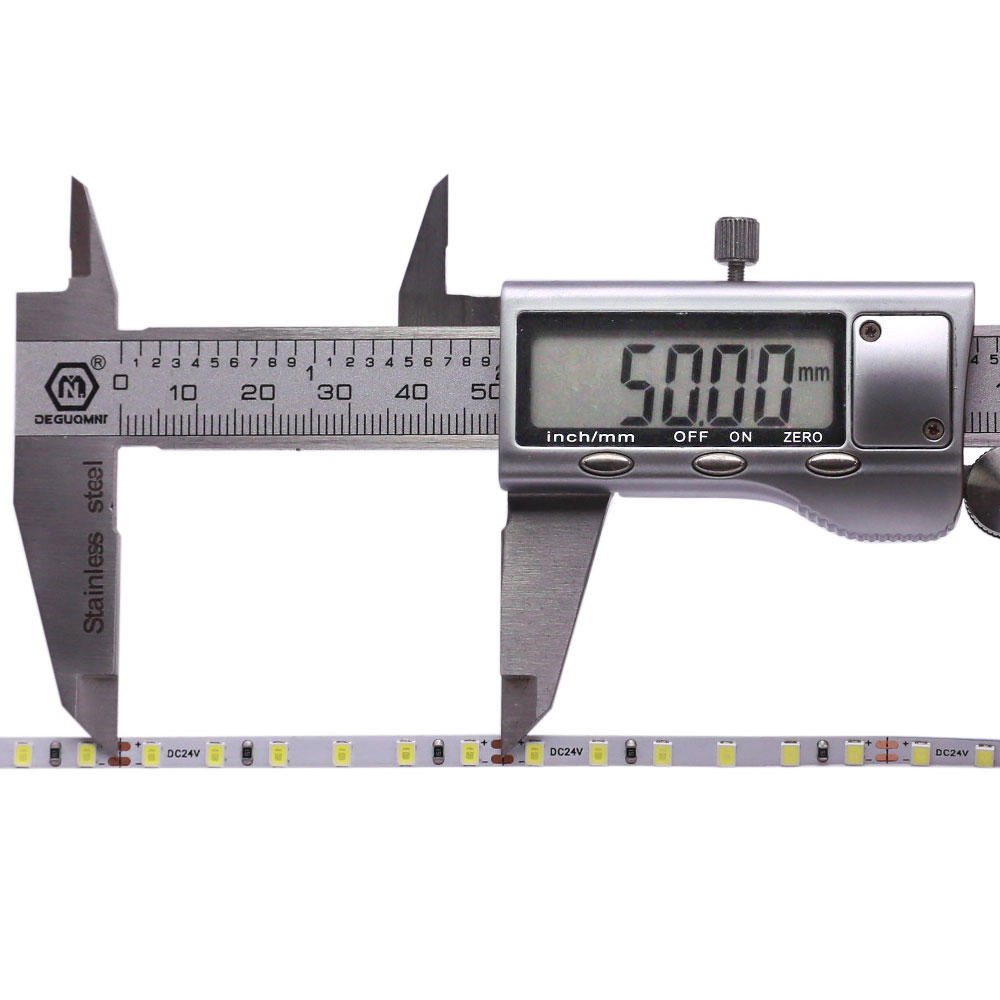

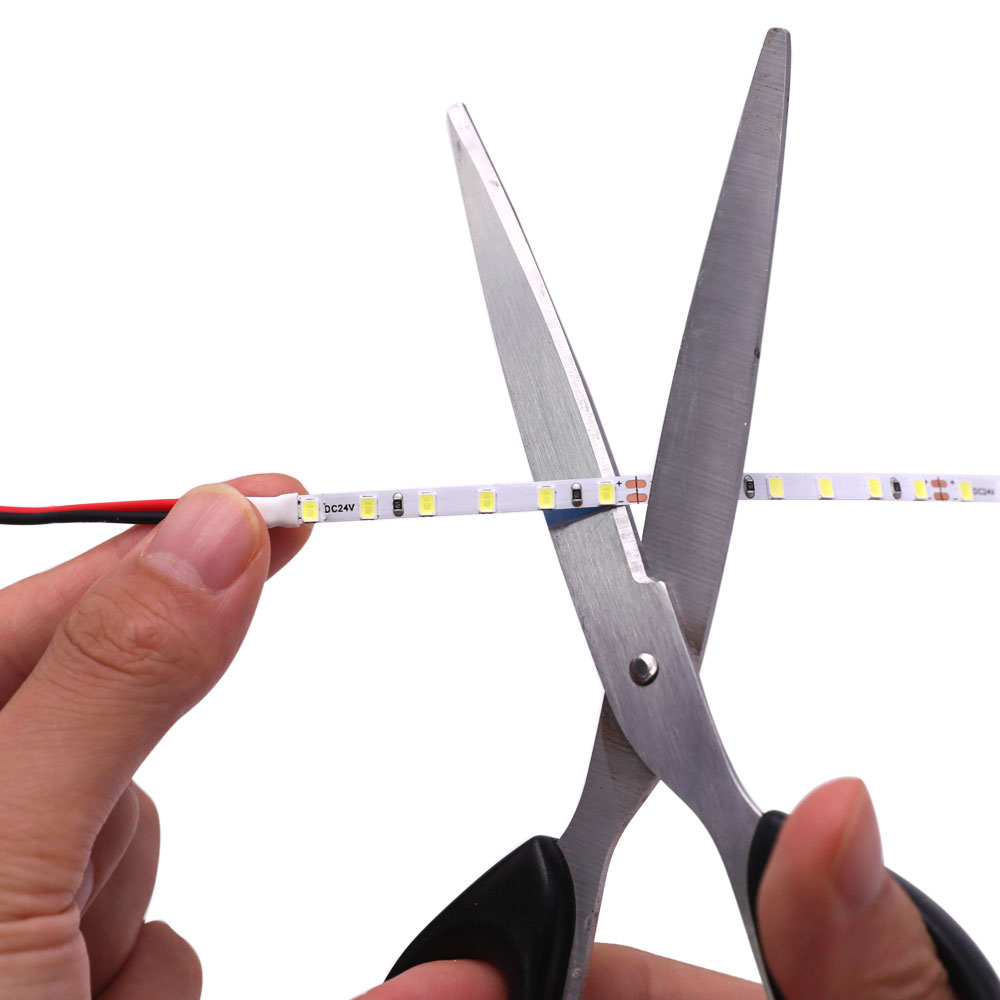

The 4mm narrow white 2835 led strip lights is 4mm/0.16" wide, 120 light-emiting diodes per meter, 600 lights per roll, super high density and high light brightess. Six led lights (50mm/1.96") of 24 volts and three led lights (25mm/1") of 12 volts can be cut.
DC24V/DC12V low voltage input, the 2835 led strip light should be connected to the 24V led power supply. Comes with 2-pin bare wire at the ends, it's easy to hardwire to the switching power supply, or use with a DC connector to connect to the plug-in power supply.
This small narrow led strip is suitable for creative lighting, you can use it to create extraordinary lighting effects and add elegance to your home.
If you have dimming needs, a mini touch dimmer controller, a RF remote controller set, and a motion sensor are all the great choices.
Note: 12V 2835 120led/m 4mm led strip tapes are in stock, 24V version requires production.
Standards and Certifications
Product Specification
| LED Strip Type: | White LED Strip Lights |
| LED Chip: | 2835 SMD LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| White Light Color Temperature: | Warm White(3000K), Natural White(4000K), Daylight White(6000K), Cool White (9000K) |
| LED Quantity: | 120LEDs/m, 600LEDs/5m |
| PCB Wide: | 4mm, IP68 will be wider by 2-4mm |
| Input Voltage(V): | 24VDC, 12VDC |
| Working Power: | 60W per roll max |
| Cuttable: | 50mm/ 6 lights, 25mm / 3 lights |
| Beam Pattern: | 120 degrees |
| Waterproof Rating: | Non-waterproof IP20 |
Product List:
1* 5m/16.4Ft 600LEDs bright white LED strip light by default.
Kit "LED strip + LED light controller + power adapter": Daylight white 6000K LED strip + V1 + RT1 + PSPS-24V-96W
How to Wire 2-pin White LED Strip Lights?
During the wiring process, please pay extra attention that the positive and negative terminals should not be reversed.
When the led strip lights connect to power supply:
