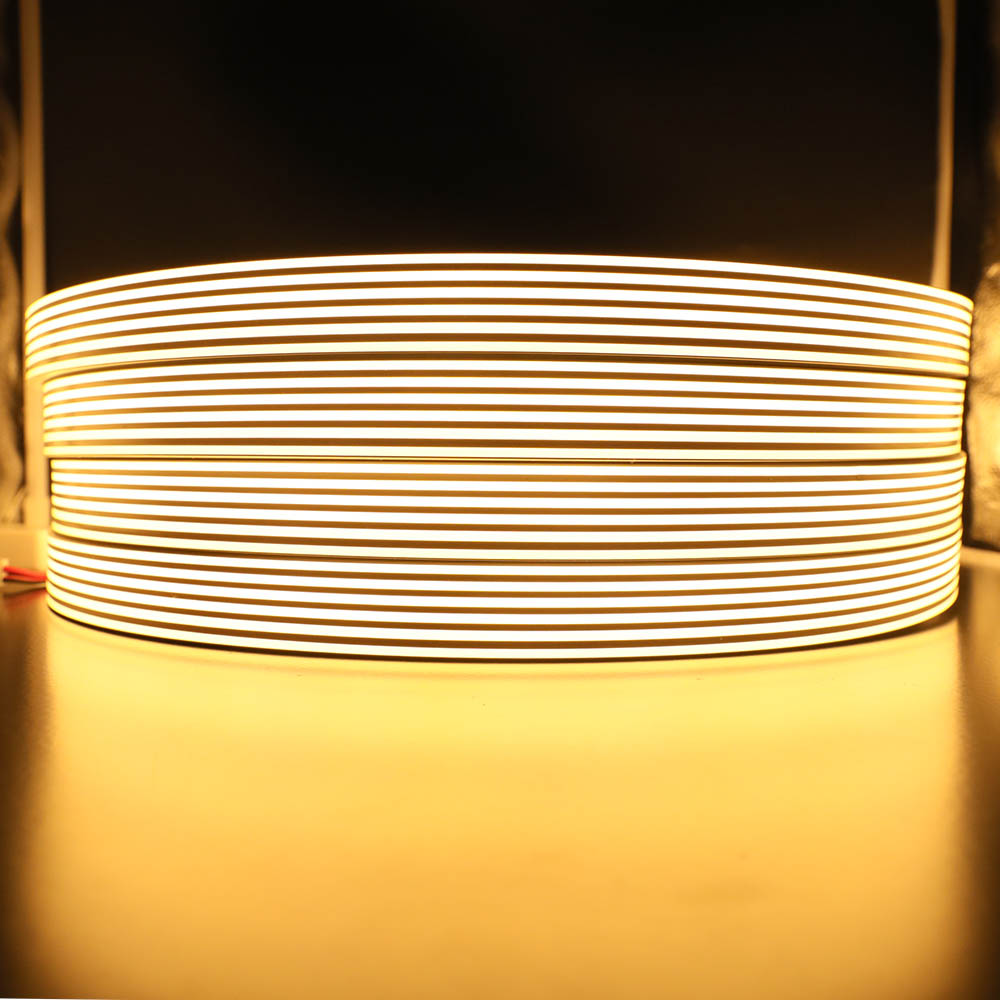

DC12/24V Multiple Color Changing & Chasing Optional 30*20mm Stripe Waterproof Flexible Silicone LED Neon Light
Replace the traditional neon glass tube lights with energy-saving and environmentally friendly LED neon light strips, combine the LED light strips and food-grade silicone neon tubes to produce sustainable no light spot LED neon strips.
This LED neon light adopts 30*20 striped LED neon tubes, flexible design structure and sufficient display space, which can be installed with double-row LED strips with a width of 15mm/0.59in.
Adopting high-quality silica gel material solves the heat dissipation problem well, supports DC12/24V low voltage input, no harm to the human body, 3/6LEDs cuttable, according to the cuttable segment, you can customize the length of 30*20 LED neon light.
Single color/RGB/RGBW/RGBWW/Addressable RGB/Addressable RGBW optional, to meet any color you can imagine, IP67 waterproof and above, suitable for any complex lighting environment.
Working with matching LED controller, through APP/RF/Amazon Alexa/Google Assistant, provide timing/music/group function, display 16 million static colors and dynamic effects such as running water.
We provide indoor & outdoor LED neon light kit options and customized neon light length service, plug and play, suitable for indoor lighting & decorative lighting & atmosphere lighting and other lighting environments
Food-grade silicone material

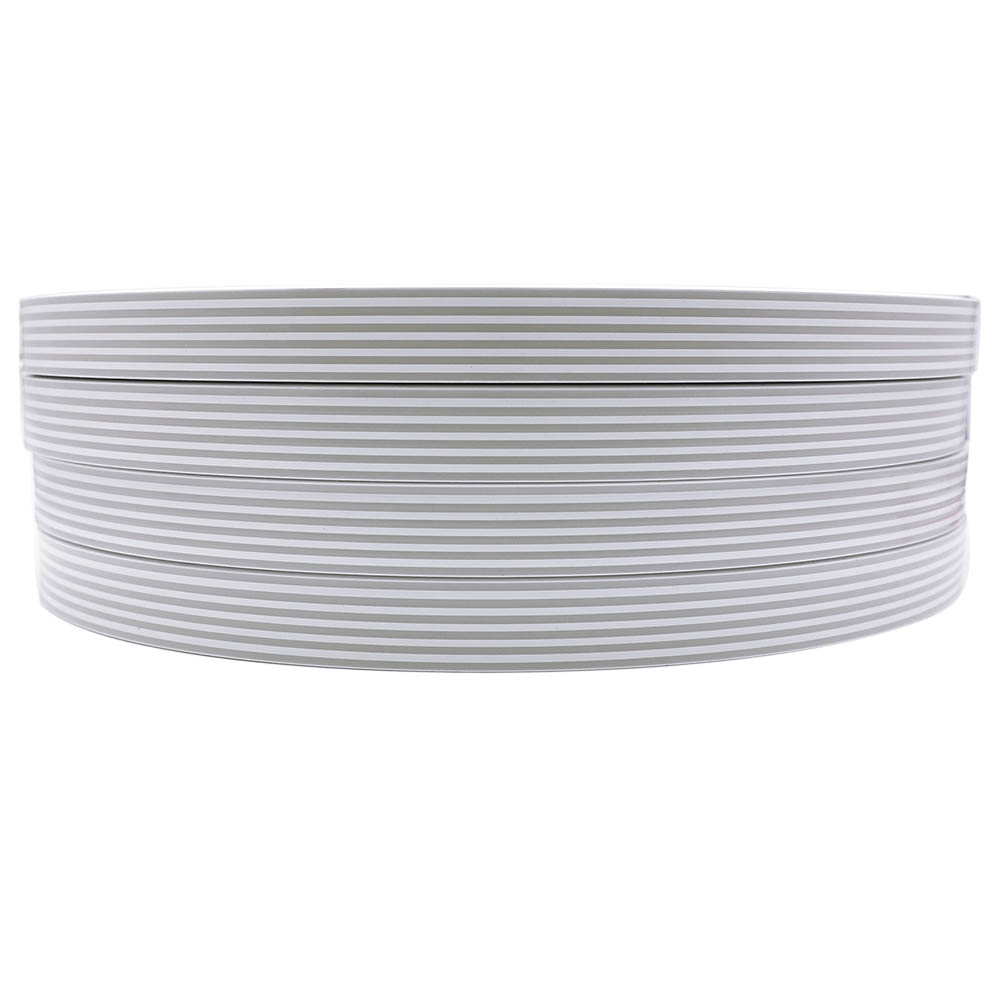

Special 30*20 stripe
DC12/24V low voltage input
3/6 LEDs cuttable
Without light spot
Addressable RGB/RGBW optional
IP67 waterproof and above
Multiple control types optional
High brightness LED

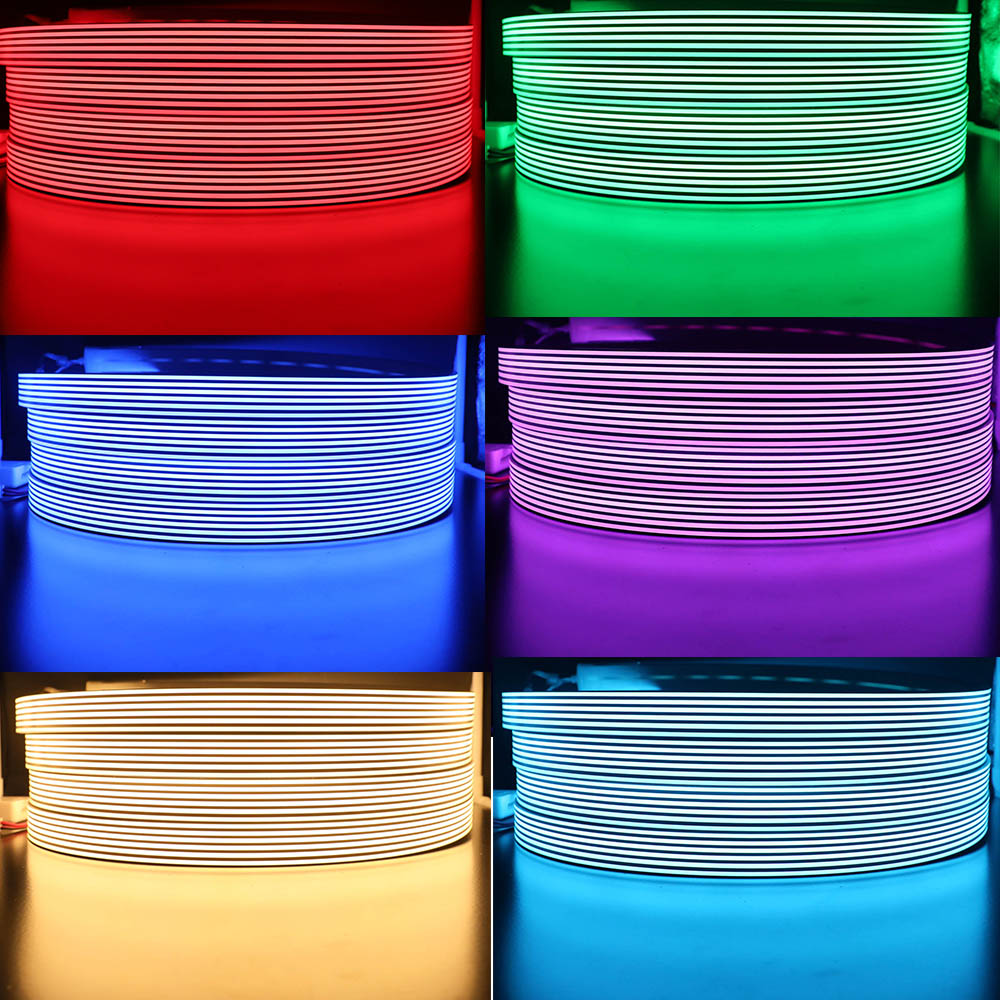

16 million colors adjustment
A complete kit optional, plug and play
For indoor & outdoor lighting environment
What is the difference between Single color/RGB/RGBW/RGBCCT/Addressable RGB LED strip light?

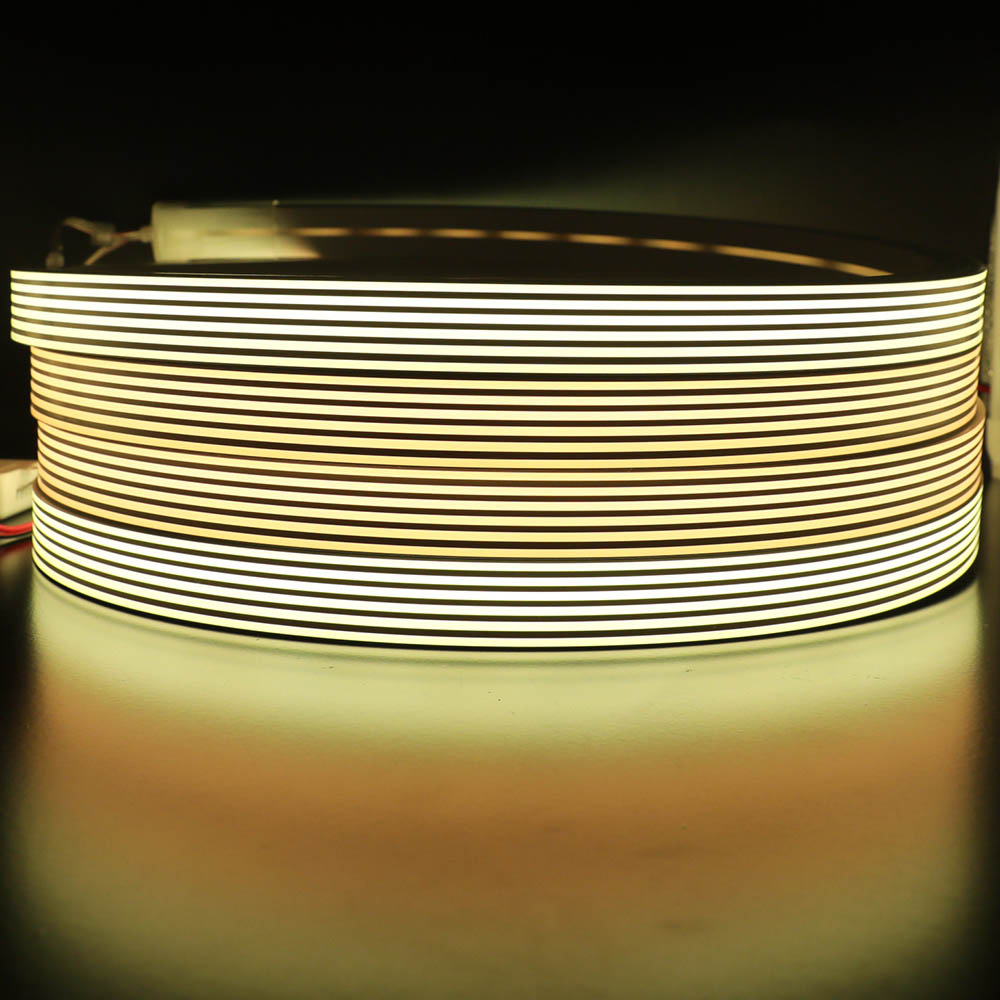

SC: R/G/B/W/Y optional, 90+CRI, high brightness LED, suitable for indoor & outdoor home lighting
2800K-3200K: emits a soft white light (Warm white), often yellow in appearance
4000K-4500K: emit bright white light (Natural white), suitable for working space and another office lighting, etc;
6000K-6500K: emits bright white light, similar to daylight (Daylight white)

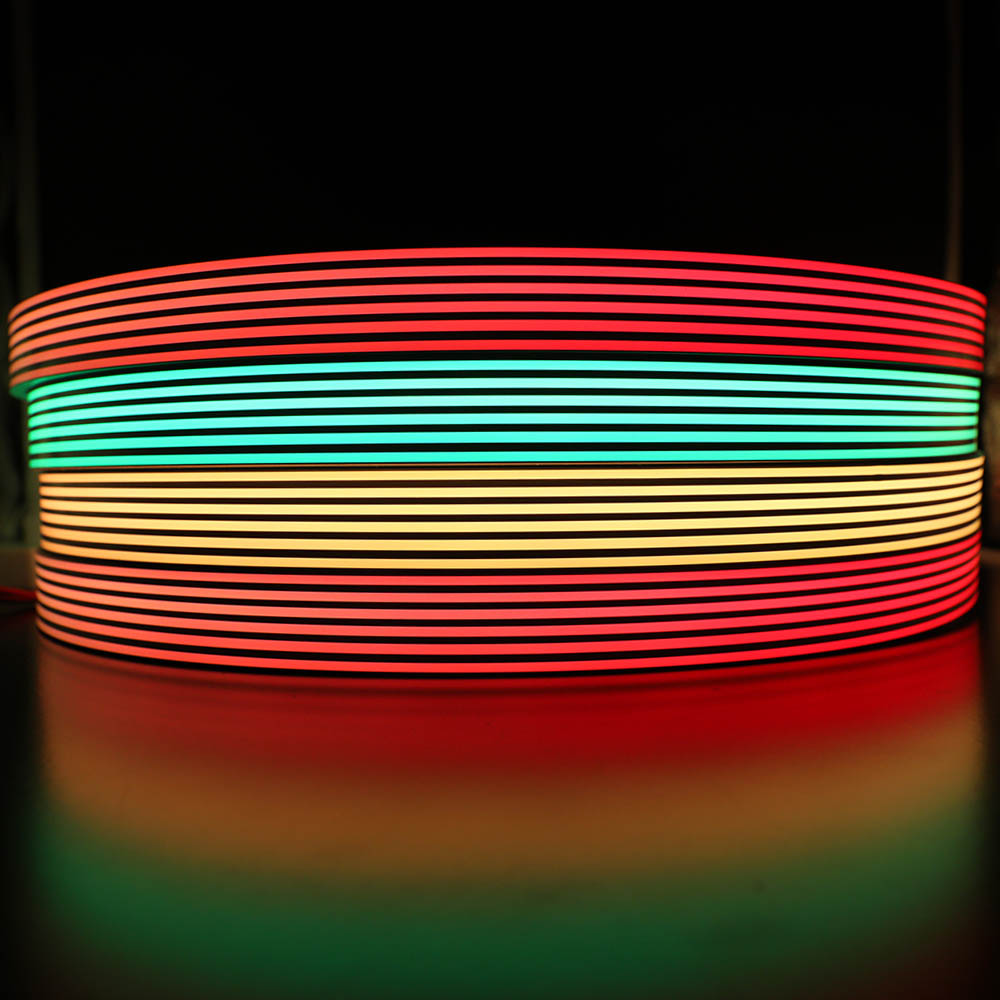

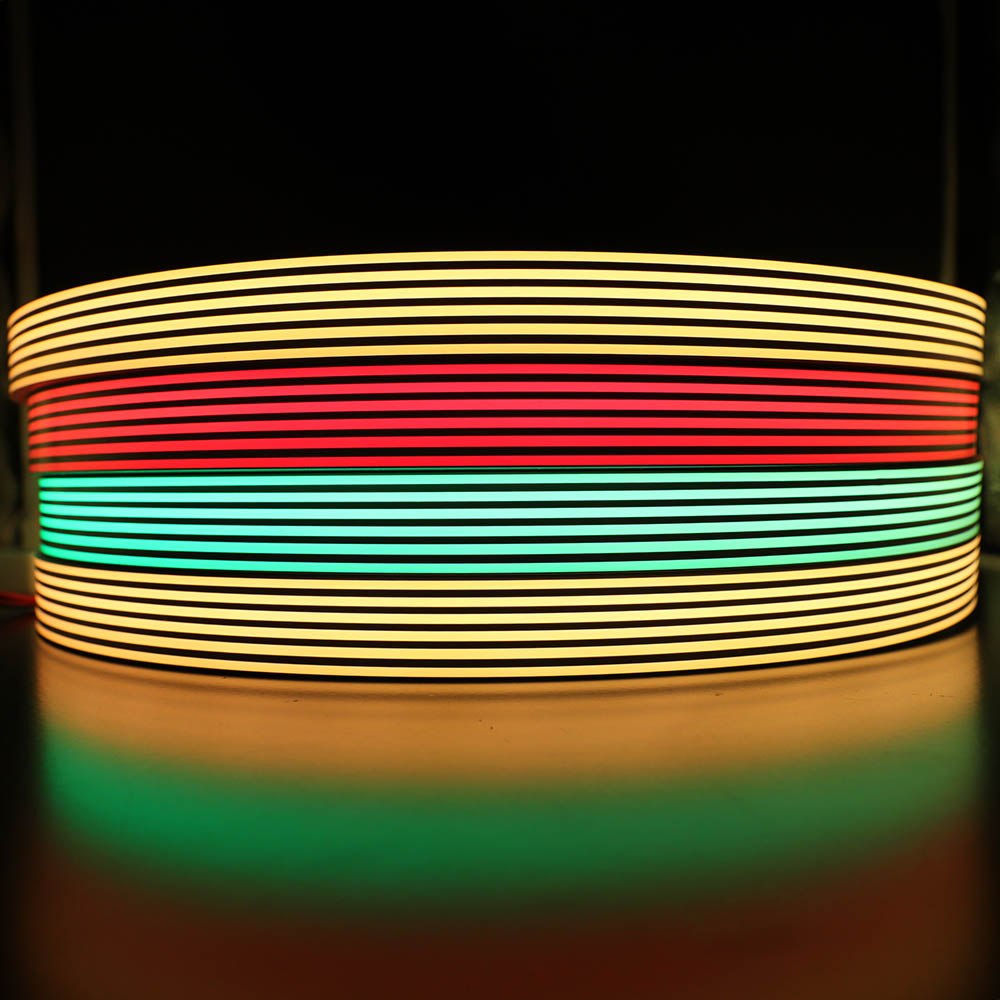

RGB/RGBW/RGBCCT LED produces 16 million color changing, suitable for decorative lightings, such as commercial places, .
RGB led light strip is a 3in1 LED chip integrated by red, green and blue, which is a 4 channels LED light strip.
RGBW is usually a 4in1 LED chip integrated by red, green, blue, and white, which is a 5 channels LED strip.
RGBCCT is usually a 5in1 LED chip integrated by red, green, blue, warm white and daylight white, which is a 6channels LED strip light
RGBW/RGBWW LED strip lights is with a flexible arrangement structure.

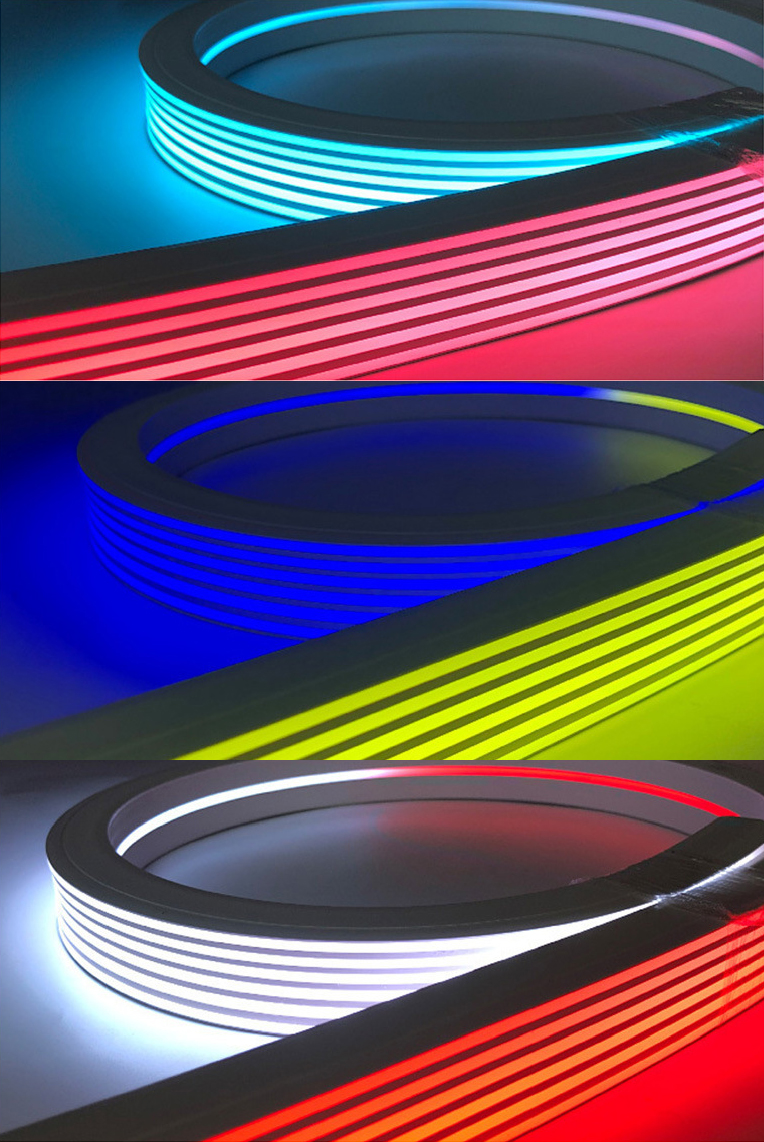

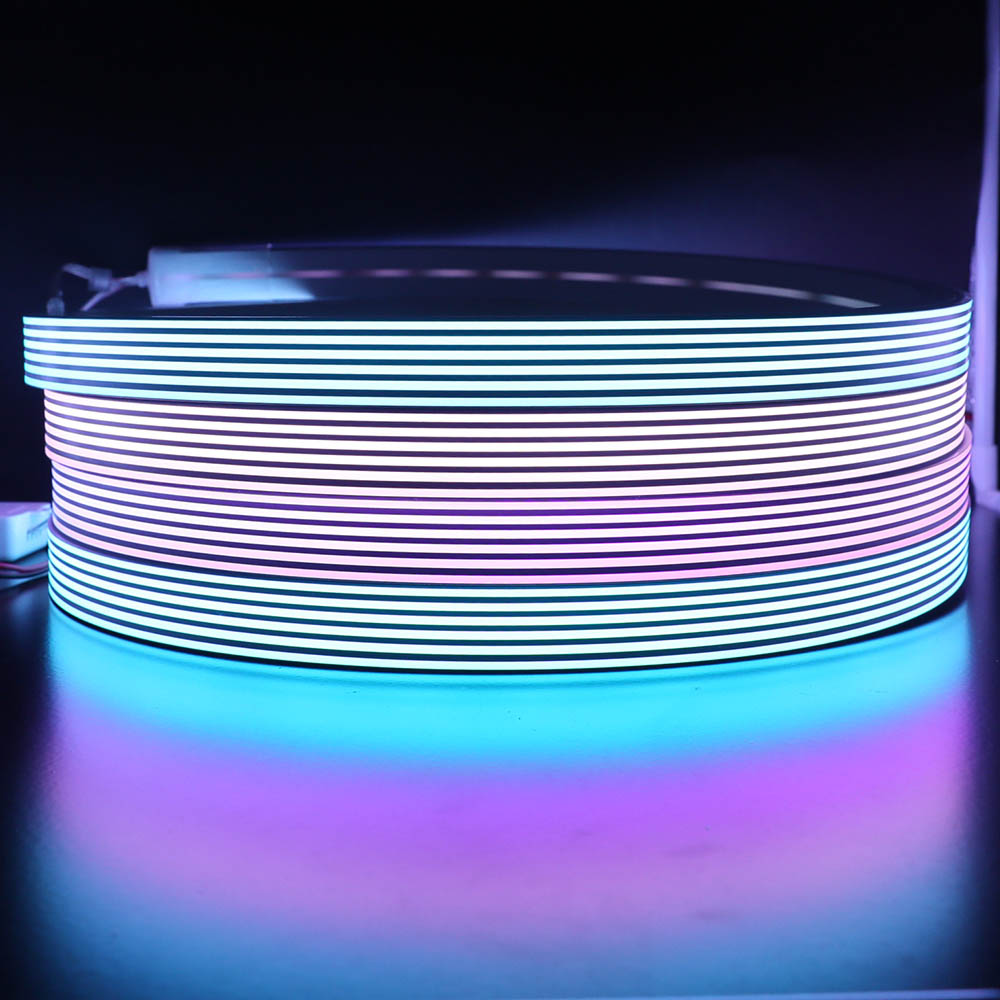

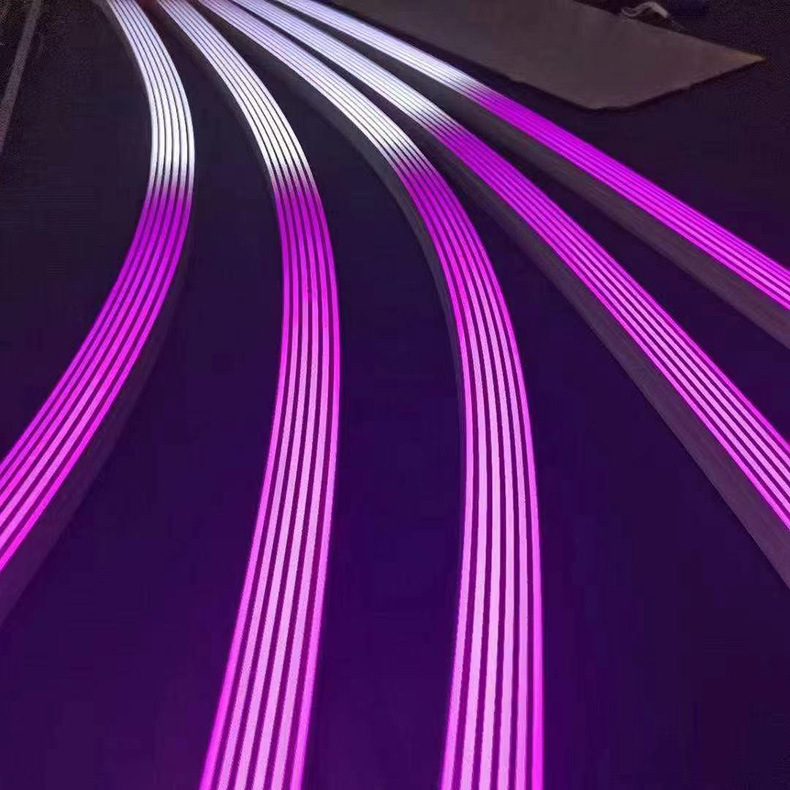

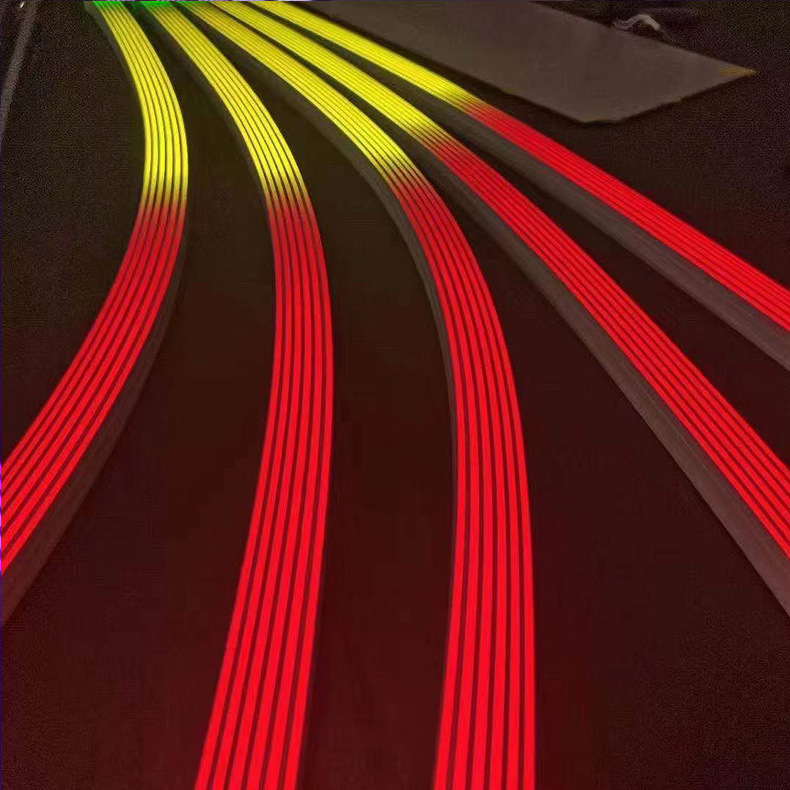

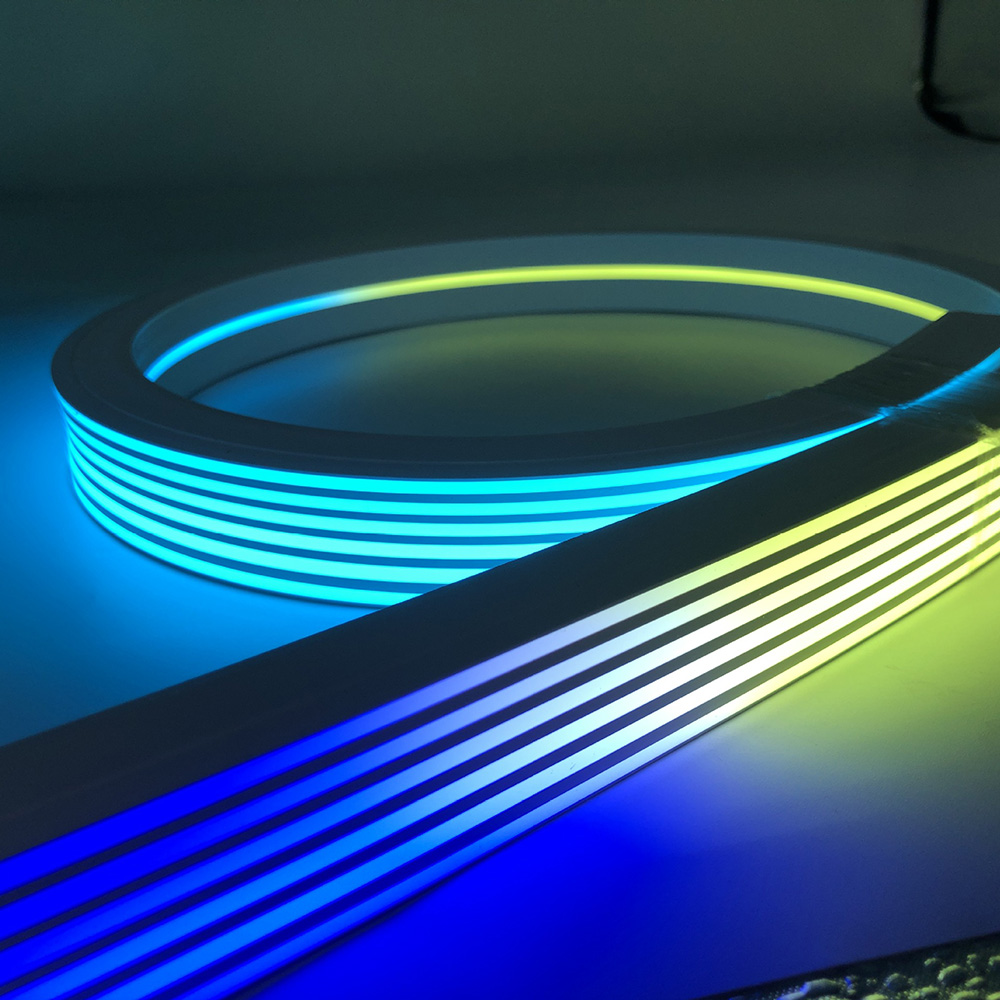

Addressable RGB/RGBW produces multiple static and dynamic color chasing lighting effects, suitable for atmosphere lighting, such as bar, KTV, entertainment place.
Built-in/External IC programmable, individually addressable/3 LEDs/6 LEDs programmable, Addressable RGBW can purer independent white color than addressable RGB.
Addressable RGB LED strip light integrates red, green and blue chip into a LED, Addressable RGBW LED strip light integrates red, green, blue and white chip into a LED.
The difference between DC12V/24V LED strip light?
DC12V every three LEDs can be cut, one IC controls 3 LEDs
DC24V every six LEDs can be cut, one IC controls 6 LEDs
If you want to apply to automotive/boat lighting, it is recommended that you use DC12V light strips
If you want to use for ultra-long lighting and try to use a less LED power supply, it is recommended that you use DC24V light strips
Standards and Certifications
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Cuttable: DC12V(3 LEDs cuttable); DC24V(6 LEDs cuttable)
PCB Width: 15mm/0.59in
Input Voltage(V): 12/24VDC
Water Proof: Waterproof IP67
Beam Pattern: 120 degree
CRI: 90+(single color)
Color Temperature CCT(White): Warm White(2800-3200k), Natural White(4000-4500K); Daylight White(6000-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Addressable RGB IC Quantity: 20ICs/m(DC12V); 10ICs/m(DC24V)
Addressable RGBW IC Quantity: 40ICs/m(DC12V); 20ICs/m(DC24V)
Single Color/RGB/RGBW/Addressable RGB/RGBW: 37LEDs/Ft; 120LEDs/m
RGBCCT: 82LEDs/Ft; 270LEDs/m

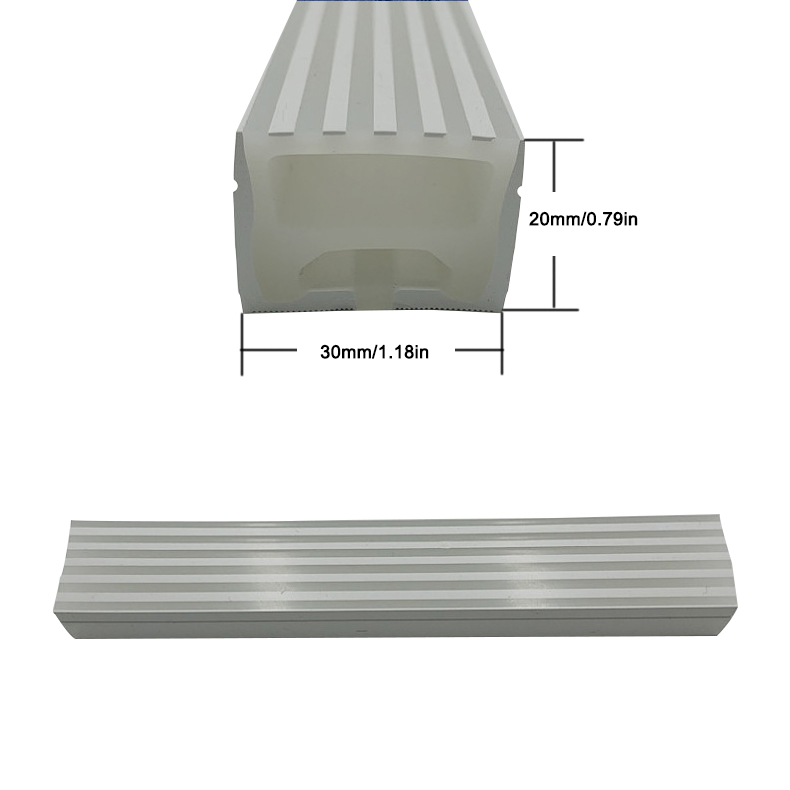

LED Neon Tube Specification
External Width: 30mm/1.18in
Inner Width: 16.5mm/0.65in
External Height: 20mm/0.79in
PCB Width: 15mm/0.74in
Beam Angle: 120°
Lighting Direction: Top Lighting
Waterproof Rating: IP67
1* 5m/16.4Ft LED neon light
How to choose LED controller?
If you choose the LED controller in the kit, we will send you the following LED controller.
V4-WP LED controller only support LED remote controller control, YL5/WL5 and WL5-WP support smartphone control, as for LED remote controller, you need to purchase by yourself, such as FUT088 or FUT089
If you have some requirements for LED controllers, you can visit our LED smart controller series
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
Single Color/RGB/Addressable RGBW: 8.8W/Ft; 144W/16.4Ft; 144W*1.2=172.8W
RGBW: 5.9W/Ft; 96W/16.4Ft; 96W*1.2= 115.2W
RGBCCT: 9.1W/Ft; 150W/16.4Ft; 150W*1.2=180W
Addressable RGB: 11W/Ft; 180W/16.4Ft; 180W*1.2=216W
How to choose LED power supply?
If you choose the LED power supply in the kit, we will send you the following LED power supply.(the output voltage of LED power supply should be the same as the input voltage of LED neon light)
If you purchase our LED power supply in the kit, we will also send you an AC plug
As the length of the LED strip increases, its power will decrease a little. The power supply of MeanWell UL-Listed LED power supply and waterproof LED power supply is the actual power, so 216W power can be selected as 200W LED power supply but needs to be greater than the rated power.
If you have some requirements for LED power supply, you can visit our LED Power Supply Series.
For LED Fast Connector Option Description
What is the difference between LED neon lights and ordinary LED strips?
LED neon light differs from ordinary LED strip light (silicone sleeve tube) with PVC flexible tube on the outside, which has good waterproof and heat dissipation.
Flexible neon light emits soft and delicate light, not blinding, with a strong sense of three-dimensionality and perspective in working and non-working states, and no light spot at high density.
Flexible LED neon tube light line has the characteristics of energy saving, environmental protection and health. No heat radiation is generated when working, no extra energy is lost, and LED neon lights do not produce any environmental pollution when used or discarded.

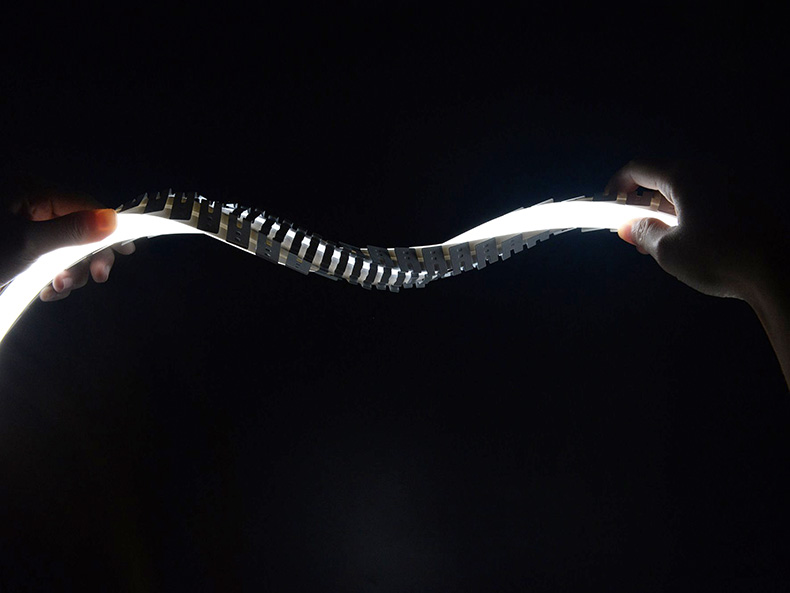

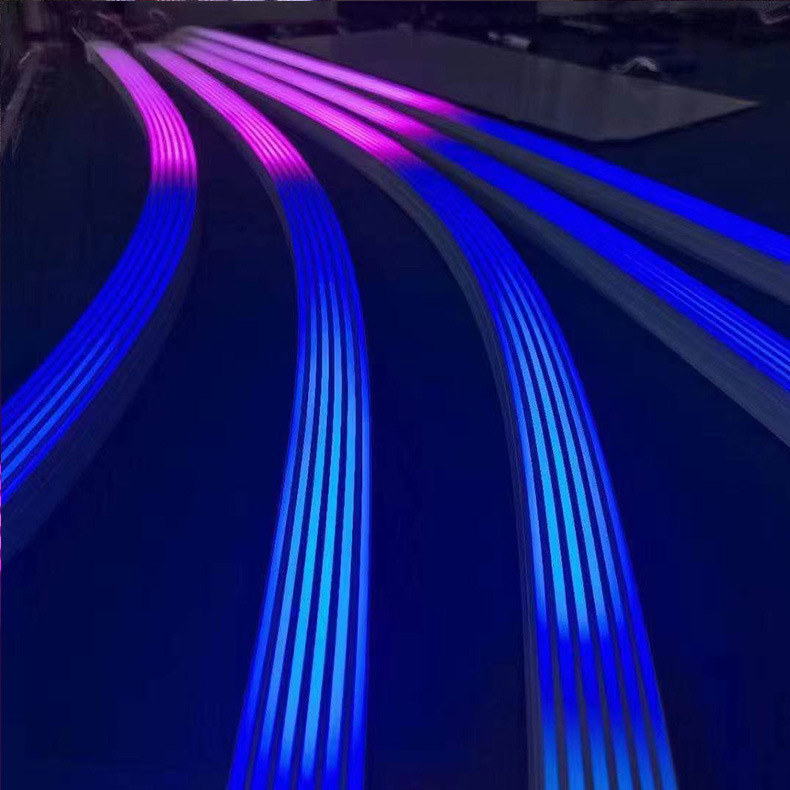

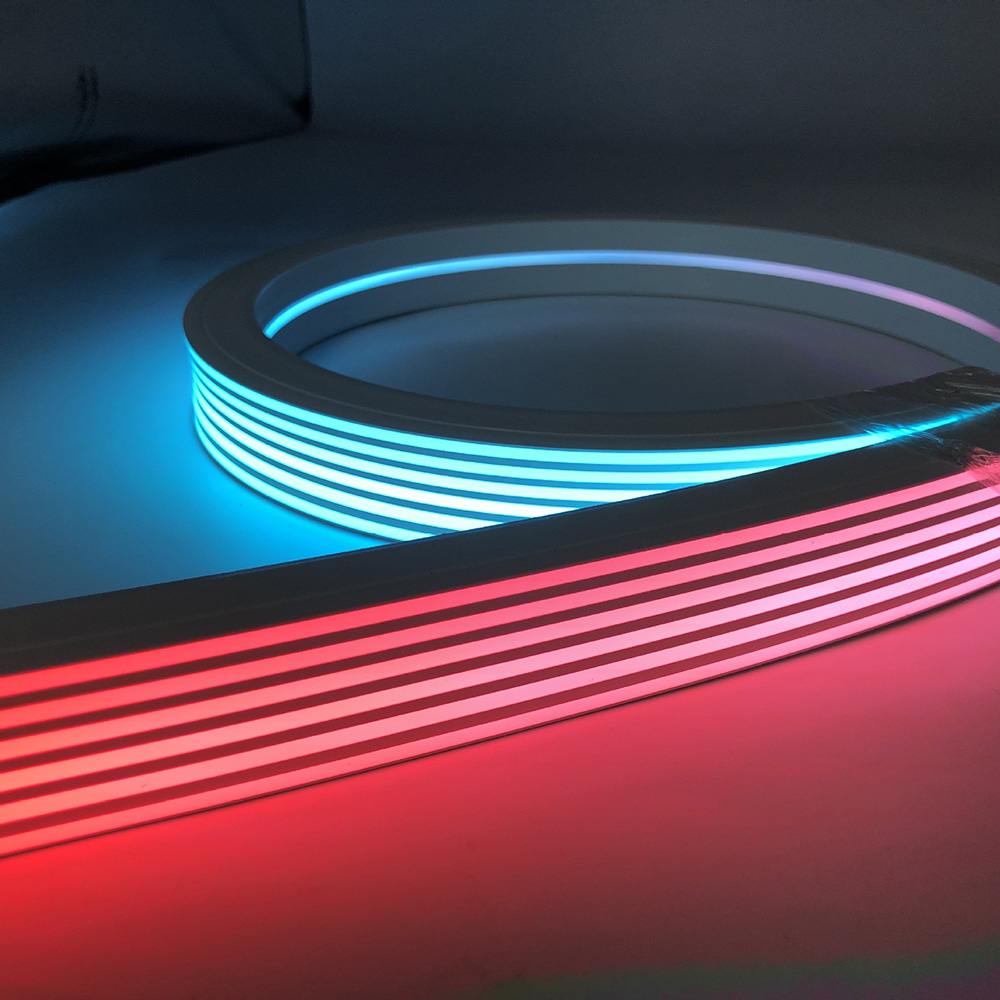

Flexible LED neon light is soft, bendable, knotted at will, and can be bent at will to make LED signs for exterior decoration and billboards, etc.
Long working life, low environmental dependence, can work normally below 60 degrees Celsius, can be lit in daylight without yellowing, and works normally in rain and other environments.
LED Neon Strip Light Accessories

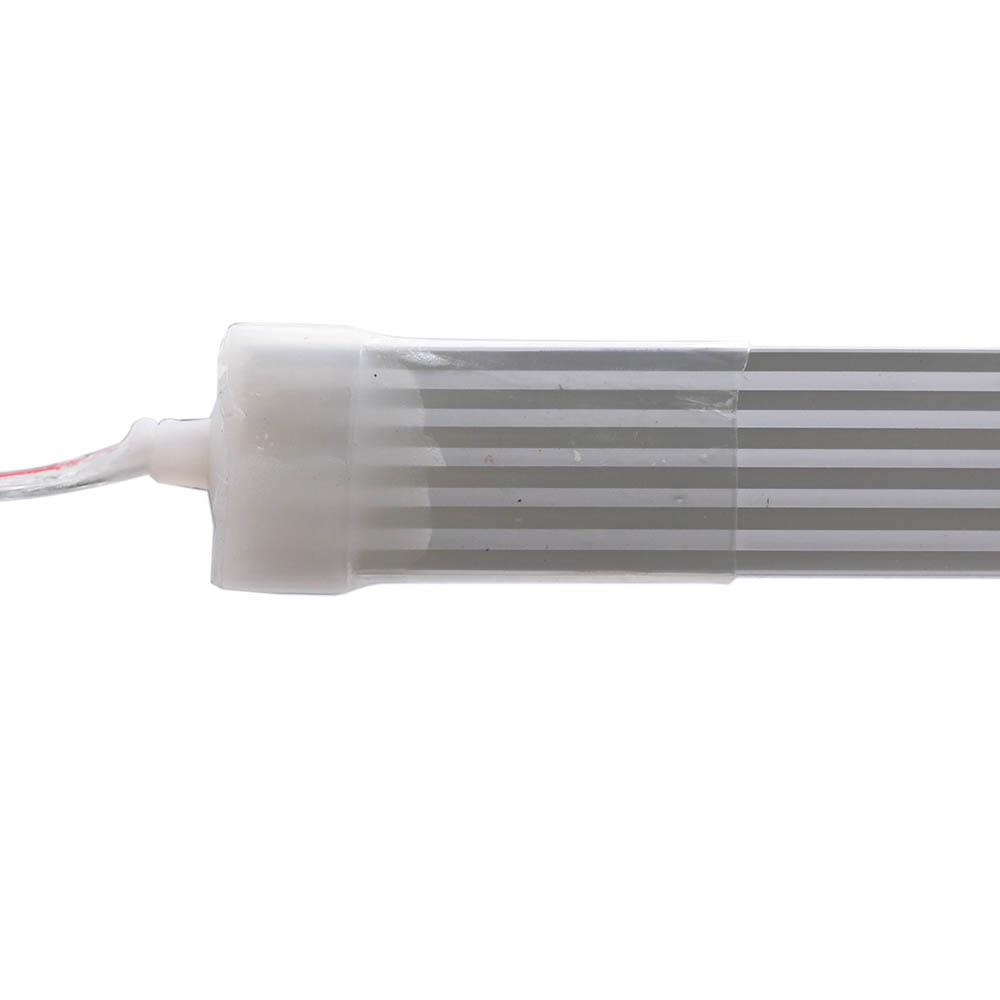

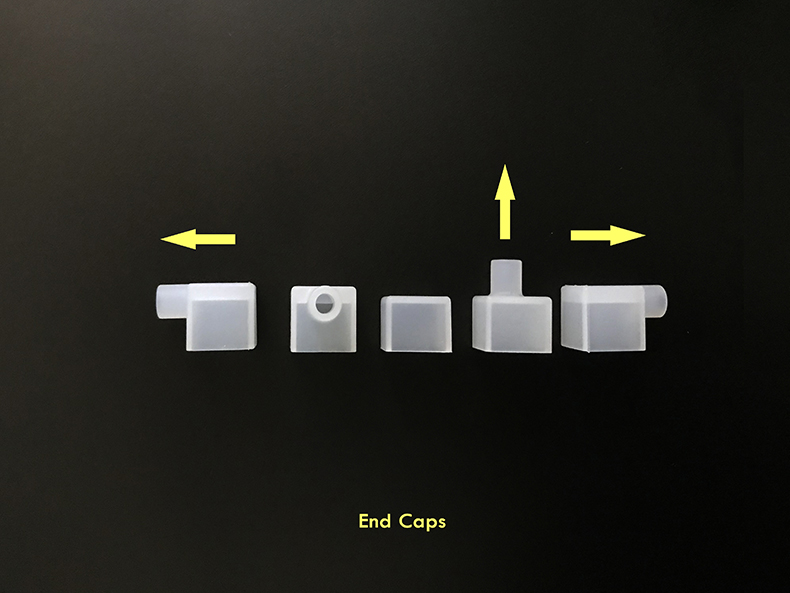

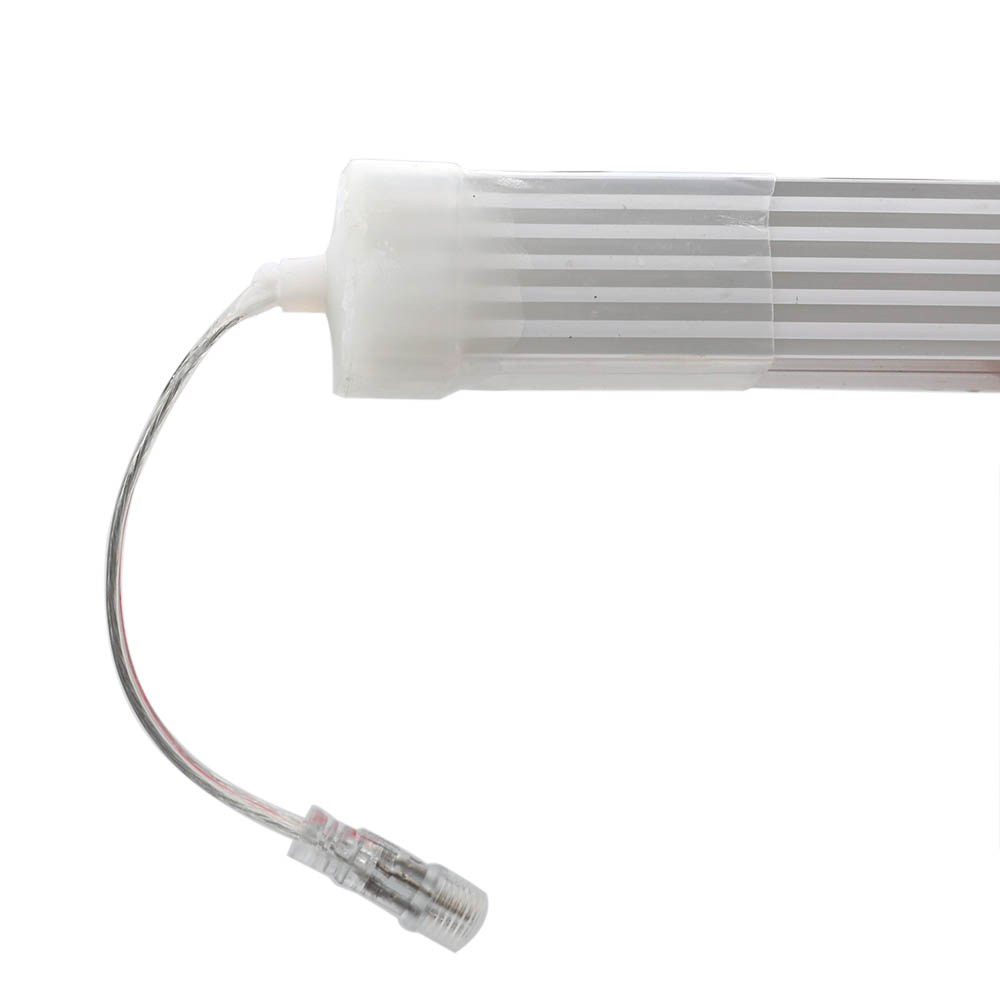

We will send two end caps with hole by default, if you have some requirement, If you have special needs for end caps (eg 1 with a hole + 1 without a hole, etc.), please note your needs in the second step of the checkout.

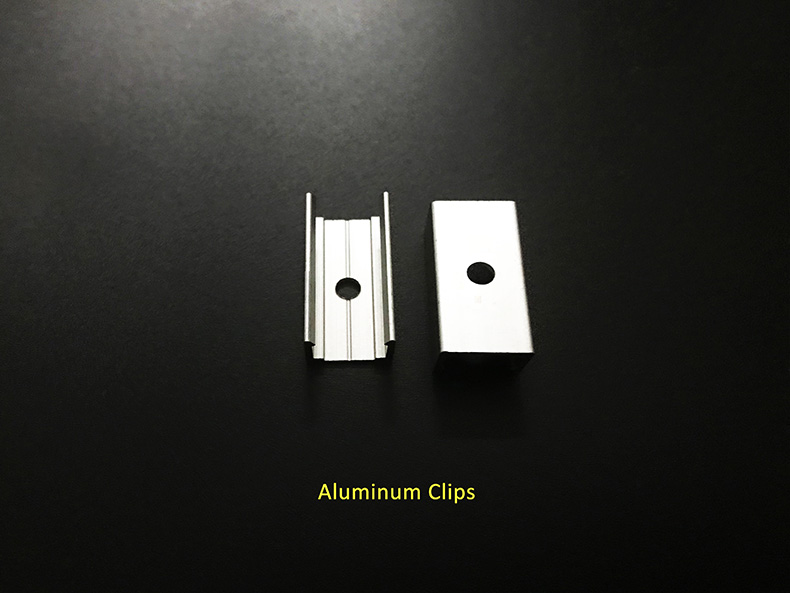

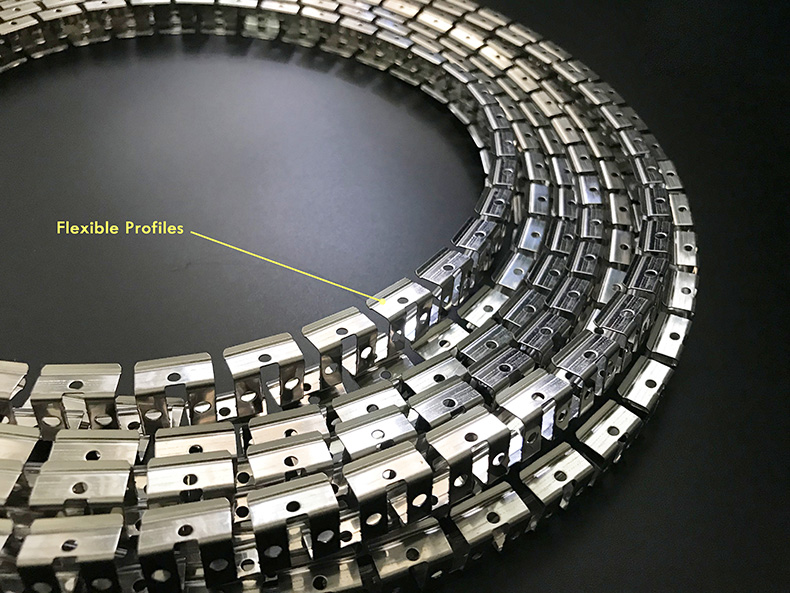

To install the LED neon light fastly, you can purchase our LED mounting brackets, 2 pcs per meter.
How to connect the whole LED neon light kit?

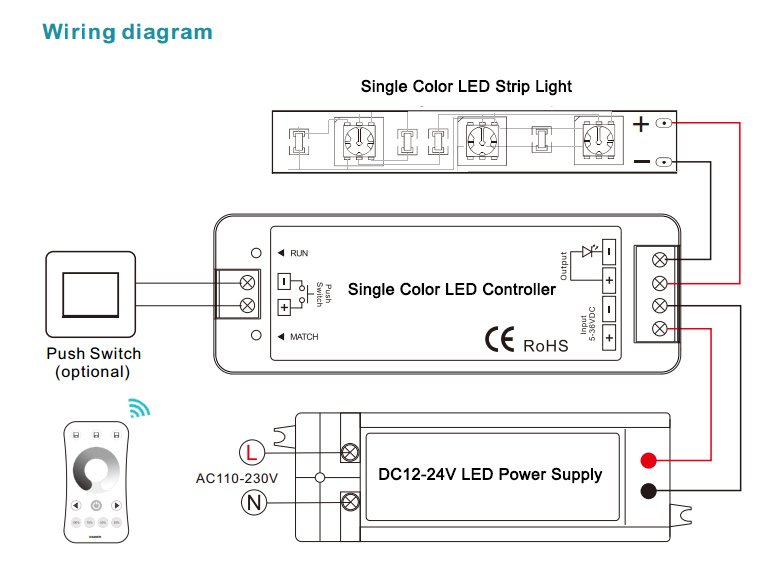

For Single Color LED neon light

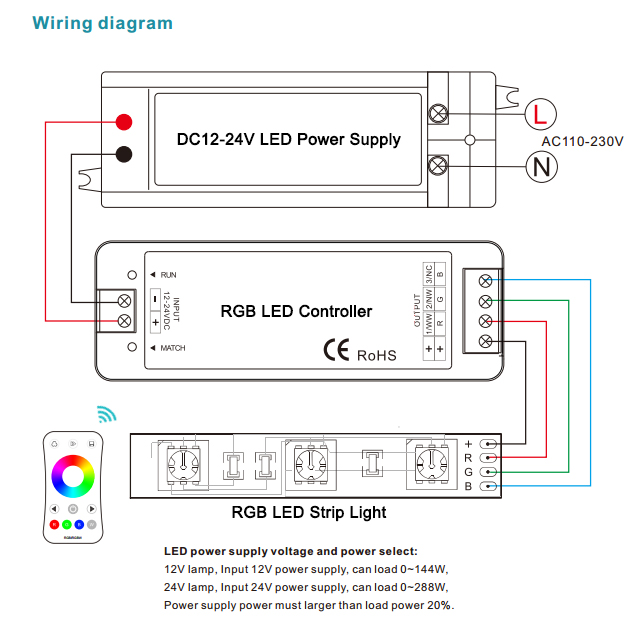

For RGB LED neon light

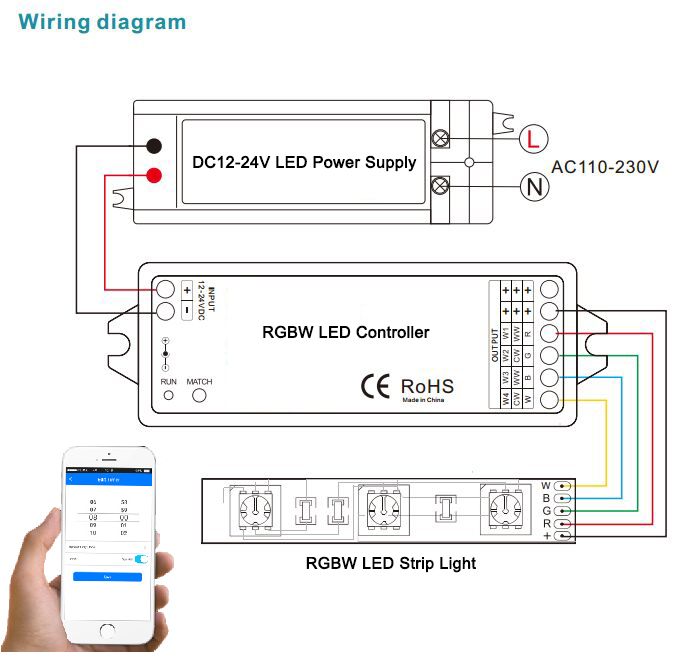

For RGBW LED neon light

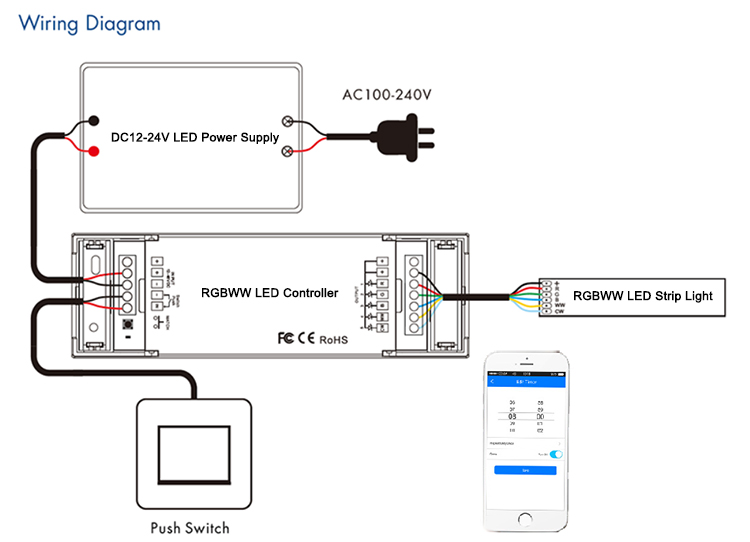

For RGBWW LED neon light

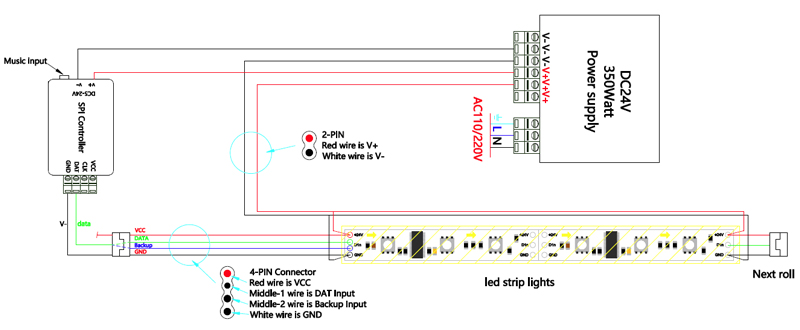

For Addressable RGB/RGBW LED neon light
1.Hotels decoration use
2. Backlighting decoration
3. Concealed lighting, Cove decoration
4. Theaters, clubs, shopping malls lighting
5. Architectural decorative lighting
6. Auditorium walk stairway lighting
7. Show exhibition decoration
8. luminous characters
9. Holiday lighting
10. Advertising lighting
|By : Joseph Clark Date Added: 10/25/2021|
|Stunning striped neon tubes, I installed them in the bar and chose the addressable RGBW type, which is very attractive lighting for consumers|
