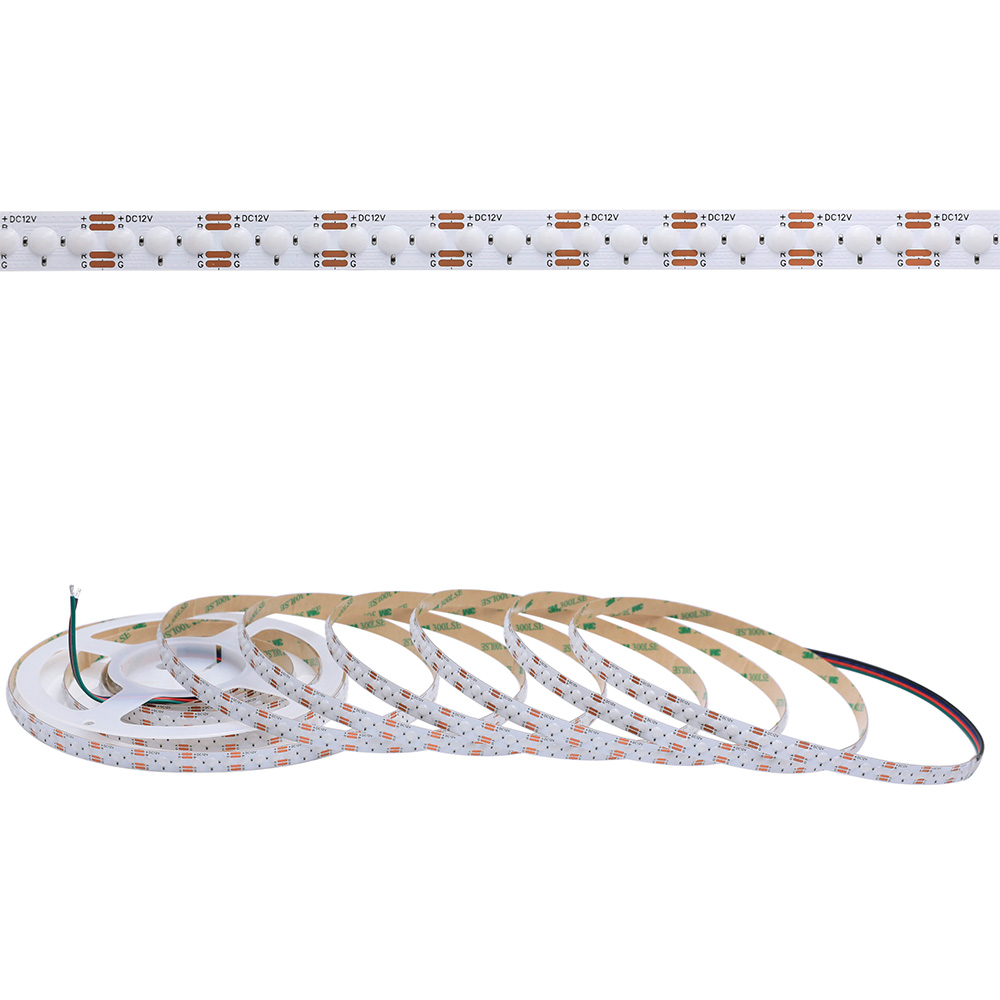

Flexible Color Changing RGB COB LED Strip Lighting - DC12/24V Input - 16.4Ft 800LEDs
This COB RGB LED strip light is a new type of dotted COB LED strip light. It is to cure the LED light-emitting chip directly on the flexible FPC board, and then directly cover the wick with fluorescent glue. Compared with traditional LED strips, it is constantly updated in LED density and lighting brightness, and decreasing the cost.

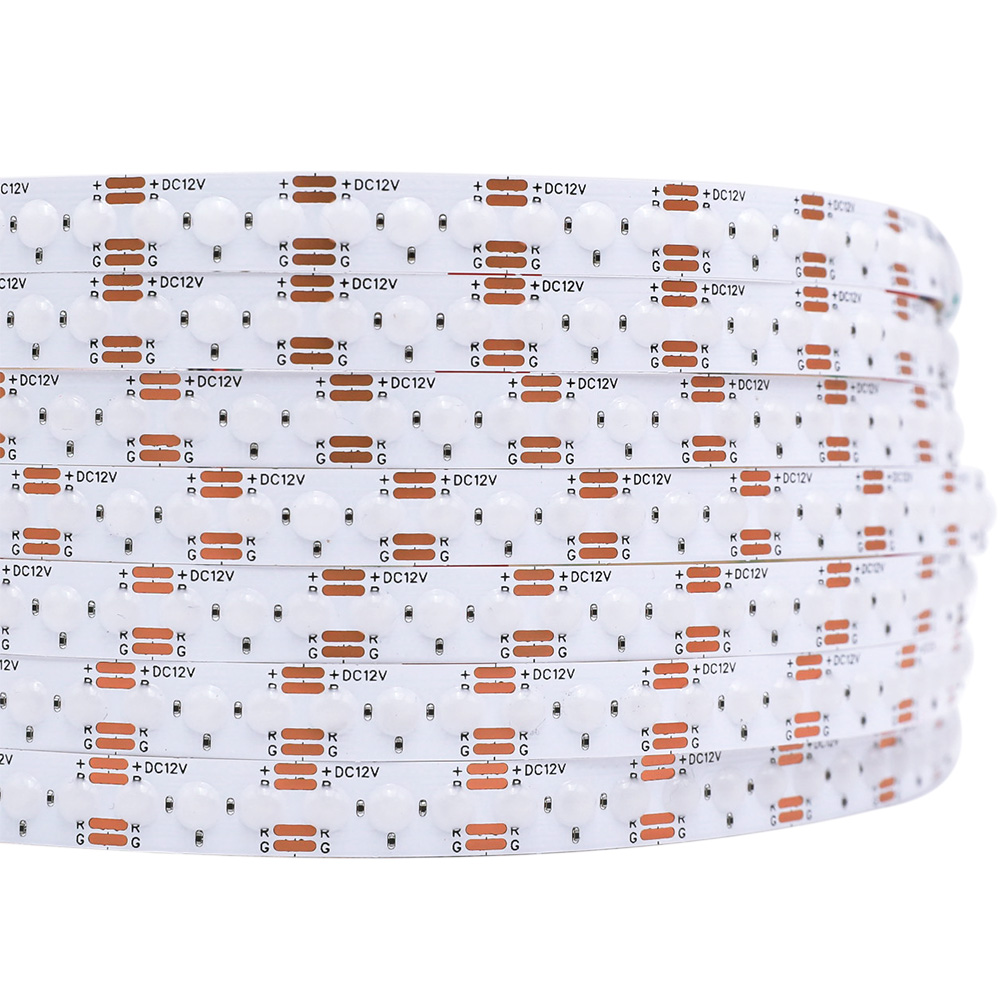

This COB LED strip light is packaged and integrated with 160LEDs COB chips per meter. The LED chip has high density and small size, which perfectly solves the problems of poor heat dissipation of high-density LED strips and provides sustainable time for COB LED strips.

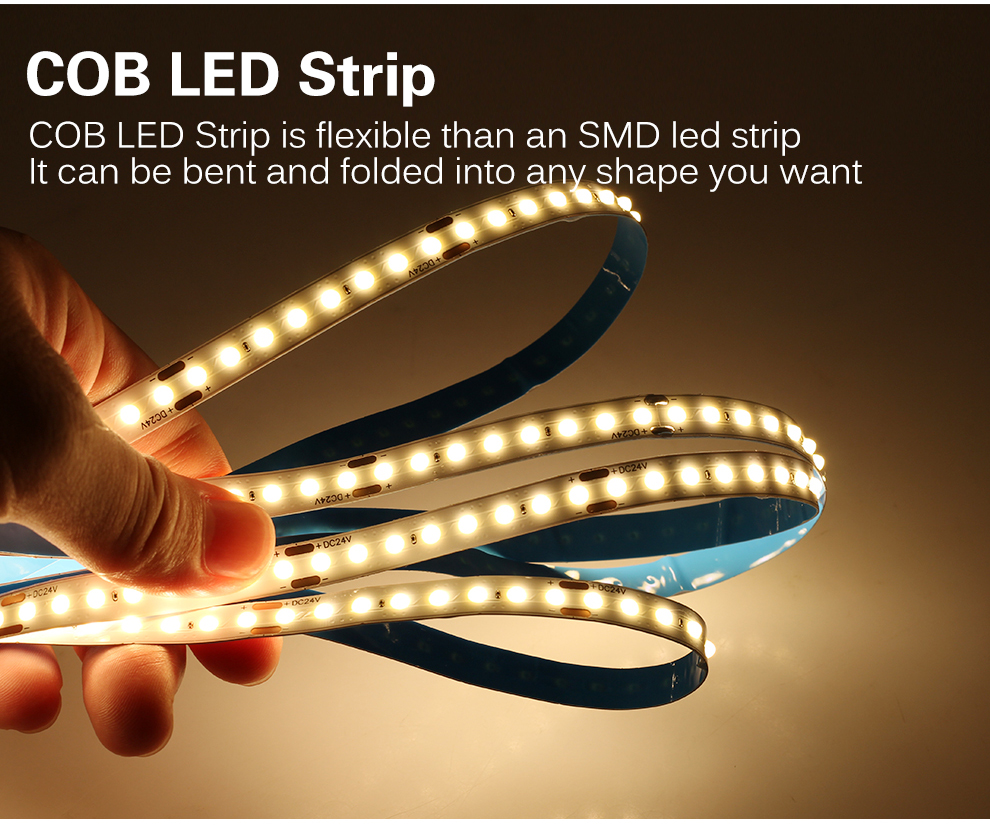

Compared with ordinary SMD LED light strips, it is greatly flexible and can be bent at any angle. It supports a 180-degree lighting angle, parallel light-emitting, three-dimensional light perception, suitable for under cabinets lighting, and high-quality 3M tape is attached to the back, which is easy to install.
Using safe input voltage, when the voltage is lower than 36V, it is harmless to the human body. This RGB COB LED strip supports DC12/24V input voltage, DC12V 5-7m without voltage drop; DC24V 10m without voltage drop. For outdoor lighting, develop an IP67 waterproof kit.

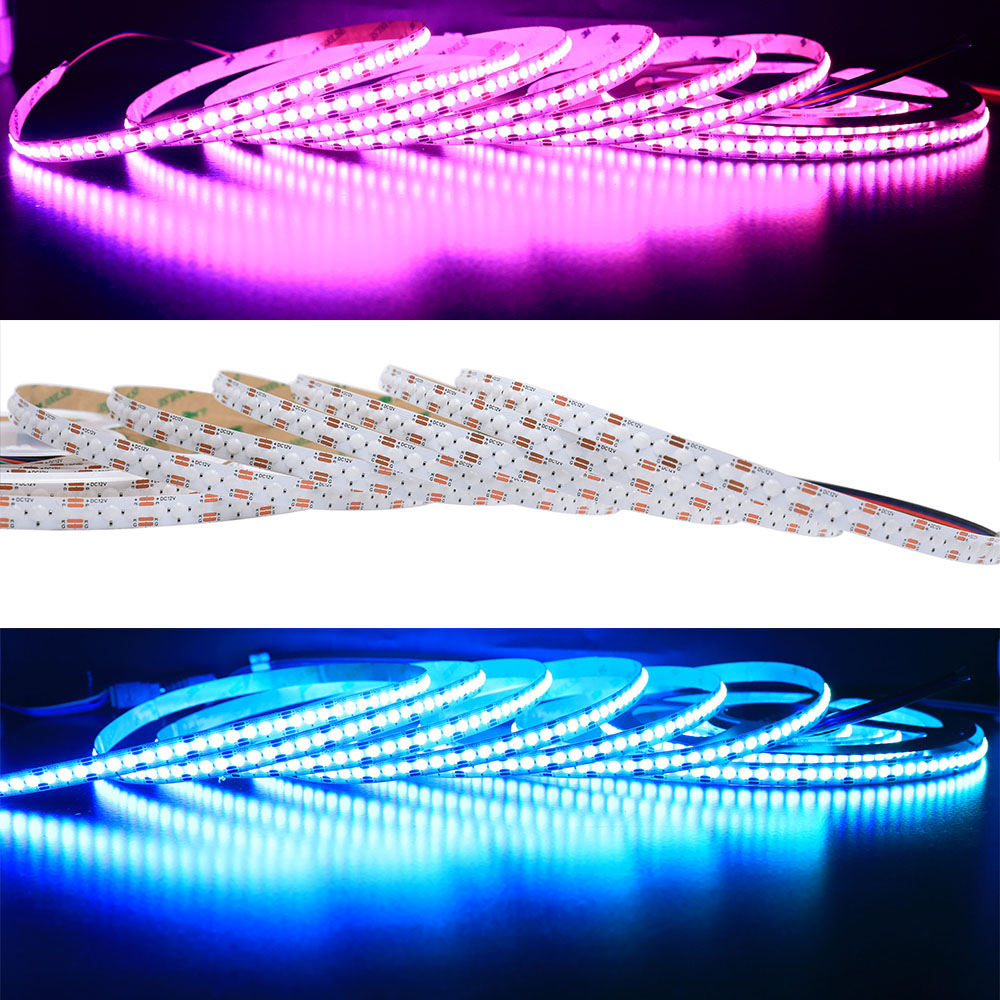

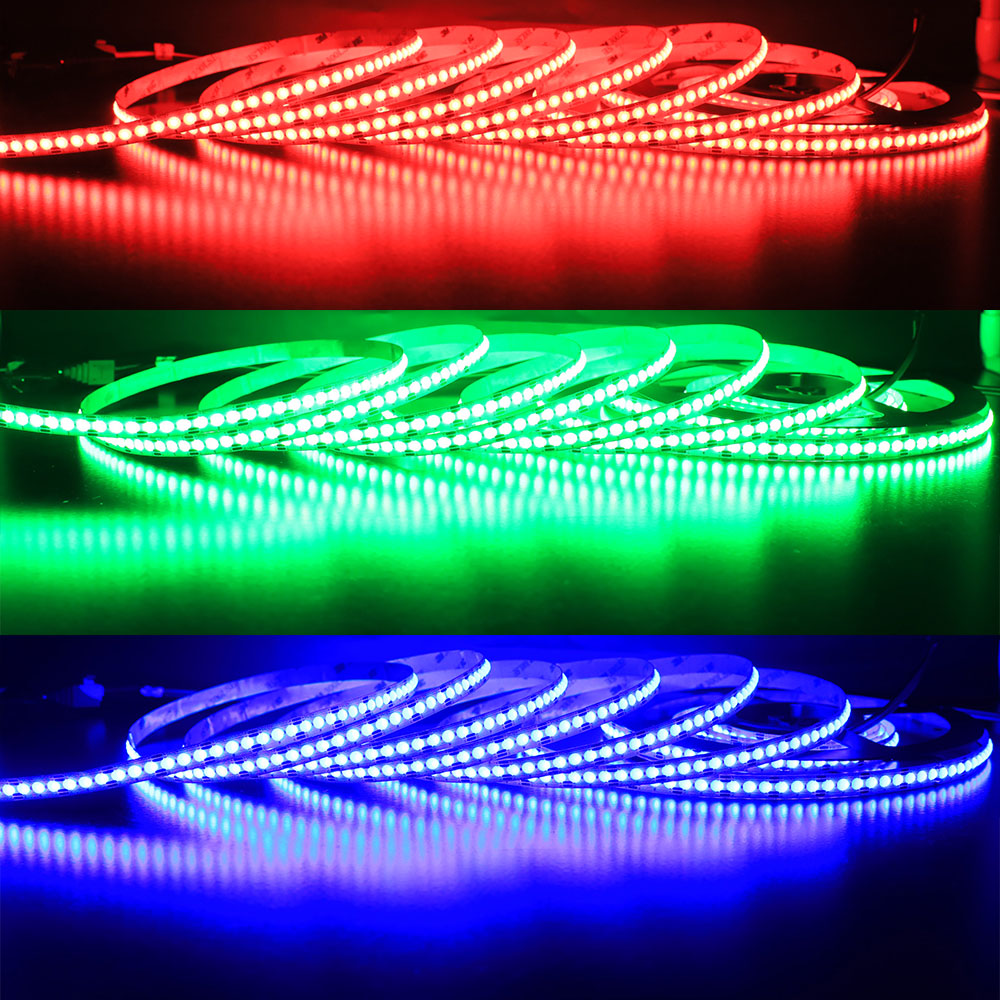

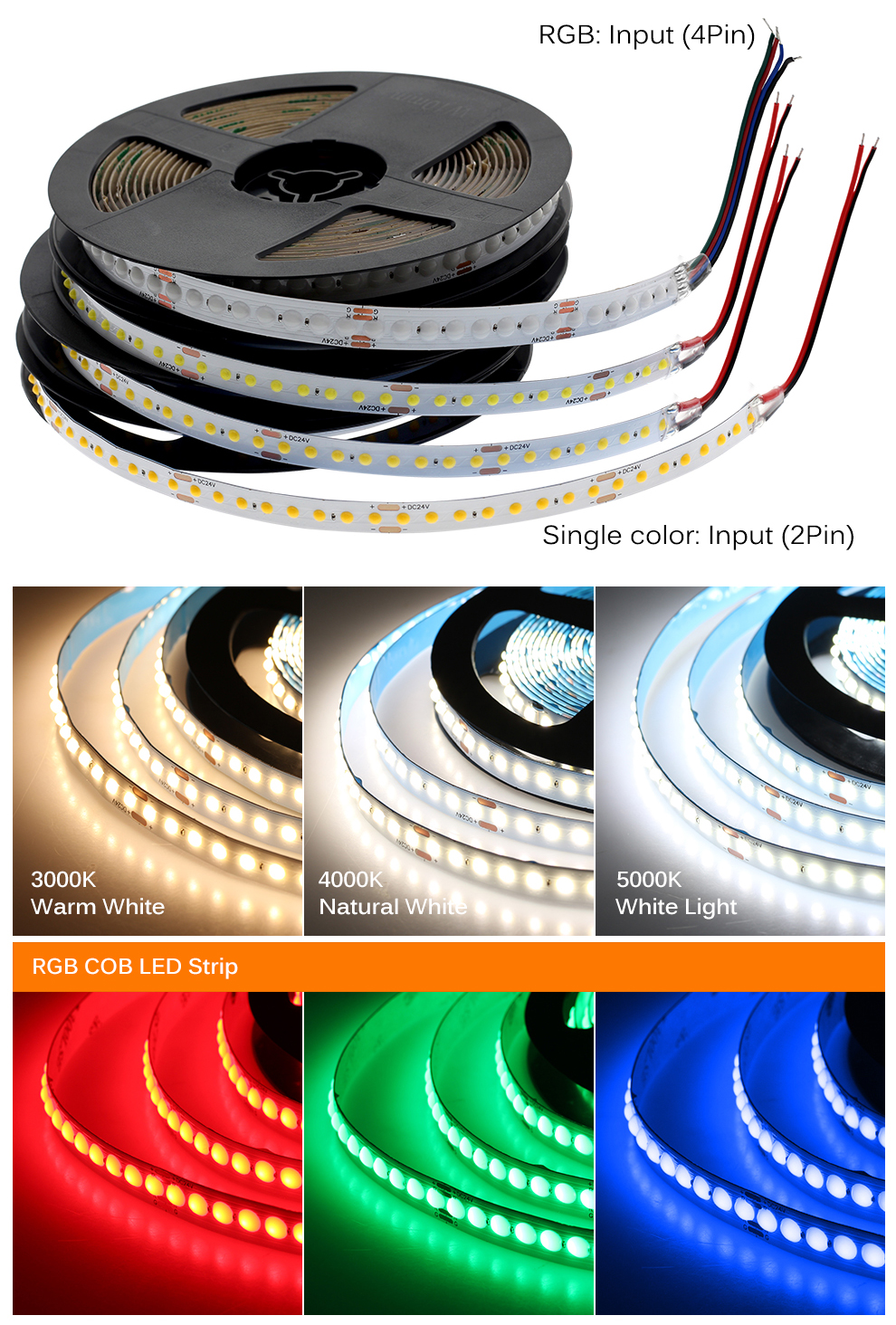

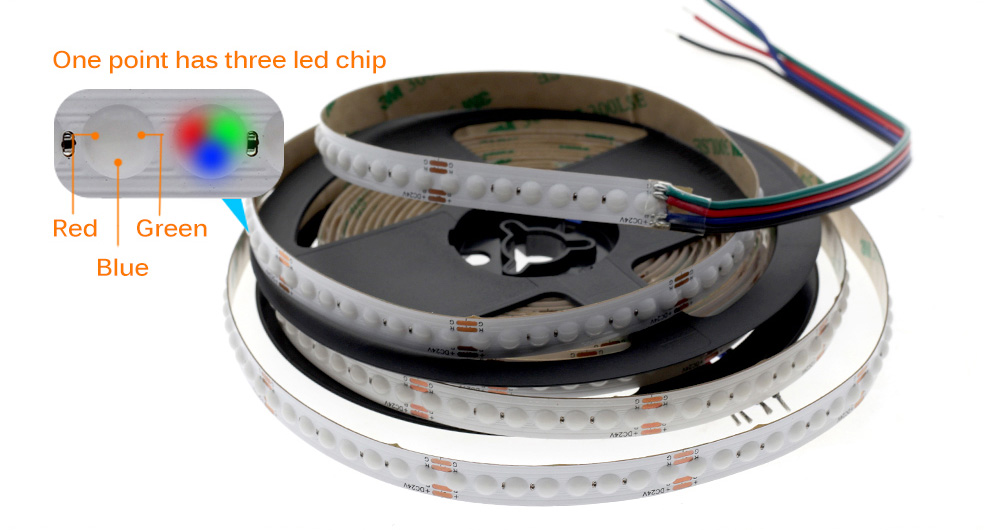

RGB mixing can produce 16 million colors, a single static lighting color can be realized by matching the color changing RGB LED controller, suitable for decorative lighting.
Product Feature and Application:
►Newest dotted COB LED strip
►DC12/24V input voltage available
►Flexible double-side FPC board
►160LEDs per meter super density
►90LM/W high lumens
►30000+ hours lifespan
►16 million color changing

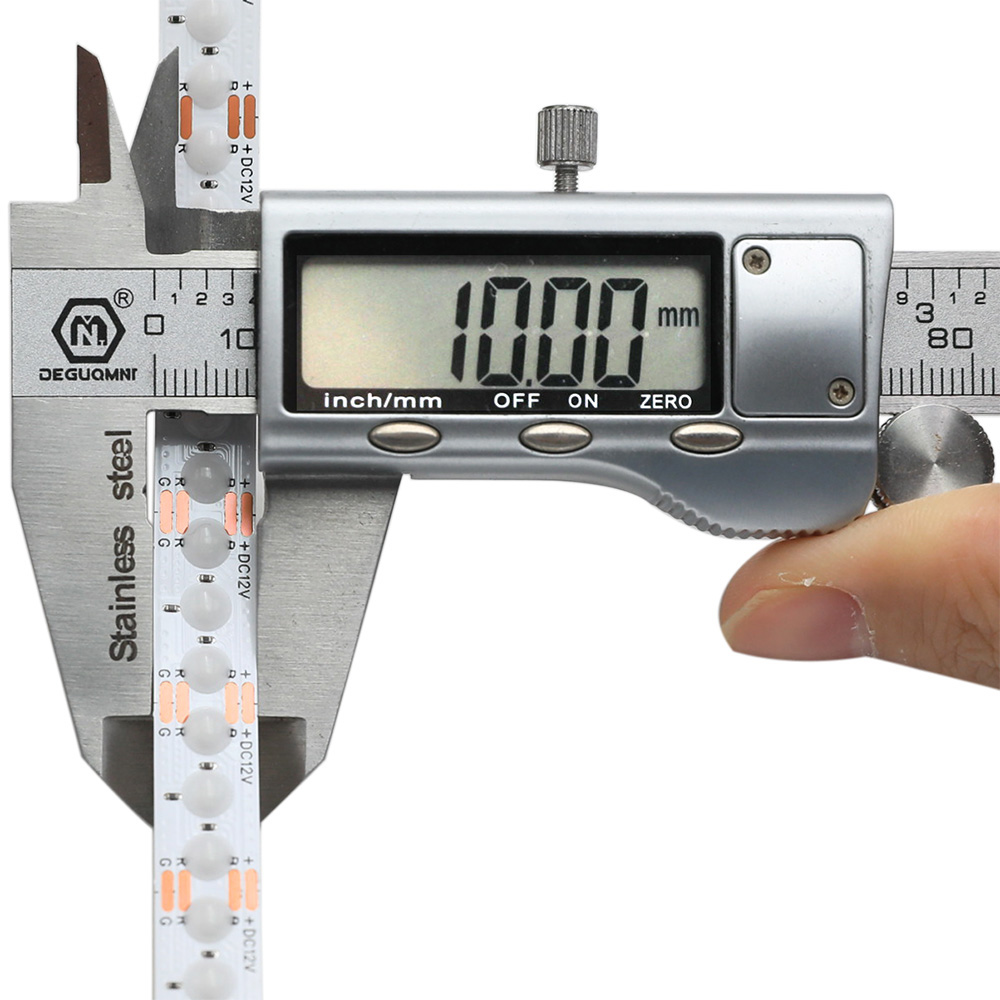

►10mm/0.39in strip wide
►IP67 waterproof available
►5m/16.4Ft per roll by sales
►LED Task Lighting
►Art Gallery Lighting
►Indoor Photography Lighting
►Studio Office Lighting
►Retail Shop Lighting
►Trade Show Lighting
Standards and Certifications
|LED Strip Type|
|LED Chip||Epistar Chip|
|PCB Width||10mm/0.39 in|
|Power||15W per meter, 75W per roll|
|LED Quantity||160LEDs per meter|
|White Color||Red(620-630nm); Green(520-530nm); Blue(460-470nm)|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
Outdoor Controller: WL5-WP
Power supply: 24V 96W power supply adapter
Outdoor Controller: WL5-WP
Related to: How to choose led strip light controllers?
Installation Instruction: How to Install LED Strip Lights?

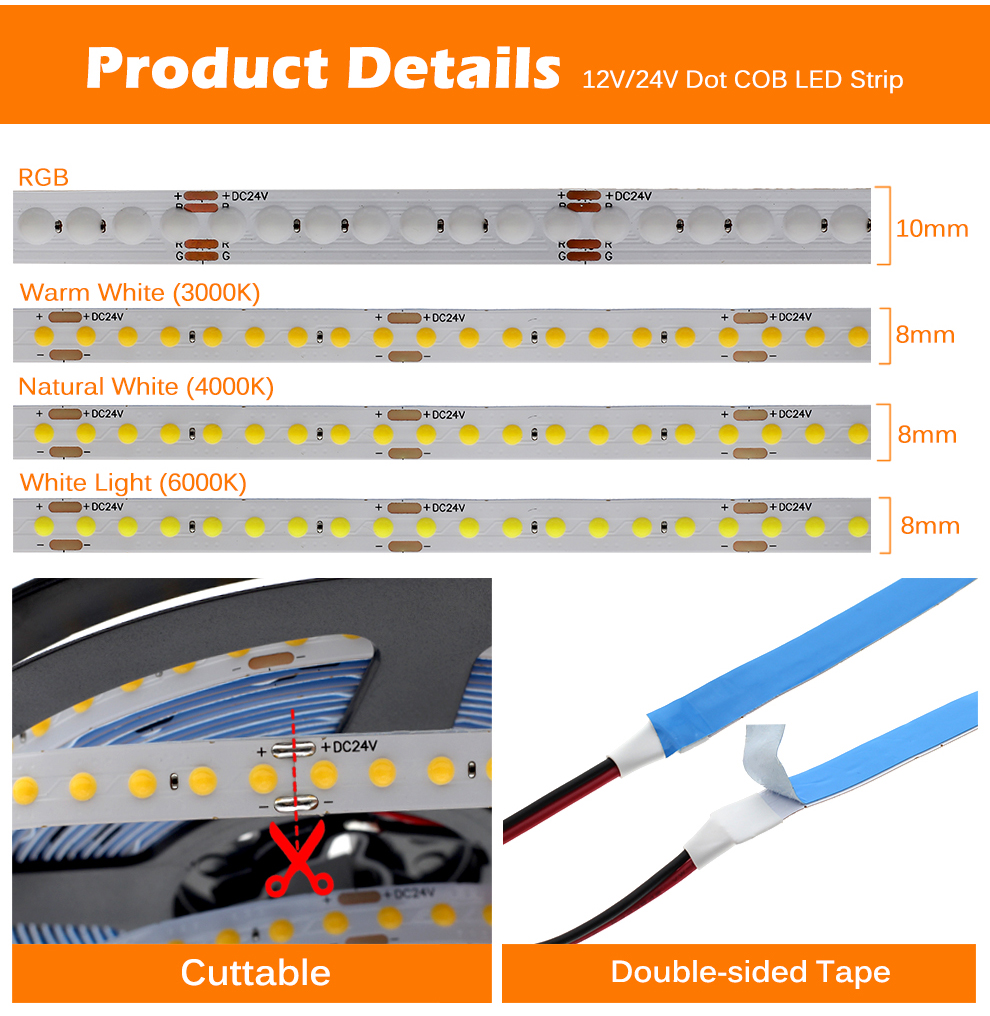

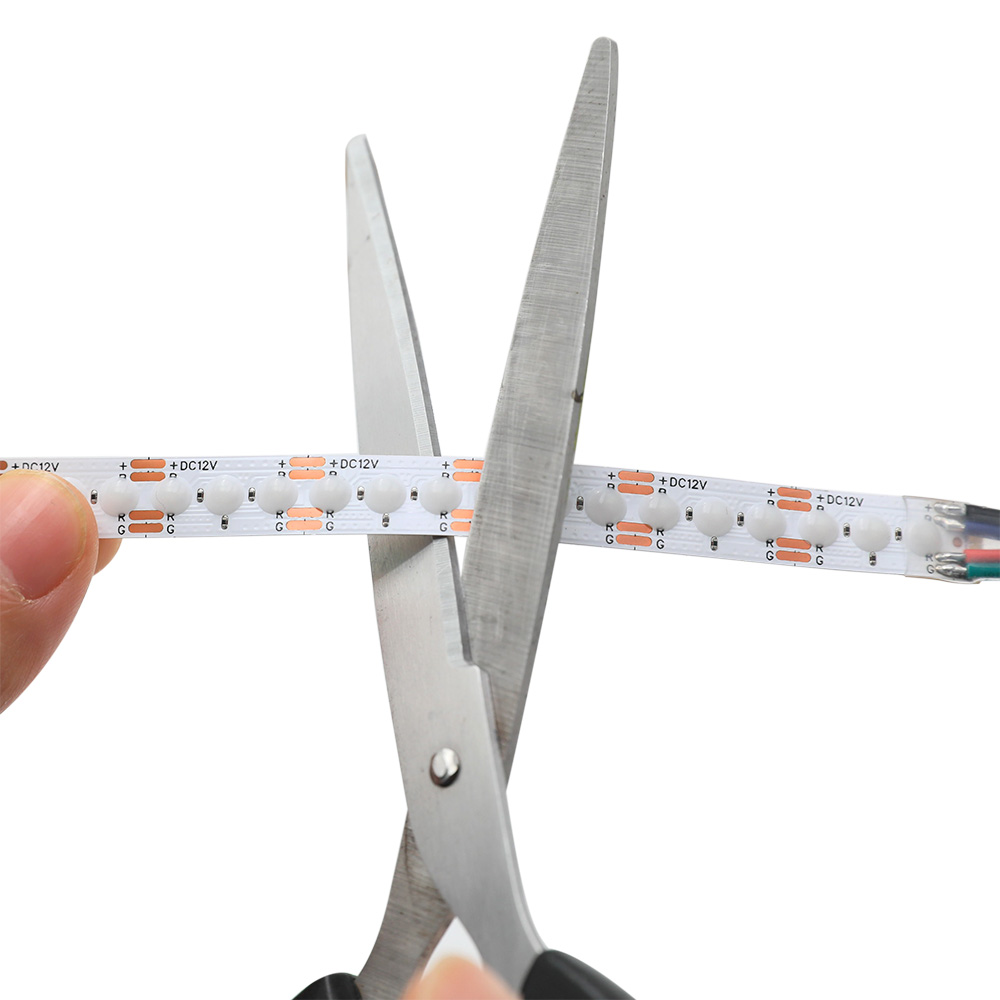

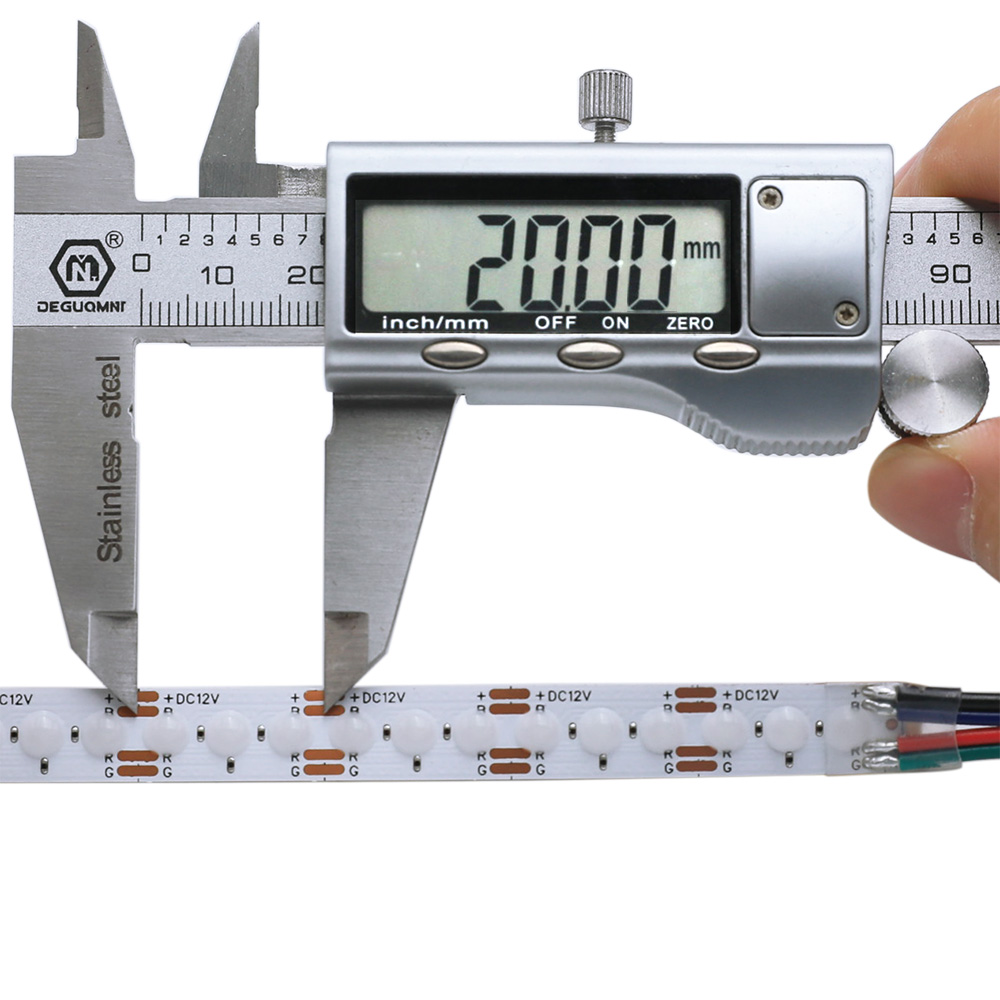

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.

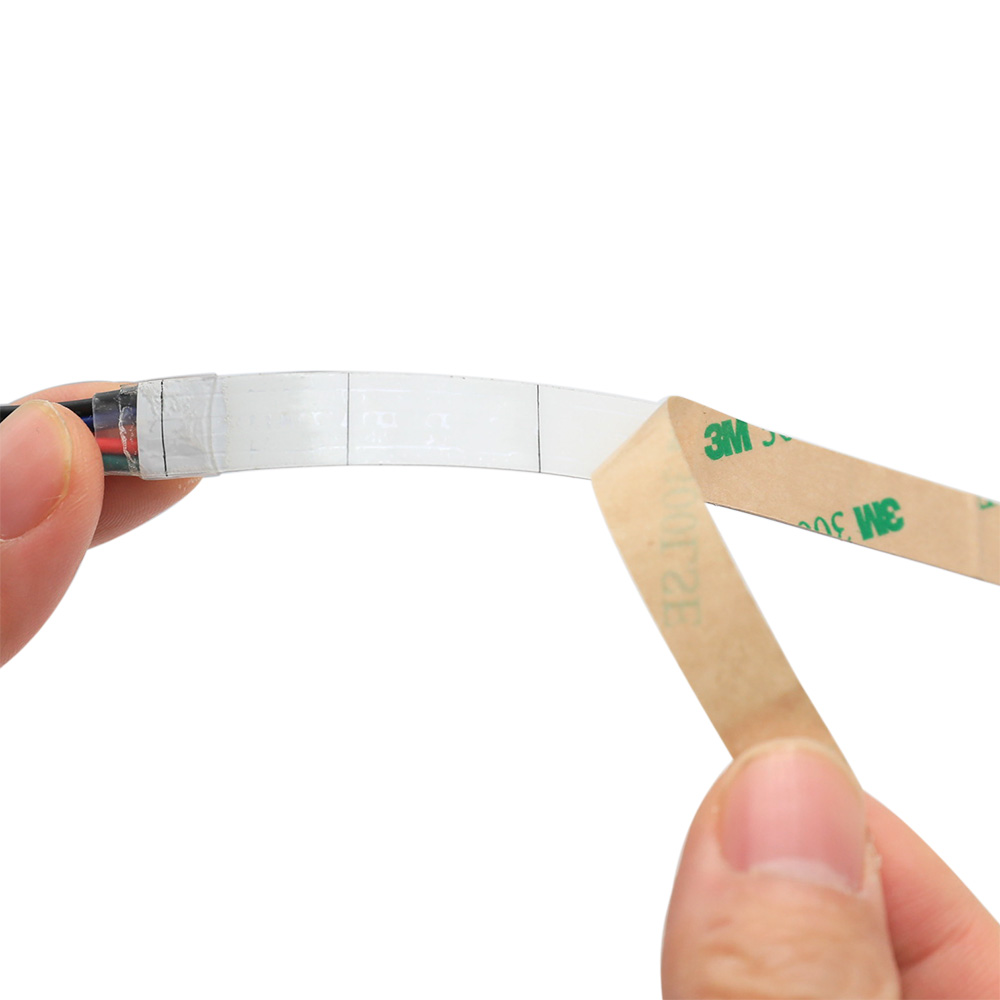

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
Wiring Diagram: How to Wire RGB Color Changing LED Strip Lights?

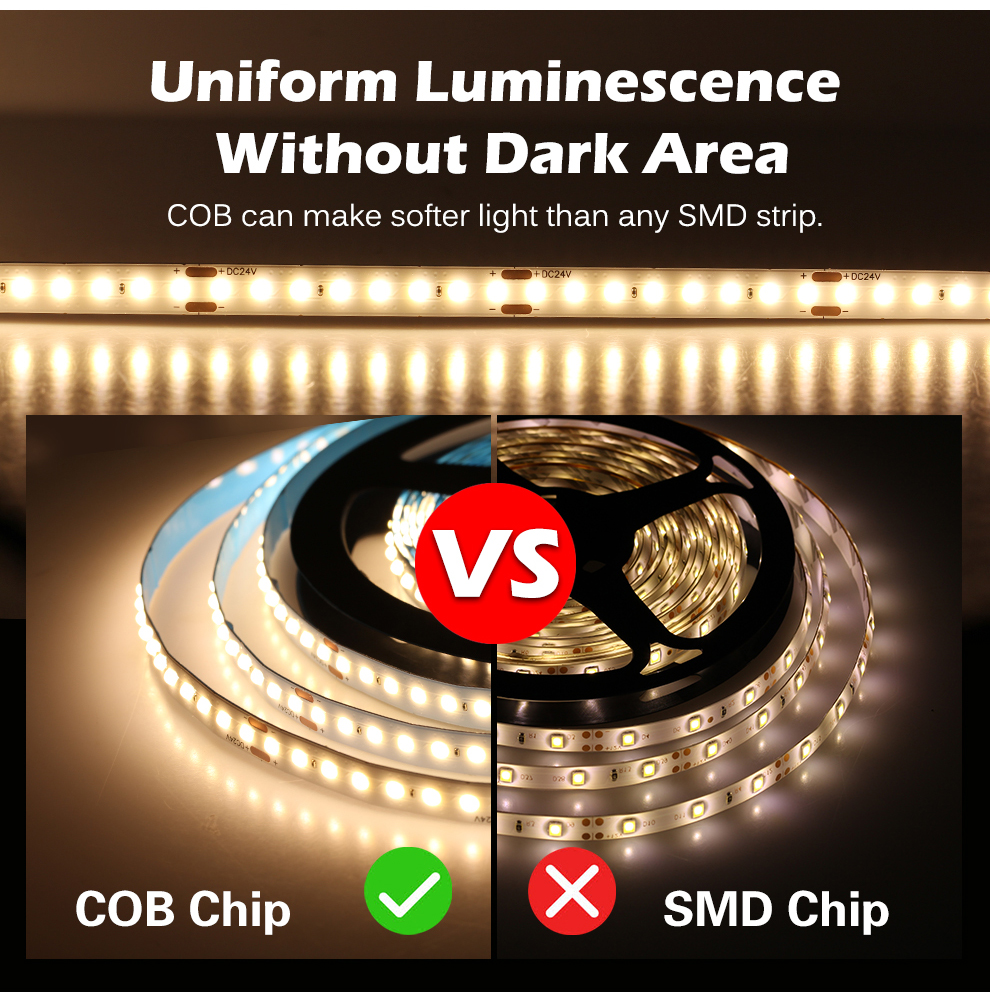

What is the difference between COB LED and SMD LED strip light?

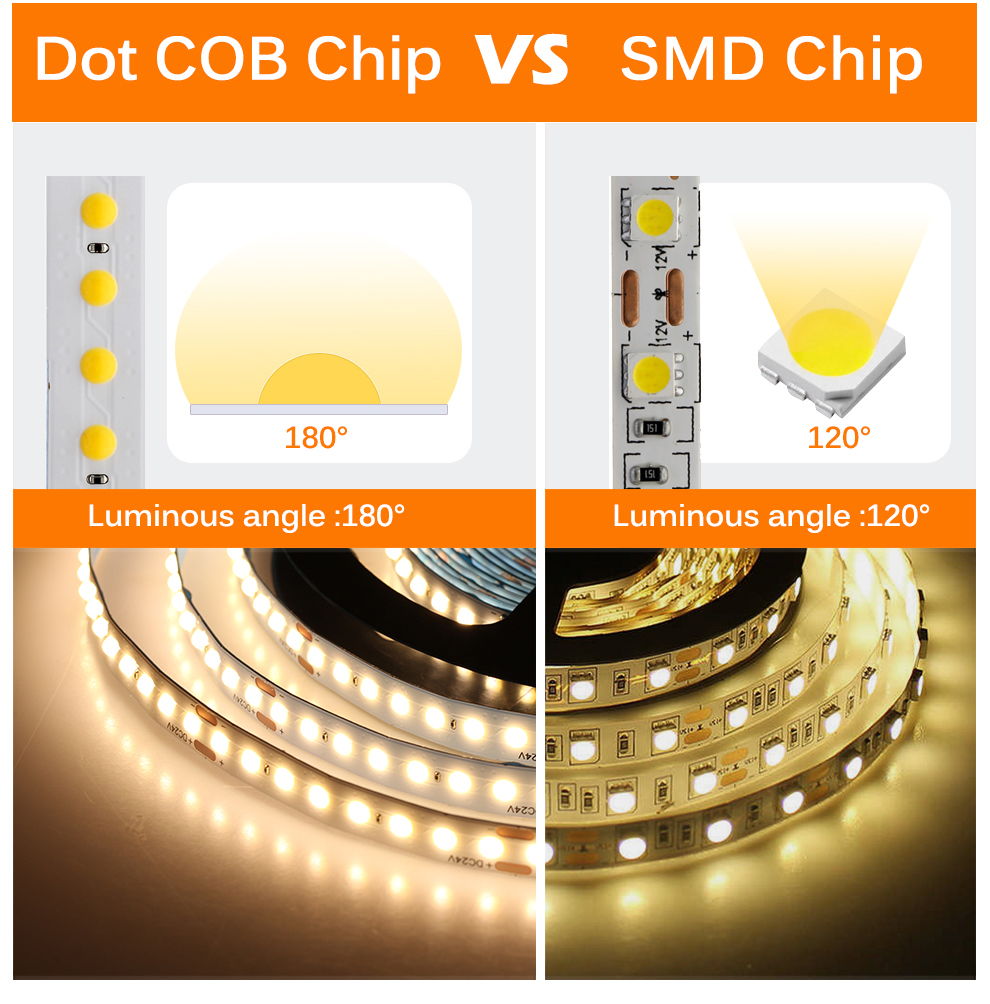

1.180-degree light-emitting angle can cover a large range of lighting areas and provide easy lighting for complex environments
2.Good flexibility, LED chips are closely arranged and can be bent at any angle
3.The whole roll almost without spot light, lighting smooth.
What is the difference between white and RGB COB LED light strip?
