Product Information

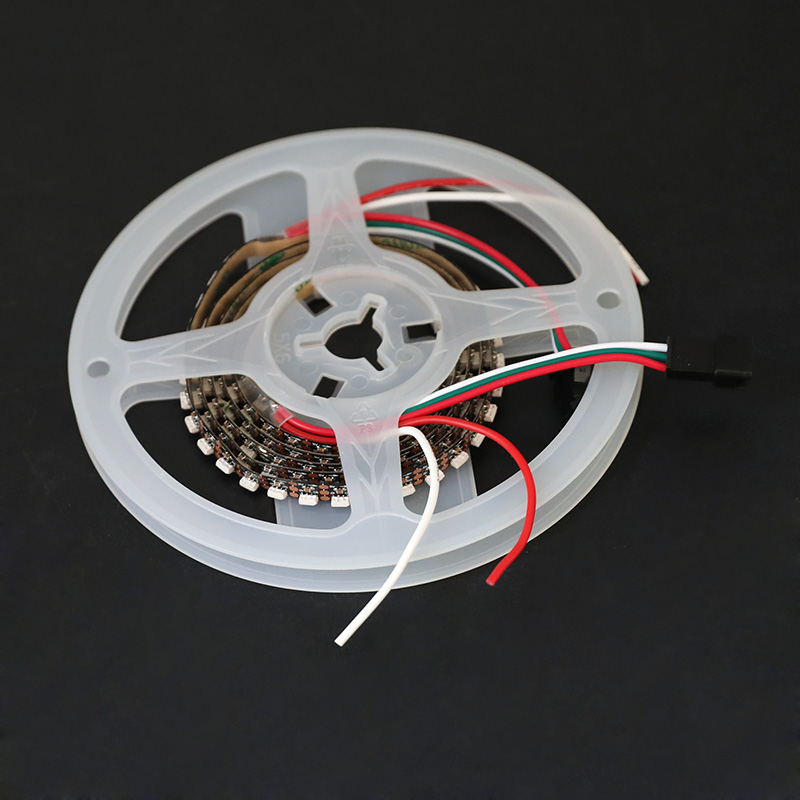

Black PCB led strips are definitely the preferred choice for projects that require a clean light presentation and to minimize stray light problems caused by light reflections. This 5mm/6mm led strip black pcb utilizes a side light emitting method to direct the light towards the target area. Using IC-integrated SK6812 SMD4020 RGB LEDs as the light source, each LED is individually addressable and cuttable. The low-voltage 5V power input makes it ideal for DIY and programmable projects, and is widely compatible with various control methods such as mobile phone/PC software programming, wireless remote control to change light modes and more.
The arrows on the black FPCB indicate the direction of signal transmission, the side where "5V" is located is the power input, the middle "DI/DO" is the signal transmission channel, and the side where "-" is located is the negative terminal.
Currently, the ultra-narrow blackboard side-emitting version lacks a PCB circuit board, thus requiring a minimum order quantity.
Only 8 pieces of 1-meter is in stock now.
Product Specification
| LED Strip Type: | Mini Dream Color LED Strip Lights Side Lit |
| LED Chip: | SMD4020 + SK6812 |
| Input Voltage: | 5V |
| LED Color: | RGB |
| LED Quantity: | 144 |
| IC Pixel: | 144, individually addressable |
| Length: | 1m 3.28ft roll |
| Cut: | 1 LED, 6.94mm/0.27" |
| FPCB Wdith: | 5-6mm |
| Connector: | 3-pin JST female + male |
| Connector Length: | 10-15cm (4-6") |
| Working Power: | 15W/m, 4.57W/ft |
| Grey Scale: | 256 |
| Waterproof Rating: | Non-waterproof IP20 (Bare strip), IP67 waterproof (Sealed in silicon tube) |
| Beam Pattern: | 120 degrees |
