Narrow 7mm 12V SK6813 Mini 3535 4 Pin Individually Digital ARGB LED Strip

Name: Narrow 7mm 12V SK6813 Mini 3535 4 Pin Individually Digital ARGB LED Strip
Brand: SuperLightingLED
SKU: SK6813-3535-120W7-P4
Price: 18.98 EUR
Availability: InStock

Model: SK6813-3535-120W7-P4 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: €19.41 €16.7614% off

Qty Discounts Off Price
1-9 €16.76	10-19 €16.42	20-49 €16.09	50+ €15.75
* Discounts may vary based on options below

Select Specifications:

Select Length:

Select Waterproof Rating:

Select LED Quantity:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

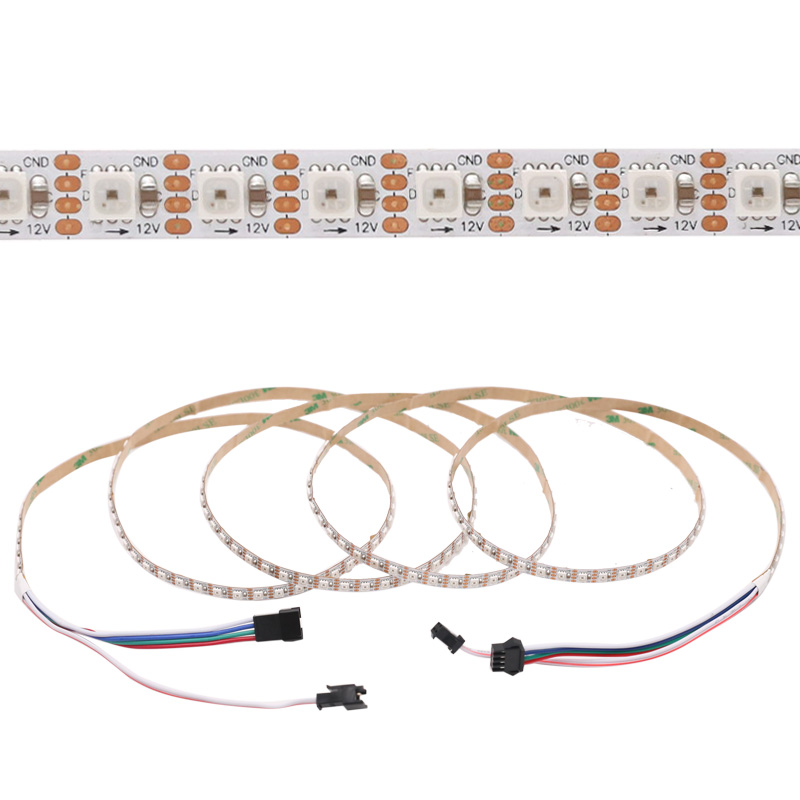

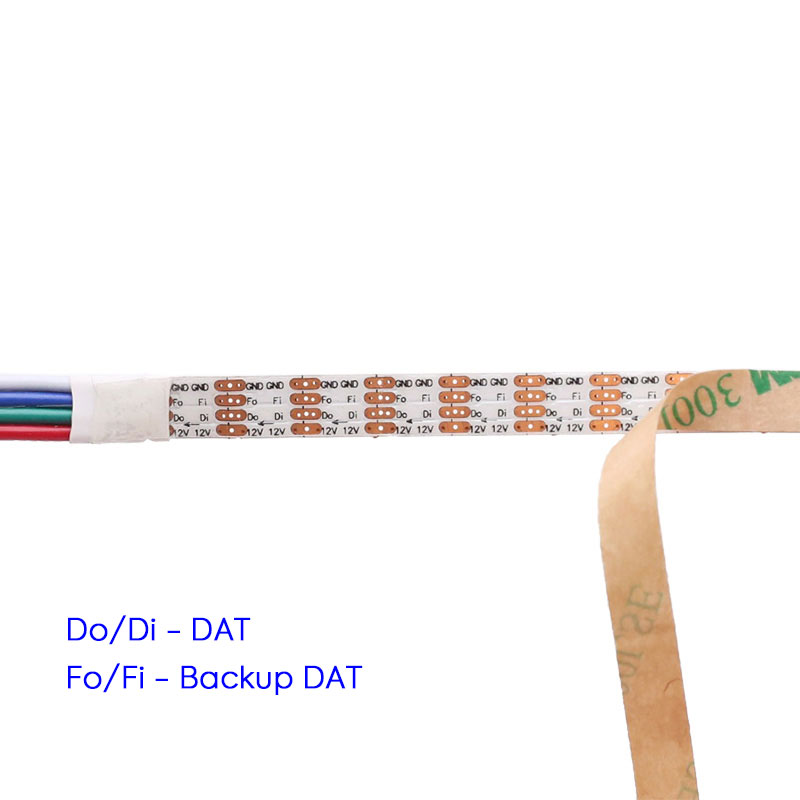

Narrow 7mm 12V SK6813 mini 3535 120LEDs/m high density 4-pin dual data signal individually controllable digital ARGB LED strip for sale, 1m/2m/5m per reel. This SK6813 3535 led strip has two signal wires to guarantee the stability of data transmission. As long as not two consecutive LEDs are damaged, the pixel light strip will still work.

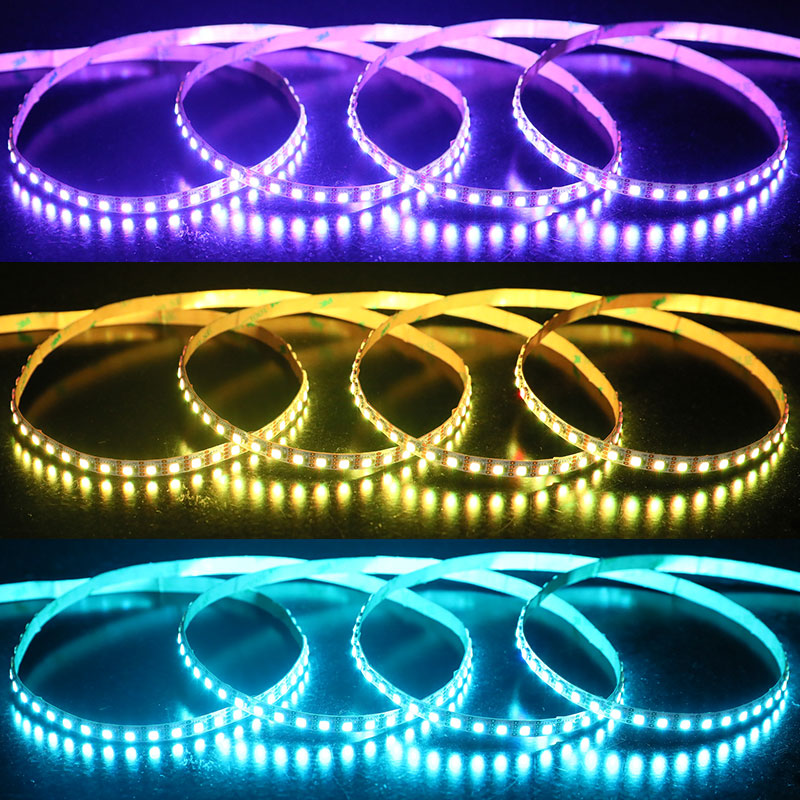

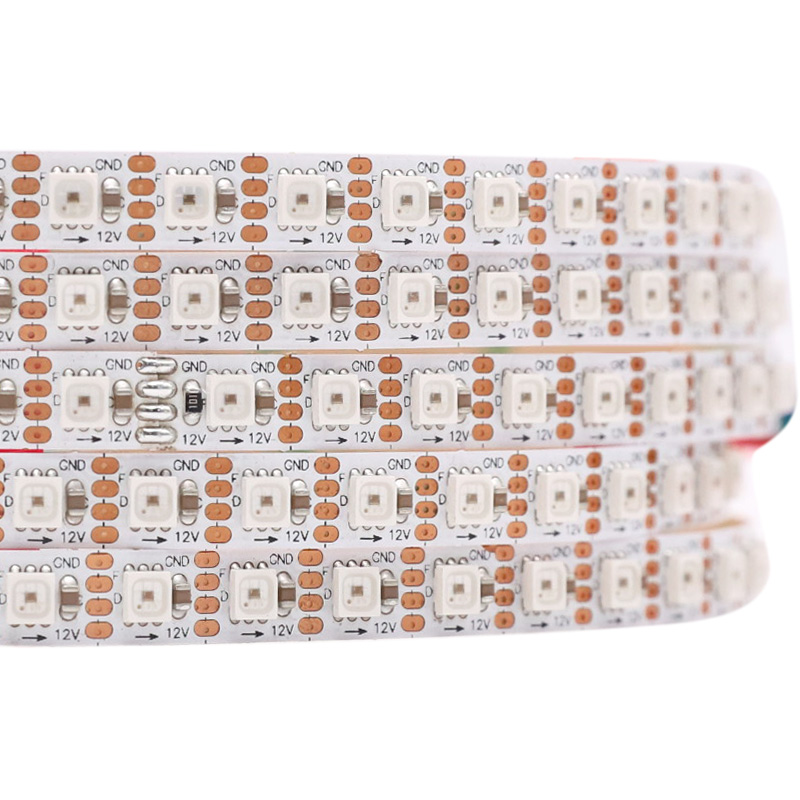

Each 3535 RGB LED of this SK6813 strip light is individually addressable, and you can create a variety of dynamic effects via a programmable controller or a standard pixel controller. The 120LEDs/m high density LED layout means more LEDs per unit length, providing a more uniform and brighter lighting effect.

The 7mm mini size allows the breakpoint resume 12V SK6813 led strip to be mounted in tight areas that need to be illuminated or for specially designed applications.

Product Specification

Product Type:	SK6813 3535 4 Pin Individually Digital ARGB LED Strip
LED Chip:	SK6813 IC (1 IC drives 1 LED)
Input Voltage:	DC 12V
Length:	1m/roll, 2m/roll, 5m/roll
LED Quantity:	120/144 LEDs/m, each LED can be cut
LED Color:	Addressable RGB

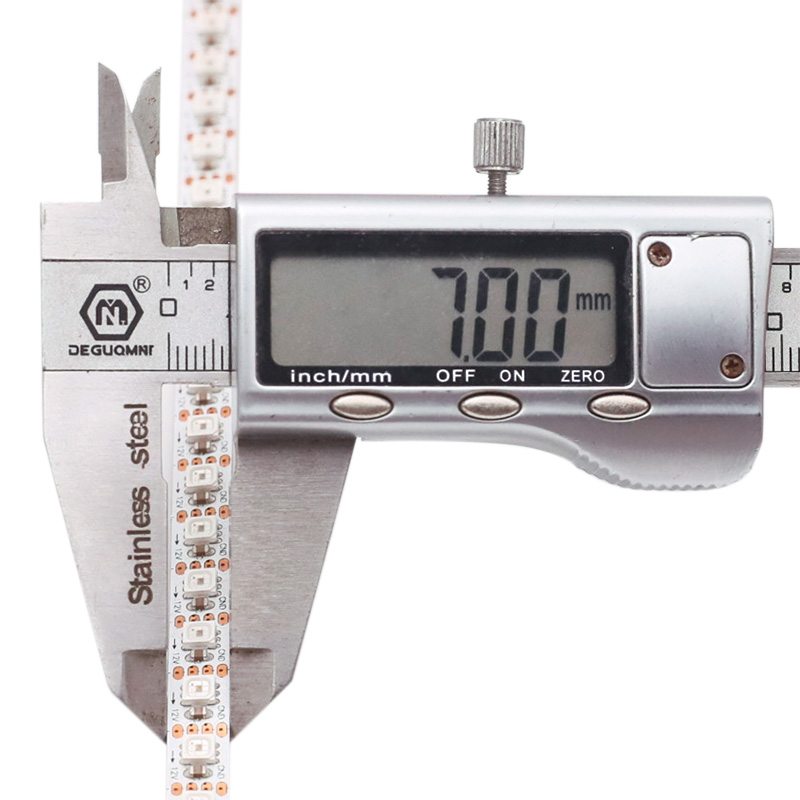

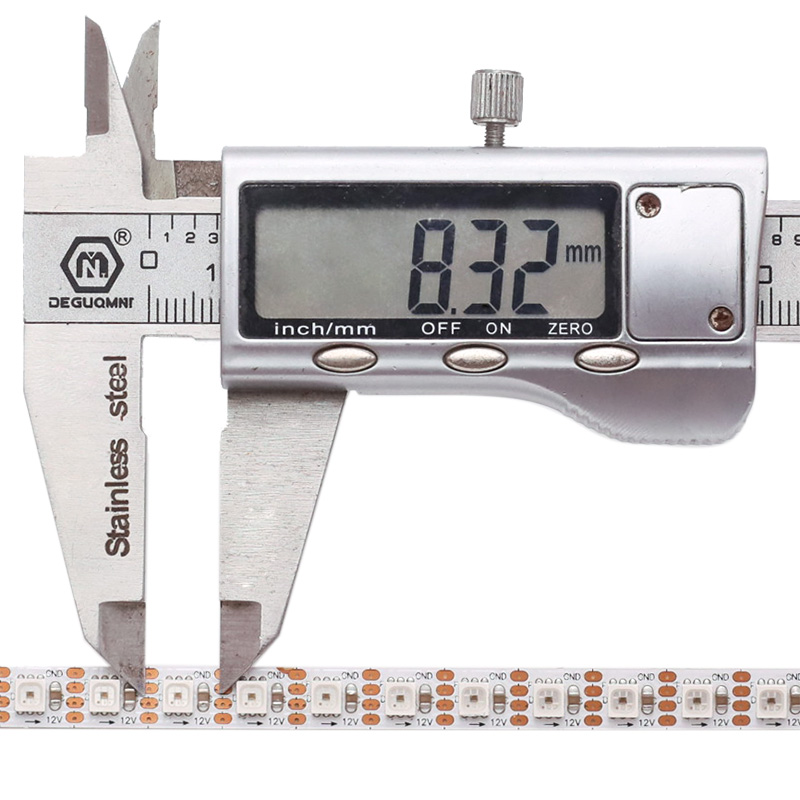

PCB Width:	7mm - 120LEDs/m, 8mm - 144LEDs/m
Power:	18W/m
Beam Pattern:	120 degree
Waterproof Rating:	Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor)
Lifespan:	50,000+hours
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)

4-pin dual signal SK6813 RGB led strip wiring diagram:

dual signal SK6813 led strip wiring diagram

Narrow 7mm 12V SK6813 Mini 3535 4 Pin Individually Digital ARGB LED Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for SK6813-3535-120W7-P4

PDFSK6813-3535-120W7-P4 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

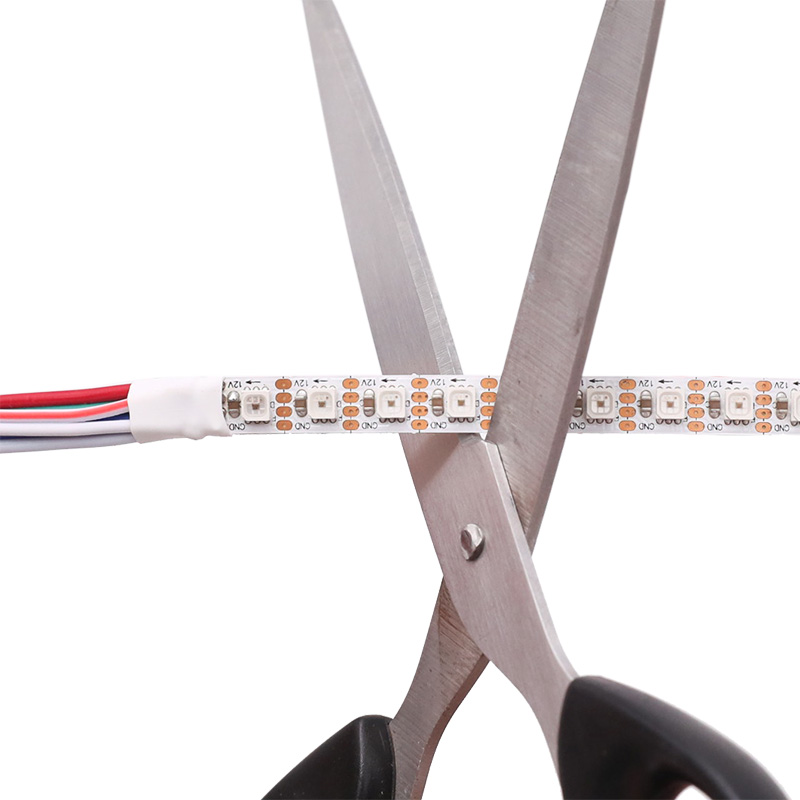

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

LED density 144LEDs/m - 8mm · 120LEDs/m - 7mm. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
