Product Information

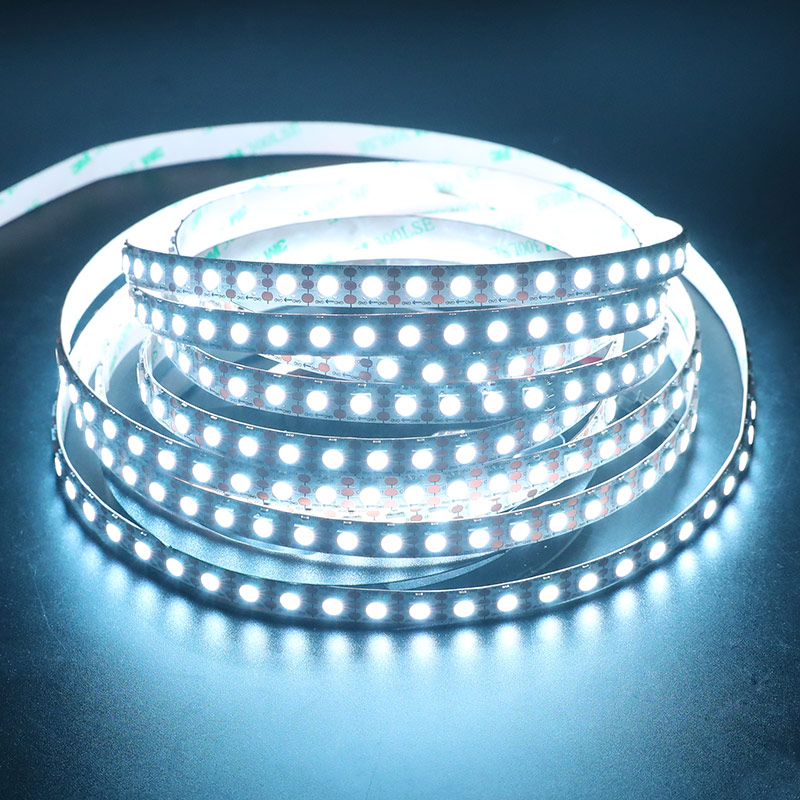

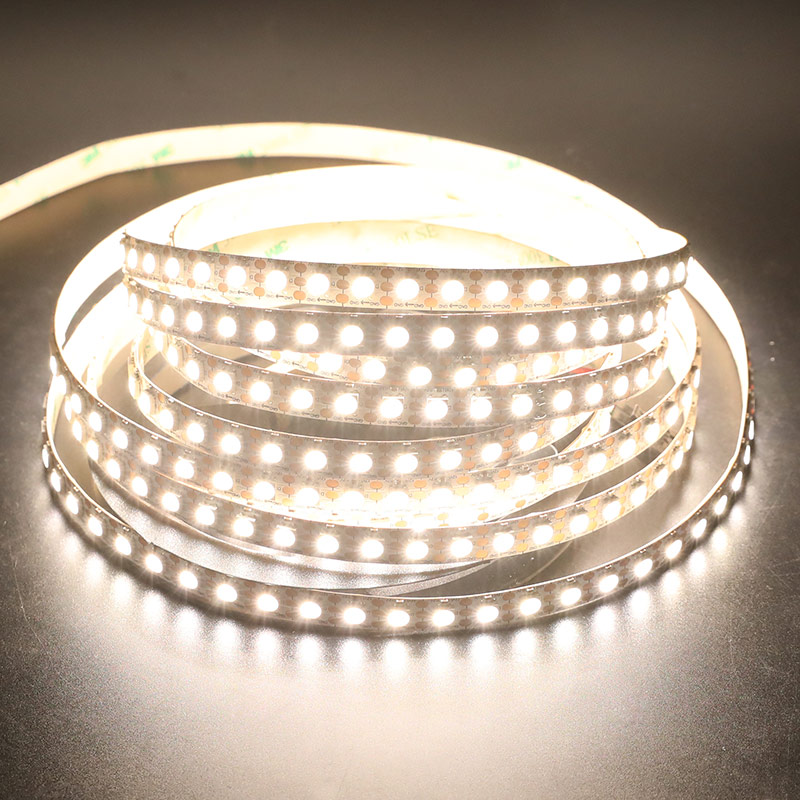

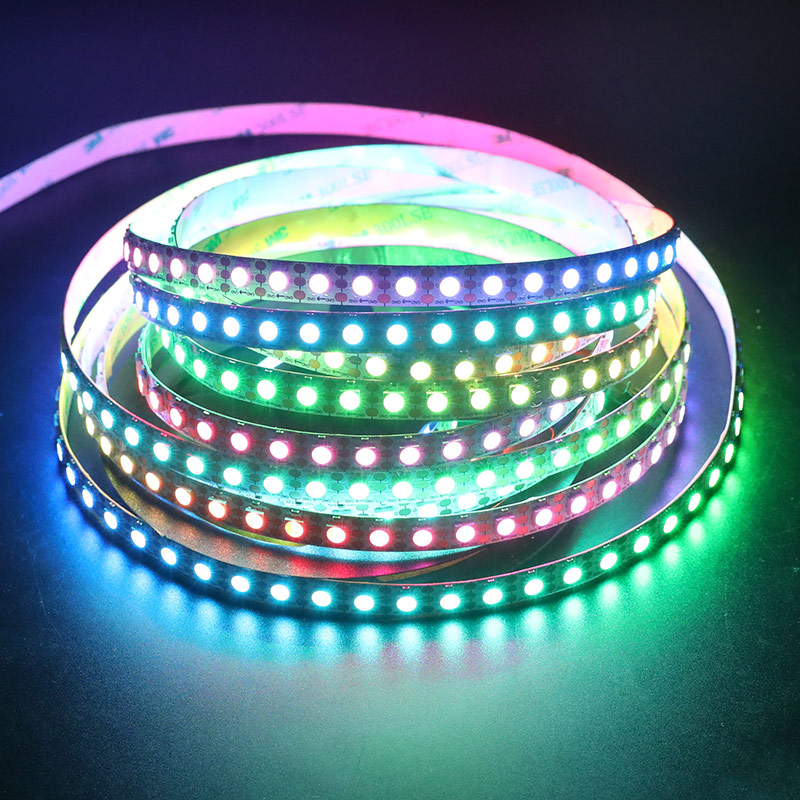

96 LEDs/m SK6812 RGBW Addressable Strip
High-Density 12V Precision | Single-LED Cut | Spot-Free Linear Glow
The Ultimate 12V Pixel LED Solution for Seamless Linear Lighting
For lighting designers, interior architects, and professional installers who demand dot-free linear perfection on a stable 12V system, the 96 LEDs/m SK6812 RGBW Strip is the premier choice. This high-density configuration is specifically engineered to solve the most common pain points in custom lighting: achieving a smooth, diffused glow in backlighting aluminum profiles and maintaining consistent color across the entire run.
Operating at 19.2W per meter, this high-density SK6812 light strip delivers a powerful output that remains remarkably uniform. Thanks to the optimized 12V circuitry, even at a full 5-meter run with single-sided power, there is zero visible voltage drop—the color at the tail remains identical to the start. With 96 individually addressable pixels per meter, it provides a "near-neon" effect when paired with silicone tubes or frosted profiles. Furthermore, the individual LED cutting (every ~10.4mm) ensures you get the exact length required for bespoke cabinetry and tight architectural corners.
Connection & Controller Requirements
Because this is a high-density addressable LED strip, your RGBW IC controller must support high pixel counts to manage the data flow effectively.

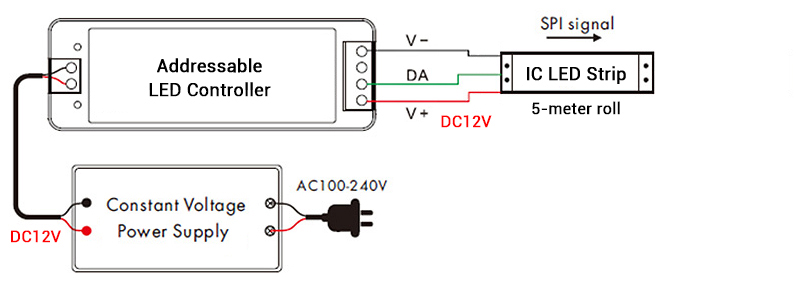

• 5 Meter Run: 480 Pixels — Can be powered from a single end at 12V. For a 5-meter home lighting project, you can consider using our SPIW5 WiFi Pixel Controller or SPIB5 Bluetooth Pixel Controller to control these RGBW IC lights via a mobile app and music. You can also purchase a compatible RF remote separately for physical operation.

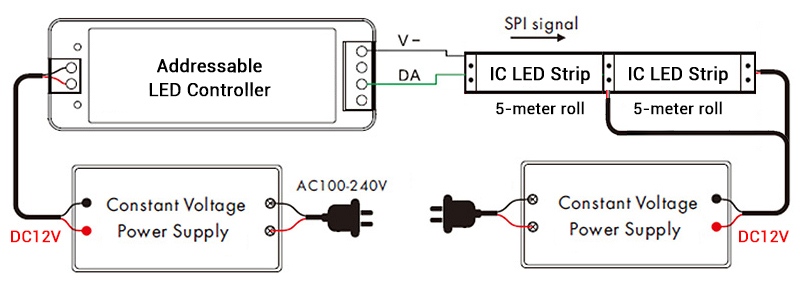

• 10 Meter Run: 960 Pixels — Dual-end power injection is required for maximum brightness stability. Due to the high current draw of 16A for the 10-meter setup, standard pixel controllers lack sufficient output capacity. Therefore, we recommend separate power supplies for the light strip and controller: - Use a driver rated above 230W (e.g., Mean Well LRS-350-12) for the 10-meter run. while the controller can use a 12V 1A adapter (the controller only outputs signals; the V+ terminal of the light strip should not be connected to the controller's output port).
Technical Specifications
| Model Number | SK6812-RGBW-96W10-12V |
| Brand | SuperLightingLED™ |
| Input Voltage | DC12V |
| PCB Width | 10mm |
| LED Type | SMD 5050 RGBW (4-in-1) |
| IC Type | SK6812 (Internal) |
| LED Quantity | 96 LEDs per meter (0.2 watts per LED) |
| IC / Pixel Quantity | 96 Pixels per meter (Individually Addressable) |
| Power Consumption | 19.2W/m (96W per 5m Reel) |
| Strip Length | 5 Meters (16.4ft) |
| Waterproof Rating | IP20 / IP65 / IP67 / IP68 Options |
| Cutting Interval | Every 10.42mm (1 LED per cut) |
| Solder Pad Function | +12V, DI/DO, GND |
| Connector Type | 3-Pin JST-SM Connectors (Input/Output) and 2-Pin Power Wires |
