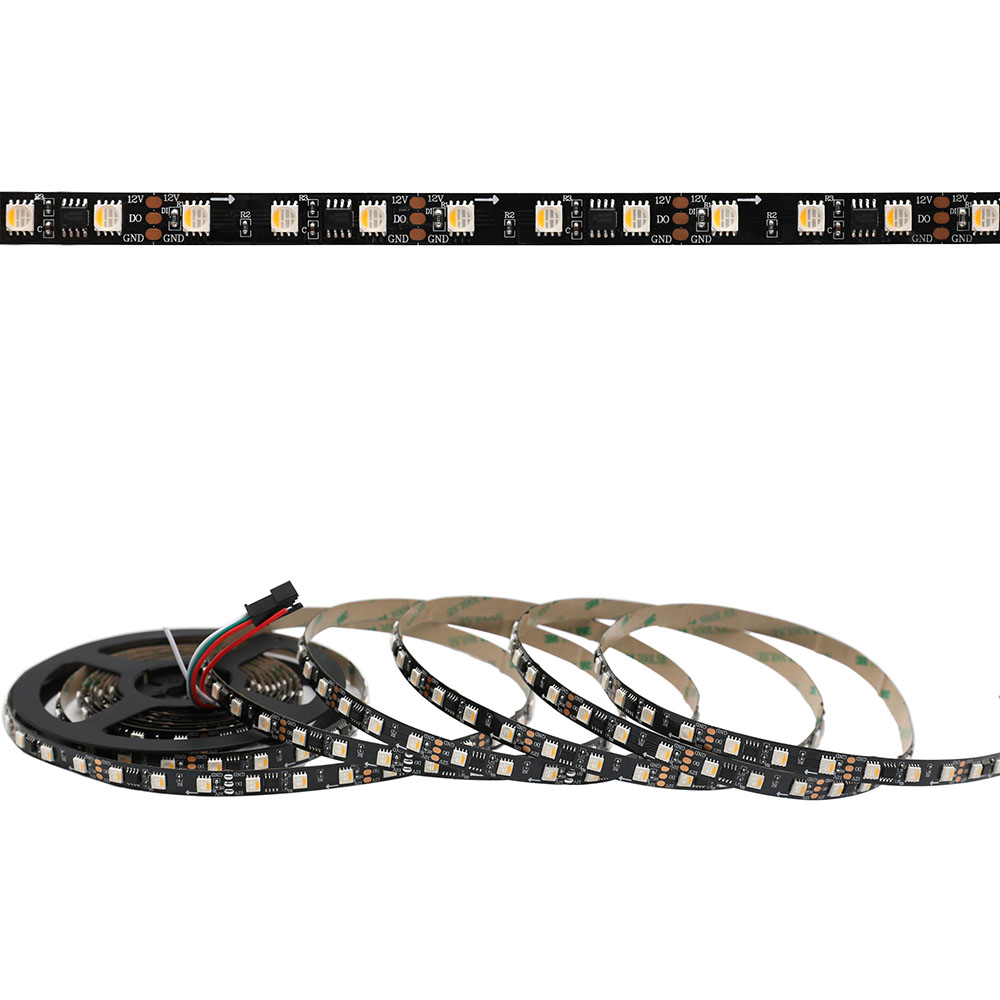

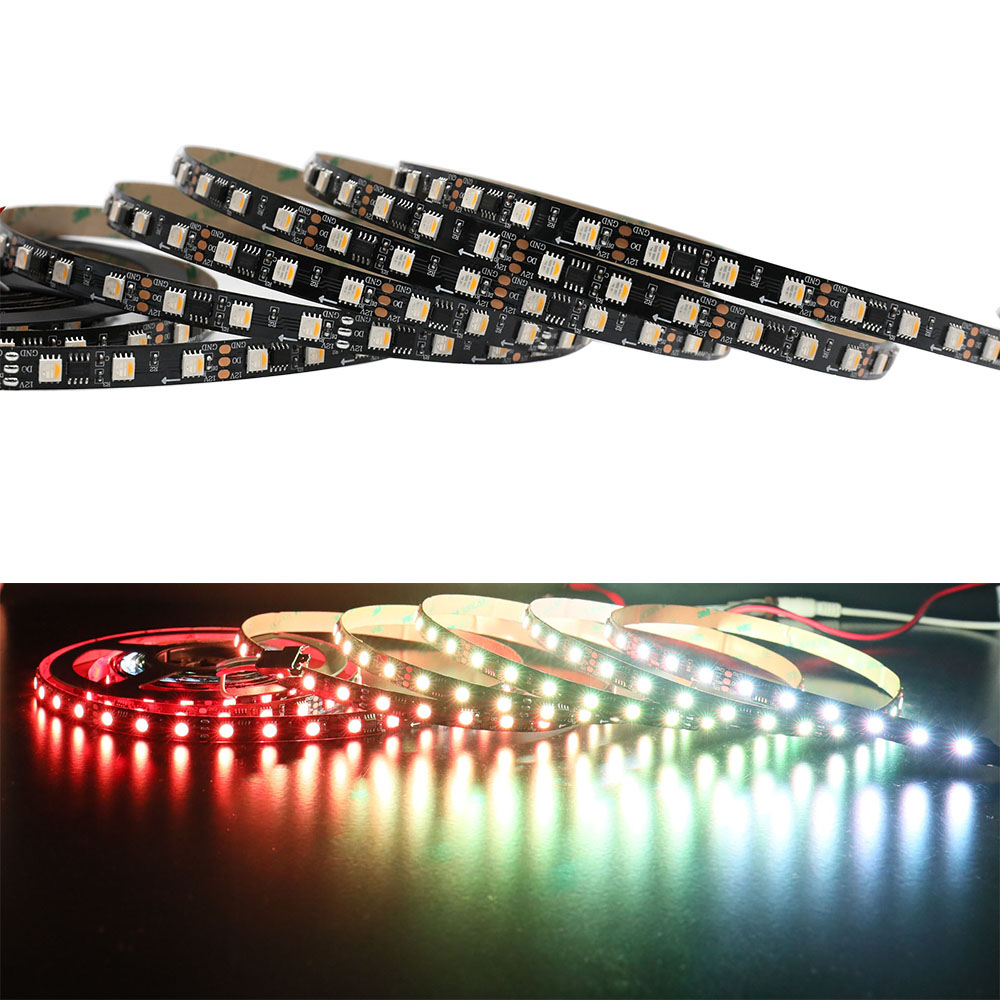

DC12/24V 4in1 RGBW SK6812 16.4Ft 300LEDs Flexible Color Chasing Full Color LED Strip Lights
Is RGBW addressable?
Yes, You can visit our addressable RGBW LED strip light series, this is addressable RGBW LED integrates R/G/B/W LED chip into an independent IC, output 16 million lighting colors, and produced purer white light than addressable RGB; white color temperature (3000/4000/6000K optional); you can get warm white or bright daylight white single color lighting.
Only one dream color LED controller can control the entire volume of Addressable RGBW LED strip, which is more concise and efficient than Addressable RGBCCT LED strip.
What is the difference between RGBW and RGBW LED strips?
RGBW LED strip light is not programmable; RGBW LED light strip works with a color-changing LED controller by RF remote or smartphone APP to produce multiple static and specific dynamic lighting effects.
Addressable RGBW LED strip is programmable. It can be connected to the Arduino development board to customize the programming output or call the Arduino database to control the color display output or output a specific lighting mode by using the color chasing LED controller we provide
SK6812 LED is a more specific product among single signal wire LED strip lights. It integrates RGBW IC to form richer color variations and has a variety of color combinations.
RGBW LED strips can match a variety of dream color LED controllers to output 256 brightness display and 32-bit color display, producing dynamic effects such as running water, suitable for atmosphere lighting in entertainment venues.
Support DC12/24V input, energy-saving, and high efficiency. Every 3/6LEDs cuttable, custom LED strip length, one IC controls 3LEDs. You can control them individually and set them to any color or animation you want.
5050SMD LED has high brightness, low light decay, and long life. Both ends are provided with JST connectors to easily connect to the LED controller. The back uses high-quality 3M tape, easy to install.
IP67/68 waterproof available, suitable for indoor & outdoor lighting, landscape lighting, holiday decoration lighting, architectural lighting, channel letters, sign lighting, and sidelight sign environments.
High brightness 5050SMD LED
DC12/24V low voltage input

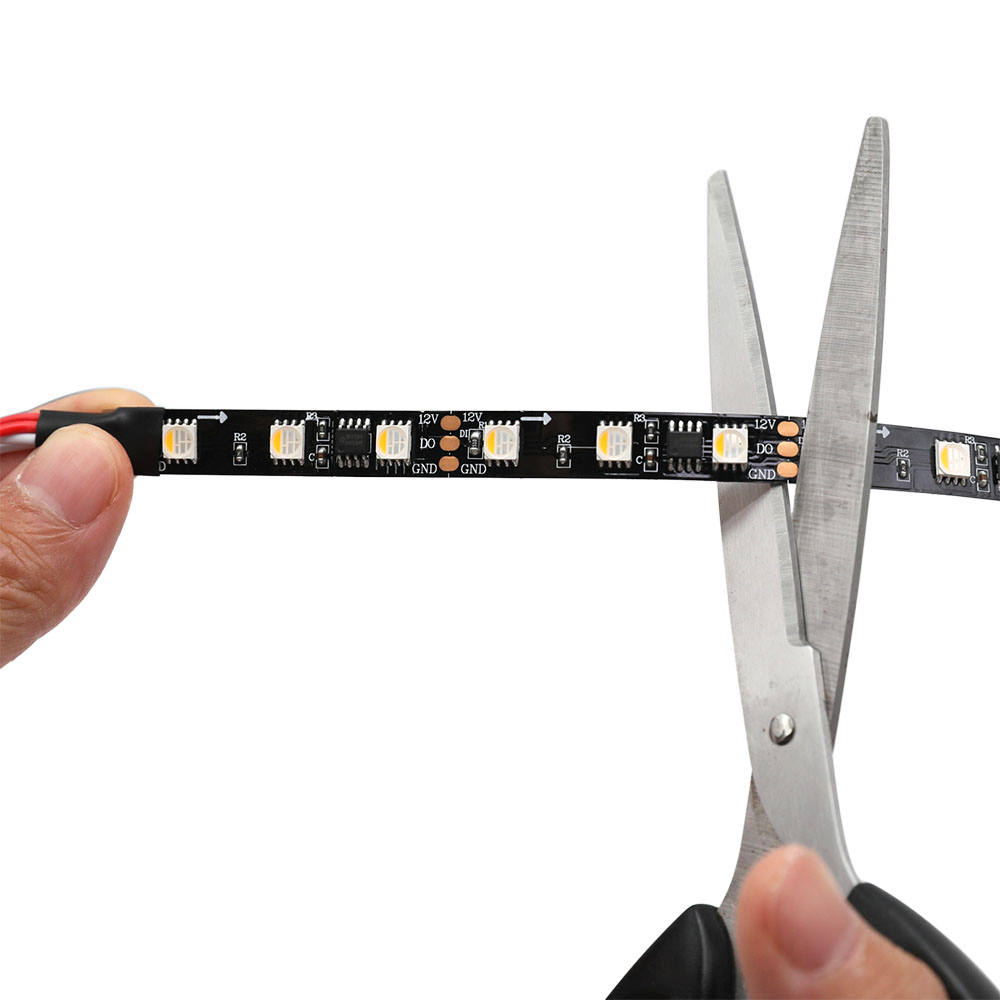

3/6 LEDs cuttable, customize length
Multiple waterproof level optional
Single signal wire RGBW LED strip
One IC control three LEDs

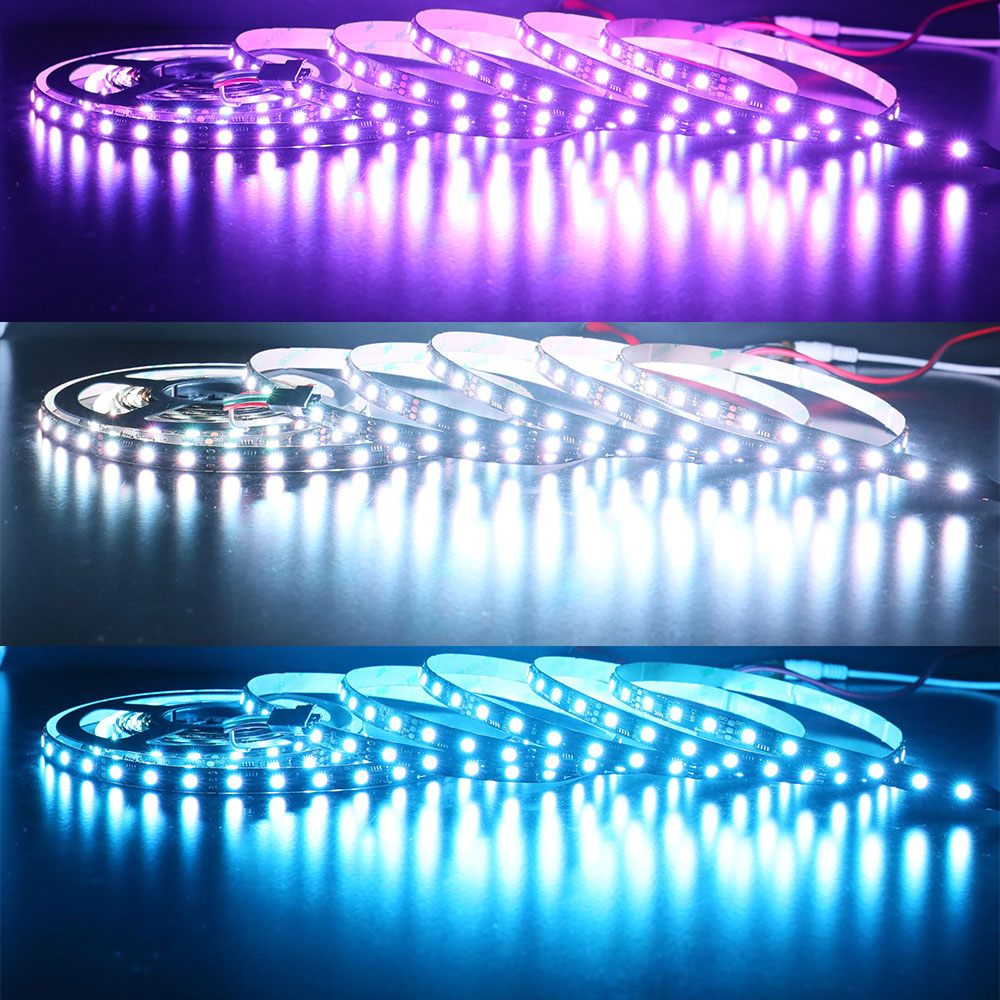

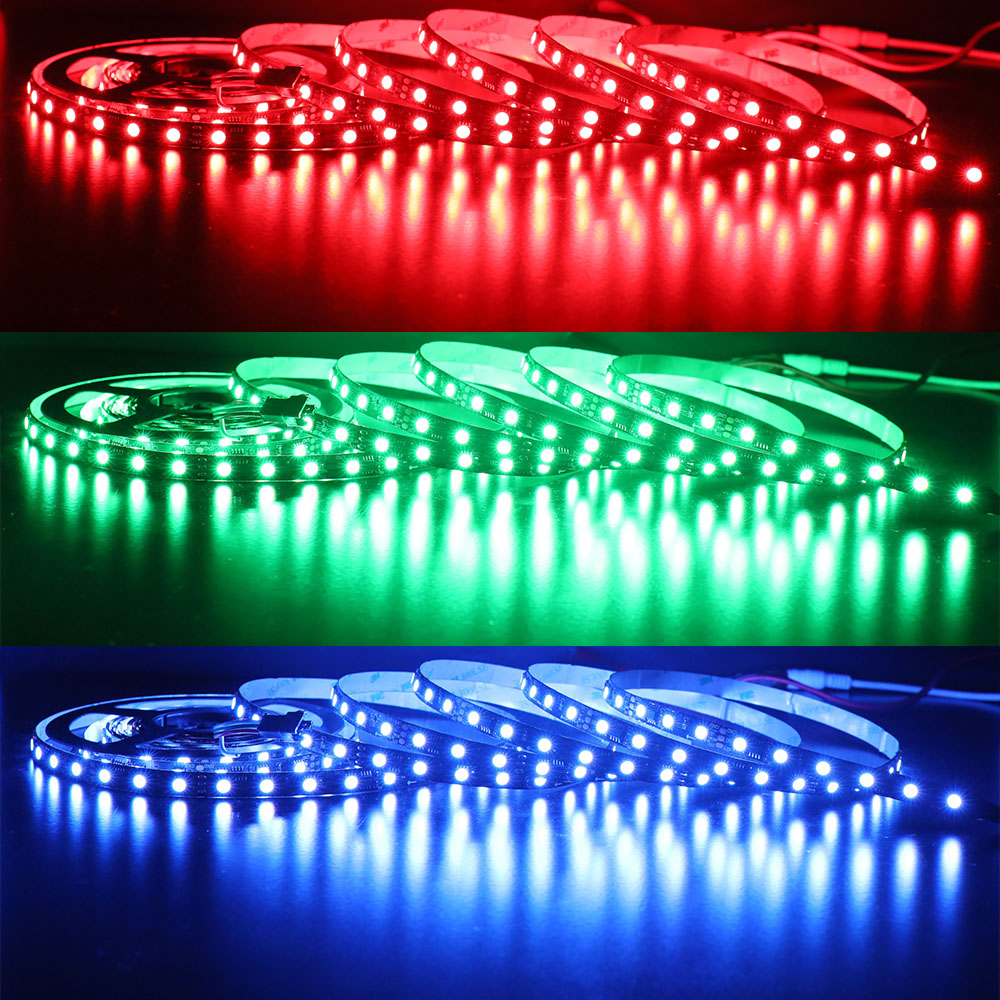

16million static colors available

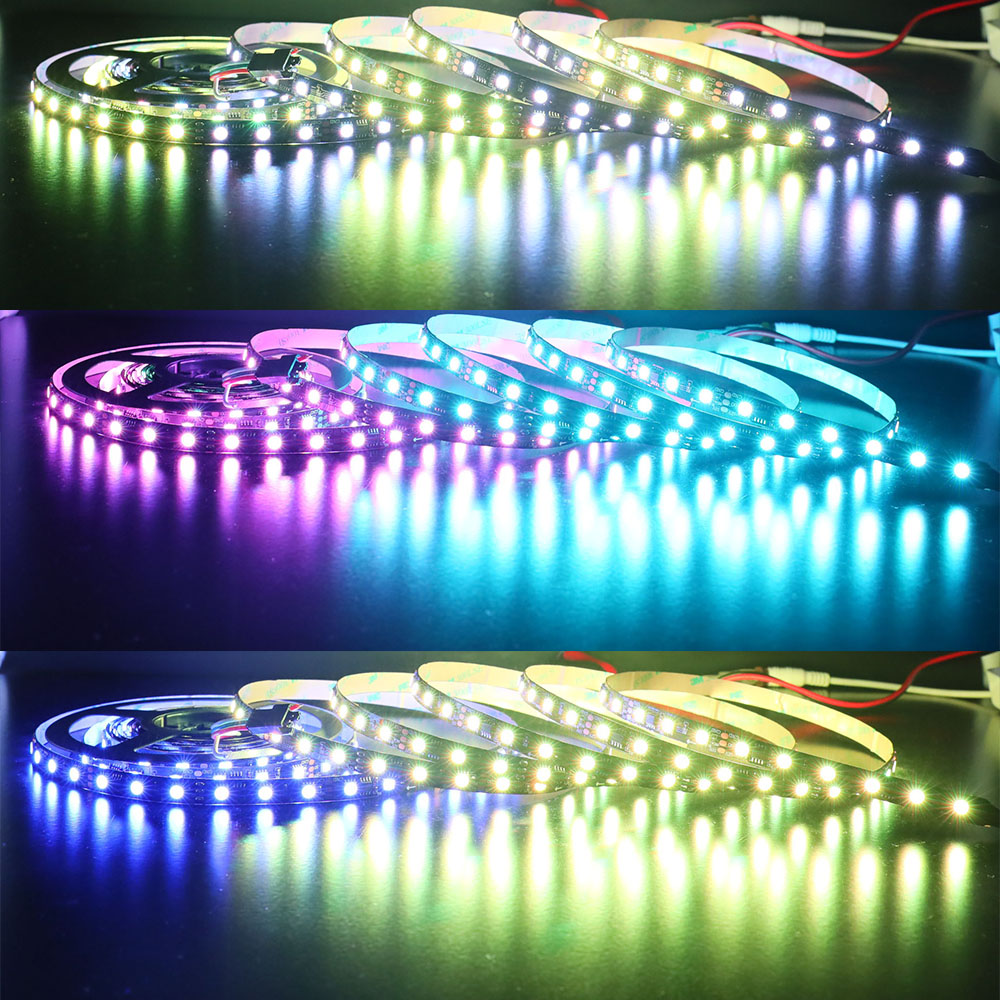

Running water lighting effect available

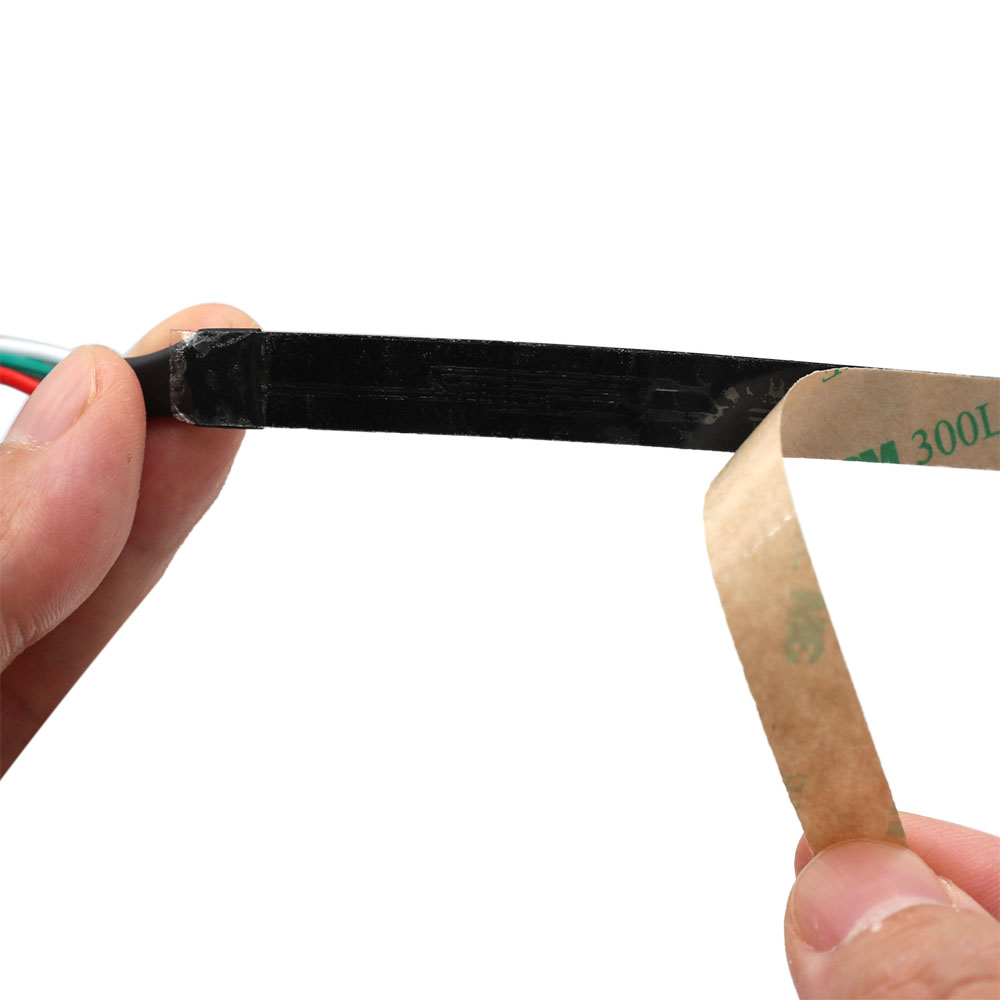

3M tape, easy to install
Standards and Certifications
LED Strip Type: SMD 5050 RGBW 300LEDs/16.4ft
LED Chip: SK6812 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

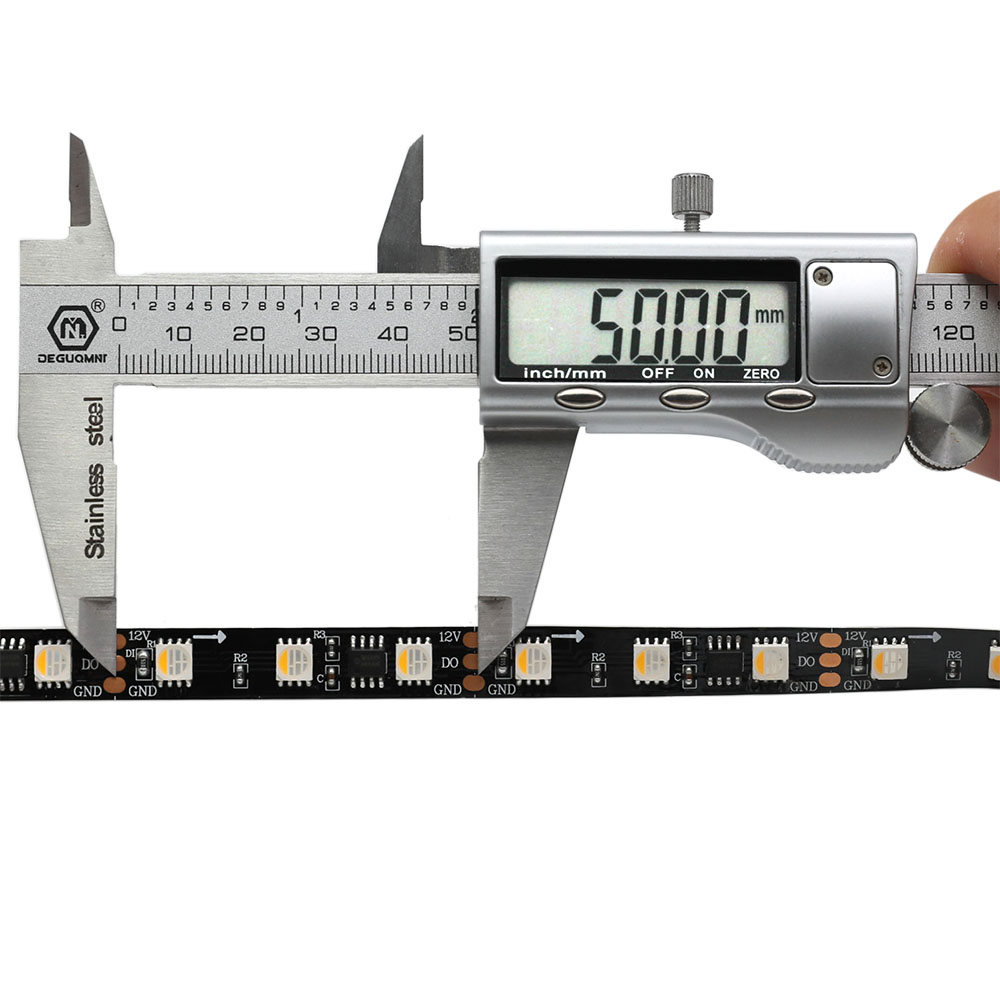

LED Quantity: 60 LEDs per 1meter (3.28 ft); 18LEDs/Ft
Quantity of IC: 20ICs/m; 6LEDs/Ft(DC24V), 10ICs/m; 3LEDs/Ft(DC12V)

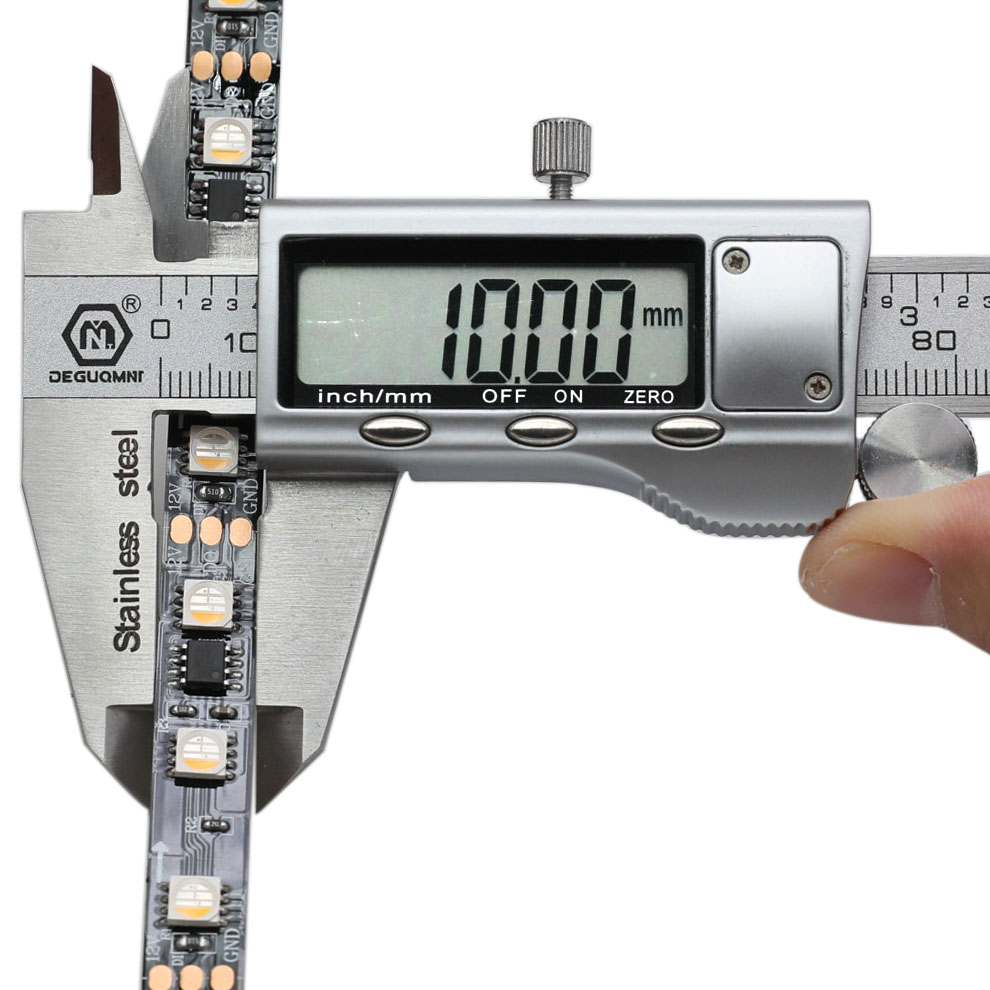

PCB Wide: 10mm/0.39in
PCB Length: 5m/16.4Ft
Input Voltage(V): 12/24VDC
Working Power: 72W/16.4ft Max
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20 or Waterproof IP65/67/68
1* SK6812 16.4Ft RGBW LED strip light
For indoor environment, if you choose the LED strip light kit, we will send you CONFULL-SP107E LED controller.
For LED power supply, we will send the following:
If you purchase the LED power supply, we will also send you an AC plug.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
