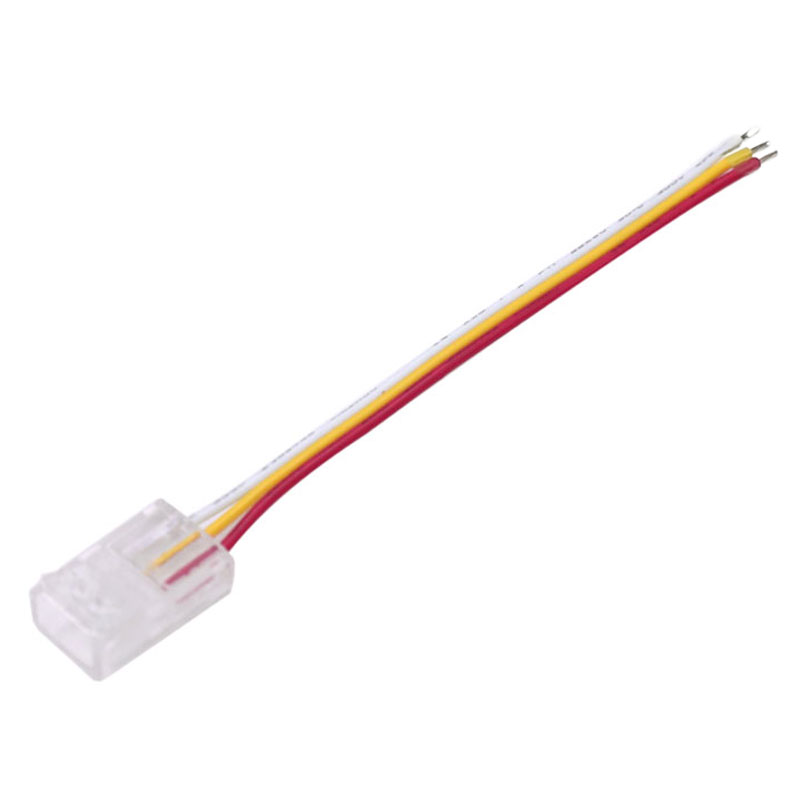

Strip to Wire 3 Pin LED Strip Connector For 10mm SMD LED Strip

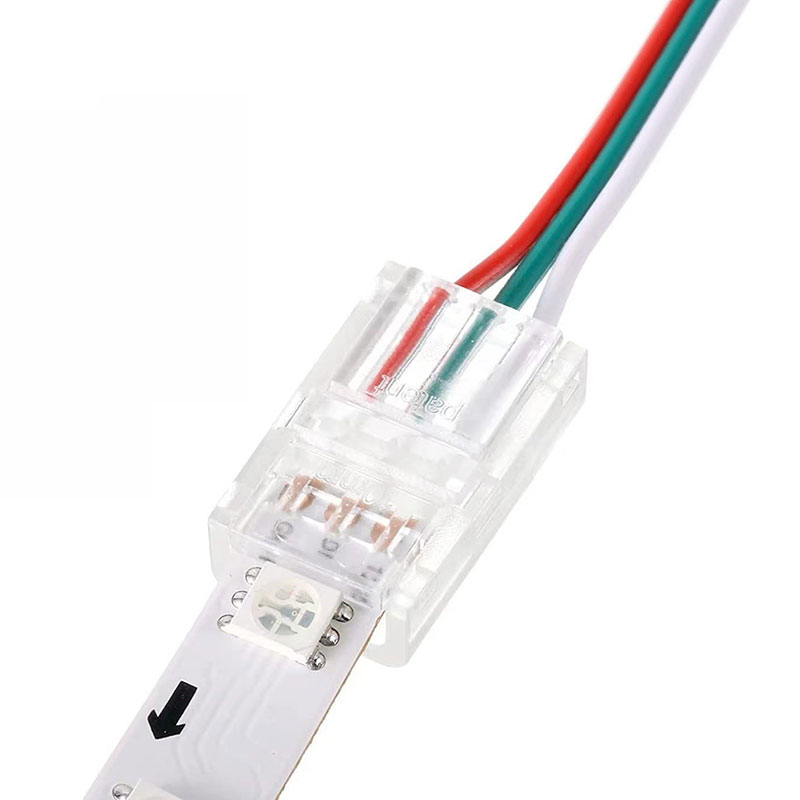

The 3 pin strip-to-wire LED strip connector is a versatile solderless connector, mainly used to connect cut strips or strips without soldered wires. It can connect 10mm wide SMD LED strips, including adjustable white strips and 3-wire addressable strips, etc.
This connector is designed with 3 pins to transmit signals efficiently and ensure that the light strip can work properly. Meanwhile, the connector housing is made of transparent and high-quality material, which is reliable and durable enough to meet the needs of long time use.
Strip-to-wire type connector
3-pin design, for adjustable white led strips and 3-wire addressable led strips
Compatible with 10mm PCB width
For SMD LED strips
