Product Information

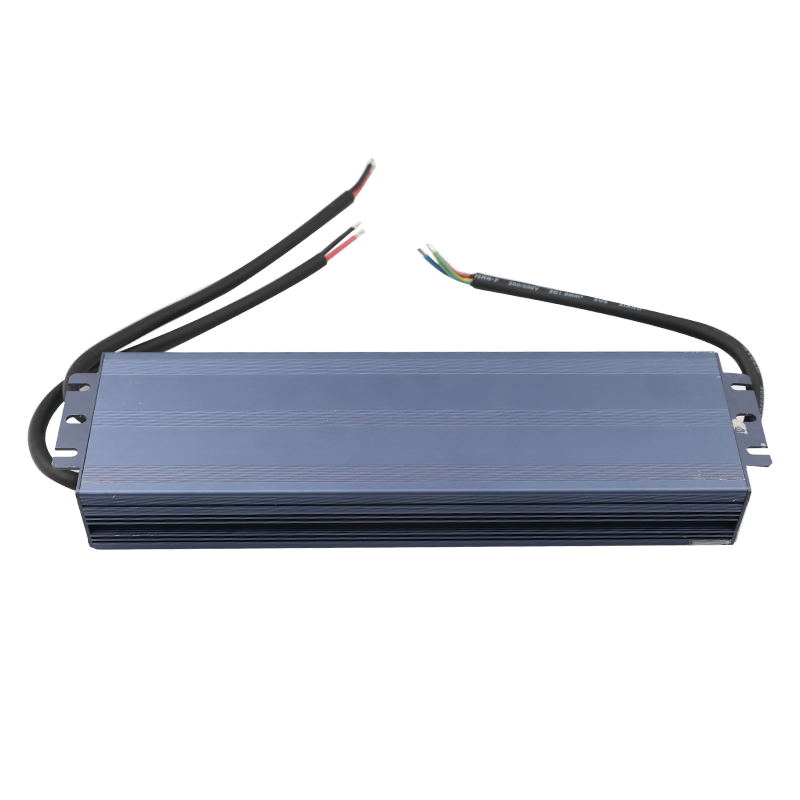

Deliver robust, reliable power to your most demanding lighting projects with the SuperLightingLED 400W Ultra-Slim Waterproof Power Supply. Engineered for large-scale applications, this unit provides a massive 400W (33.3A) of stable, constant voltage DC 12V power, making it the ideal choice for extensive runs of LED light strips, architectural illumination, and commercial signage. Its IP67-rated enclosure ensures complete protection against dust and water, guaranteeing long-term performance in any outdoor or wet environment. Despite its high capacity, the ultra-slim 31mm profile allows for discreet installation in tight spaces where bulkier power supplies won't fit. With a universal AC input and a high Power Factor of over 0.99, this driver offers both global compatibility and exceptional energy efficiency for your outdoor lighting power supply needs.
Key Features
High-Capacity 400W Output
Provides a substantial 33.3 amps at 12V DC, perfect for powering long, continuous runs of LED strips or multiple fixtures from a single source.
IP67 Waterproof Rating
Fully sealed and protected against dust ingress and temporary water immersion, making it ideal for outdoor and wet location installations.
Ultra-Slim Design
Measures only 31mm in height, allowing for easy concealment in architectural coves, signage, and other space-constrained applications.
Universal AC Input
Accepts a wide input voltage range of AC 110-220V, ensuring reliable operation in various regions without needing a separate converter.
Active Power Factor Correction
Features a high Power Factor (PF) of 0.99, maximizing energy efficiency and reducing electricity costs for large installations.
Stable Constant Voltage
Delivers a consistent 12V DC output, protecting your LEDs from voltage fluctuations and ensuring uniform brightness and longevity.
Technical Highlights
- Dual output channels for balanced load distribution.
- Integrated protections for short-circuit, overload, and over-voltage.
- Durable aluminum alloy housing for efficient heat dissipation.
- Pre-wired with 200mm input and output cables for simplified installation.

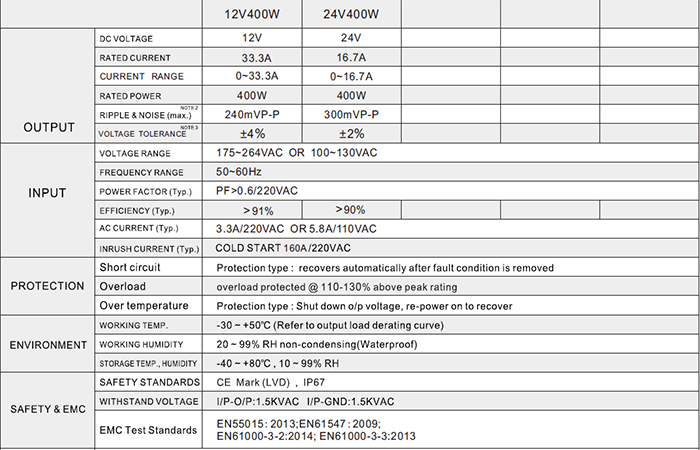

Product Specifications
| Parameter | Details |
|---|---|
| Product Type | LED Constant Voltage Waterproof Power Supply |
| Model Number | PSWP-12V-400W |
| Alternate Model | FS-0400-12PF |
| Input Voltage | AC 110-220V ±15% |
| Input Frequency | 50/60 Hz |
| Output Voltage | DC 12V |
| Output Current | 33.3A |
| Output Power | 400W |
| Protection Rating | Waterproof IP67 |
| Power Factor (PF) | >0.99 |
| Output Channels | 2 |

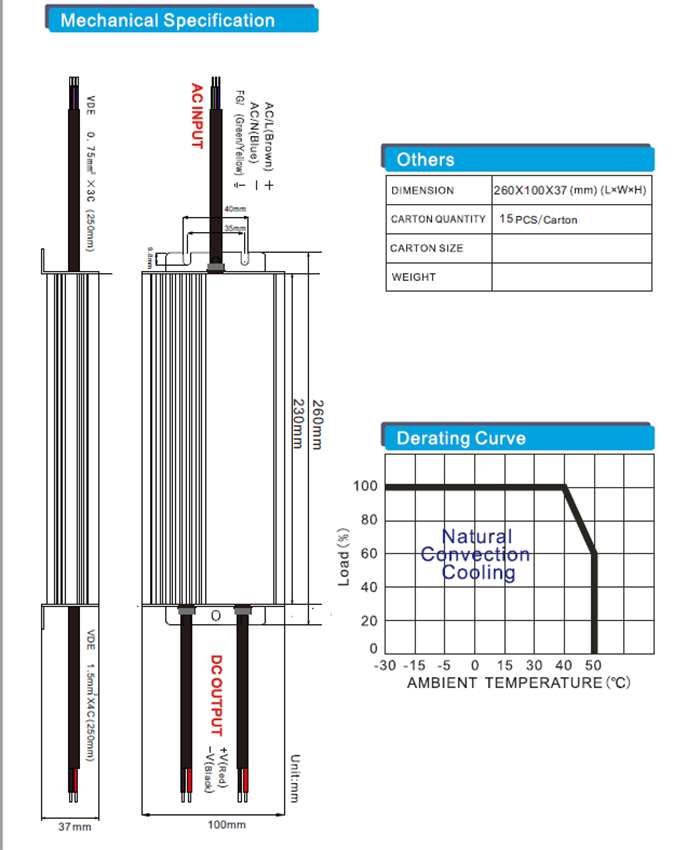

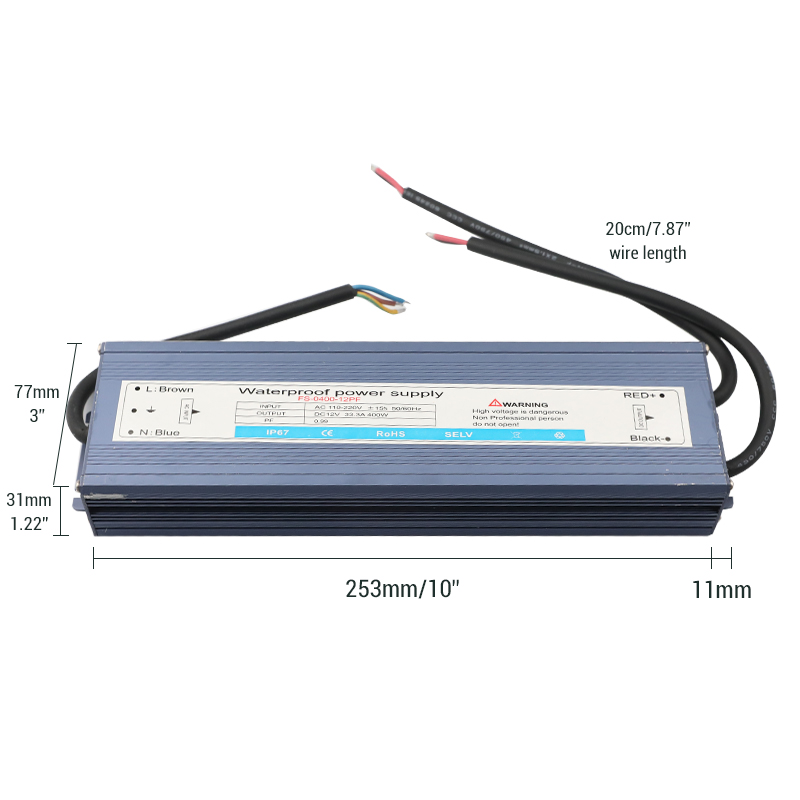

| Dimensions (L*W*H) | 275mm x 77mm x 31mm |
| Wire Length | 200mm / 7.87" |
| Input Wire Diameter | 1.0 mm² (17 AWG) |
| Output Wire Diameter | 1.5 mm² (16 AWG) |
Application Scenarios
How to Wire & Install This Power Supply
- Step 1: Verify Compatibility - Confirm that your LED lighting system requires a DC 12V input. This power supply is not suitable for 24V or other voltage systems.
- Step 2: Calculate Your Load - Sum the total wattage of all LED strips you plan to connect. For optimal performance and safety, your total load should not exceed 80% of the power supply's capacity (320W for this 400W model).
- Step 3: Connect AC Input (CAUTION!) - Ensure all mains power is disconnected. Connect the Live (Brown), Neutral (Blue), and Ground (Yellow/Green) wires from your AC source to the corresponding input wires of the power supply.
- Step 4: Connect DC Output - Connect the positive (+) and negative (-) output wires from the power supply to your 12V LED lights. This unit has two output channels; for large loads, distribute them evenly between the channels. Always double-check polarity to prevent damage to your LEDs.
- Step 5: Test the System - Secure all connections and ensure they are insulated from moisture. Restore power and verify that your LED lights operate correctly.
- Always hire a qualified electrician for installation, especially for high-voltage AC connections.
- Do not exceed 80% of the rated 400W capacity to ensure driver longevity and prevent overheating.
- Ensure correct polarity (+ to +, - to -) on the DC output side.
- The IP67 rating applies to the power supply unit itself. All wire connections must be made within a suitable waterproof junction box to maintain system integrity.
What's in the Box
- ✓1 x PSWP-12V-400W Ultra-Slim Waterproof LED Power Supply
Frequently Asked Questions
Q: What is a constant voltage LED power supply?
A:A constant voltage power supply provides a stable, fixed voltage (in this case, 12V DC) to the LED lights. This is essential for standard LED light strips, which are designed to operate at a specific voltage.
Q: How do I connect LED strip lights to this power supply?
A:You connect the power supply's DC output wires to the input wires of your LED strip, matching positive (+) to positive and negative (-) to negative. Please refer to our wiring guide above for detailed steps.
Q: Is this outdoor power supply fully waterproof?
A:Yes, the power supply unit itself is rated IP67, meaning it is dust-tight and can be submerged in water up to 1 meter for 30 minutes. However, your wire connections must also be properly sealed in a waterproof enclosure to protect the entire system.
Q: How many feet of LED strip can this 400W power supply run?
A:This depends entirely on the power consumption of your specific LED strip (watts per foot/meter). For example, if your strip uses 4.4W/ft, you could safely power up to 72 feet (320W safety limit / 4.4W/ft).
Q: What is the difference between this and a constant current driver?
A:This is a constant voltage driver, which maintains a steady voltage (12V). A constant current driver maintains a steady current (e.g., 700mA) and is used for high-power individual LEDs, not typically for LED light strips.
Q: Can I use this power supply for 24V LED strips?
A:No. This unit is specifically designed for 12V DC systems. Using it with 24V strips will not work and could damage the lights.
