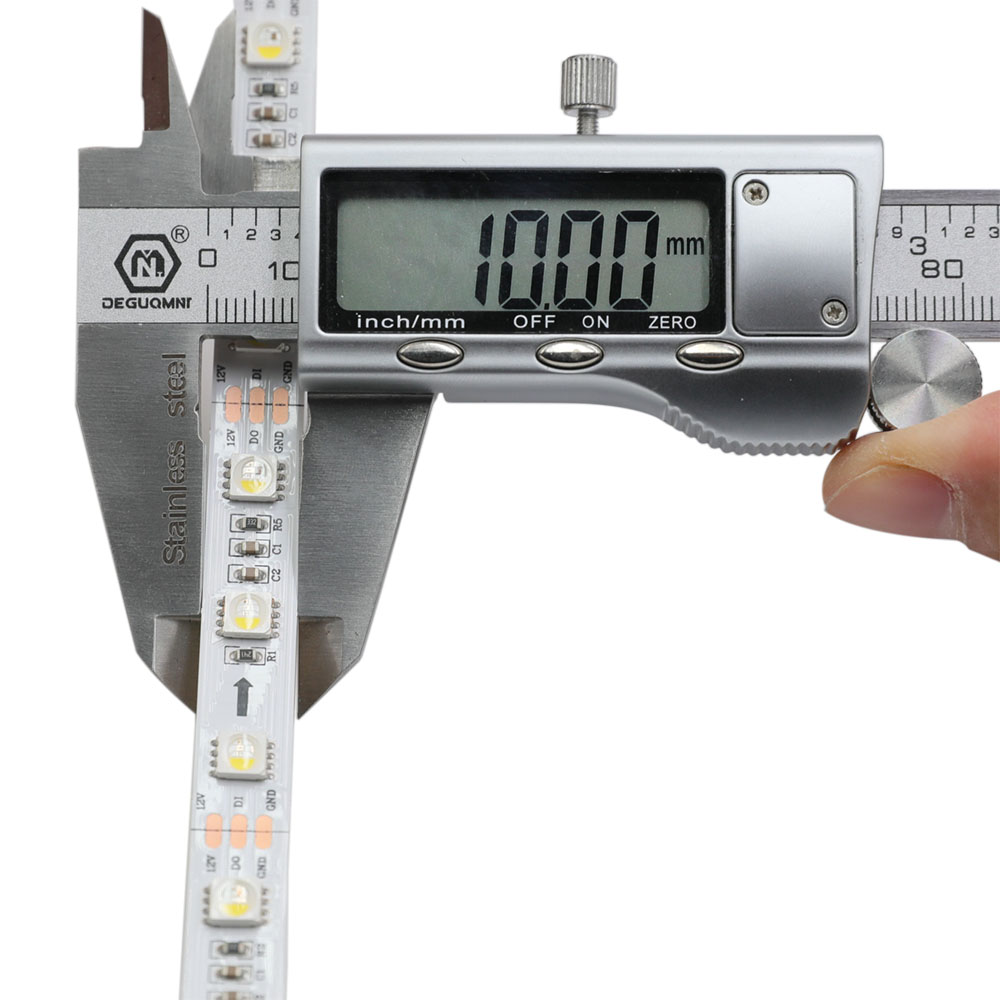

SK6812 RGBW 60LEDS/M DC12V 10MM-Wide Digital Intelligent Addressable LED Strip Lights - 5m/16.4ft per roll

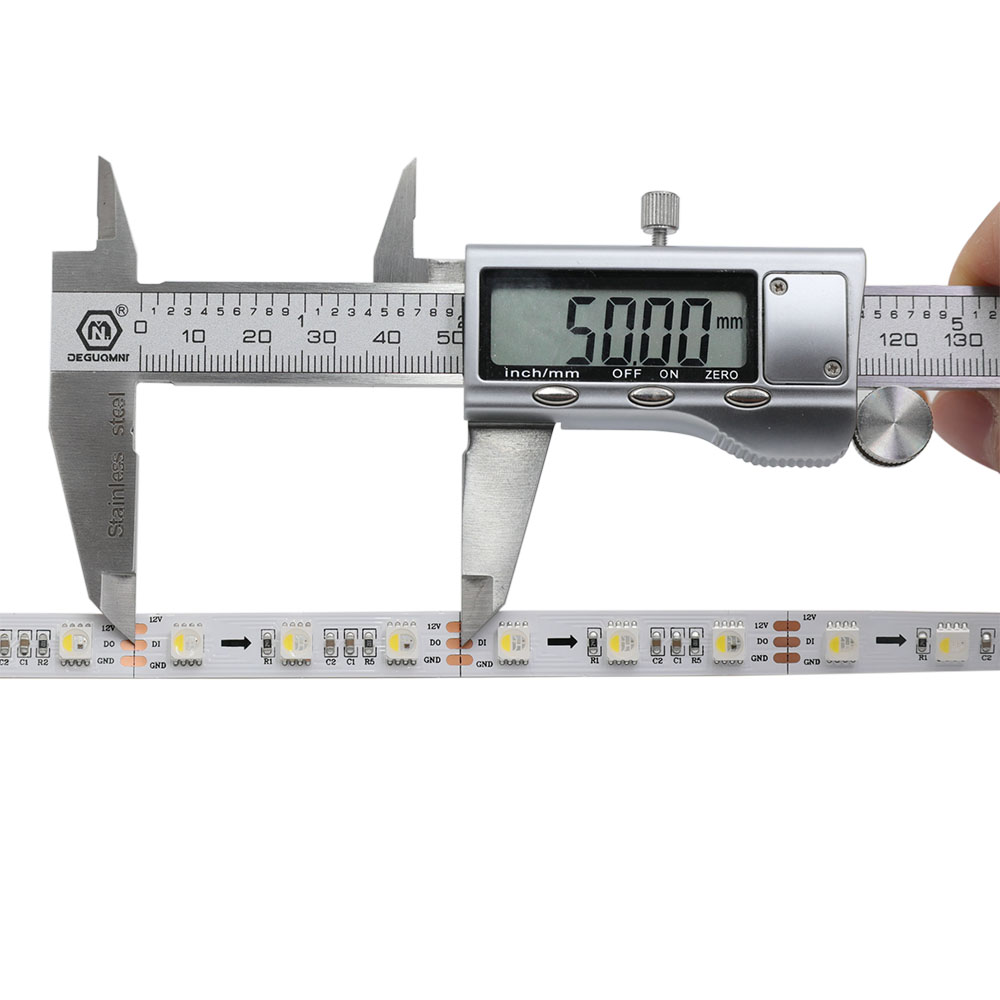

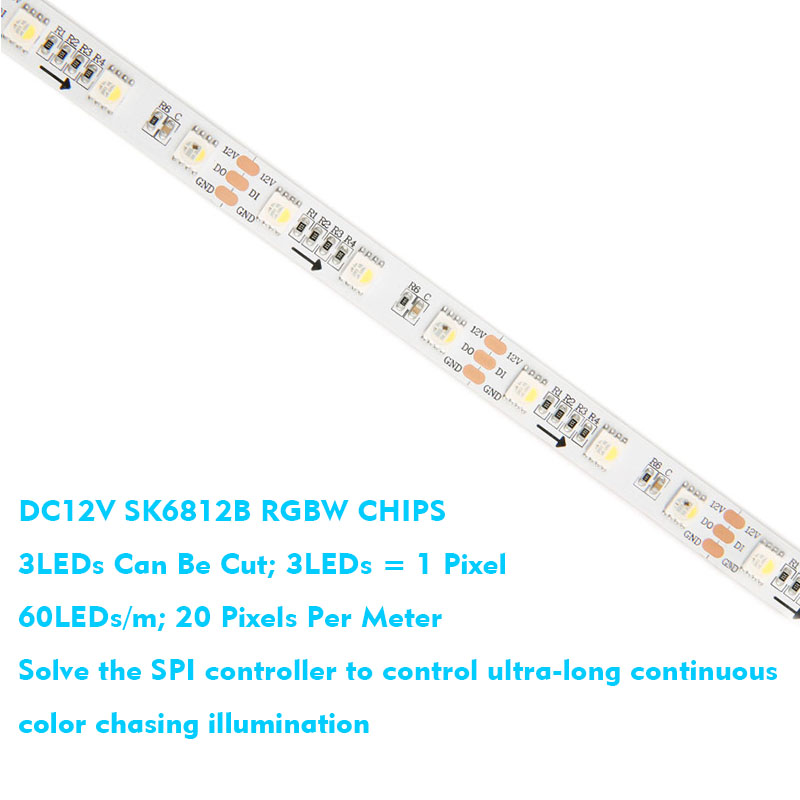

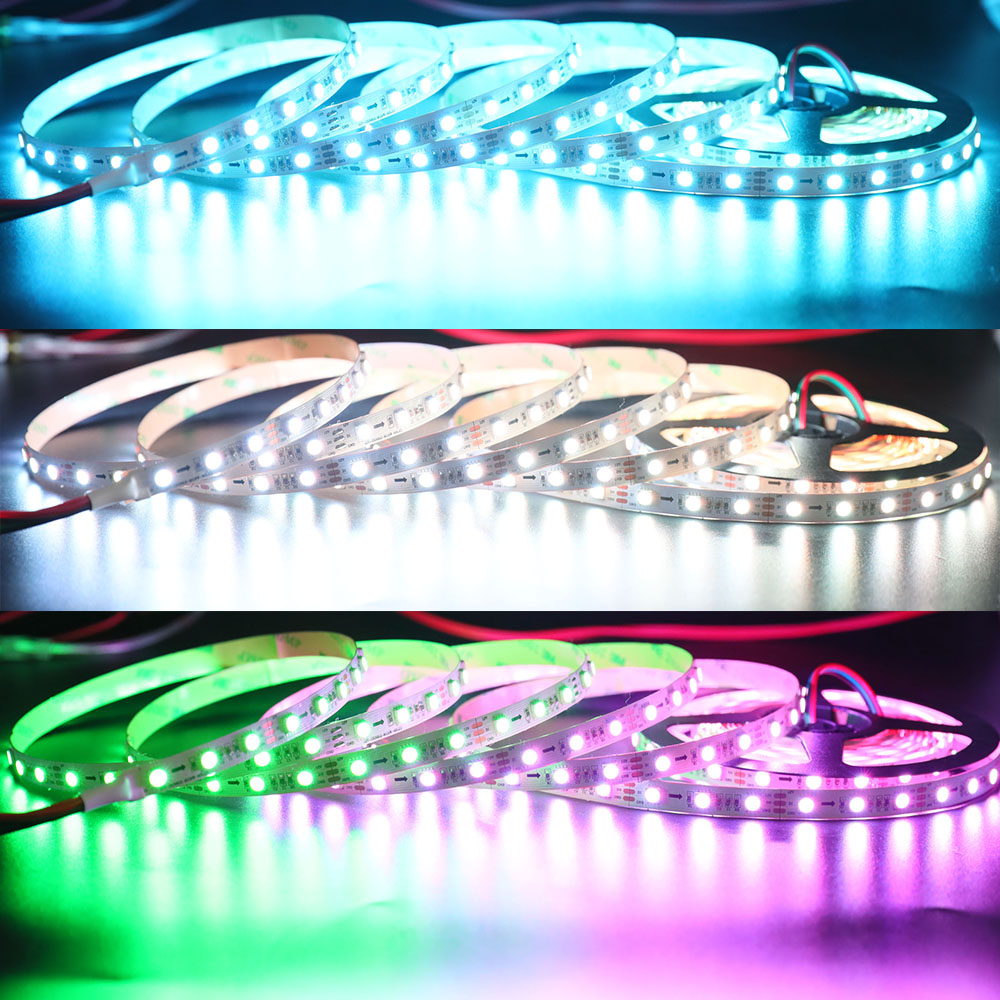

There are 60 Addressable RGBW LEDs per meter, and 10mm wide for the 60LEDs/meter, DC 12V input, and every 3 LED can be cut! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
Only 1 digital output pin is required to send data down.
The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

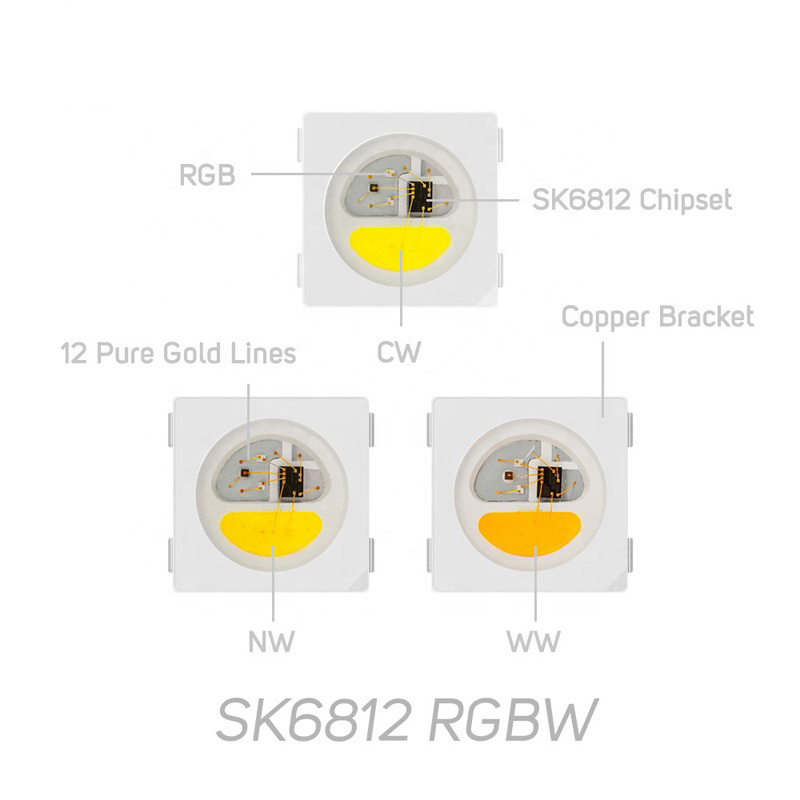

The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.
Please note, only SM16704 External IC with Black PCB background.
Light strips advantages

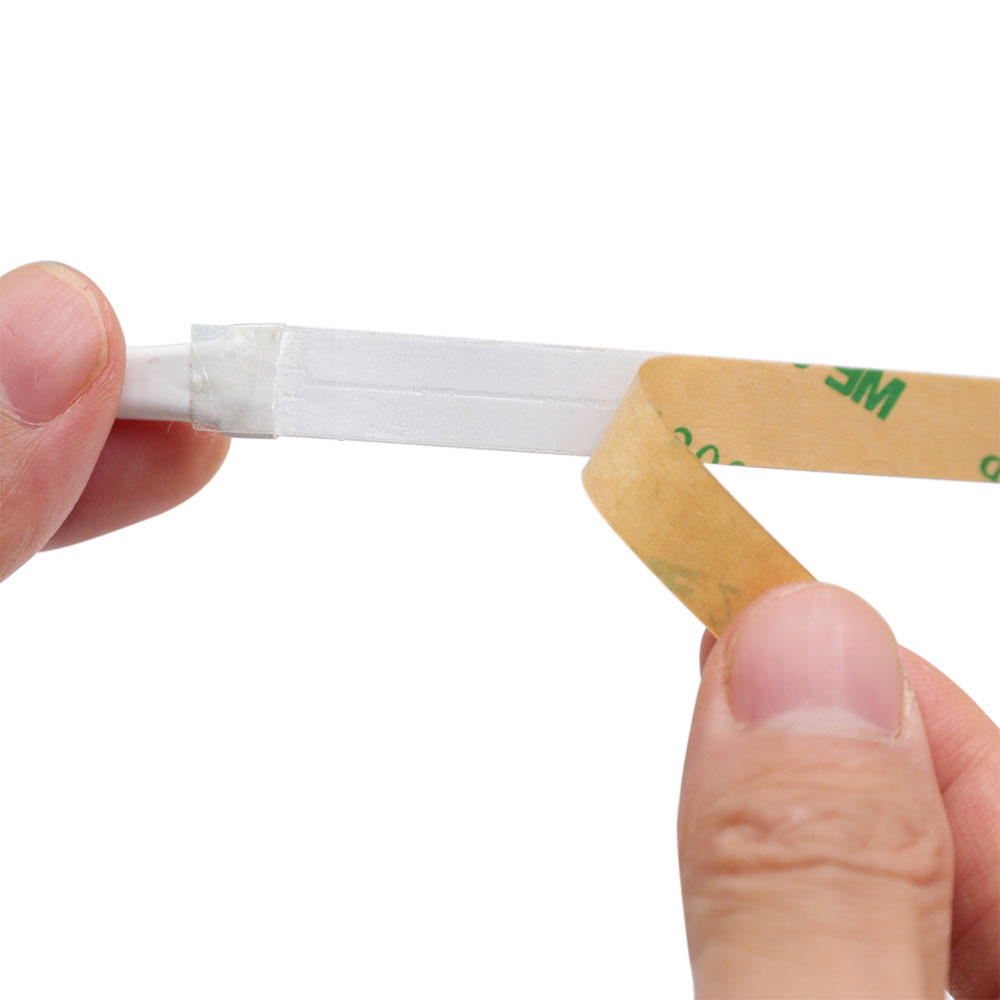

With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
How to connect and control
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

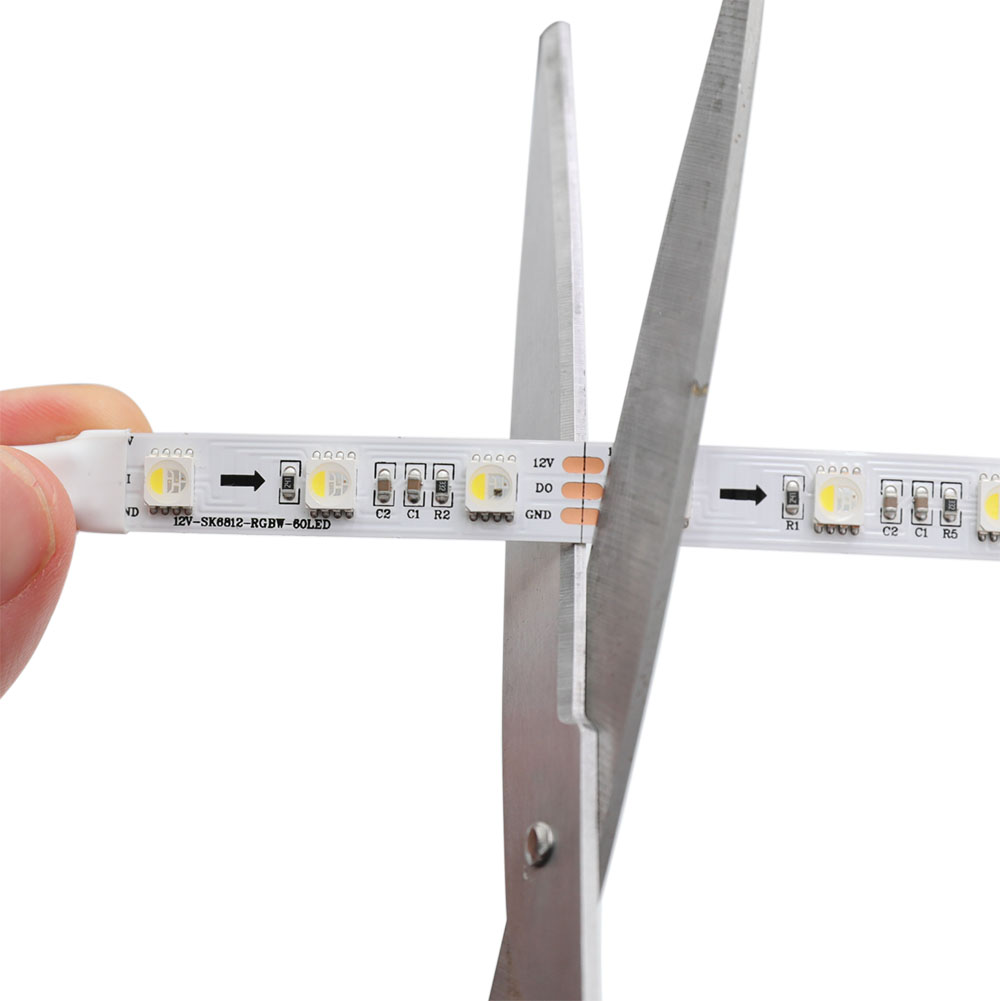

This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 12V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

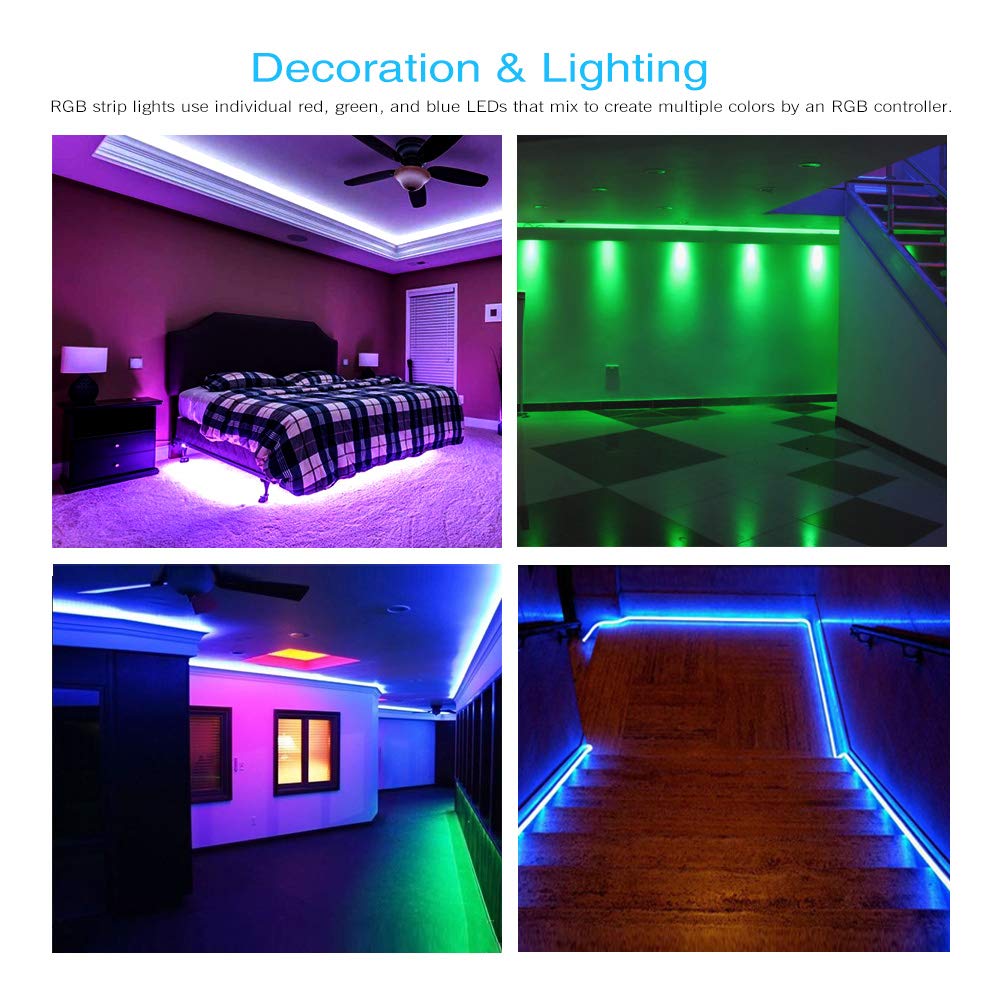

These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
