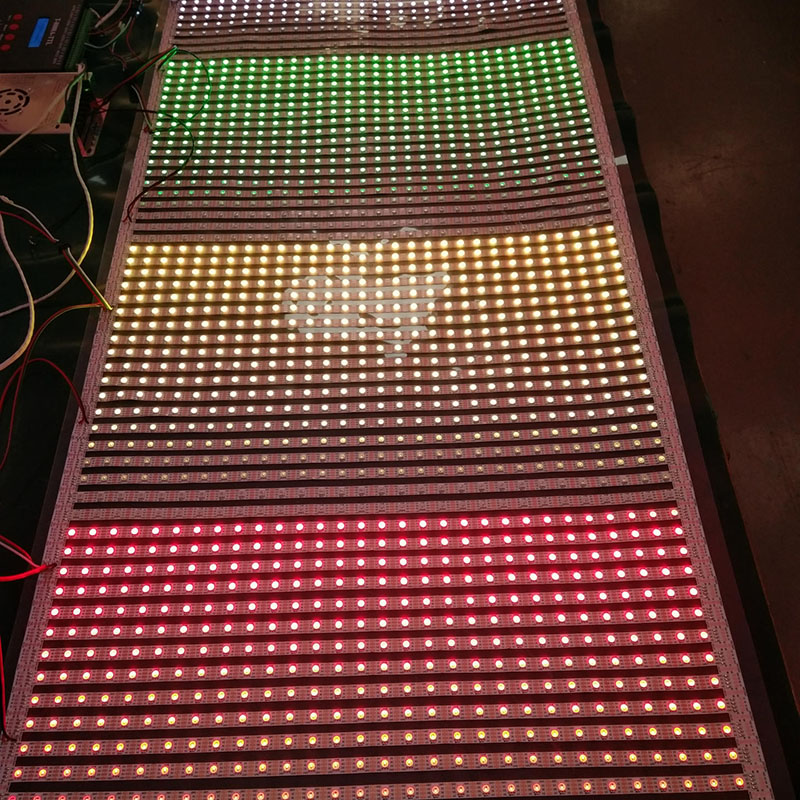

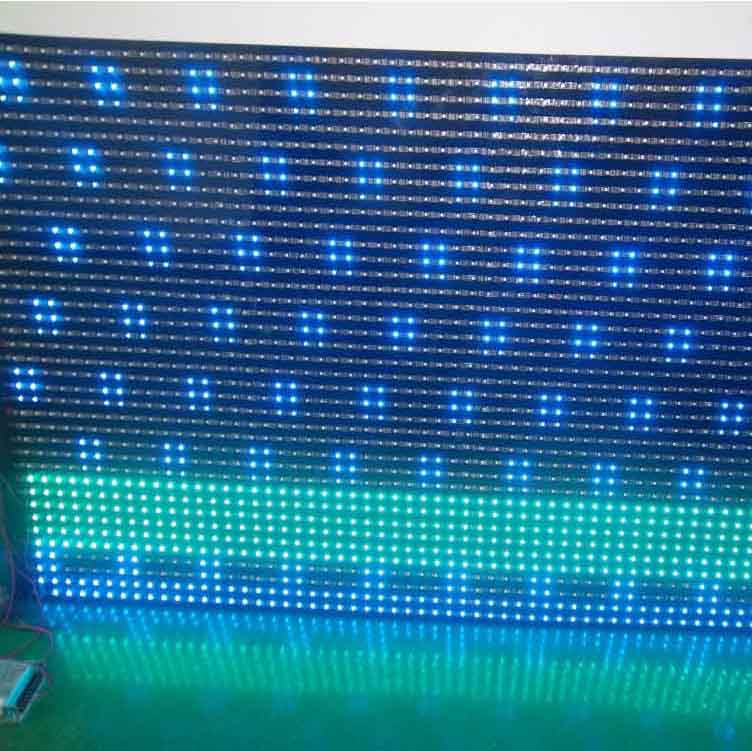

Customized 3.28x3.28 feet DC5V WS2812B Addressable Flexible Digital LED Screen - Cascadable 3600 LEDs Pixel Display Panel
This is DC5V 3.28x3.28feet WS2812B led digital addressable flexible LED display screen(ws2812B IC controlled), Size:100cm*100cm, DC5V input, working power 1080watt.
Work with the programmable SD controller(not included), it can make flexible LED screen
Arduino IC Digital Addressable Dream Color RGB LED Screen
Arduino compatible.You can control the strip by your programmable arduino.

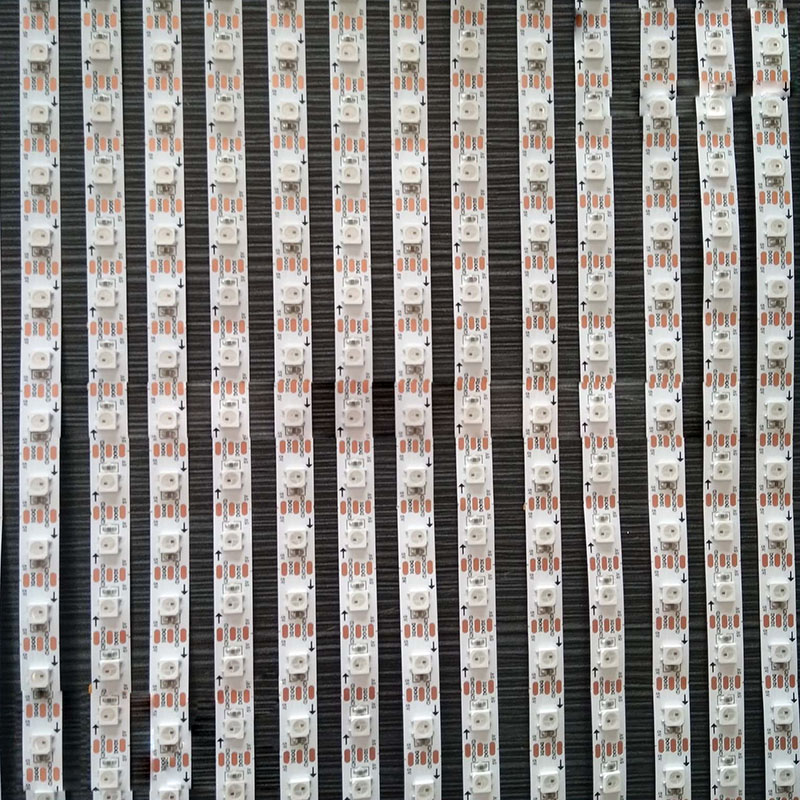

The WS2812B SMD5050 RGB LEDs, every led built-in(embedded) an WS2812B IC,, therefore every one led lignting effect can be control, every RGB LEDs is digital addressable.
Good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful Curtain-up/ Chasing/ Flow Water/Raindrop/Jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LEDEdit2016 software.
Working with WS2812B Full color SPI controller, can download the programs in SD card, control Max 2048 Pixel, It have single color running scene. 5VDC power supply Link.
We are a manufacturer, we have large number of other types of flexible LED strip lights, we accepct customized LED strip lights, customized size or any customized color you need.
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Screen
IC type: WS2812B
LED quantity: 3600 5050 SMDs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 5V Positive / +
Green Wiring colors: Data Signal
Black Wiring colors: 5V GND /V-
Dimensions: L1000mm(3.28') x W1000mm(3.28') x H5mm(0.20")
Input Voltage(V): DC5V
Working Current: 216Amps/ piece
Output power: 1080Watt / piece, 0.3wat/LEDs
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 20-22 Lumen/LEDs
Warantty: 3 years
Beam Pattern: 120 degree
MCD Per Foot: 6500 mcd/ft
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars,
advertisement company, decoration company, the city lighting project,
entertainment and leisure places lighting.
