RGBCCT 5050 5in1 LED Multi Color Lights - 12mm 12V/24V LED Light Strip - 84LEDs/m

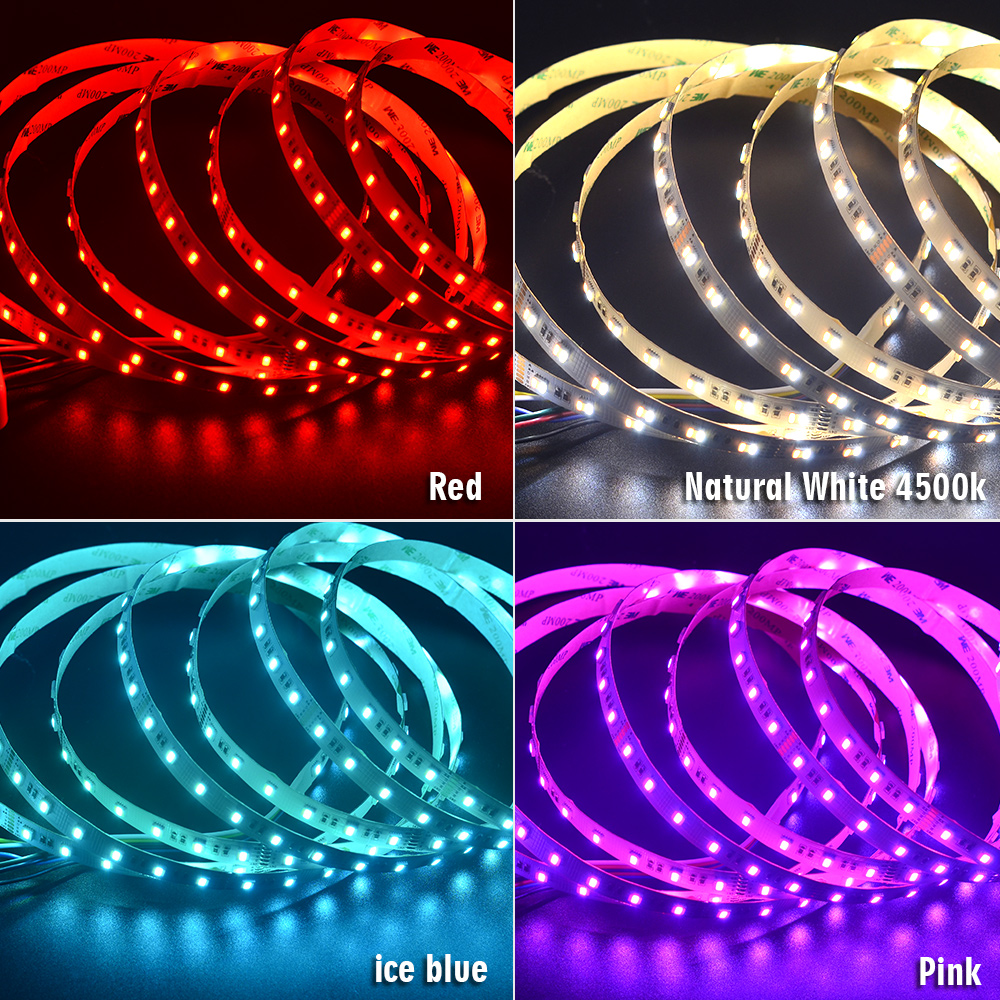

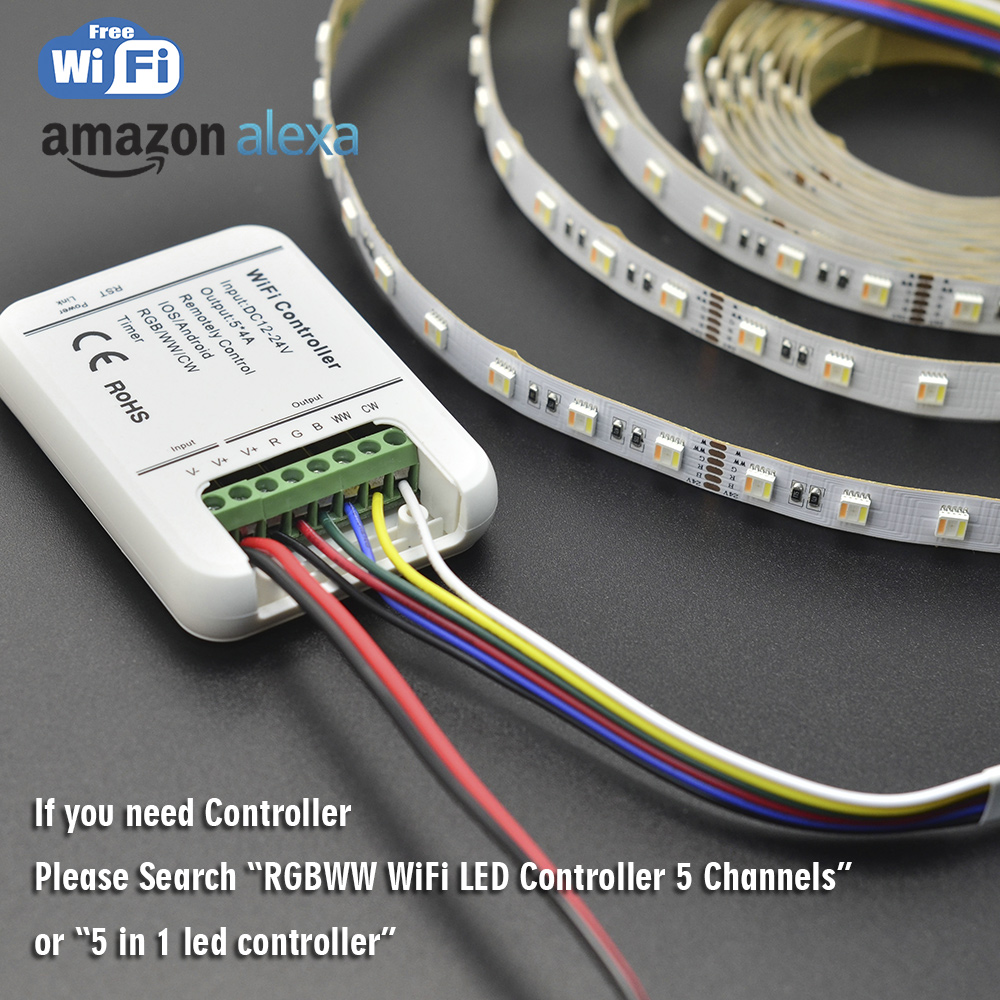

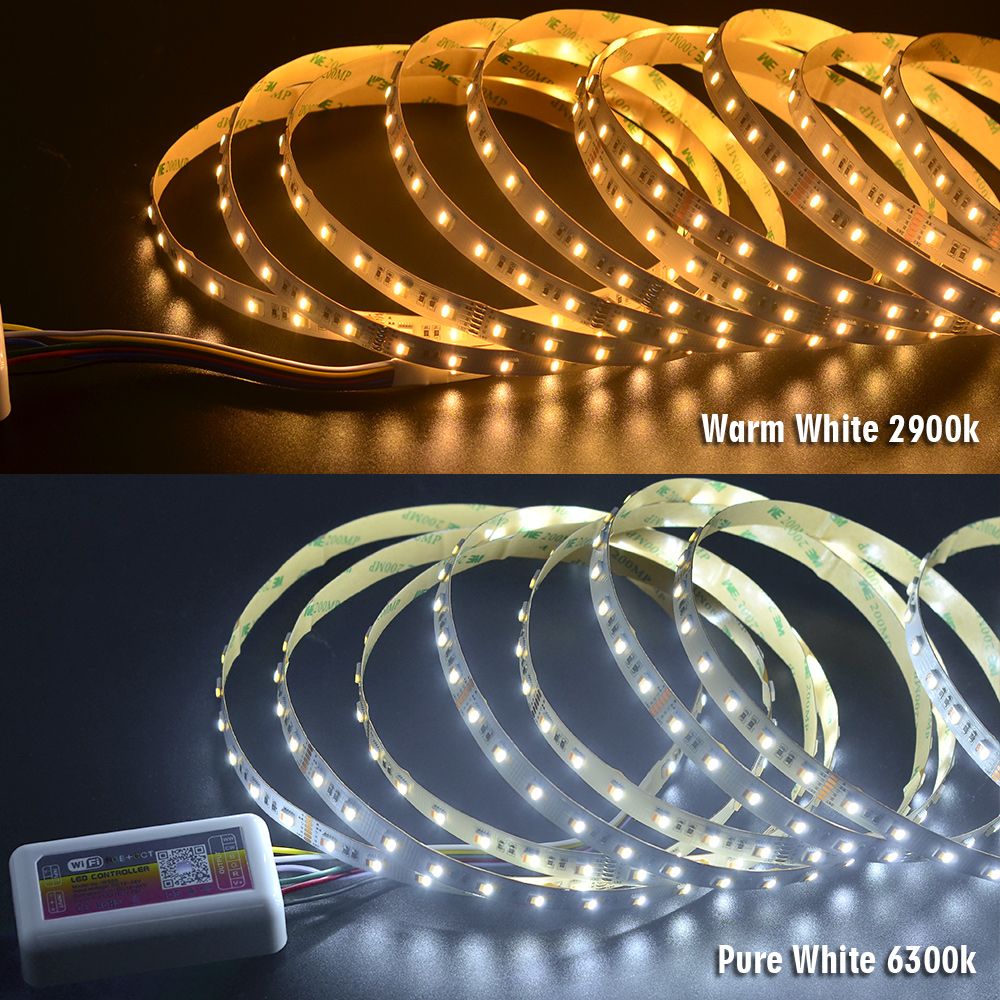

RGBCCT color changing led strip lights with 5in1 5050 SMD LEDs have both RGB color and dimmable white light color, integrate red color, green color, blue color, 3000K warm white color, and 6000K daylight white color five colors in one LED. They have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, more color options, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 12V/24V DC power supply to drive.

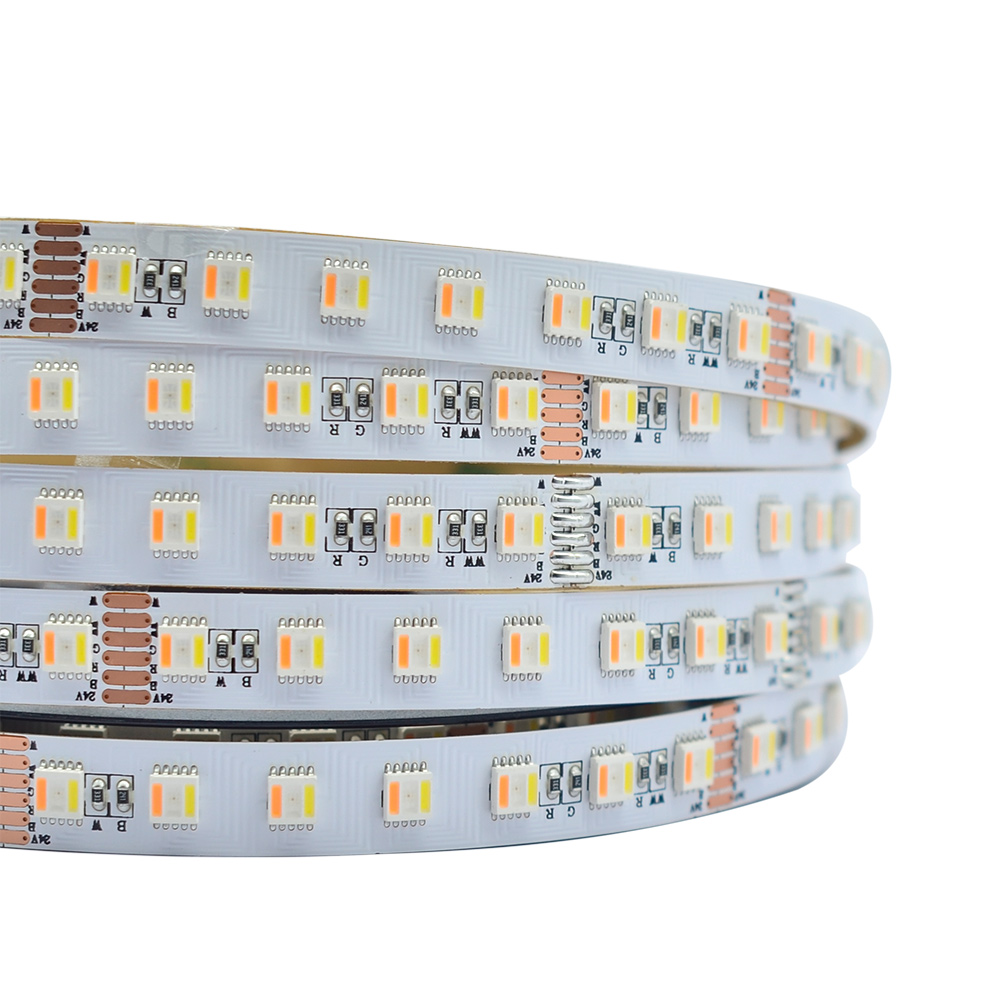

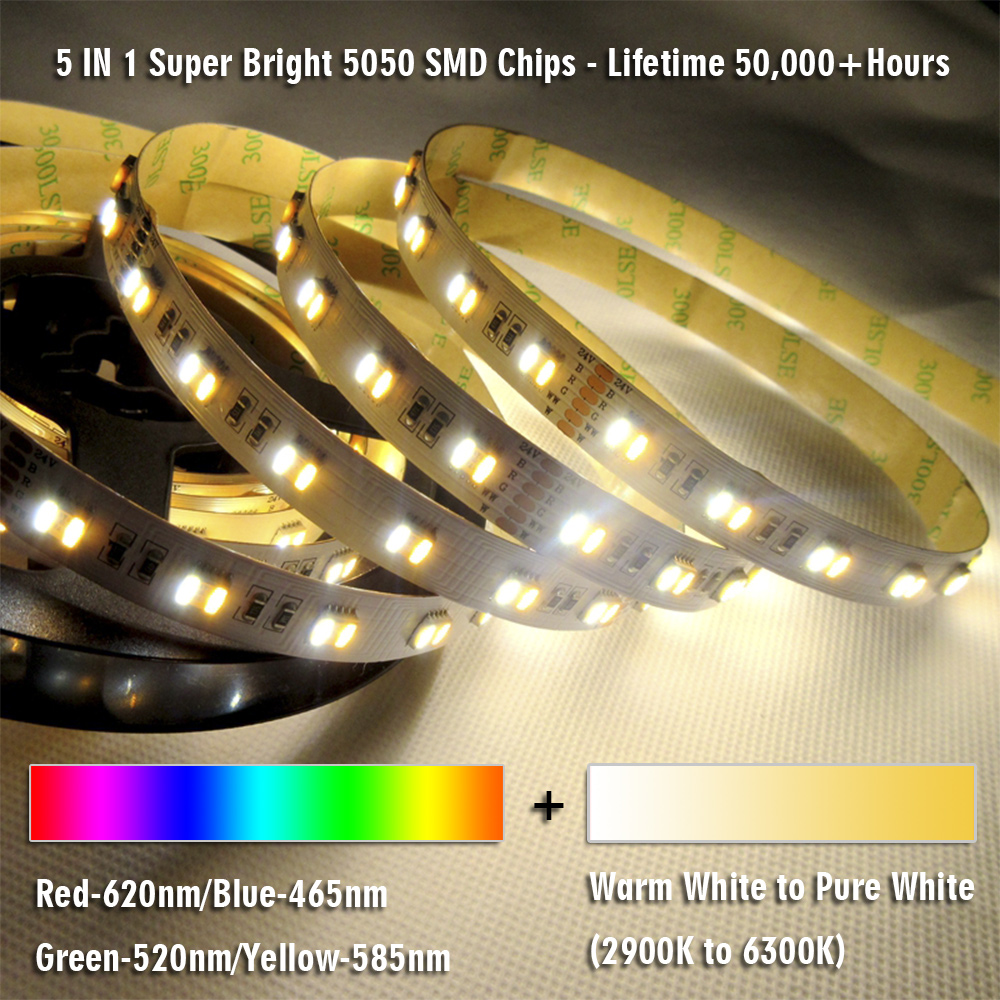

5050 5 in 1 LED, RGB color + Warm white color + cool white color in one LED
More color options and good color mixing

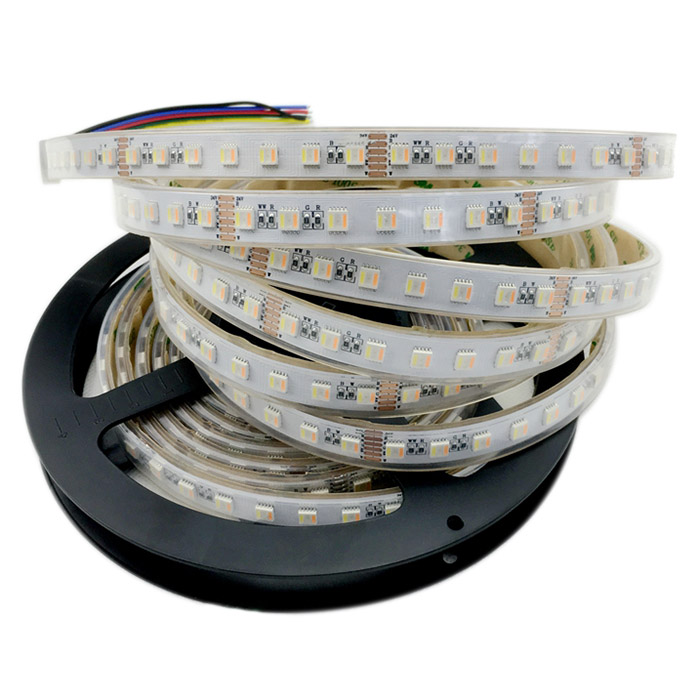

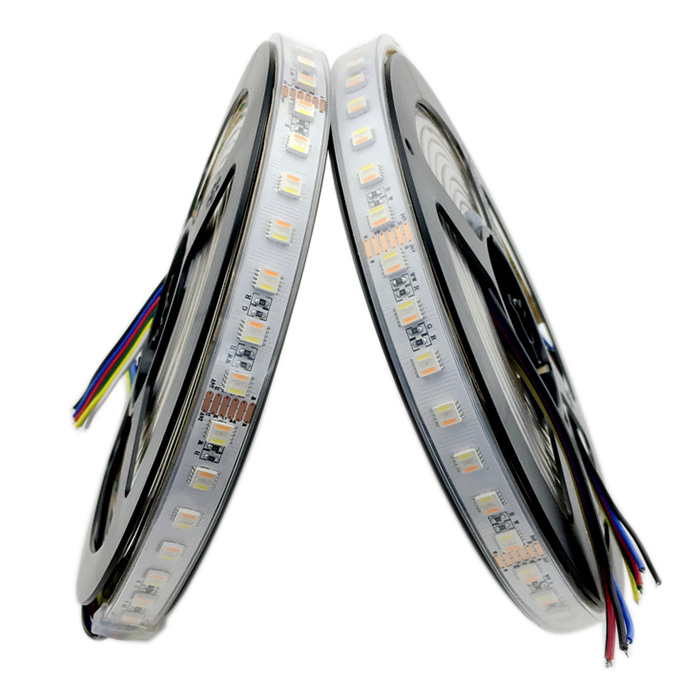

IP20/IP65/IP67/IP68 waterproof ratings for indoor lighting and outdoor lighting
12V RGBCCT LED Strip vs 24V RGBCCT LED Strip:
12V RGBCCT led strip light has a cut unit with 4 color change lights, cut 48mm; Connect to 12V power supply.
24V RGBCCT led strip light has a cut unit with 7 5in1 lights, cut 83.3mm. Connect to 24V power supply.
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBCCT 420LEDs/16.4ft|
|LED Chip:||Epistar Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGBCCT (RGB multi color + 2700K-6500K CCT white light color)|

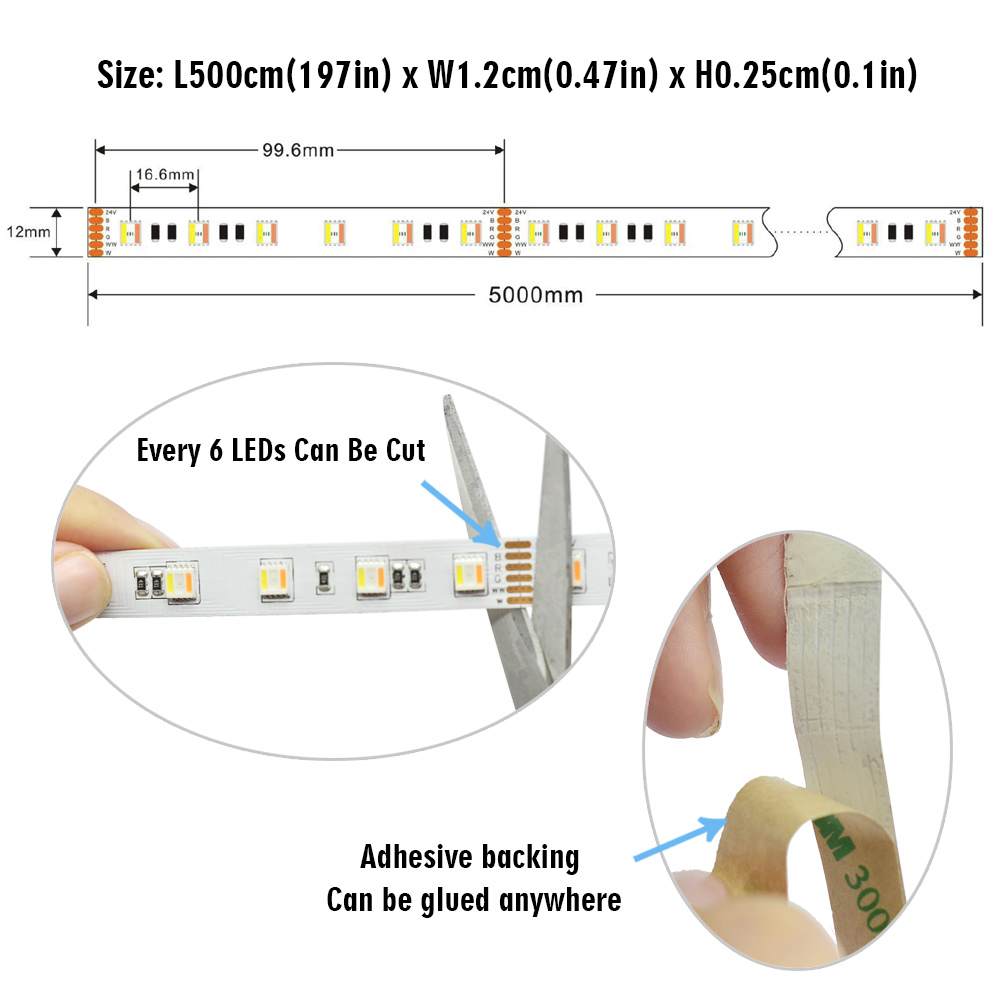

|Dimension:||16.4ft/roll, every 4/7 PCS LED can be cut|
|LED Quantity:||84 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||5A 118W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBCCT led strip wiring diagram:

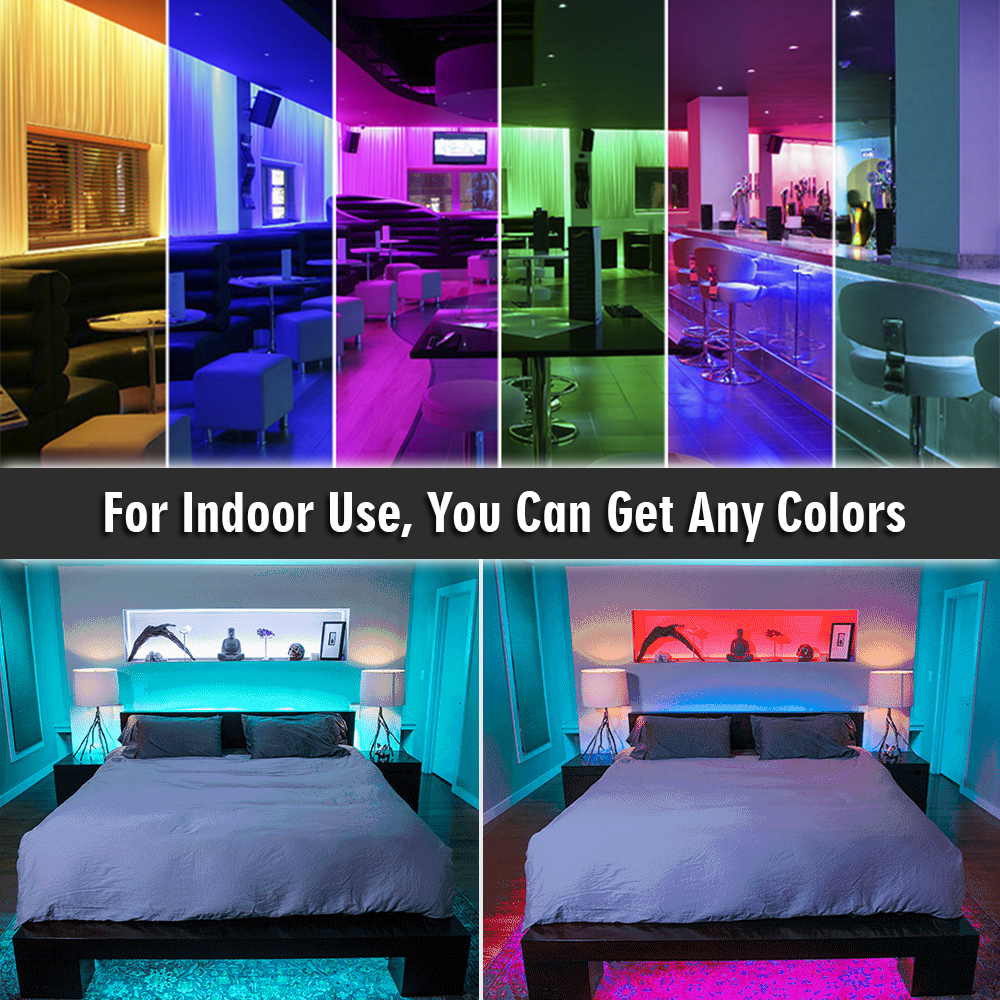

LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
|By : Jani Lehtimäki Date Added: 01/27/2019|
|Absolutely perfect as task lighting :)|
