Special Price: $45.98
The stock situation of WS2815 RGB+White IC chips is unstable, if you need it very urgently, it’s recommended to buy CS8812 type, the function is similar.

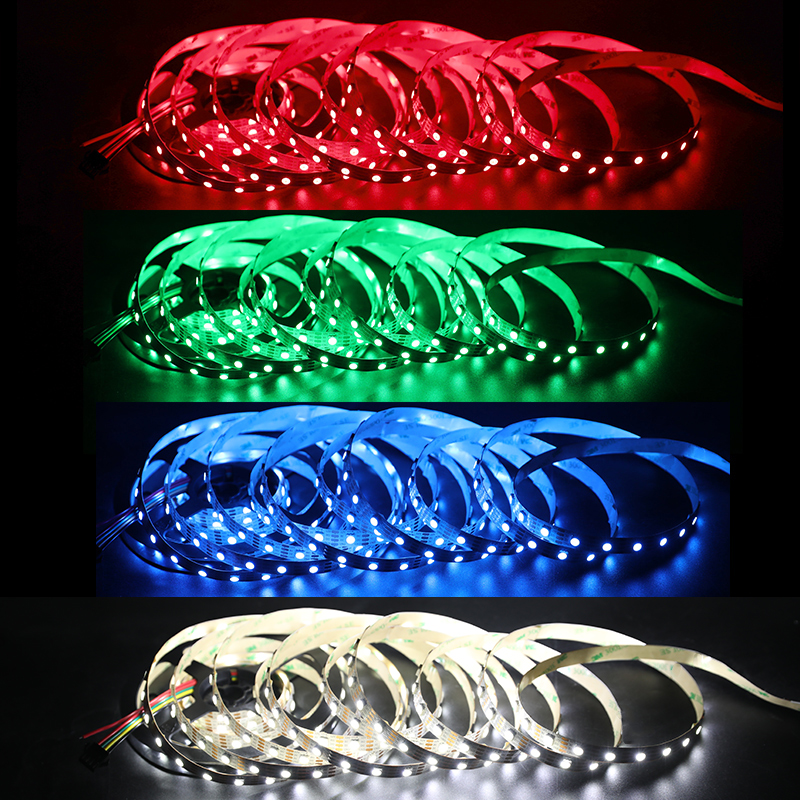

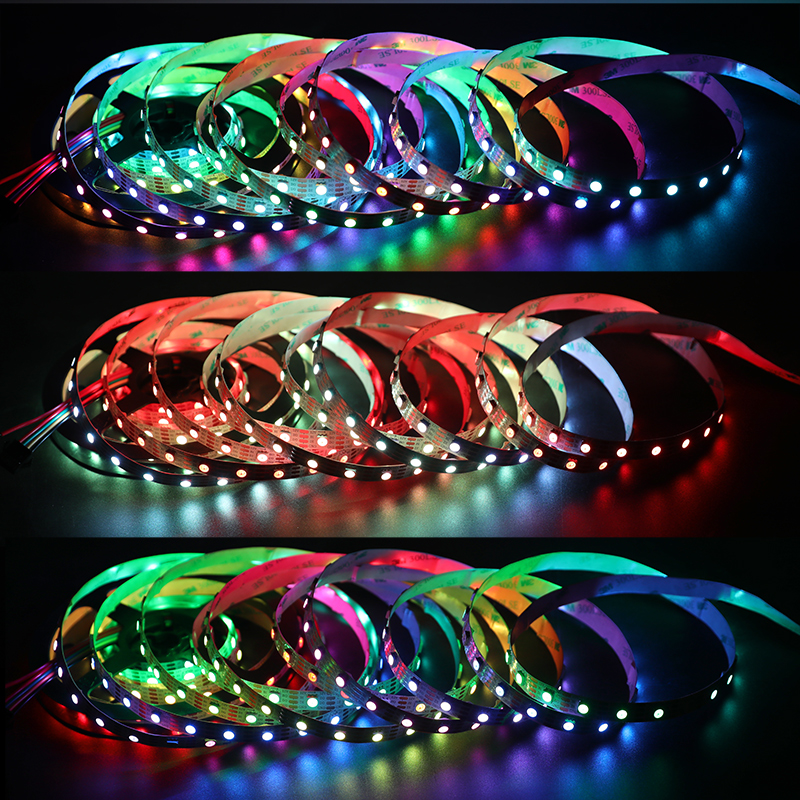

Our individually addressable WS2815 RGBW light strip supports single point single control, providing rich colors and dynamic effects. This RGBW pixel LED strip has 60 5050 LEDs per meter, each with an integrated WS2815 IC. With the addressable RGBW LED controller, you can precisely control each LED for personalized and varied lighting effects such as dynamic fades, chases, flickers and more.
Compared with ordinary RGB strips, this RGBW pixel strip adds a separate white LED channel, which can provide higher brightness and purer white light. Moreover, it can precisely adjust the brightness of each color as needed for rich color variations. This flexible RGBW pixel 5050 LED strip is 10mm wide and can be cut every 16.66mm, with one light per cut. This flexibility makes it suitable for installation in neon tubes with an internal width greater than 10mm to create a variety of creative lighting projects. The colorful and dynamic RGBW strip is used in a wide range of applications, such as interior decorations, commercial displays, and advertising sign lighting.
Feature

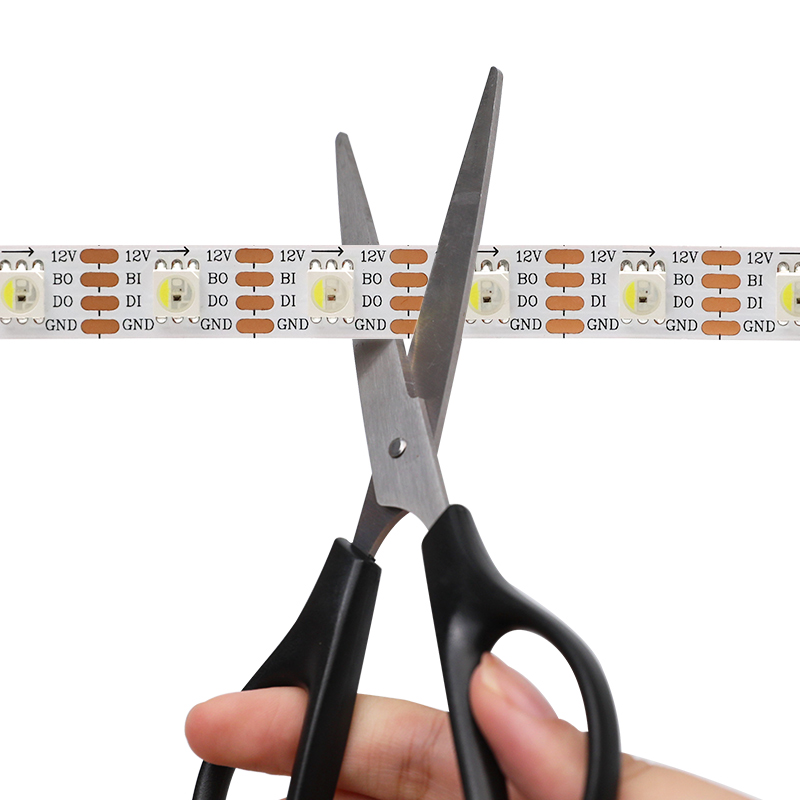

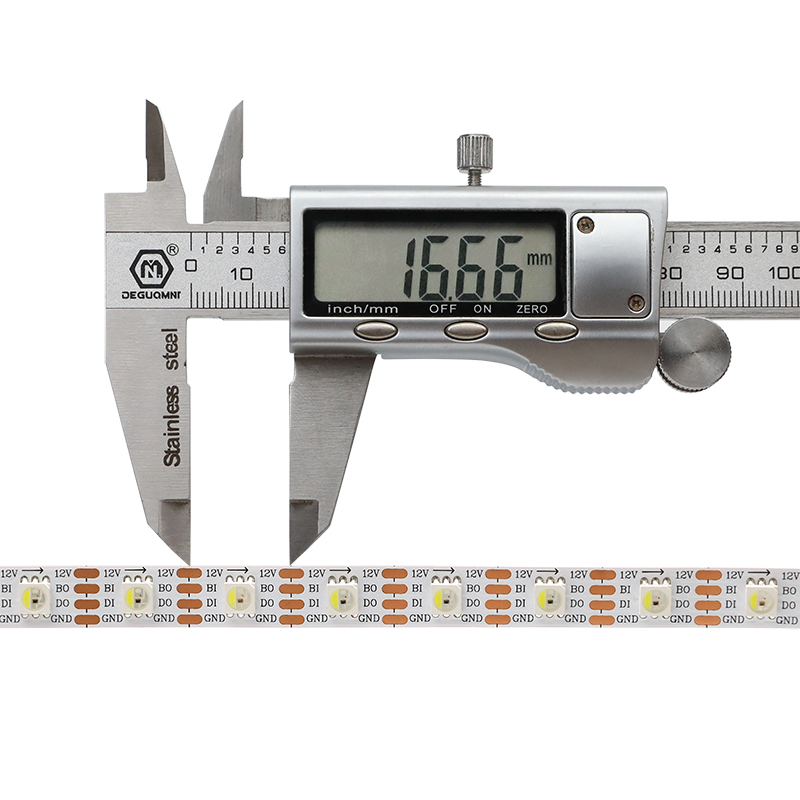

1. 10mm WS2815 LED strip, can be cut every 16.66mm.
2. SMD 5050 LED tape, bright illumination with superior performance.
3. Density of 60 LEDs per meter, RGBW color individually addressable.
4. IP20, IP65, IP67 and IP68 waterproof ratings available, perfect as smart rgbic outdoor lights
LED Strips + Controller: 16.4ft LED Strip + SP530E LED controller
LED Strips + Controller + Power Supply: 16.4ft LED Strip + SP530E + LRS-150-12 + AC Plug
If you need lighting accessories, please click here to buy. For waterproof power supply, click here.
WS2815-RGBW-60D Specifications Download
16.4Ft, RGB+6000K Color, IP20 Version Available in Amazon Platform:
Product Specification
| LED Strip Type: |
10mm WS2815 5050 RGBW LED Strip Light Programmable |
| LED Chip: | 5050 SMD |
| Input Voltage(V): | 12VDC |
| Length: | 16.4ft/roll, every LED (16.66mm/0.65") can be cut |
| LED Quantity: | 60 LEDs/m/3.28ft |
| IC Quantity: | 60 pixels/m/3.28ft |
| Working Power: | 12W /M/3.28ft |
| LED Color: | Addressable RGB +4000K/6000K |

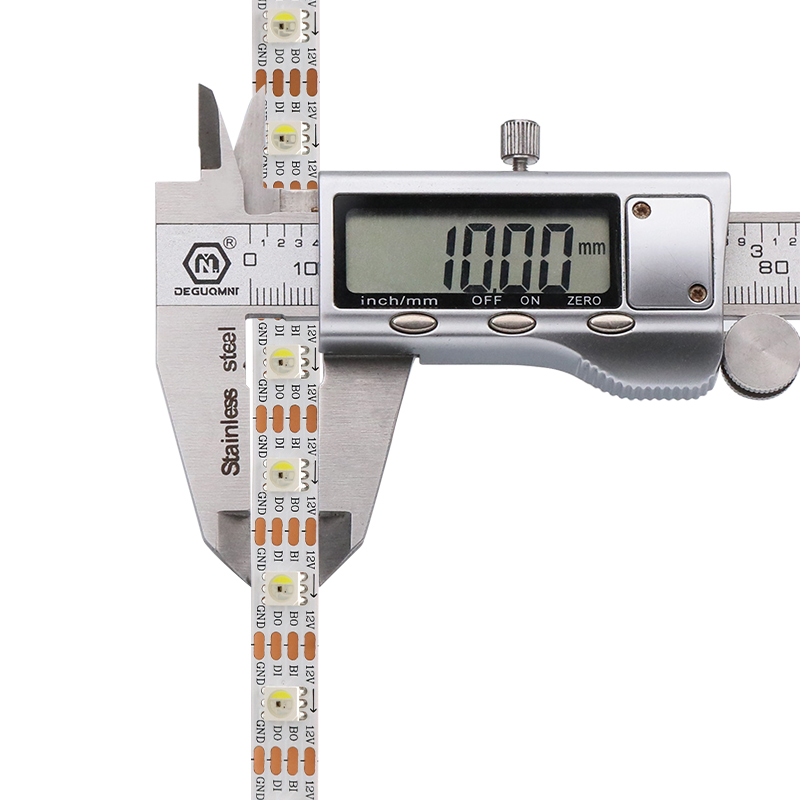

| PCB Width: | 10mm/0.39'' |
| Waterproof Rating: | Non-waterproof IP20, Waterproof IP67 |
| IC Type: |
WS2815
|
| Lumen: | 88.3LM/W, 1060LM/M, 5300LM/Roll |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
