DC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll

Model: DCFLS-12V-TM1914X300 Review stars 5.0 (1 Reviews) Various options in stock
Starting at: Can.$70.58 Can.$36.6948% off
Qty Discounts Off Price
1-9
Can.$36.69		 10-49
Can.$35.96		 50-99
Can.$34.85		 100+
Can.$33.39
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

1. The TM1914 LED strip is addressable light, breakpoint- continue, and can be programmed and controlled by the help of controller.

2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.

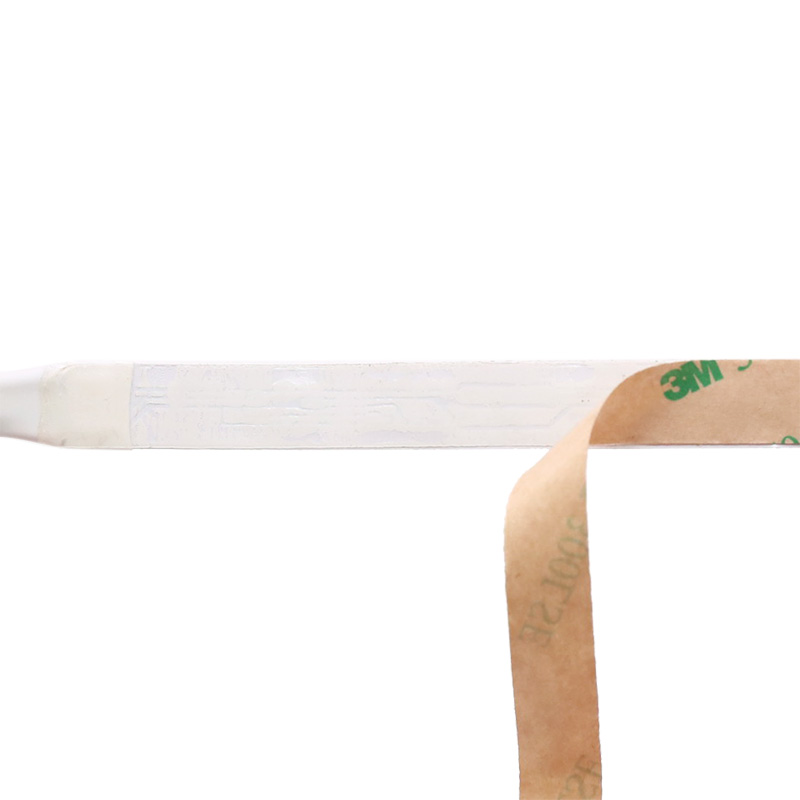

3. There is a strong 3M tape backing on the strips, which can be ripped off  and stuck to most surfaces.

4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source,  and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness,  cleaner, lower energy consumption and more beautiful.

5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.



TM1914 RGB LED Strip Datasheet PDF



Specifications

Input voltage:  DC12V

Power:  14.4watt/meter, 72watt/roll

LED Chip Model:  SMD 5050 RGB

LED resource:  TM1914 LED

IC Type:  TM1914 IC (1 IC drives 1 led chip)

Q'ty of LED:  60 leds/meter Available

Q'ty of IC: 20 pixel/meter

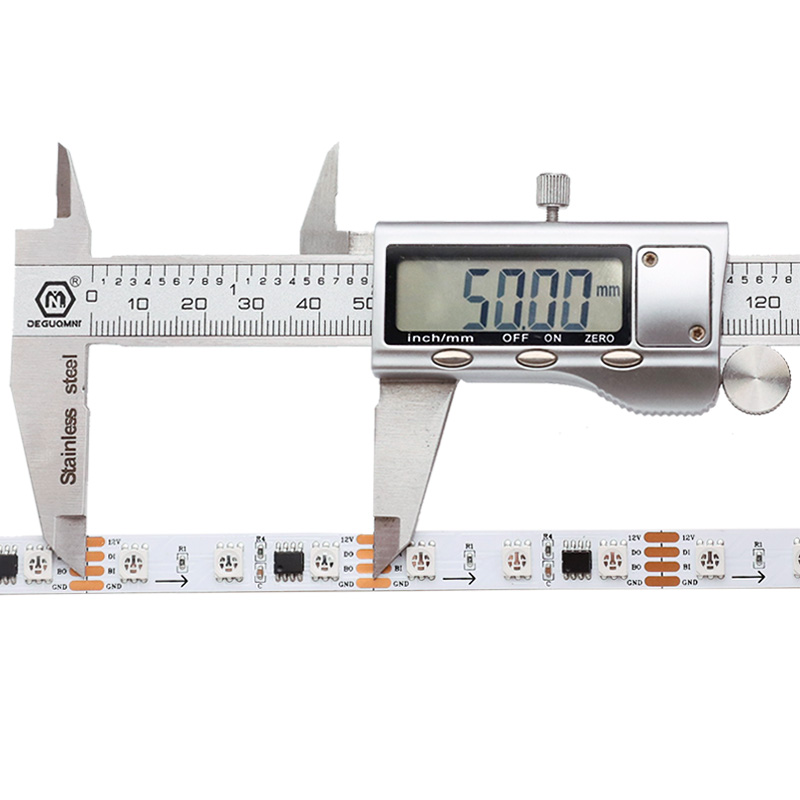

Cuttable:  every  3 LED is cuttable

Dimensions:  L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )

PCB color:  WHITE

Protection rate:  Non-waterproof  or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)

Colors:  Full color RGB, dream color changing;

Grey scale:  256

Bits/color:  8-bits/color;total 24bit for RGB color

Average Life (hrs):  50000Hours+

Certification:  CE,FCC,GS,SAA,RoHS,CCC

Beam Angle: 120 degrees

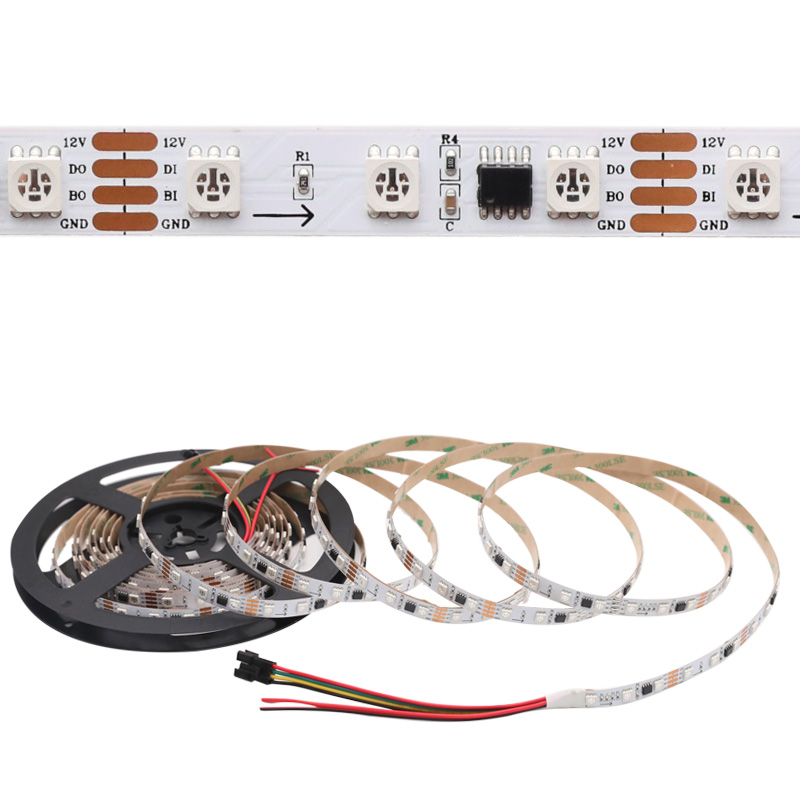

Pin Function

DO: Control data signal output

DI: Control data signal input

BO: Backup control data signal output

BI: a Backup control data signal input

GND: Data &Power Grounding



LED strip wiring diagram

how to connect tm1914 led strip

DC12V TM1914 RGB 300 LEDs Addressable Digital Strip LightsDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos
B
09/01/2026
5 or 5 stars

Breakpoint feature is a lifesaver for installs

Used about 4 rolls of these TM1914 strips to build a large backlit media wall for a client. My biggest concern on a permanent install like this is a single LED failing and taking out a whole section down the line, which is a nightmare to fix. The breakpoint-continue feature is the ONLY reason I went with these and it gives me major peace of mind. The light quality is great, really nice diffusion and color from the 300 LED/m density. Stuck to the aluminum channel with no issues using the pre-applied tape. The client was absolutely floored with the final result. Will be my go-to strip for custom jobs from now on.

Downloads

Files for DCFLS-12V-TM1914X300
PDFDCFLS-12V-TM1914X300 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

DC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per RollDC12V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

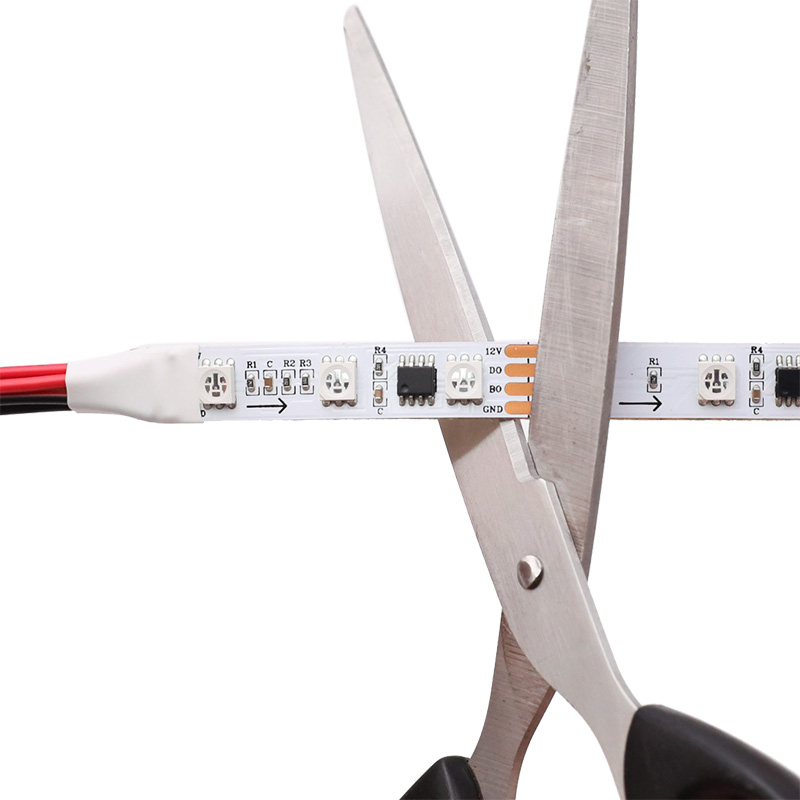

Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
