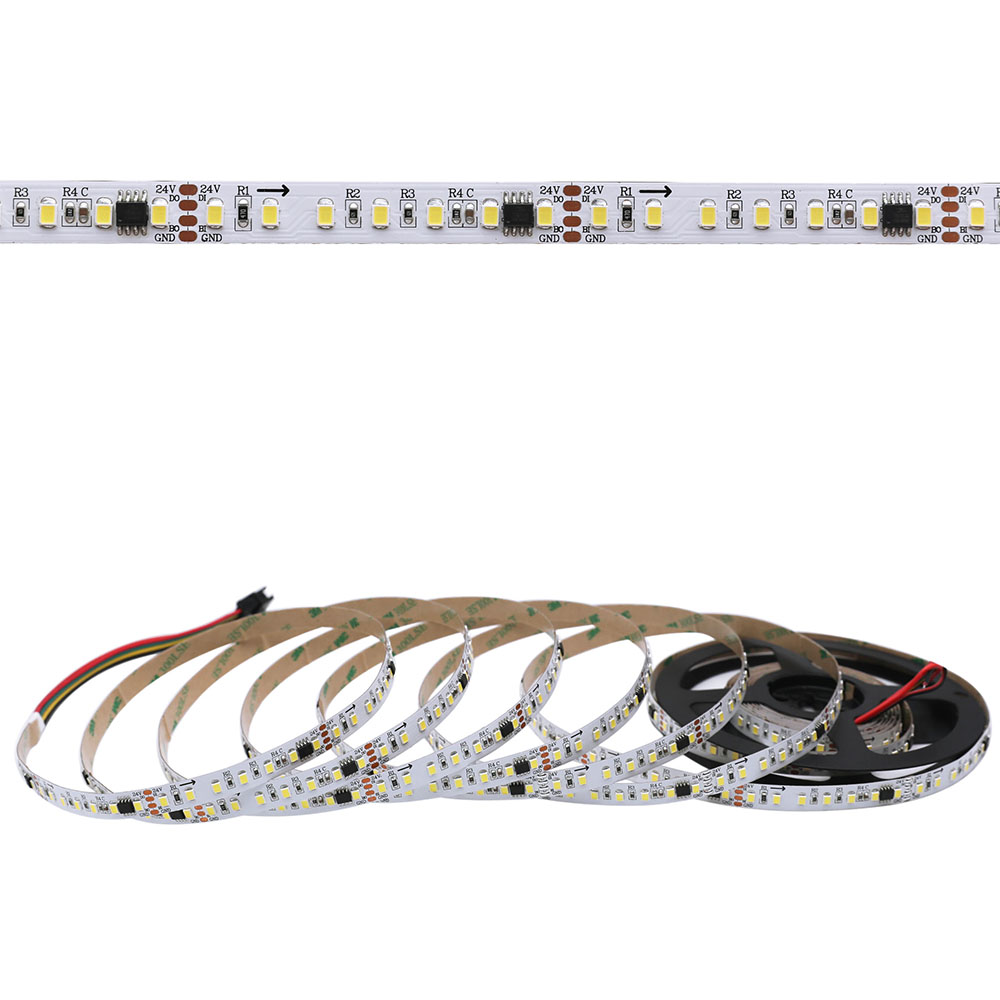

TM1914 2835SMD 112LEDs/m Single Color Addressable LED Strips - DC24V Breakpoint Continue Full Color LED Lights
1. Addressable single color LED strips, using 2835SMD smaller LED chips, able to make high density 112LEDs/m high bright LED light strips. Via using the programmable LED controller, the strip light will show you dynamic color chasing effects.
2. DC24V available, one IC controls 7 LEDs, so there are 16 pixels per meter/3.28ft. Every 7 LEDs be cuttable, you can get the length you need easily.
3. Flexible FPC board with high quality materials, better heat dissipation, good conductivity, able to bend.
4. Dual signal line version and signal breakpoint continuous transmission, even one LED damage, it won't affect other LEDs working, suitable for larger LED lighting projects.
5. Waterproof optional, IP20, IP65, IP67, and IP68, apply for indoor or outdoor LED lighting.
Standards and Certifications
Input voltage: DC24V
Power: 15.6 watt/meter, 78 watt/roll
LED Chip Model: SMD 2835
IC Type: TM1914 IC (1 IC drives 7 led chip)
Q'ty of LED: 112 leds/meter Available
Q'ty of IC: 16 pixel/meter

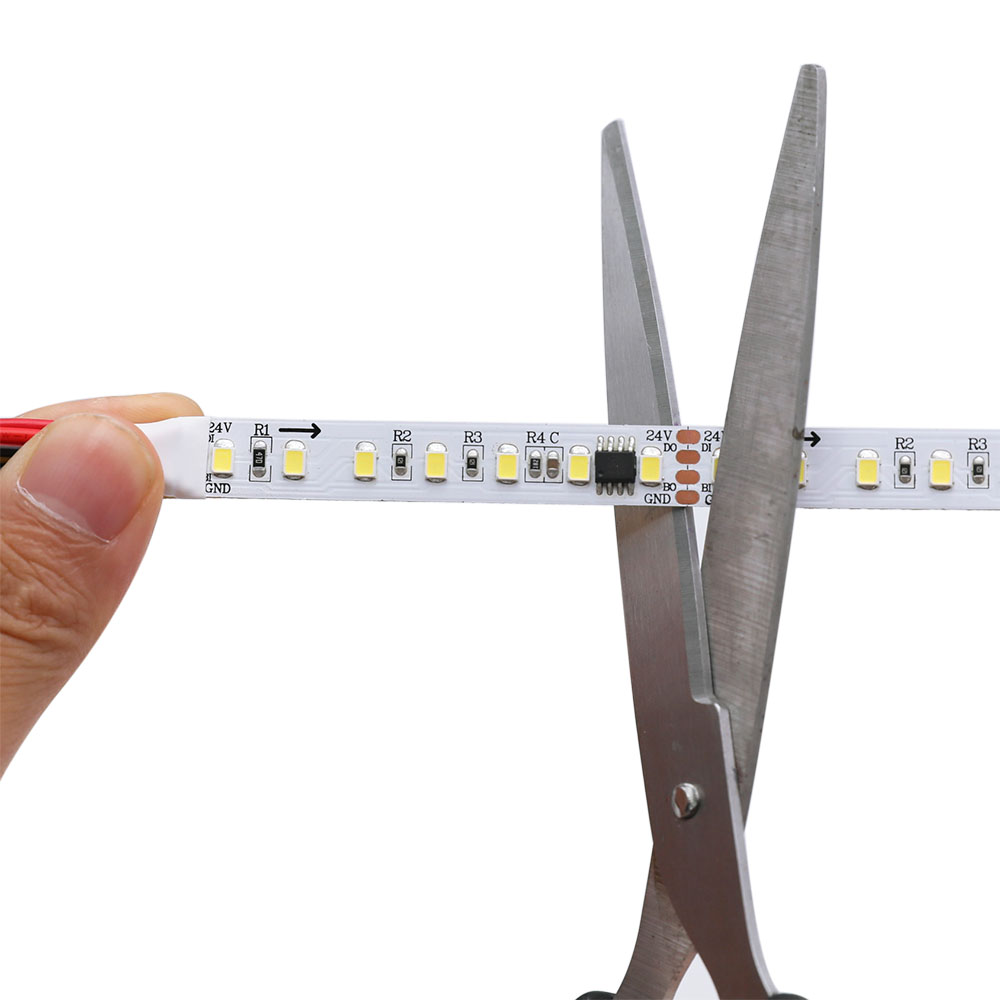

Cuttable: every 7 LED is cuttable

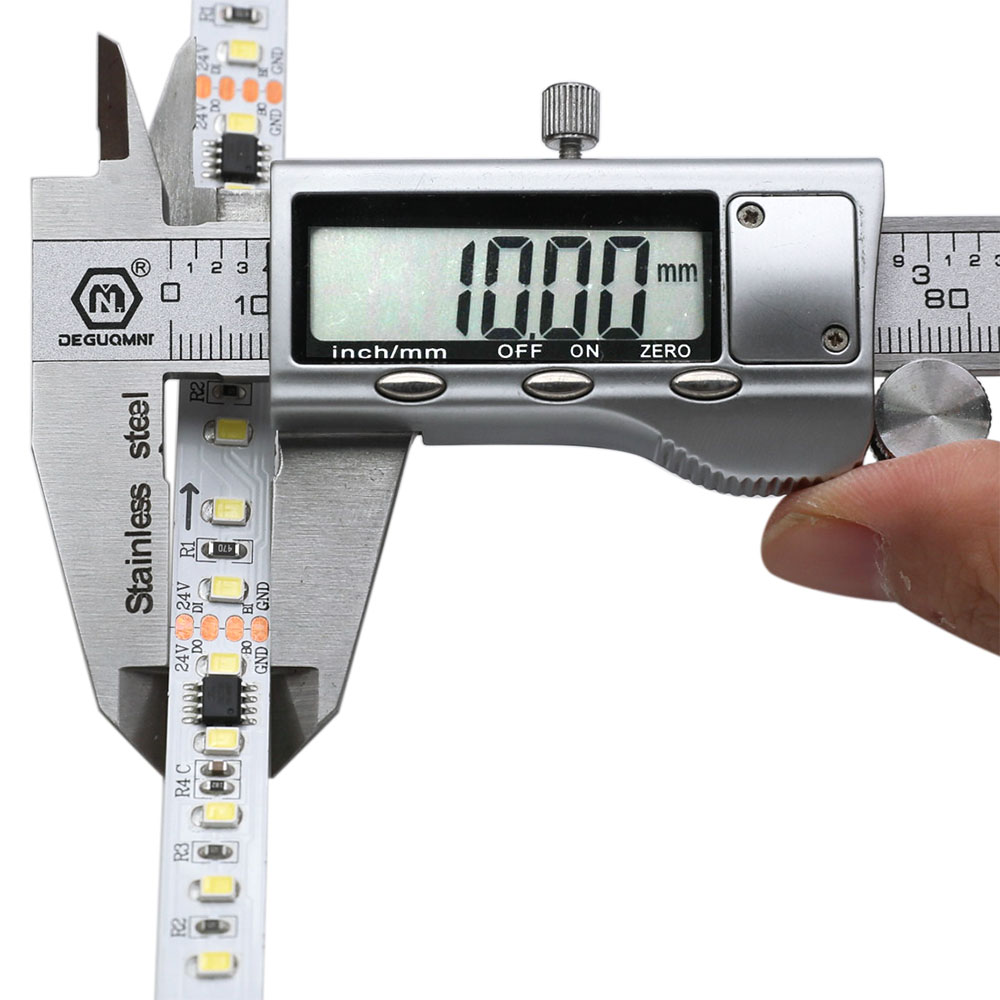

Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.2cm(0.08 in )
PCB color: WHITE
Protection rate: Non-waterproof IP20 or IP65( gel coating) IP67 waterproof (sealed in silicone tube) or IP68 waterproof

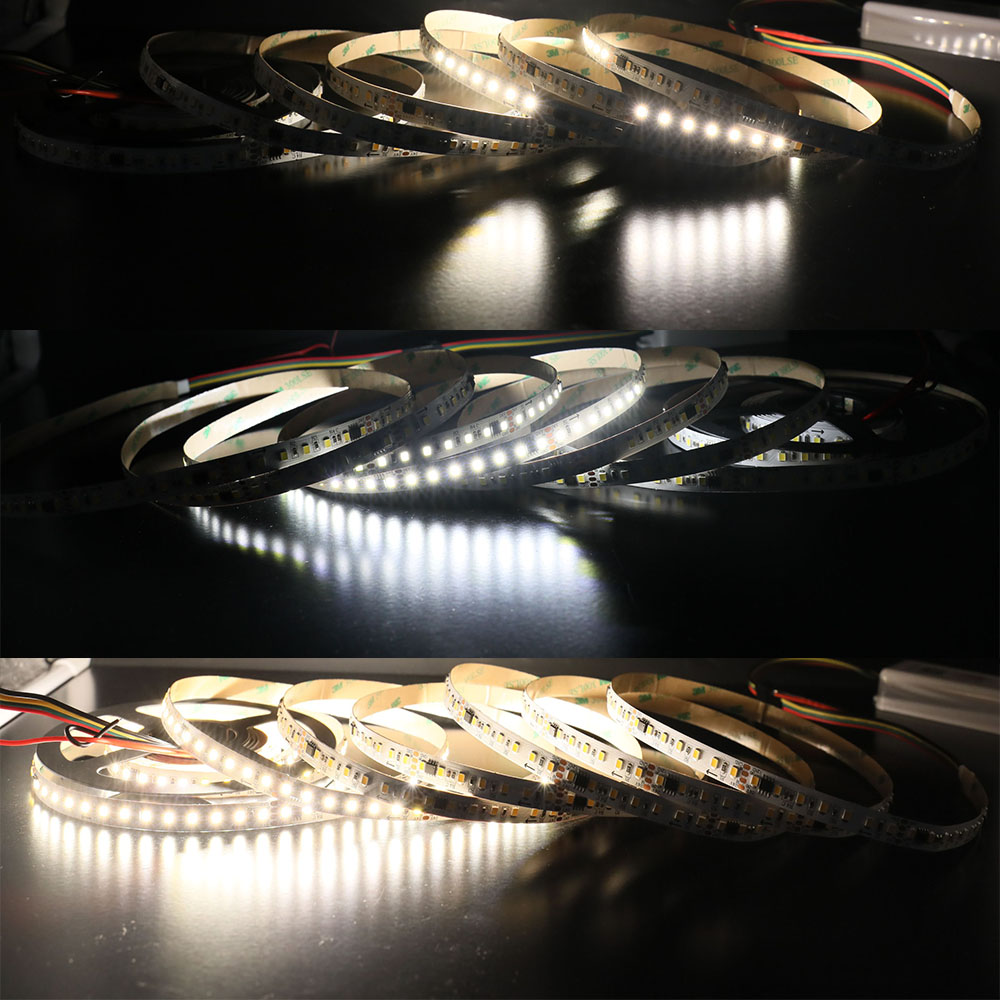

Colors: Single color chasing;
Grey scale: 256
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Waterproof Level Description
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Strip cut schematic
LED strip wiring diagram
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
