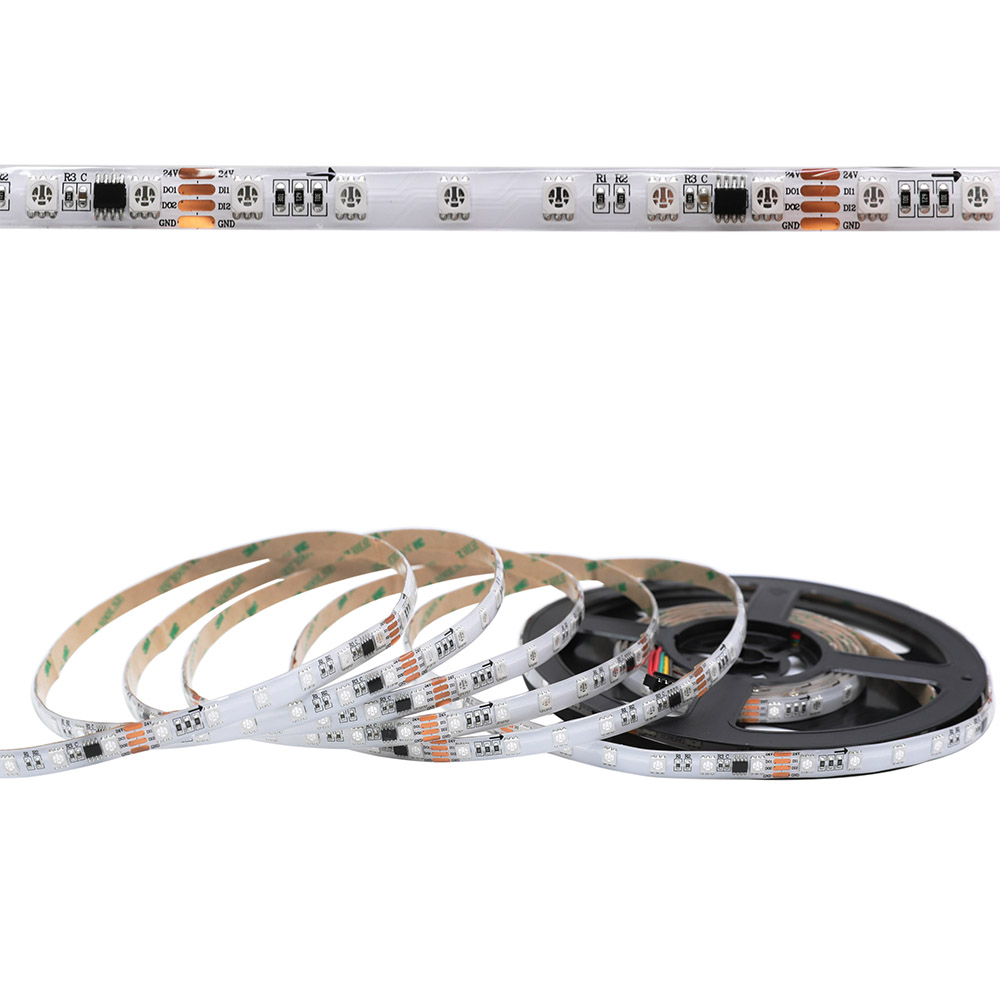

DC24V TM1914 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll
1. The TM1914 LED strip is addressable light, breakpoint- continue, and can be programmed and controlled by the help of controller.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.

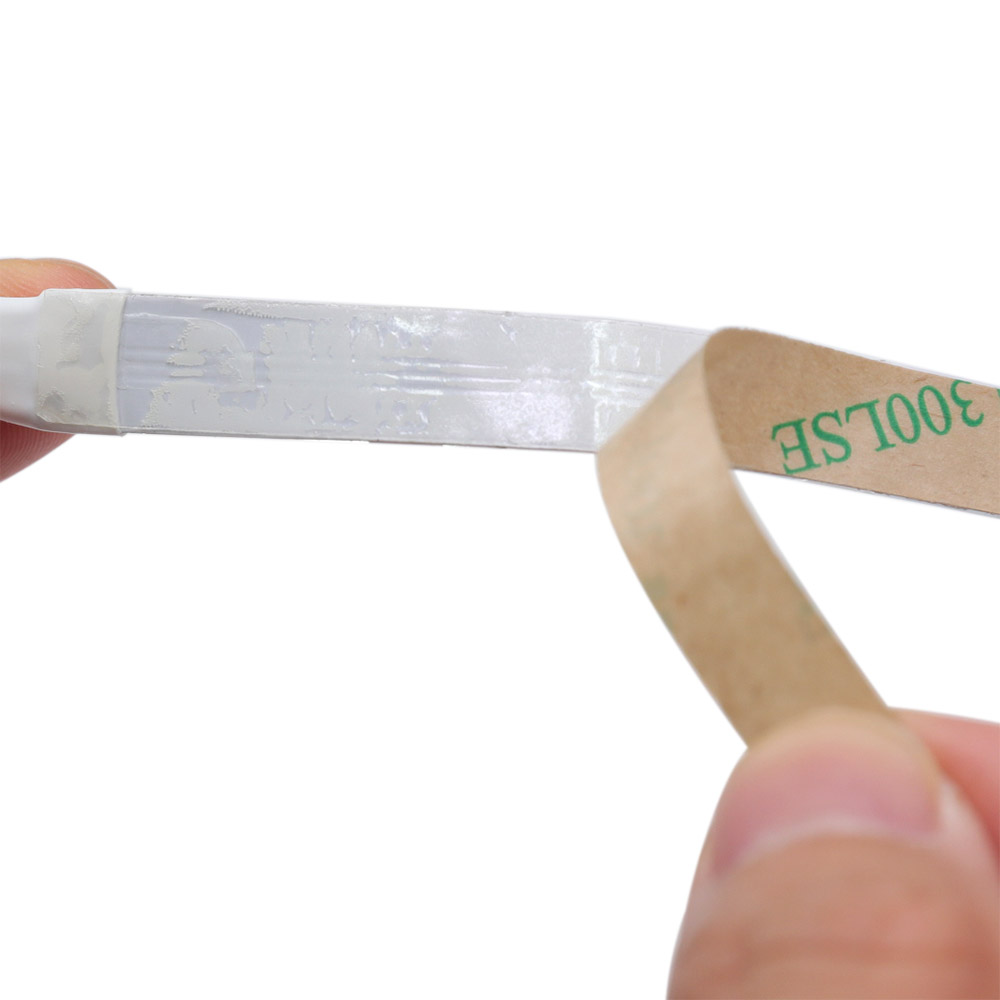

3. There is a strong 3M tape backing on the strips, which can be ripped off and stuck to most surfaces.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
Standards and Certifications
Input voltage: DC24V
Power: 14.4 watt/meter, 72 watt/roll
LED Chip Model: SMD 5050 RGB
LED resource: TM1914 LED
IC Type: TM1914 IC (1 IC drives 6 led chip)
Q'ty of LED: 60 leds/meter Available
Q'ty of IC: 10 pixel/meter

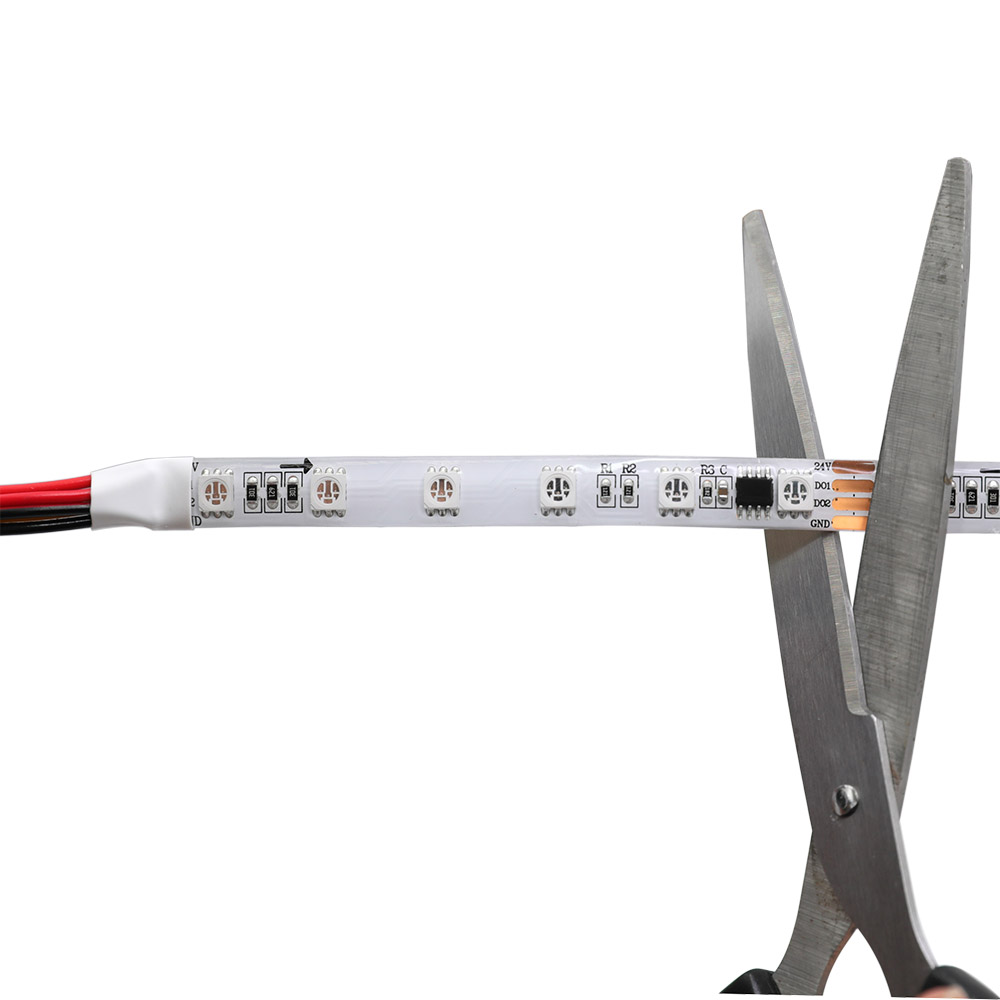

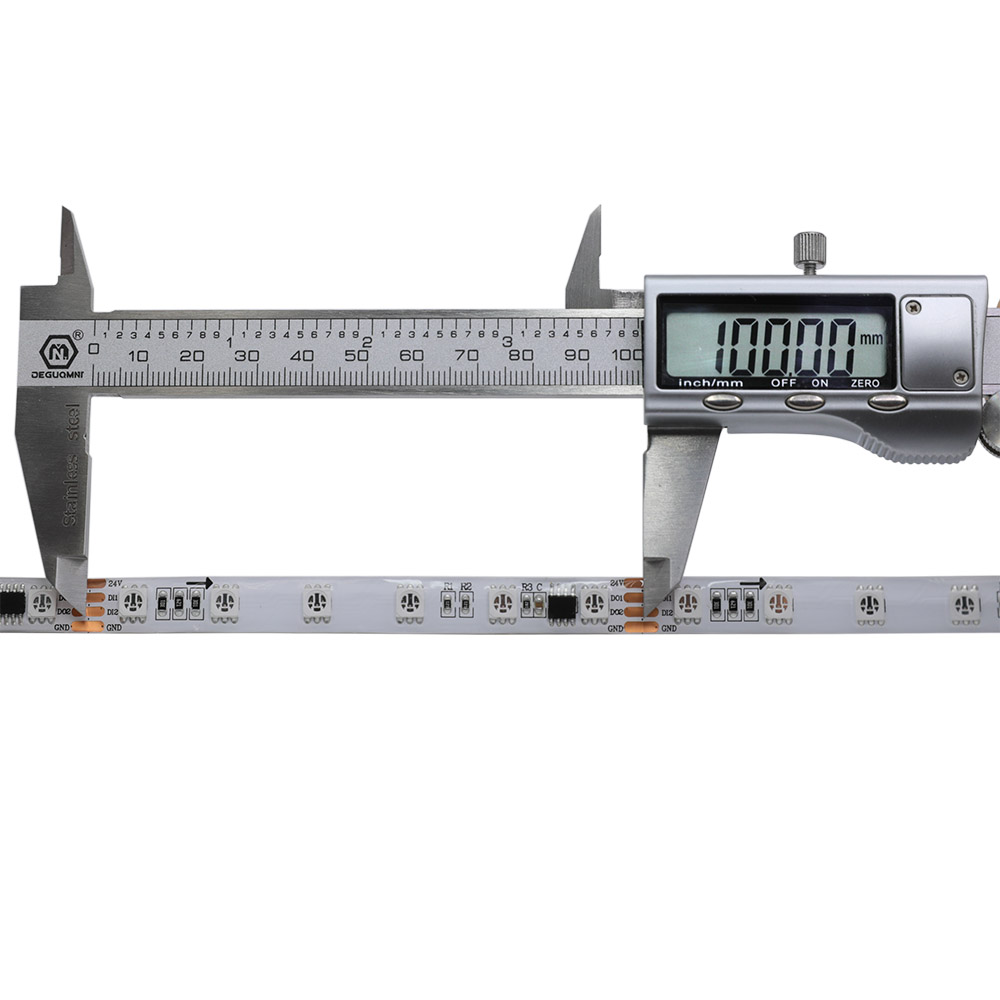

Cuttable: every 6 LED is cuttable

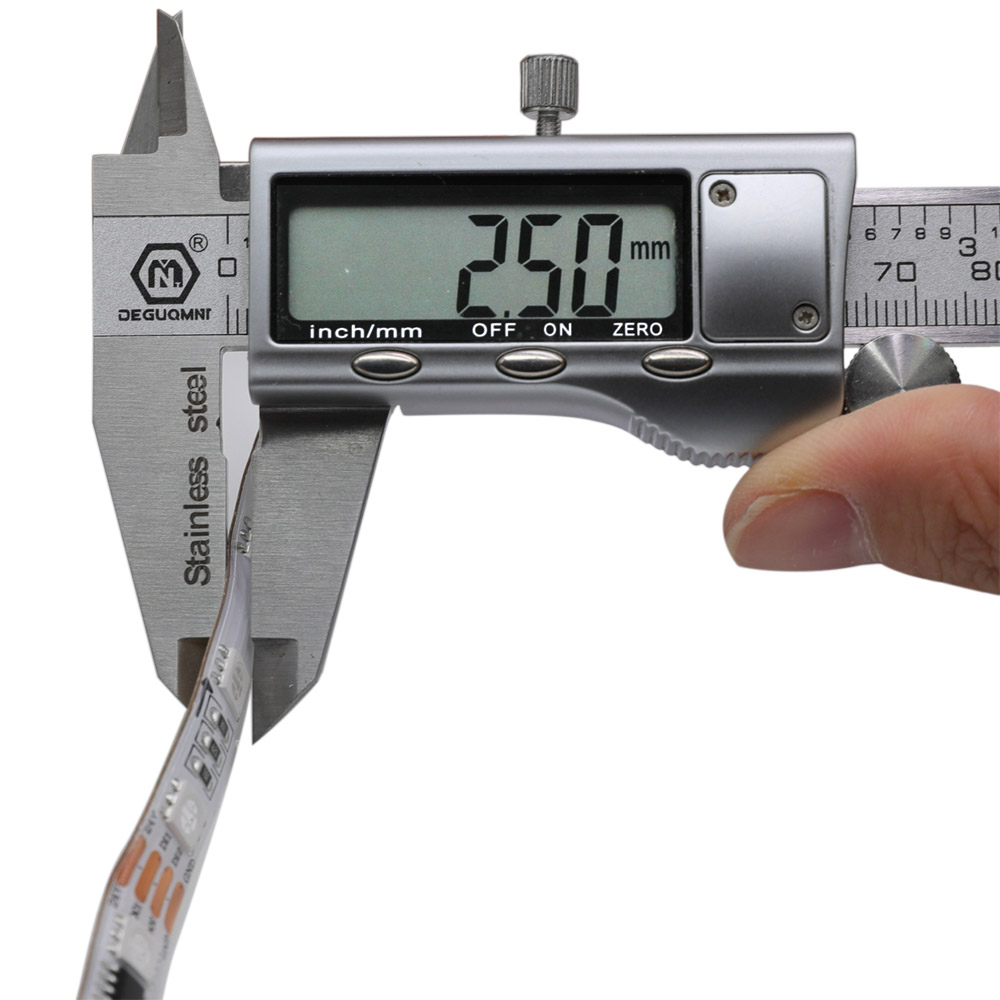

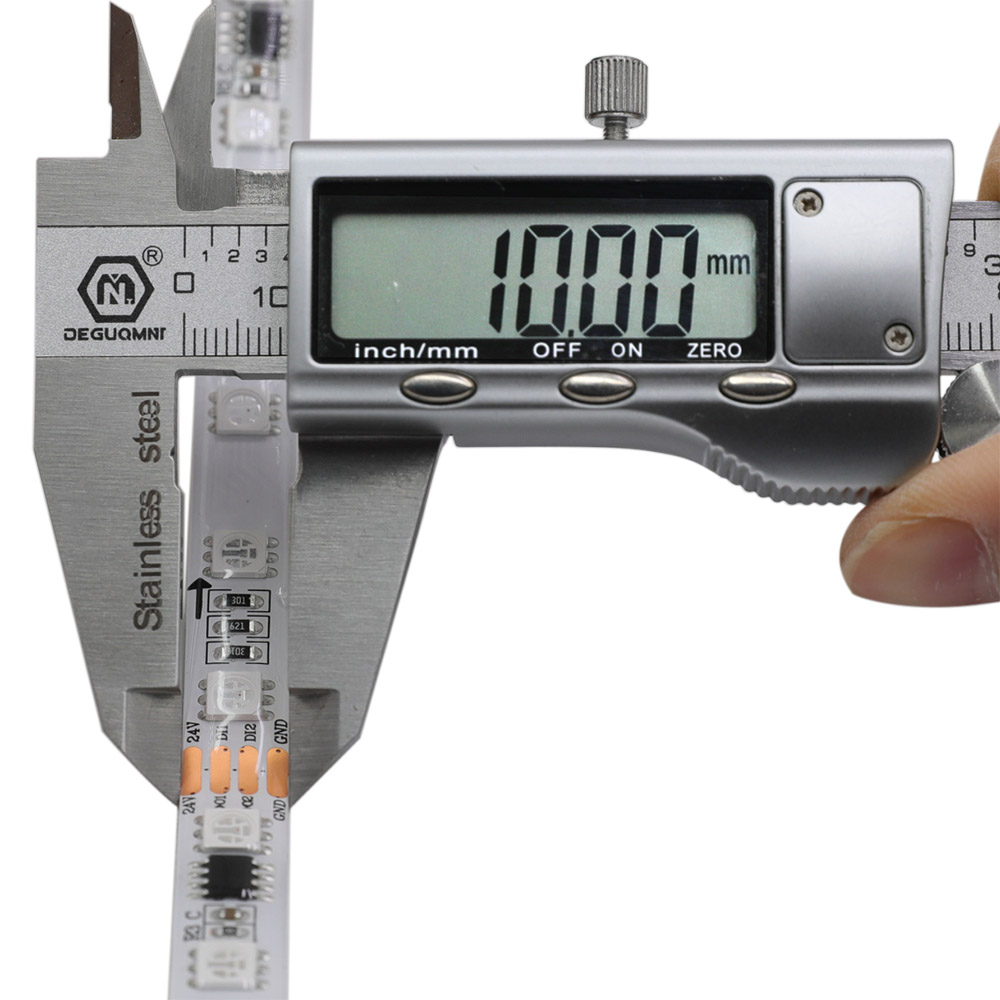

Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )
PCB color: WHITE
Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)

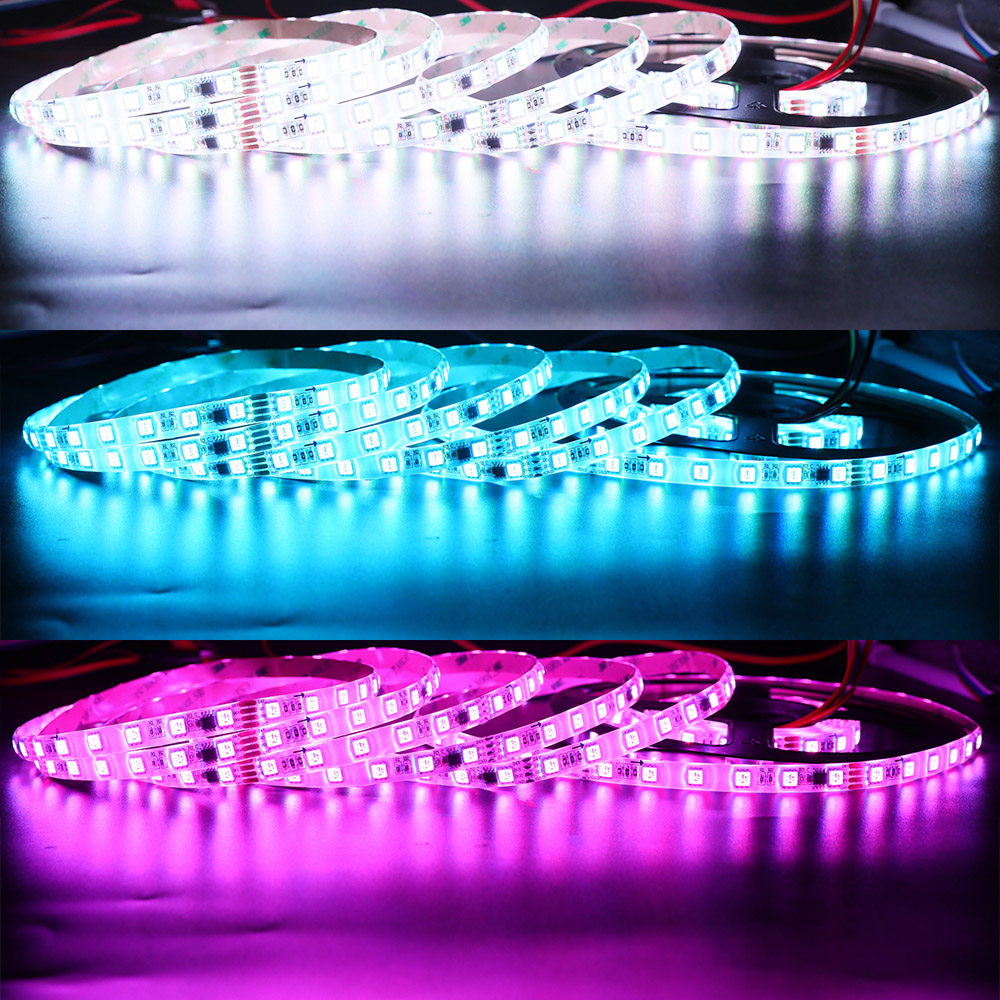

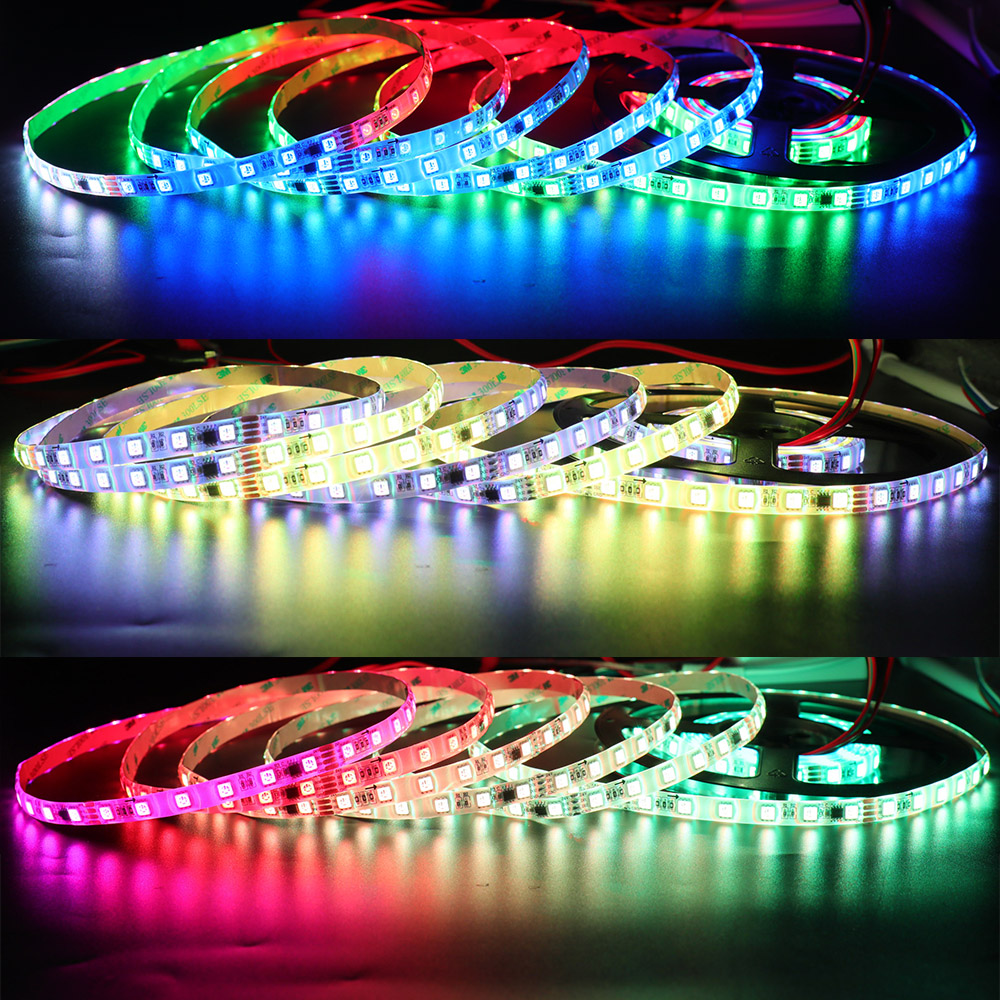

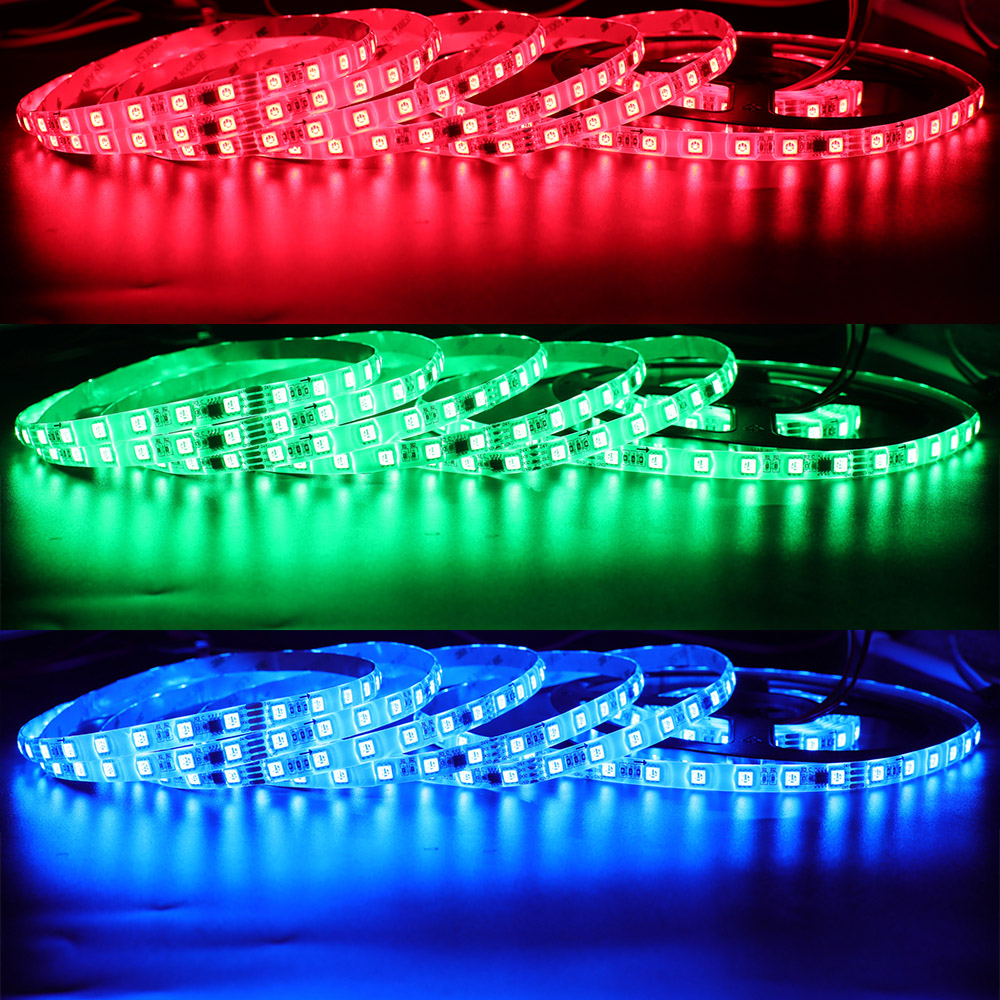

Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Waterproof Level Description

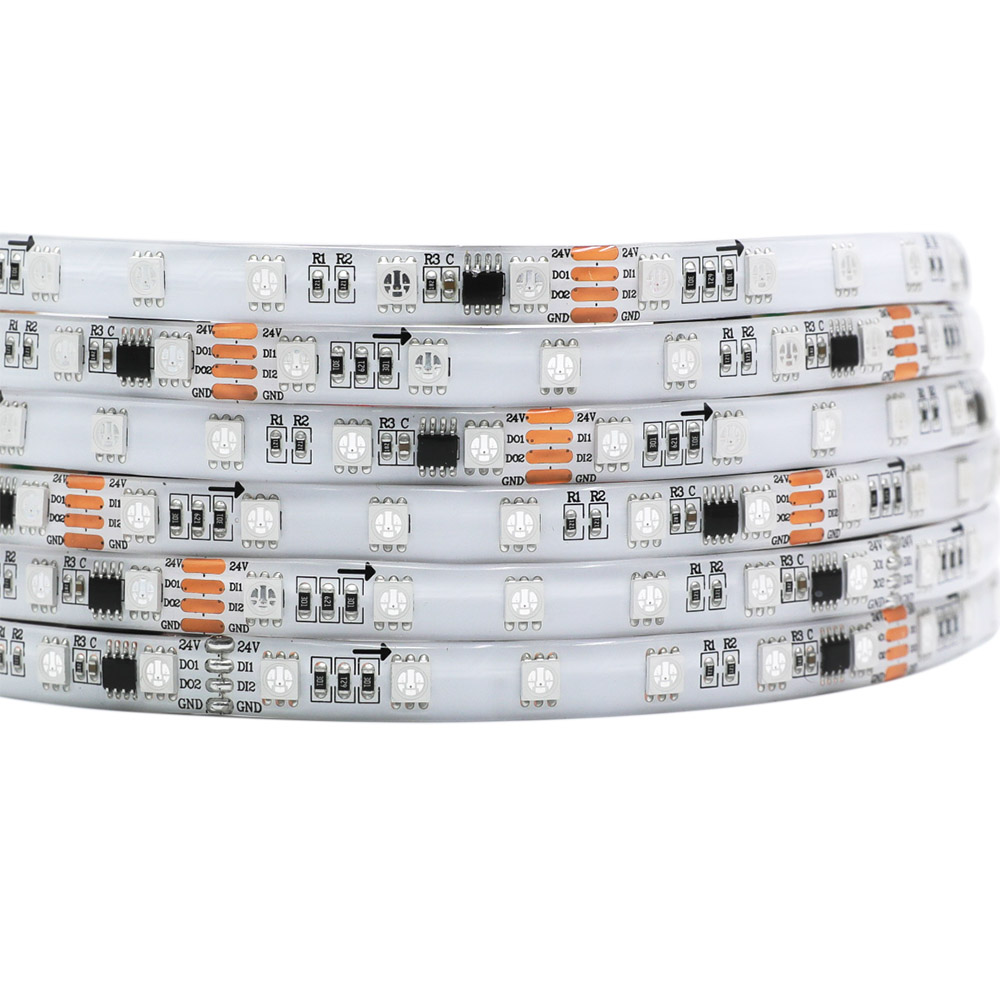

DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Strip cut schematic
LED strip wiring diagram
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
