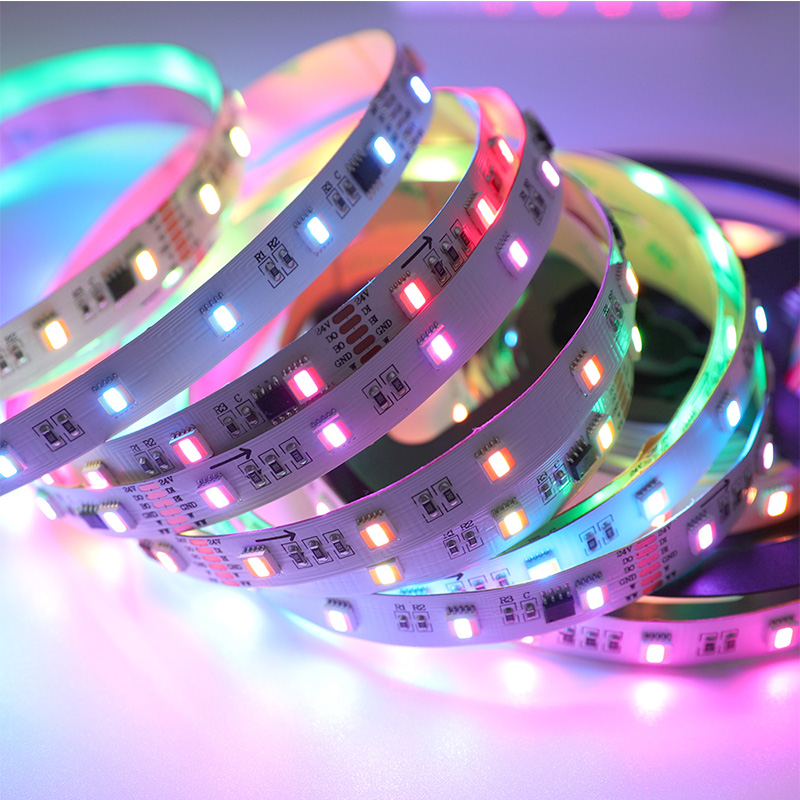

TM1914 Addressable RGBCCT LED Strip Lights - 24V Breakpoint Resume 12mm 48LEDs/m

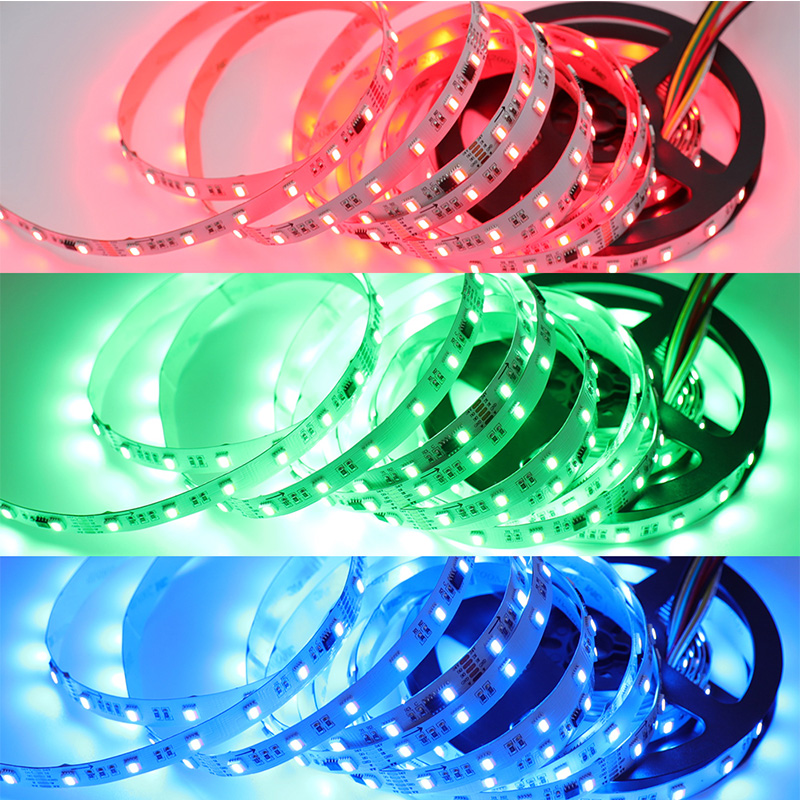

This RGBCCT led strip uses TM1914 IC chip to achieve dynamic color change, display multiple light colors in one strip at the same time.
1. The TM1914 RGBCCT LED strip is addressable, breakpoint- continue, realizes full-color and dual-white color temperature multi-function switching through the addressable dream color controller.
2. Dual signal line version and signal breakpoint continuous transmission. If an RGBCCT 5050 LED damage, the work of other RGBCCT LEDs will not be affected.

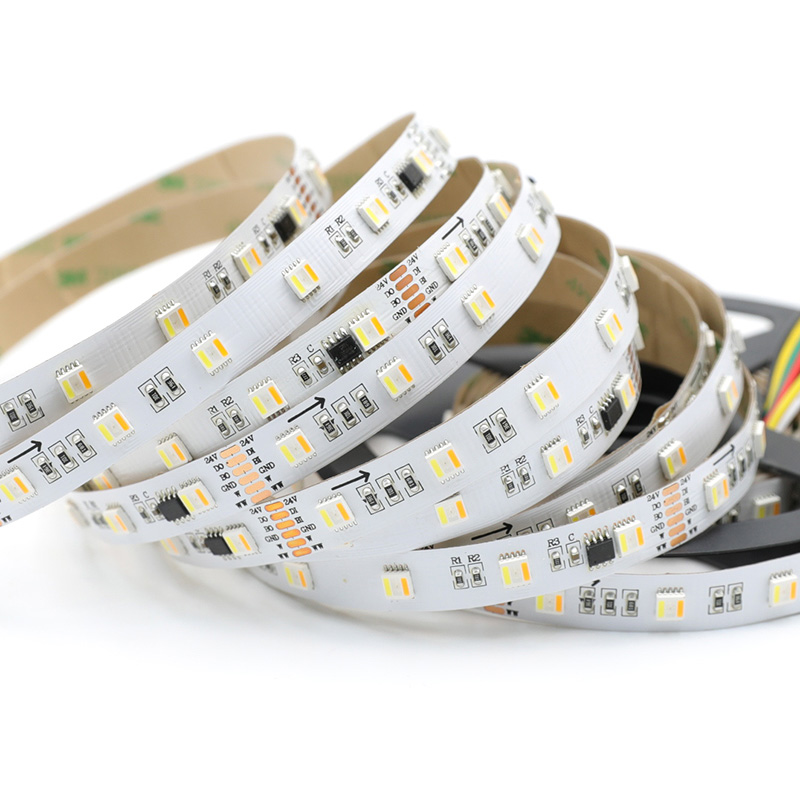

3. There is a strong 3M tape backing on the dream color RGBCCT led strip light, which can be ripped off and stuck to most surfaces.
4. 6 RGBCCT lights form a loop, which can be arbitrarily cut according to the length of the loop without damaging other parts.
5. Adopt the chip of international leading manufacturer, high brightness and wide angle, consistent color and stable performance.

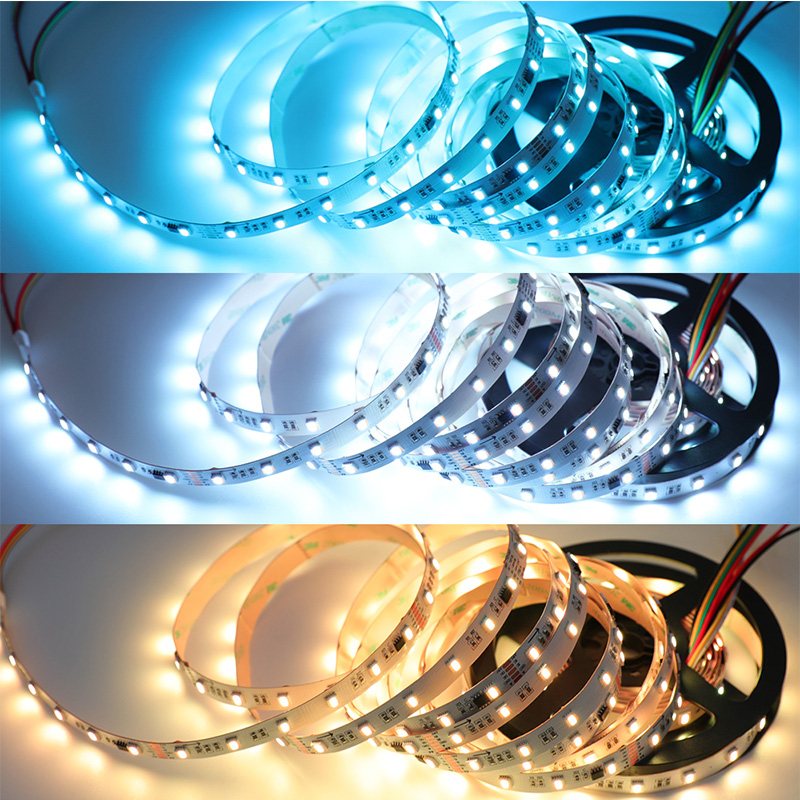

6. The led light color range is full-color RGB, and the white light color temperature adjustable range is 3000k-6500k.
7. IP20/IP65/IP67/IP68 waterproof ratings for indoor and outdoor lighting.

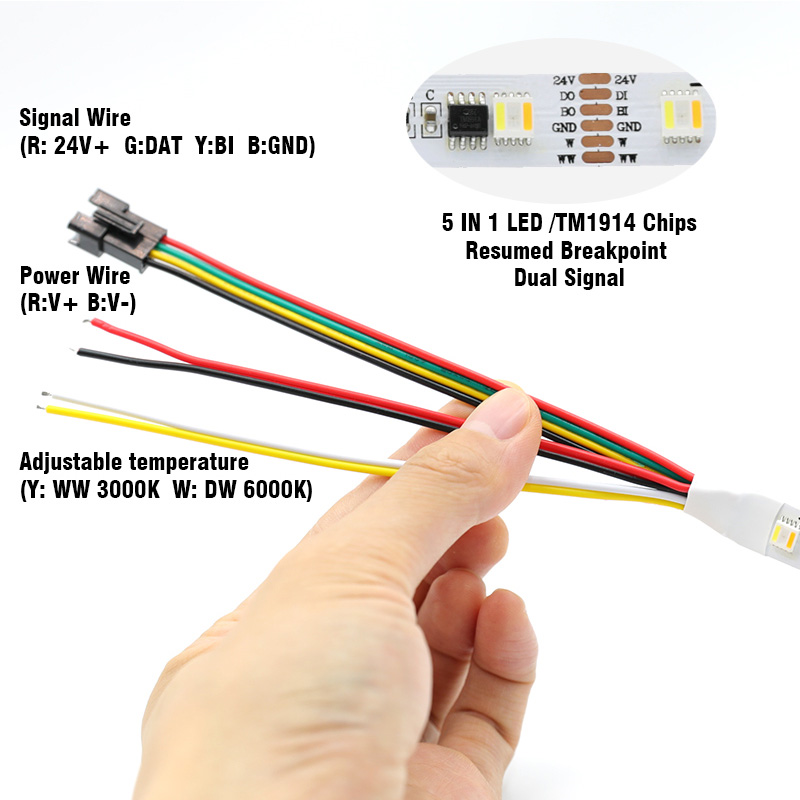

Note: The TM1914 Addressable RGB+CCT LED strips are special. They have SPI 4-pin signal wires, 2-pin power wires, and tunable white 2-pin wires. So you can connect the addressable LED controller and CCT dimmer to the LED strips at the same time, and can control the lights easily. Please watch the test video as follows.
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBCCT 5in1 LED|
|LED Chip:||Epistar Chip|
|IC Type:||TM1914 (built-in IC) (1 IC drives 6 led chip)|
|Pixel Quantity:||8 pixels/m|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||Dream Color RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||24 VDC|
|Working Power:||19.7W/m, 98.5W/16.4ft → Informations About LED Power Supply|
|Beam Pattern:||120 degree|
|Wavelength NM(RGBY):||2000-2500mcd, 256 grey scale, 8-bits/color;total 24bit for RGB color|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. Addressable RGBCCT led strip wiring diagram:
3. Installing led strip lights: - How To Install LED Strip Lights?
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting
