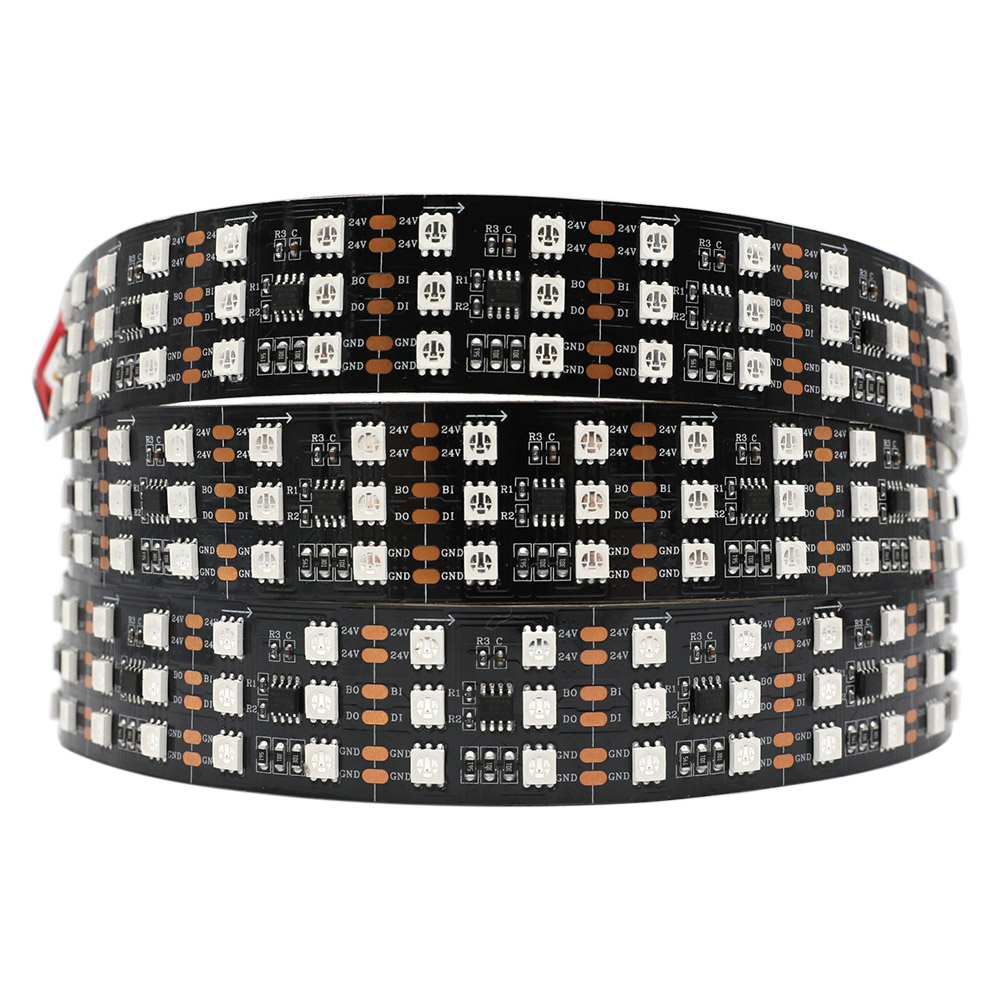

DC24V Brightest Triple Rows TM1934 5050SMD Breakpoint-Resume 16.4Ft 900LEDs Addressable RGB LED Strip Lights
1. LED density is 55LEDs/Ft super bright, it is the brightest TM1934 addressable LED strip light, you can customize the IP67/68, suitable for indoor & outdoor large space lighting.
2. Special Triple rows arranging structure, PCB wide is 30mm/1.18in, with a good heat dissipation; works with the LED aluminum channel or LED neon light, softly achieve the whole roll without light spot.

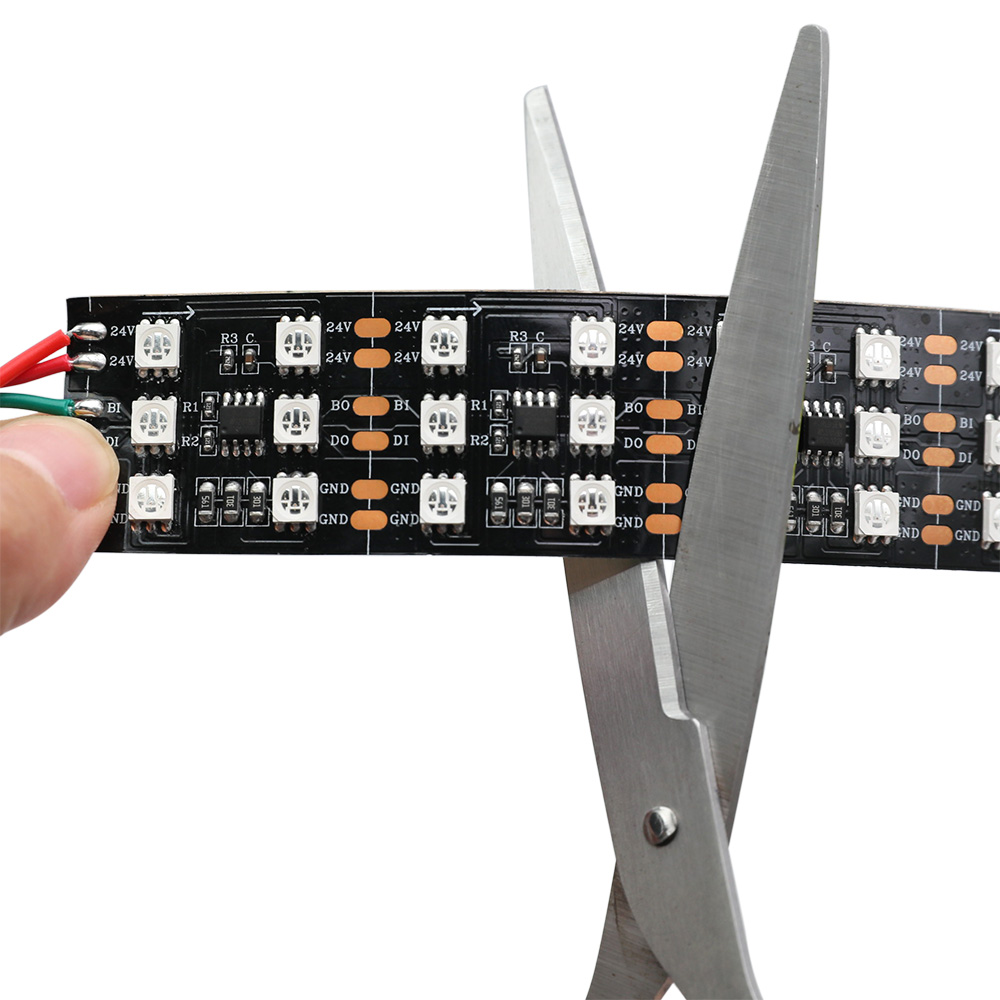

3. Support DC24V low voltage input, every triple rows 6LEDs cuttable, you can customize the length of LED strip light, 10m/32.8Ft without voltage drop.
4. Breakpoint resume programmable LED strip, a single pixel failure will not affect the signal transmission unless two consecutive adjacent pixels fail.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
TM1934 Epistar IC
Adopt high voltage power CMOS process
55LEDs/Ft Super density
Multiple waterproof level available
Triple rows 1.18in wide LED strip
DC24V input voltage
6LEDs cuttable, customize length
Breakpoint resume dual channel
256 gray levels available
Built-in 5V regulator in VDD
Built-in RC oscillation
Built-in power-on reset circuit
Data transmission rate up to 800KHz
16 million dynamic color chasing effects
Standards and Certifications

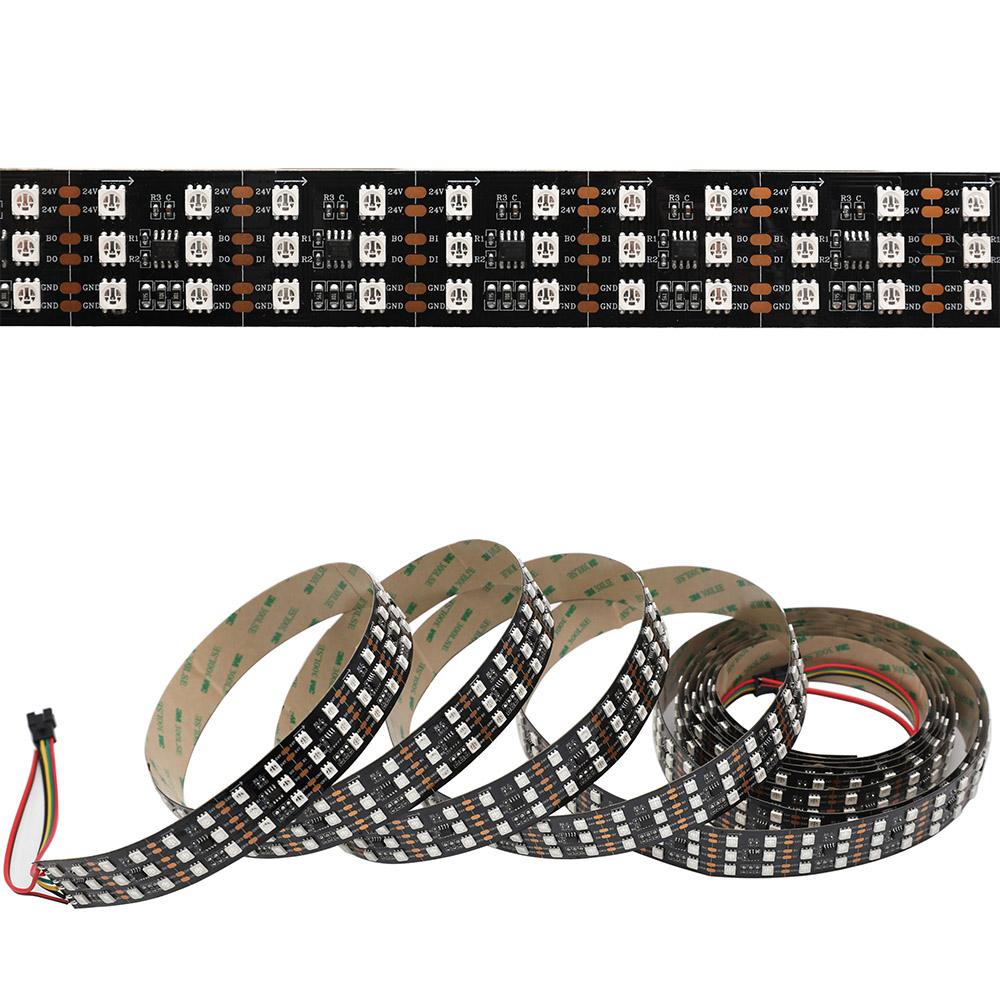

Product Name: 5050 TM1934 External IC addressable RGB LED strip light
IC Type: Epistar

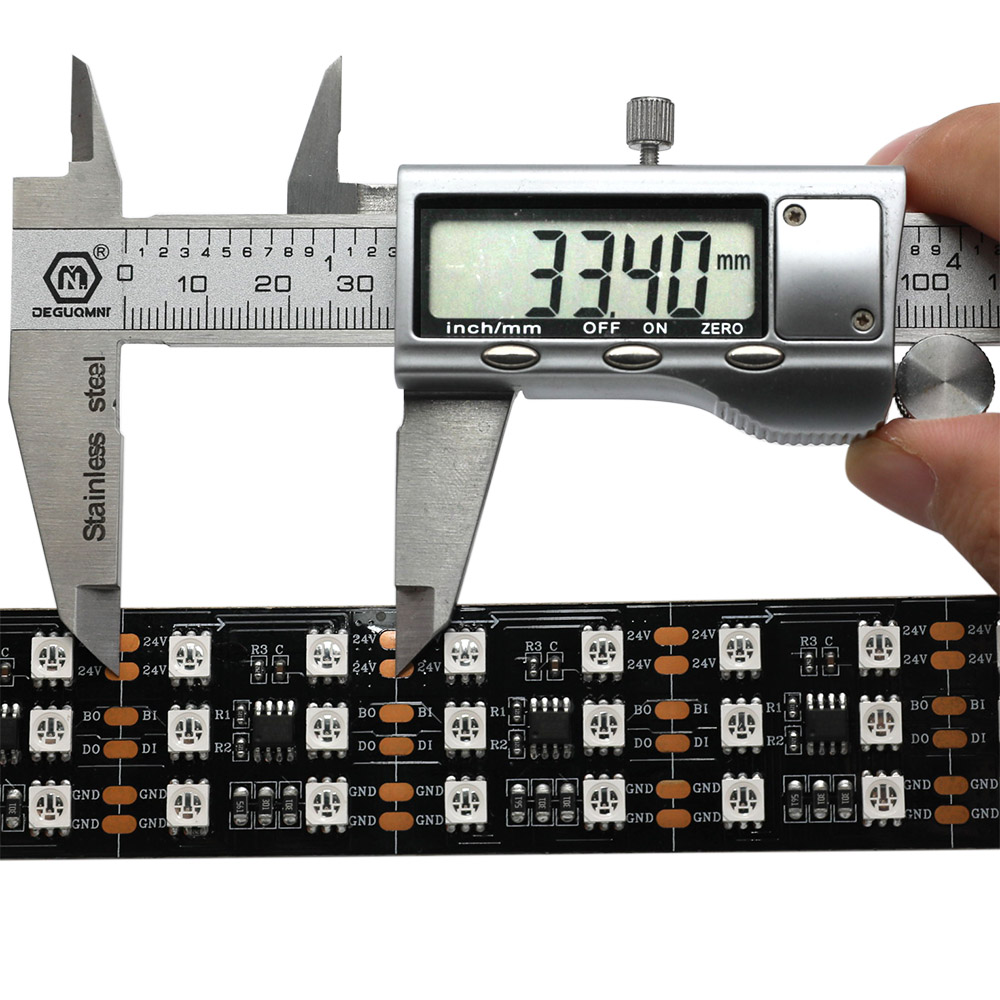

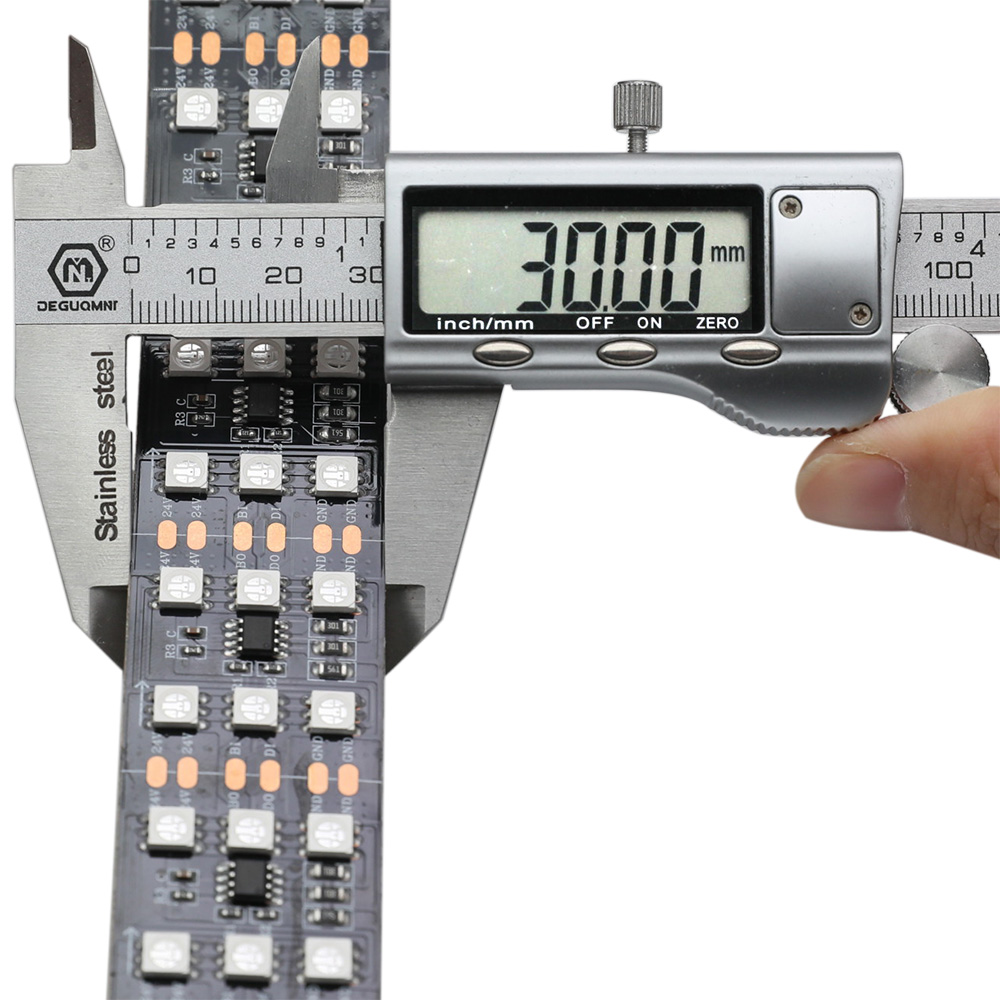

PCB Width: 30mm/1.18in
Input Voltage: DC24V
LED Chip Model: TM1934 IC
LED Resource: SMD 5050 RGB
PCB Color: Black
Colors: Full-color RGB, dream color changing;
Greyscale: 256 levels
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Circuit Board: Double-sided FPC electrolytic copper circuit board
LED Quantities: 55LEDs/Ft, 180 LEDs/m
Rated Power: 13W/Ft; 43.2W/m; 216W/Roll
Waterproof Rating: IP20(non-waterproof) IP65/67/68(waterproof)
IC Quantities: 10ICs/m
1* TM1934 16.4Ft 900LEDs addressable LED strip light
For indoor environment, if you choose the LED controller in the LED strip light kit, we will send you CONFULL-SP107E LED controller.
How to choose LED power supply and LED controller?
For the LED power supply, the power of the LED strip light is 216W/roll, to avoid the power load, the power of the LED power supply must be 216*1.2=259.2W.
For indoor environment, we will send you LRS-350-24 MW UL-Listed LED power supply, we will also send you an AC plug.
For outdoor environment, we will send you PSWP-24V-300W waterproof LED power supply, we will also send you an AC plug.
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
Waterproof Level Description

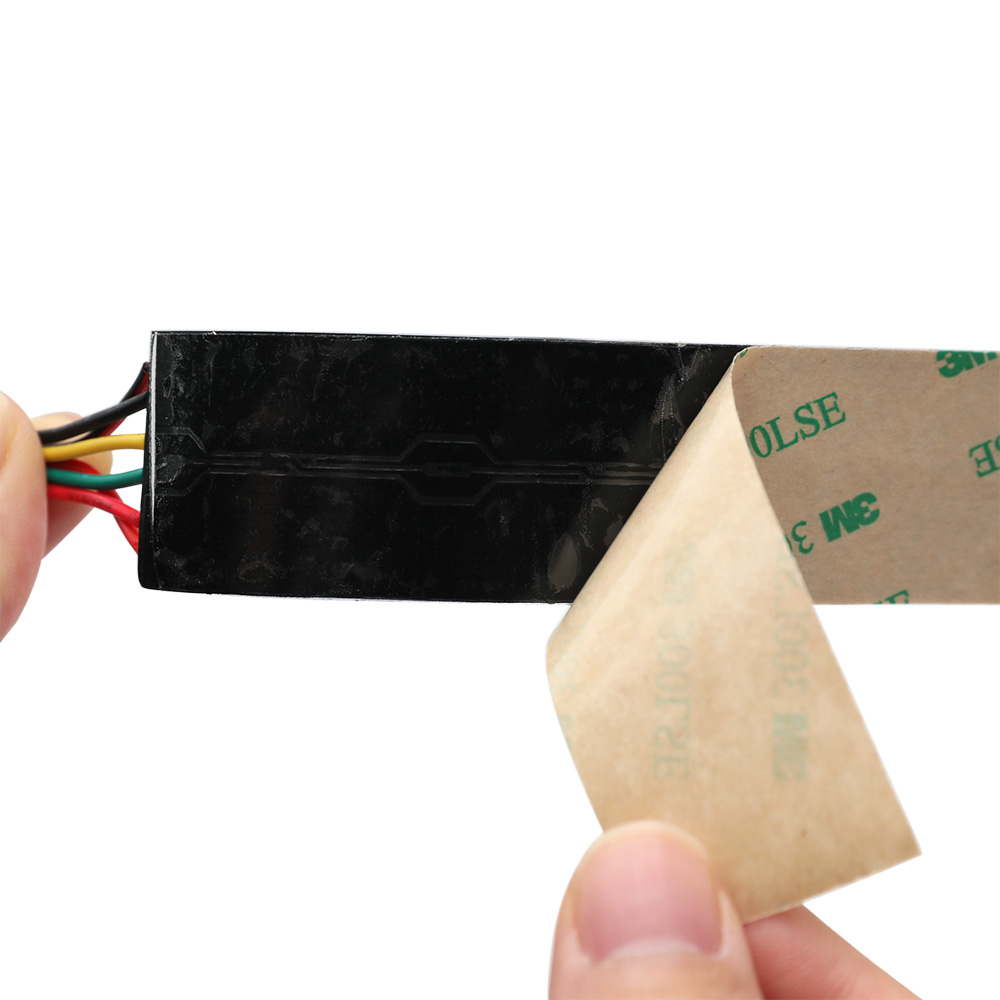

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
