Product Information

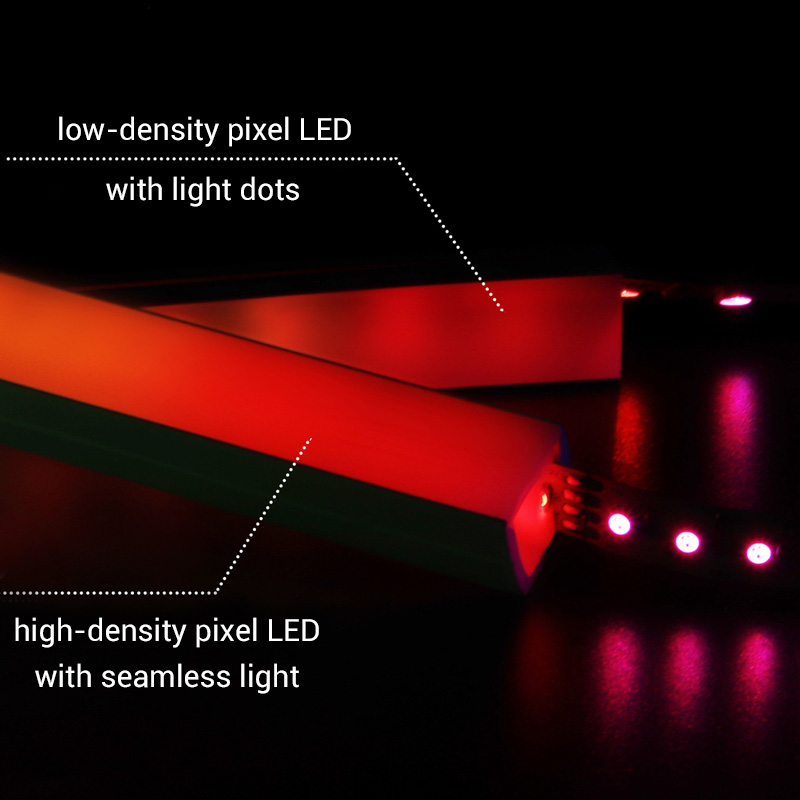

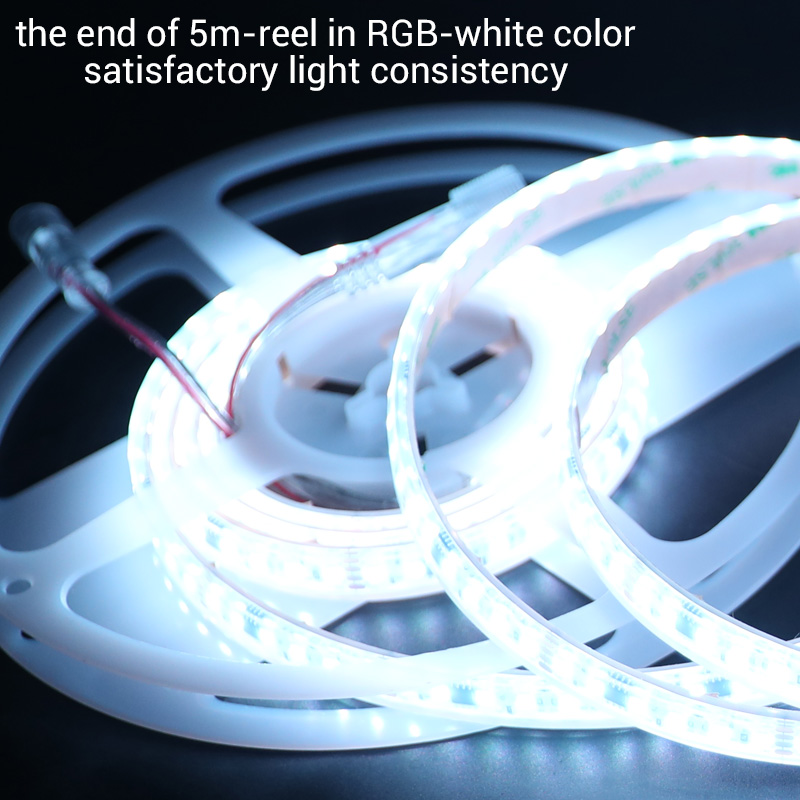

Bring dreamy light to your space. Featuring TM1934 IC chip control with 2835 LED beads, this RGB LED strip pixel ribbon gives you unimaginable light consistency, whether it's a 6LED-segment or a 12-segment 120 lights/m type. And when you use it with outdoor neon tubing or aluminum led channels for led strip lights, the results are even more stunning. It hides perfectly within these materials for a fantastic spotless illumination.
Its 24V operating voltage allows this TM1934 RGB pixel strip to transmit over long distances, maintaining stable brightness and color performance even over long wiring distances, giving you more freedom in designing your lighting layout. The dual data signal design of the TM1934 greatly improves signal stability and reliability in addressable lighting projects.

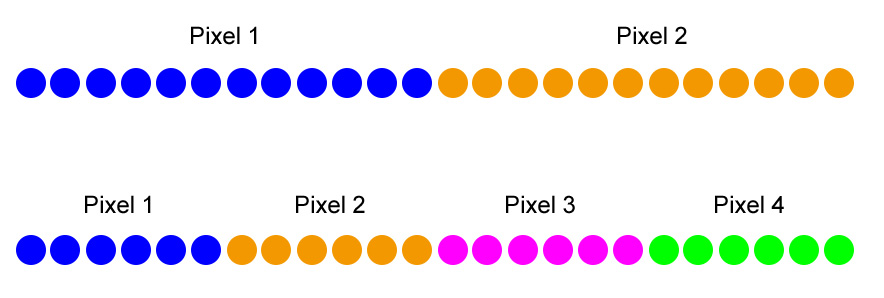

Number of pixels on the strip light tape
20 control units per meter creates a more subtle and richer light effect than 10 control units per meter. When used to display fine patterns, text or complex motion effects, every little detail can be better visualized.
Product Specifications
| LED Strip Type: | Bright Addressable RGB LED Pixel Ribbon |
| LED Chip: | TM1934 + SMD2835 |
| Input Voltage: | DC24V |
| Power: |
11W/m, 3.35W/ft, 55W/Reel max for 12LEDs per cut; 22W/m, 6.7Wft, 110W/Reel max for 6LEDs per cut |
| LED Color: | RGB |
|

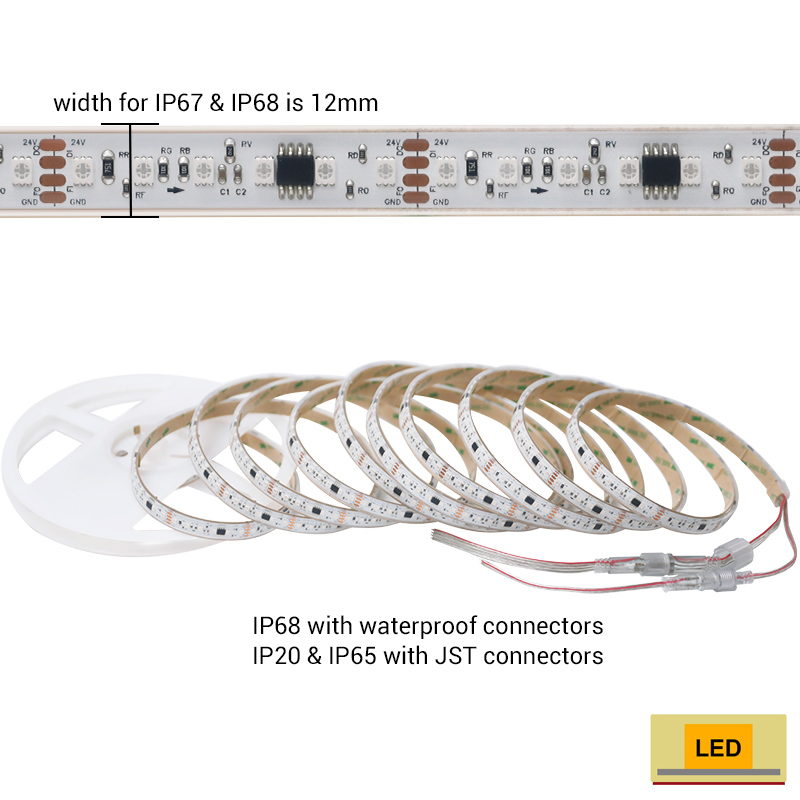

PCB Width:
|
IP20/65 10mm/0.3", IP67/68 12mm/0.4",
|
| LED Quantity: | 120 LEDs/m |

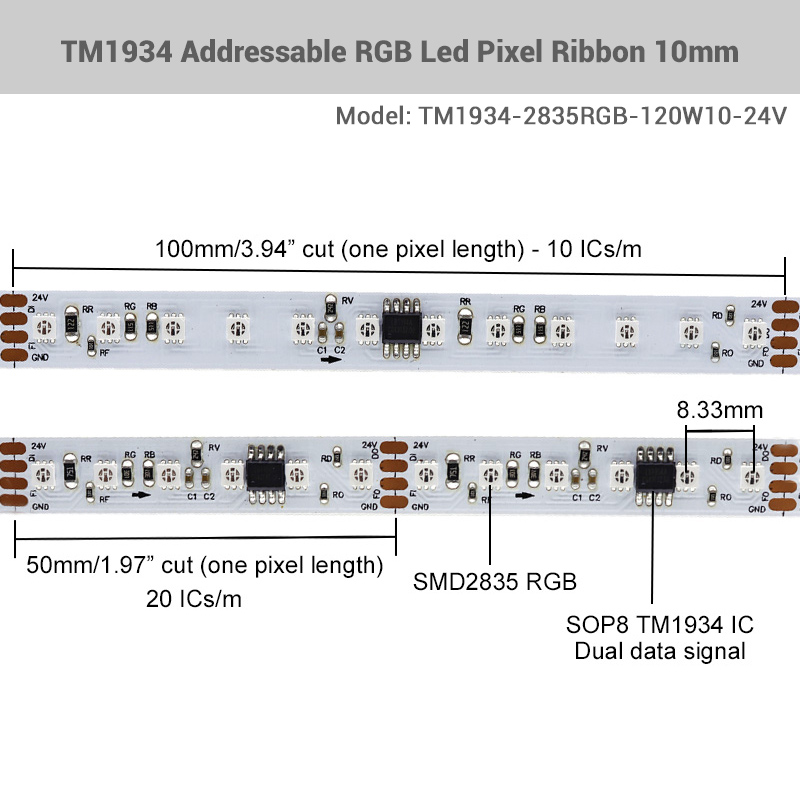

| IC Quantity: | 10/20 IC/meter (1 IC drives 12/6 leds), 50/100 Reel |
| Cuttable: | 6-LED, 50mm/1.97"; 12-LED, 100mm/3.94" |
| Length: | 5m 16.4ft |
| Connector: | 4pin JST male and female connectors |
| Pins: | Positive, data, backup data, nagetive |
| Gray Scale: | 256 |
| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68 |
| Working Temperature: | -20℃ ~ +45℃ |
| Beam Angle: | 120° |
4 Pin TM1934 RGB LED Strip Wiring

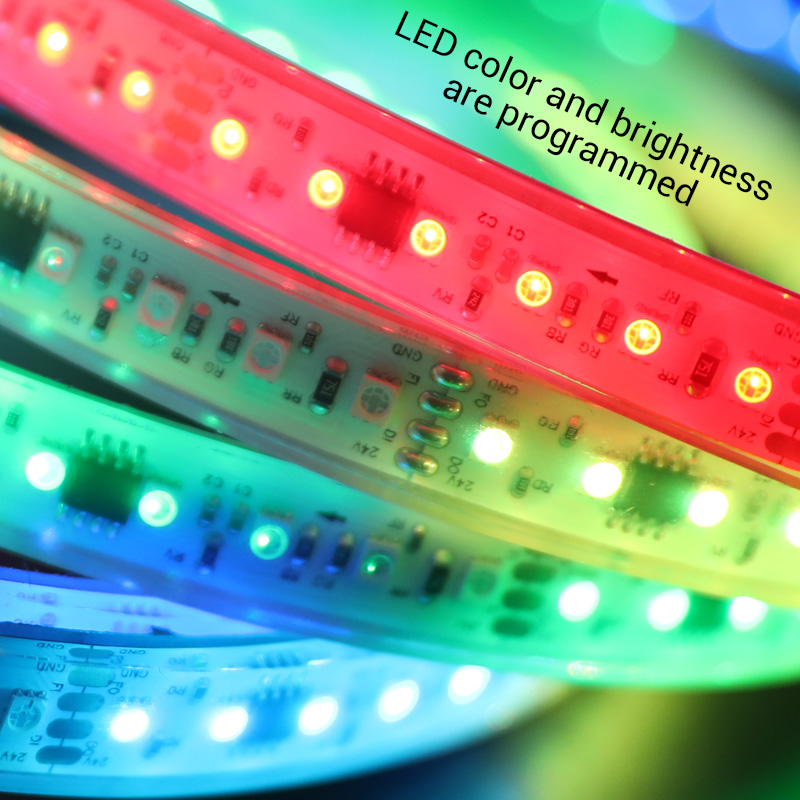

TM1934 IC control is a highlight of this bright RGB light strip. You can easily adjust a variety of colorful and dynamic effects with the X7 WiFi Tuya SPI controller (controller in the kit).
Connect "24V+" wire of the strip to "VCC" port of the controller, data wire "Di/Do" to "DAT" port, backup date wire "Fi/Fo" to "DAT" or "GND" port, "GND" wire to "GND" port. Then power the controller and pixel ribbon with DC 24V power supply like LRS-100-24 or LRS-150-24 in the kit.
