Product Information

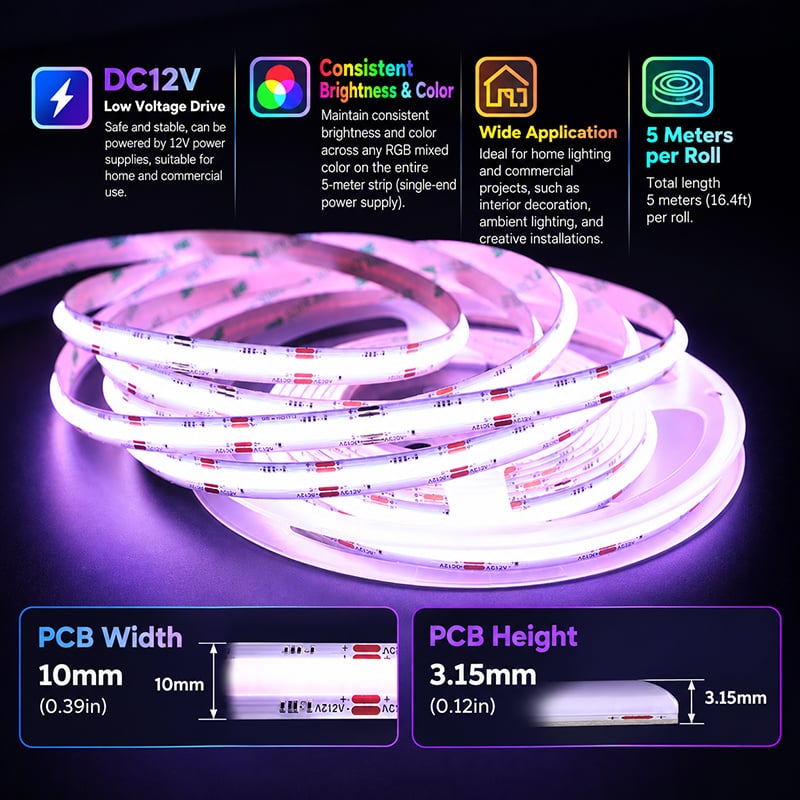

This DC12V cob led light strip delivers continuous, completely dot-free multi-color illumination across a full 16.4ft (5-meter) spool. Featuring 810 dense chips per meter embedded directly on a 10mm wide PCB with an ultra-low 3.15mm profile, this cob rgb led strip eliminates the visible diode spots common to standard SMD RGB light strips. Operating at 15W per meter (75W total per roll), the circuit architecture maintains consistent color fidelity and stable brightness across the entire 5-meter run from a single-ended power feed without visible voltage loss. Available in three ingress protection choices—non-waterproof IP20, outdoor silicone tube IP67, and submersible IP68—this versatile RGB color changing cob led strip integrates seamlessly into residential joinery, architectural coves, and commercial displays.
Continuous COB RGB LED Strip Features
810 Chips/m Dotless Output
Dense chip-on-board packaging produces a continuous 180-degree beam angle with zero diode spotting on reflective countertops or diffusers.
Zero End-to-End Voltage Drop
Engineered 10mm copper PCB allows a complete 5-meter run powered from one end while maintaining uniform mixed RGB hues throughout.

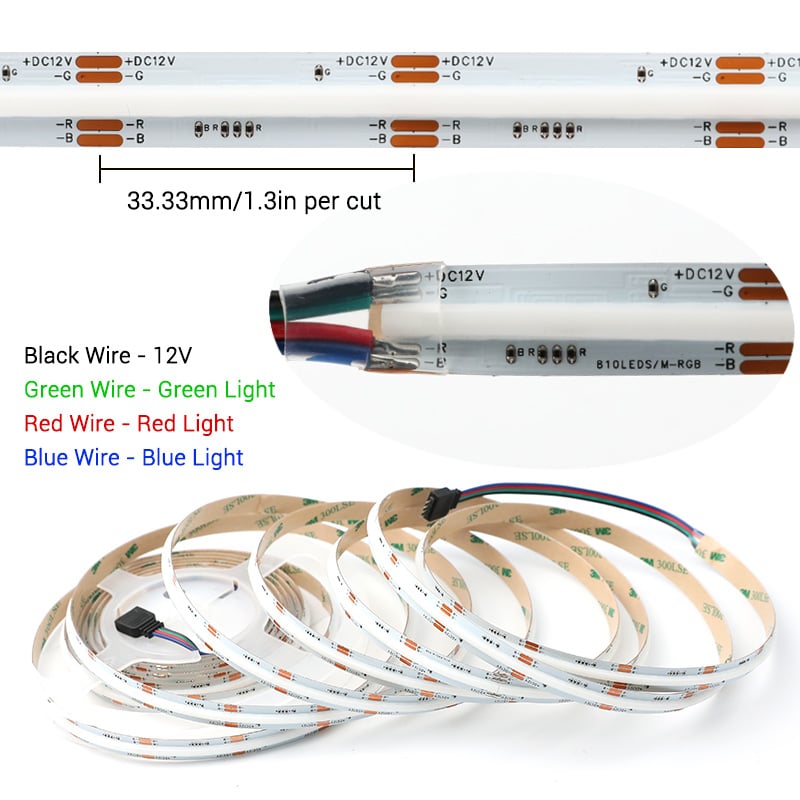

Short 33.33mm Cut Increments
Clearly indicated cut marks every 33.33mm allow exact sizing adjustments for tight millwork and display enclosures.
Pre-Installed Dual 4-Pin Terminations
Each 16.4ft reel includes factory-soldered 4-pin female/male pin headers or power wires on both ends to speed up field installation.
Three Ingress Protection Options
Select from indoor IP20 bare board, outdoor IP67 silicone jacketed, or fully submersible IP68 solid encapsulation.
Controller Compatibility
Pairs directly with an external Color Change RGB Controller Series to dial in static tones, dynamic fades, or music sync modes.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | FSLCOB-12VRGB-810W10 |
| Operating Voltage | DC 12V |
| Power Consumption | 15W/m (75W per 5m roll) |
| LED Density | 810 LEDs/m (4,050 LEDs per 5m roll) |
| Emitting Color | RGB (Full Color Changing) |
| Terminations | 4-pin connectors or power wires on both ends |
| Beam Angle | 180° |
| PCB Width | 10mm |
| Strip Height | 3.15mm |
| Cut Interval | 33.33mm (1.31 in) |
| Standard Roll Length | 16.4ft (5 meters) |
| Available Waterproof Ratings | IP20 (Indoor), IP67 (Silicone Tube), IP68 (Underwater Submersible) |
| Adhesive Type | Thermal conductive self-adhesive back |
| Working Temperature | -20℃ to +45℃ |
Application Scenarios
How to Install & Use This LED Strip
- Inspect and test: Unroll the entire 16.4ft reel and connect it briefly to a 12V power supply and RGB controller to confirm all RGB channels function before permanent mounting.
- Cut to size if needed: Trim the strip only along the marked copper cut pads located every 33.33mm using sharp scissors.
- Peel and stick: Peel back the protective liner from the adhesive backing and press the strip firmly along the clean surface or inside an aluminum channel.
- Make connections: Plug the pre-attached 4-pin connector into your controller harness or use a solderless 4-pin connector designed for 10mm COB LED strips.
- Wire power and controller: Connect the DC12V power supply output leads to the RGB controller DC input terminals (+ and -), matching polarity carefully.
- Refer to instructions: For advanced setups, review the detailed guide on How to Wire RGB Color Changing LED Strip Lights?.
⚠ Precautions
- Ensure your 12V power supply capacity exceeds the 75W reel load by at least 20% (recommended minimum rating: 90W to 100W).
What's in the Box
- ✓1 x 16.4ft (5m) Spool of DC12V COB RGB LED Strip Light (810 LEDs/m, 10mm PCB)
- ✓2 x Factory-attached 4-Pin Male/Female Terminal Pin Connectors or Power Wires
Frequently Asked Questions
Q: can you cut rgb led strip lights
A:Yes. This 12V COB RGB LED strip can be cut cleanly every 33.33mm along the clearly printed copper solder line markings.
Q: how to connect cob led strip
A:Connect this strip using its pre-soldered 4-pin male pin headers, solder lead wires directly to the 10mm copper solder pads, or snap on a compatible 4-pin solderless COB connector.
Q: how to control rgb led strip
A:Connect the 4-pin output (+12V, R, G, B) to any standard 12V constant-voltage RGB controller, which lets you adjust color, saturation, dimming, and dynamic chase scenes via RF remote, wall panel, or smartphone app.
Q: Does a 5-meter run suffer from visible voltage drop?
A:No. The 10mm copper PCB is specifically designed so that a single-ended 12V power feed delivers consistent brightness and identical mixed RGB color tones across the full 5-meter reel.
Q: What power supply size should be used for one 16.4ft reel?
A:The 16.4ft reel consumes 75W at full output. To ensure long component life following the standard 80% load rule, choose a 12V DC power supply rated at 96W or higher.
