Product Information

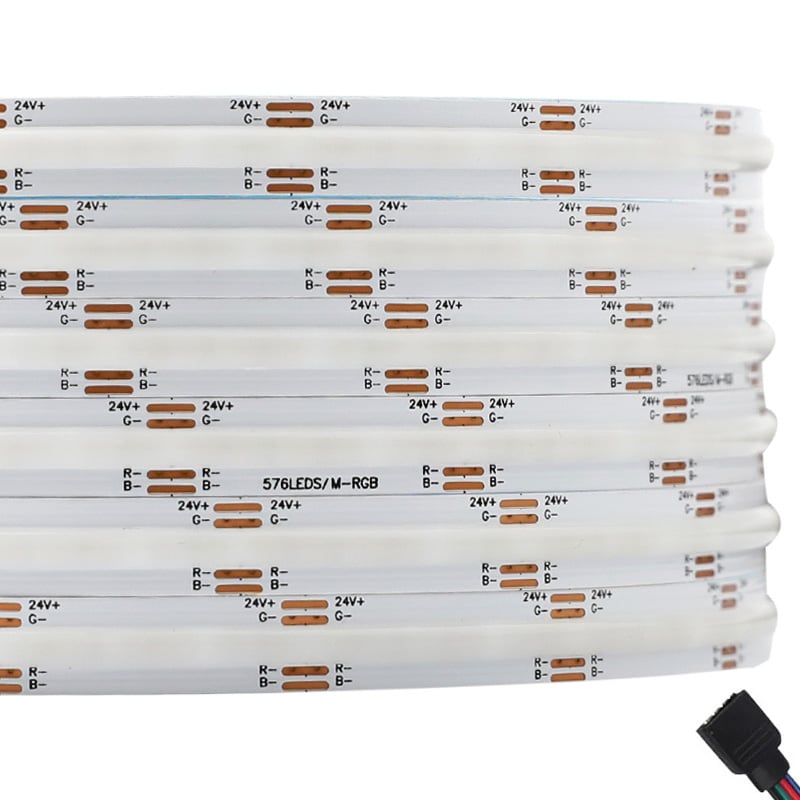

The FSLCOB-1224VRGB-576W10 series RGB COB LED strip light delivers continuous, dot-free color mixing across 576 micro-LED chips per meter. Engineered for residential ambient accents and architectural integration, this 10mm flexible LED strip operates at 14W per meter and is available in both 12V and 24V DC configurations. Each 5-meter reel comes pre-wired with 4-pin male and female plug-in pin connectors on opposite ends for immediate connection to RGB 4-channel controllers. This LED strip incorporates a standard 4-pad surface layout, positioning two solder pads on each side of the linear coating to support 10mm 4-pin solderless COB connectors.
Key Features
Dual Voltage Engineering

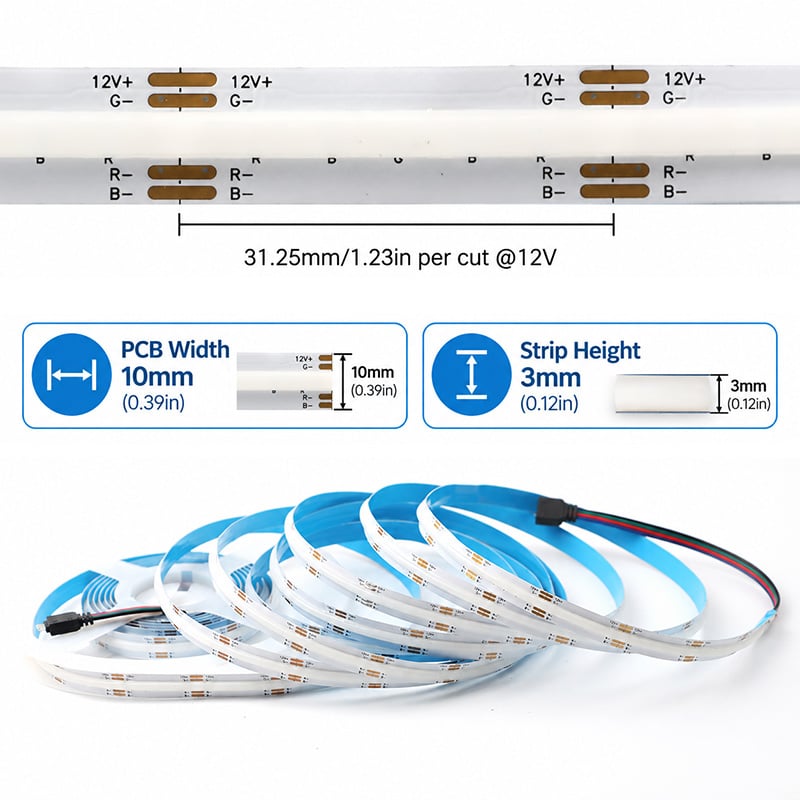

Select between 12V DC (3.0mm profile) for vehicle and battery installations, or 24V DC (2.2mm profile) for 5-meter single-feed runs with zero visible voltage drop.

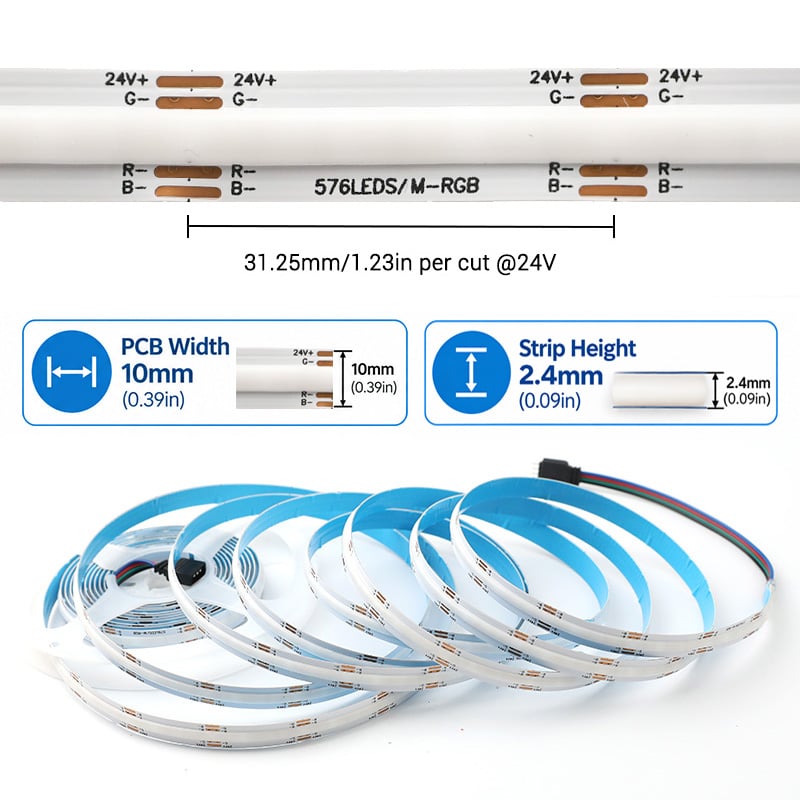

Precise 31.25mm Cut Increments
Copper cut marks every 31.25mm allow exact field sizing inside tight cabinetry, aluminum profiles, and decorative perimeter coves.
Pre-Installed Dual End Terminations
Supplied on a 5-meter reel with pre-attached 4-conductor input and output pins on opposite ends to accelerate system mock-up and wiring.
Technical Highlights
- 14W/m power consumption totaling 70W per full 5-meter reel, requiring 84W minimum power supply sizing with a 20% safety margin.
- 24V model maintains uniform luminous intensity across the entire 5m run with single-ended power injection.

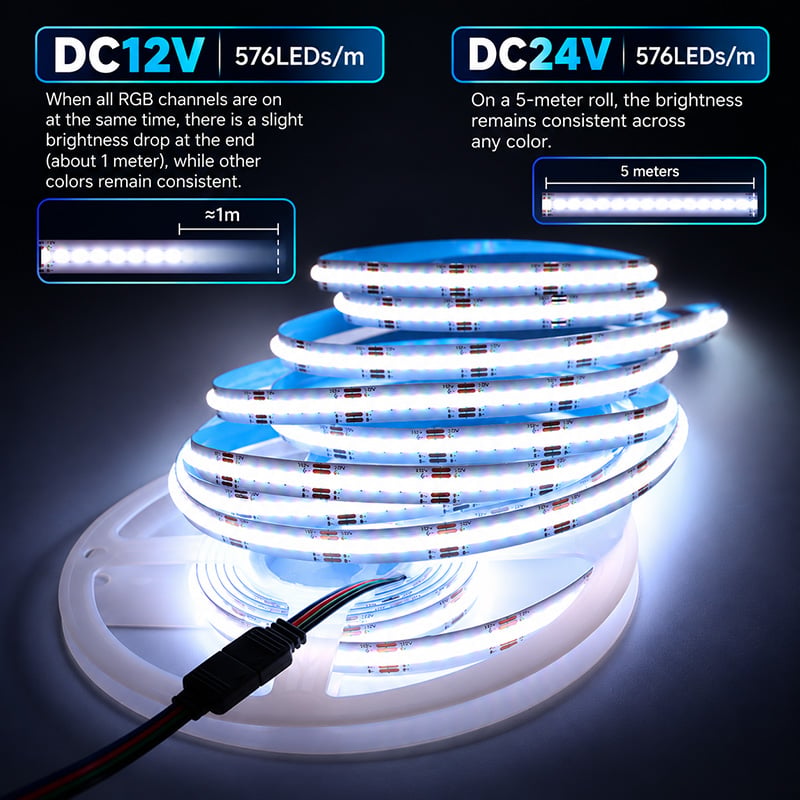

- 12V model exhibits measurable voltage attenuation on the final 1.0 meter when R, G, and B channels run simultaneously at 100% duty cycle on single-ended feeds; double-ended feeding solves this limitation, as detailed in our low-voltage project guide.
- Pair the 12V edition directly with regulated 12V desktop power supplies for localized under-shelf installations.
- Drive the 24V edition using matching 24V desktop power supplies to ensure stable color consistency across extended lengths.
- Mount into surface mount corner channels to enhance passive thermal dissipation and safeguard the PCB against physical contact.
Product Specifications
| Parameter | Details |
|---|---|
| Product SKU | FSLCOB-1224VRGB-576W10 |
| Operating Voltage | DC 12V or DC 24V (Selectable) |
| LED Technology | COB (Chip-on-Board) |
| LED Density | 576 LEDs per meter |
| Power Consumption | 14W/m (70W per 5m reel) |
| Color Configuration | RGB (Red, Green, Blue) |
| Beam Angle | 180° |
| PCB Width | 10mm (0.39 in) |
| Strip Height / Thickness | 12V: 3.0mm; 24V: 2.2mm |
| Reel Length | 5 meters (16.4 feet) |
| Cut Interval | 31.25mm (1.23 in) |
| Connection Interface | 4-pin plug-in headers pre-installed on both ends |
| Solderless Connector Compatibility | 10mm 4-pin COB solderless connectors |
| Ingress Protection | IP20, IP67, IP68 |
| Operating Temperature | -20°C to +45°C |
| Dimming & Control Mode | Common Anode (V+ / R- / G- / B-) PWM Dimmable |
Application Scenarios
How to Install & Use This LED Strip
- Measure the required installation length and cut the LED strip strictly along the designated copper cut lines spaced every 31.25mm using clean shears.
- Connect the 4-pin leads (V+, R, G, B) to your RGB controller, matching polarity markings accurately.
- Power the assembly temporarily to confirm full red, green, and blue channel output across all segments.
⚠ Precautions
- The 12V edition shows voltage drop across the final 1.0m when all channels operate at 100%; feed both ends with DC power to maintain uniform color.
- Always calculate power supply capacity with a 20% headroom factor: size at least 84W of power supply capacity for a single 5m reel operating at 70W.
What's in the Box
- ✓1 × 5m (16.4ft) Reel of FSLCOB-1224VRGB-576W10 RGB COB LED Strip Light
- ✓2 × Pre-soldered 4-Pin Plug-in Connectors (one male, one female at opposite ends)
Frequently Asked Questions
Q: how to connect cob led strip
A: You can connect this LED strip using its pre-attached 4-pin plug-in headers, soldering wires directly onto the solder pads, or inserting cut ends into standard 10mm 4-pin COB solderless clamp connectors.
Q: how to cut rgb led strip lights
A: Cut directly across the black dashed line centered between the dual copper pads every 31.25mm using sharp electronics scissors while the power supply is disconnected.
Q: What is the difference between the 12V and 24V versions?
A: The 12V version measures 3.0mm high and exhibits voltage drop on the final 1 meter of a 5m single-ended feed when white light (all channels) is displayed, whereas the 24V version is 2.2mm high and operates 5 meters continuously with zero visible voltage drop.
