Product Information

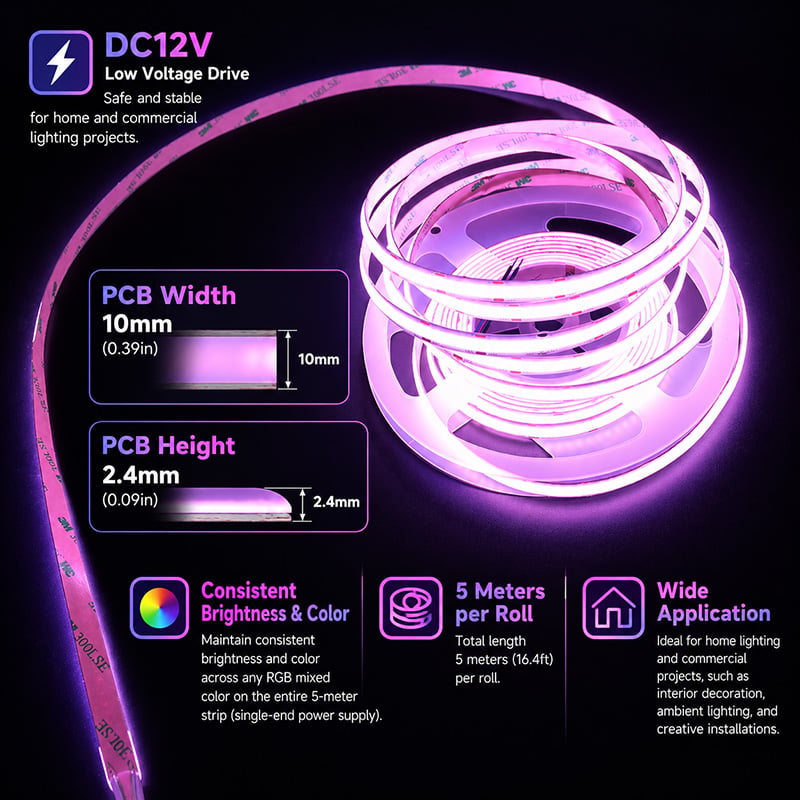

This is a 12V dotless COB LED strip light delivering continuous, hotspot-free RGB multi-color illumination across a 180° beam angle. Engineered with 756 chips/m mounted onto a 10mm wide flexible circuit board, this super bright RGB led tape light draws 15W/m (75W total per 16.4ft roll) to generate over 16 million vivid color tones without visible diode dots.

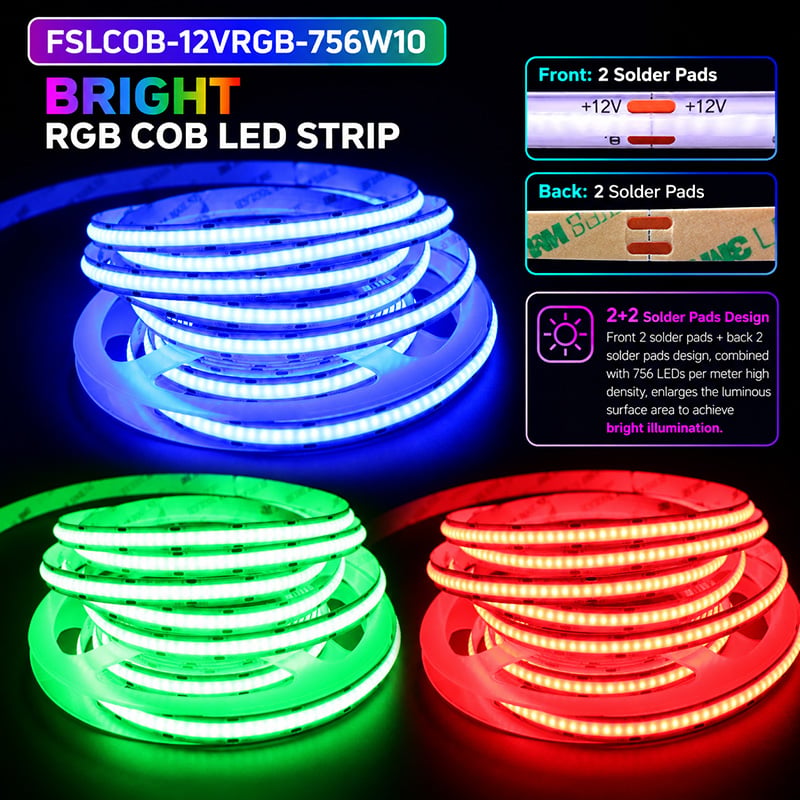

A specialized split-pad engineering layout places two solder pads on the top face and two solder pads on the rear face, reducing encapsulation height to 2.4mm while maximizing the active light-emitting surface.
Each 5m spool arrives with pre-attached 4-pin color-coded power lead wires on both ends and supports cutting every 23.8mm (0.94in). Available in three ingress protection choices—IP20 bare board with 3M adhesive backing, IP67 silicone tube, and IP68 solid waterproof construction—this cob led light strip provides clean architectural accents for aluminum channels, display coves, furniture, and wet-rated environments.
Key Features
Seamless Dotless RGB Illumination
Dense packaging of 756 LEDs/m under continuous encapsulation eliminates diode spots even when mounted in shallow channels without diffusers.
Innovative Split Solder Pad Design
Relocating two solder connection points to the reverse face of the 10mm PCB expands the frontal emitting area to boost total luminous output.
Low-Profile 2.4mm Thickness
A streamlined encapsulation height of 2.4mm slides effortlessly into slim linear profiles and tight architectural trim lines.

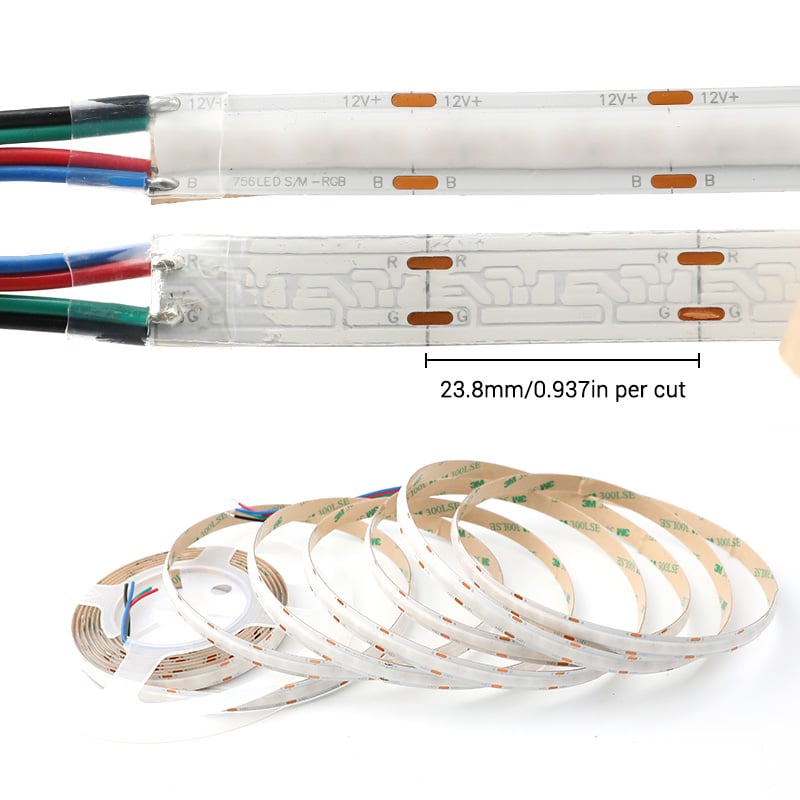

Short 23.8mm Cut Intervals
Precisely spaced cut marks every 23.8mm (0.94 in) allow accurate field trimming to match custom cabinetry, shelves, and cove lengths.
Three Ingress Protection Selections
Available in 3 choices including IP20 indoor adhesive tape, IP67 exterior silicone sleeving with mounting clips, and IP68 fully submersible construction.
Dual-Ended 4-Pin Power Wires
Each 5m roll comes equipped with 4-conductor color-coded lead wires soldered on both ends for direct connection to RGB controllers.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | FSLCOB-12VRGB-756W10 |
| Operating Voltage | 12V DC |
| Power Consumption | 15W/m (75W per 5m spool) |
| Current Draw | 1.25A/m (6.25A per 5m roll) |
| LED Density | 756 LEDs/m |
| PCB Width | 10mm (0.39in) |
| LED Strip Height | 2.4mm (0.09in) |
| Roll Length | 16.4ft (5 meters) |
| Cutting Pitch | 23.8mm (0.94in) |
| Beam Angle | 180° |
| Connector Type | Dual-ended 4-Pin color-coded bare wires |
| Connector Compatibility | Soldering required (incompatible with solderless clip connectors) |
| Ingress Protection Options | Available in 3 choices: IP20 indoor, IP67 silicone tube, IP68 underwater |
| Operating Temperature | -20℃ to +45℃ (-4°F to 113°F) |
| Storage Temperature | -20℃ to +60℃ (-4°F to 140°F) |
Application Scenarios
How to Install & Use This LED Strip
- Measure the installation track and cut the LED strip strictly across the marked copper solder pads spaced at 23.8mm intervals using sharp shears.
- Because this LED strip utilizes an offset 2-pad-front and 2-pad-rear solder layout, do not use clip-on solderless terminal blocks; make all wire extensions by direct soldering to the copper pads.
- Connect the 4-pin leads to your Color Change RGB Controller Series terminal block, aligning the common positive (+12V) and R/G/B negative control lines according to the How to Wire RGB Color Changing LED Strip Lights connection guide.
- Wire the controller input to a regulated 12V DC power supply sized to handle at least 15W per meter plus a 20% safety margin (minimum 90W for a full 5m run).
⚠ Precautions
- Incompatible with solderless clip connectors: The 2-pad-front and 2-pad-rear offset circuit requires hand soldering for all segment joins and corner turns.
- Observe polarity strictly; connecting 12V DC positive to an R, G, or B color return channel will prevent correct switching and may damage the controller.
- For IP67 and IP68 outdoor installations, seal all cut ends and solder joints with neutral-cure silicone sealant and fitted end caps to maintain moisture protection.
What's in the Box
- ✓1 × 16.4ft (5m) Spool of Super Bright 12V RGB COB LED Strip Light with Dual-Ended 4-Pin Lead Wires
Frequently Asked Questions
Q: can you cut rgb led strip lights
A:Yes, you can cut this 12V RGB COB LED strip at any of the designated copper solder marks spaced exactly every 23.8mm (0.94in) along the tape.
Q: how to cut rgb led strip lights
A:Disconnect power completely, locate the printed scissor symbol or central cut line across the copper contact pads, and make a perpendicular cut using sharp shears.
Q: how to connect cob led strip
A:Because this model features 2 solder pads on the front face and 2 solder pads on the rear face, it cannot use snap-on connectors; connections must be made by direct soldering with 4-conductor wire.
Q: how to control rgb led strip
A:Connect the 4-pin wiring (+12V, R, G, B) to a constant-voltage RGB LED controller, allowing color tuning, brightness dimming, and dynamic scene selection via RF remote, wall panel, or smartphone app.
